In industrial and commercial electrical systems, Motor Protection and circuit safety are crucial to ensuring the stable operation of equipment and avoiding economic losses caused by electrical faults. However, many electrical practitioners and project managers often confuse two key protective devices: circuit breakers and motor circuit protectors (MCPs). What is the difference between a circuit breaker and a motor circuit protector? Clarifying their differences, functional positioning and application scenarios is the basis for selecting the right protective device and building a reliable electrical system. This article will systematically analyze the core differences between the two, integrate the required explanatory paragraph, and focus on introducing the CJRV series Motor Protector launched by Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance Motor Starter that integrates protection and control functions, providing comprehensive Motor Protection for various industrial scenarios.
First of all, we need to clarify the basic definitions and core functions of circuit breakers and motor circuit protectors. A circuit breaker is a general-purpose automatic electrical switch that can connect, carry and break current under normal circuit conditions, and can also protect the circuit from overload and short-circuit faults within a specified time[1][6]. A motor circuit protector (MCP), on the other hand, is a specialized protective device designed specifically for motor circuits, with a more targeted functional positioning. An MCP is only for short-circuit protection and must be used with a separate overload relay. A standard circuit breaker provides both overload and short-circuit protection in one device. They serve different system roles and cannot be swapped without a complete redesign of the protection scheme.
The core difference between the two lies in their protection scope, functional positioning and application scenarios. From the perspective of protection scope, circuit breakers are mainly used to protect the entire circuit (including cables, distribution panels and various electrical equipment), with a wide range of protection, and integrate overload and short-circuit protection functions in one device, which is a general-purpose protection device[6]. The MCP is specially designed for motor circuits, only responsible for short-circuit protection, and must be used with an independent overload relay to achieve comprehensive protection of the motor, which is a specialized Motor Protection component[2][6].
From the perspective of functional characteristics, the circuit breaker has a relatively large grade difference and low sensitivity of action characteristics, and its overload protection function is difficult to accurately match the working characteristics of the motor—if it is set to avoid the peak value of the motor starting current, it is often impossible to achieve effective overload protection[1]. The MCP ignores the short-term high inrush current during motor startup and only responds to real damaging short-circuit events, with higher sensitivity and more targeted protection[6]. In addition, the circuit breaker needs to be manually reset after tripping, while the MCP can be quickly restarted by matching the overload relay, which is more convenient for daily operation and maintenance[1].
In practical applications, circuit breakers are widely used in general lighting, sockets, appliance branch circuits and other scenarios, while MCPs are mainly used in motor control systems, cooperating with contactors and overload relays to form a complete Motor Starter system[2][7]. For scenarios that require comprehensive Motor Protection and convenient control, choosing a integrated Motor Protector that integrates multiple protection functions is a more efficient and reliable choice. C&J Electrical’s CJRV series Motor Protector is such a product that integrates protection and control, which can effectively solve the pain points of motor protection and meet the diverse needs of various industries.

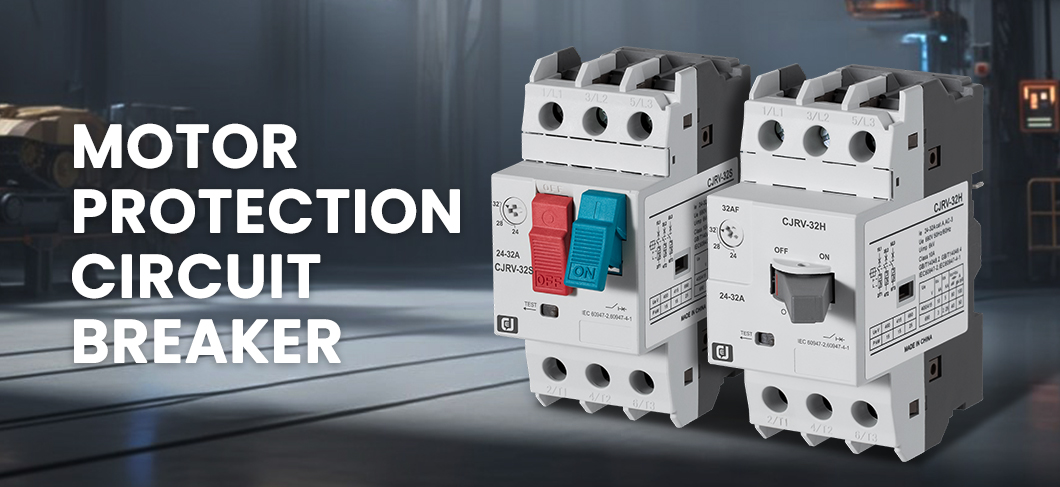

Overview of C&J Electrical CJRV Motor Protector (Motor Starter)
The CJRV series AC Motor Starter is a professional Motor Protector independently developed and produced by C&J Electrical, integratingMotor Protection and infrequent starting control functions. Different from the traditional MCP that only provides short-circuit protection, the CJRV series Motor Protector integrates multiple protection functions such as overload, phase failure and short-circuit protection, and can also realize infrequent starting control of motors, which is a multi-functional integrated device[4].
This series of Motor Starter is designed for three-phase squirrel cage asynchronous motors, with a wide range of voltage and current adaptation. It is suitable for circuits with AC voltage up to 690V and current up to 80A, and can meet the protection and control needs of motors in various low-voltage scenarios[4]. The product has a variety of specifications, including CJRV-25(X), CJRV-32(X), CJRV-32H, CJRV-80, etc., with flexible selection, and can be used as not only a Motor Protector but also a distribution line protector, infrequent load switch and isolator, with strong versatility[4].
The CJRV series Motor Protector adopts high-quality materials and scientific structural design, complying with relevant international standards, with stable performance and high safety. It can accurately monitor the working status of the motor in real time, quickly respond to various faults, cut off the circuit in time to protect the motor from damage, and effectively reduce the downtime caused by motor faults, improving the operational efficiency of the equipment[4].
Scope of Application & Core Functions of CJRV Motor Protector
As a multi-functional Motor Starter and Motor Protector, the CJRV series has a wide scope of application and comprehensive functions, which can fully meet theMotor Protection and control needs of various scenarios. Its detailed scope of application and core functions are as follows:
Scope of Application
The CJRV series AC motor starter is suitable for circuits with AC voltage up to 690V and current up to 80A. It is used for overload, phase failure, short circuit protection, and infrequent starting control of three-phase squirrel cage asynchronous motors. It can be used for distribution line protection and infrequent load switching, and can also be used as an isolator. This wide scope of application makes it widely used in electric power, construction, industry, OEM and other fields, providing reliable Motor Protection for various motors and distribution lines[4].
Core Functions & Product Advantages
- Comprehensive Motor Protection: Integrates overload, phase failure and short-circuit protection functions, which can comprehensively respond to common motor faults. Compared with the traditional MCP that only provides short-circuit protection, it does not need to be used with an independent overload relay, simplifying the system configuration and reducing the installation space and cost[1][6].
- Infrequent Starting Control: While providingMotor Protection, it can also realize infrequent starting control of three-phase squirrel cage asynchronous motors, integrating protection and control functions, which is convenient for users to operate and manage, and improves the convenience of equipment use[7].
- Multi-scenario Versatility: It can not only be used as a Motor Protector but also for distribution line protection and infrequent load switching, and can also be used as an isolator. One device has multiple uses, which can meet the diverse protection needs of different scenarios and reduce the types of equipment purchased by users[4].
- Wide Adaptability: Suitable for AC voltage up to 690V and current up to 80A, covering a variety of voltage and current levels, and can be flexibly matched with different power motors. The rated frequency is 50/60Hz, which is suitable for domestic and international power supply systems[4].
- Stable and Reliable Performance: Adopts high-quality materials and strict production testing procedures, with excellent electrical performance and mechanical performance. The rated impulse withstand voltage reaches 8000V, which can withstand the impact of transient overvoltage and ensure stable operation in complex electrical environments[4].
- Multiple Specifications Optional: There are multiple specifications such as CJRV-25(X), CJRV-32(X), CJRV-32H, CJRV-80, with different shell frame levels and tripping levels, which can be flexibly selected according to the actual needs of users[4].
Normal Working and Installation Conditions of CJRV Motor Starter
To ensure the stable and reliable operation of the CJRV series Motor Protector and give full play to its Motor Protection performance, it is necessary to use and install it in strict accordance with the specified working and installation conditions. The specific requirements are as follows:
- Installation Altitude: The altitude of the installation site generally does not exceed 2000m. If the altitude exceeds 2000m, the performance of the product may be affected, and corresponding derating measures need to be taken[4].
- Ambient Temperature: The lower limit of the ambient air temperature is generally not lower than -5°C, the upper limit is generally not higher than +40°C, and its average value within 24 hours does not exceed +35°C. The temperature range is wide, which can adapt to most indoor and outdoor working environments[4].
- Ambient Humidity: The relative humidity of the air shall not exceed 90% (at +25°C ± 5°C). It can adapt to relatively humid environments, but it is necessary to avoid long-term use in environments with excessive humidity to prevent internal components from being damp and damaged[4].
- Pollution Level: The pollution level of the surrounding environment is pollution level 3, which can adapt to industrial environments with a certain amount of dust and pollutants, ensuring stable operation under harsh conditions[4].
- Installation Category: The installation category of the starter is installation category III, which is suitable for the installation of low-voltage distribution systems and motor control systems, meeting the safety requirements of industrial installation[4].
- Installation Inclination: The inclination between the starter and the vertical installation surface shall not exceed ±5°, ensuring the stability of installation and avoiding the impact of inclination on the operation of the product[4].
- Tripping Level: CJRV-25(X), CJRV-32(X), CJRV-32H, CJRV-80: 10A, which can accurately respond to fault currents and ensure the timeliness of Motor Protection[4].
- Rated Working Hours: It supports uninterrupted working hours and eight-hour working hours, which can adapt to different working intensity requirements and ensure long-term stable operation[4].
Technical Data of CJRV Motor Protector (Motor Starter)
|
Technical Parameter
|
Specification Details
|
|---|---|
|
Rated insulation voltage Ui (V)
|
690
|
|
Rated working voltage Ue (V)
|
AC230/240, AC400/415, AC440, AC500, AC690
|
|
Rated frequency (Hz)
|
50/60
|
|
Rated current of shell frame level Inm (A)
|
25 (CJRV-25, 25X), 32 (CJRV-32, 32X/CJRV-32H), 80 (CJRV-80)
|
|
Rated current of the release In (A)
|
See Table 1
|
|
Setting current regulation range
|
See Table 1
|
|
Rated ultimate short-circuit breaking capacity Icu (kA)
|
See Table 1
|
|
Rated operating short-circuit breaking capacity Ics (kA)
|
See Table 1
|
|
Rated impulse withstand voltage Uimp (V)
|
8000
|
|
Selective categories and usage categories
|
Selective categories (A or B); Usage categories: A, AC-3
|
|
Insulation stripping length before conductor insertion (mm)
|
10, 15 (CJRV-80)
|
|
Cross section area of conductor (mm²)
|
1~6, 2.5~25 (CJRV-80)
|
|
Maximum number of clamped conductors
|
2, 1 (CJRV-80)
|
|
Terminal fastening screw (or bolt) size
|
M4, M8 (CJRV-80)
|
|
Tightening torque of terminal fastening screws (N·m)
|
1.7, 6 (CJRV-80)
|
|
Operation frequency (times/hour)
|
≤30, ≤25 (CJRV-80)
|
Application Scenarios of CJRV Motor Protector
With comprehensive Motor Protection functions, wide adaptability and strong versatility, the CJRV series Motor Starter and Motor Protector is widely used in various industrial and commercial scenarios, providing reliable protection and control for motors and distribution lines. Combined with its product characteristics and scope of application, the specific application scenarios are as follows:
- Industrial Production Scenarios: Applied to small and medium-sized industrial workshops, factories and production lines, used for Motor Protection and infrequent starting control of three-phase squirrel cage asynchronous motors such as pumps, fans, compressors and conveyors. The comprehensive protection functions can effectively avoid motor damage caused by overload, phase failure and short circuit, ensuring the normal operation of the production line[5][7].
- Building and Construction Scenarios: Suitable for construction sites and building electrical systems, used for Motor Protection of construction machinery (such as small hoists, water pumps) and building ventilation, air conditioning and water supply systems. It can adapt to the harsh environment of construction sites, with stable performance and high safety[5].
- Power Distribution Scenarios: Used for distribution line protection and infrequent load switching in low-voltage distribution rooms, community distribution stations and other places. It can also be used as an isolator to ensure the safety of power distribution operations and the stable operation of distribution lines[4].
- OEM Supporting Scenarios: Suitable for OEM supporting, can be integrated into various electrical equipment and motor control cabinets, providing professional Motor Protection and starting control functions for the equipment. Multiple specifications can be flexibly matched with different OEM products, improving the safety and reliability of the whole equipment[4].
- Public Facility Scenarios: Applied to public facilities such as hospitals, shopping malls, schools and communities, used for Motor Protection of ventilation systems, water supply systems and fire-fighting equipment. The stable and reliable performance can ensure the normal operation of public facilities and protect public safety[5].
Why Choose C&J Electrical CJRV Motor Protector?
In the competitive Motor Protection market, the CJRV series Motor Protector from C&J Electrical has won the trust of users with its comprehensive functions, stable performance and high safety. As a professional manufacturer of electrical protection devices, C&J Electrical has rich experience in R&D and production. The CJRV series Motor Starter is produced through strict quality control and testing procedures, ensuring that each product meets relevant standards and has reliable performance[4].
Compared with ordinary Motor Protector and MCP products on the market, the CJRV series has obvious advantages: it integrates overload, phase failure and short-circuit protection functions, and does not need to be used with an independent overload relay, simplifying the system configuration; it integrates protection and starting control functions, with strong versatility; it has a wide range of voltage and current adaptation, and multiple specifications can be flexibly selected; it has stable performance and strong environmental adaptability, and can operate stably in harsh environments[1][6].
In addition, we support OEM brand customization services, with a variety of specifications available, wide application scenarios and high safety performance. Whether it is industrial production, building construction, power distribution or OEM supporting, the CJRV series Motor Protector can provide comprehensive and reliable Motor Protection, safeguard the safe operation of motors and electrical systems, and reduce economic losses caused by motor faults.
If you have any questions about the selection, installation, use or customization of the CJRV series Motor Protector and Motor Starter, please feel free to contact C&J Electrical. Our professional technical team will provide you with tailored solutions and reliable technical support to ensure the safe and stable operation of your motor and electrical system.
Post time: Apr-15-2026
