In the field of low-voltage electrical power distribution, various protective devices play a key role in ensuring the safe and stable operation of circuits and equipment. Among them, MCCB is a common and important term, but many electrical practitioners, project managers and users often have questions about its specific meaning and application: What does MCCB mean in electrical? To answer this question clearly, we need to interpret the definition, functions and application value of MCCB in detail, and combine practical product cases to help everyone better understand this core protective device. This article will systematically explain the meaning of MCCB, integrate the required explanatory paragraph, and focus on introducing the CJMM3 series Mccb Molded Case Circuit Breaker launched by Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance Mccb Circuit Breaker that meets international standards, providing reliable protection for low-voltage distribution systems in various fields.
In electrical engineering, MCCB is one of the core components of low-voltage power distribution systems, and its full name and functional positioning are the key to understanding its value. On the other hand, MCCB is an abbreviation for Molded Case Circuit Breaker. The MCCB is a protective device protecting the circuit from overloading. Additionally, it has a switch that is operated manually for tripping the circuit. Simply put, MCCB (Molded Case Circuit Breaker) is a kind of mechanical switch device that integrates protection and control functions[3]. It is enclosed in a molded plastic shell, which can not only connect, carry and break current under normal circuit conditions, but also connect, carry and break current under specified abnormal circuit conditions (such as overload, short circuit) for a certain period of time, thereby protecting lines and electrical equipment from damage[5].
Compared with other circuit protection devices (such as MCB), Mccb Breaker has the advantages of larger rated current, higher breaking capacity and more flexible installation methods, making it widely used in low-voltage power consumption places such as electric power, construction, industry and OEM[4][5]. As a professional Mccb Molded Case Circuit Breaker, it not only undertakes the task of circuit protection, but also provides convenient manual operation functions, which is easy for daily operation and maintenance. Choosing a high-quality MCCB is crucial to improving the safety and stability of the entire power distribution system.
C&J Electrical, focusing on the R&D and production of low-voltage electrical protection devices, has launched the CJMM3 series Mccb Circuit Breaker to meet the diverse protection needs of various industries. This series of Mccb Molded Case Circuit Breaker has excellent structural design, complete functions and reliable performance, fully complying with IEC60947-1/IEC60947-2 international standards[1][6], and has become a reliable choice for low-voltage power distribution protection in many fields. Next, we will detail the product overview, structural characteristics, working and installation conditions, technical parameters, application scenarios and product advantages of the CJMM3 series MCCB.

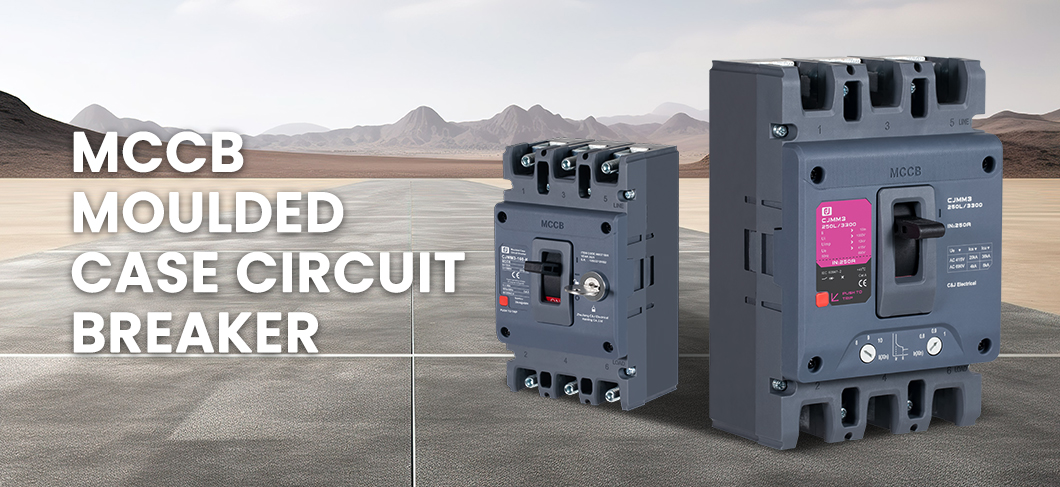

Overview of C&J Electrical CJMM3 Mccb Molded Case Circuit Breaker
The CJMM3 series Mccb Molded Case Circuit Breaker is a high-performance protective device independently developed and produced by C&J Electrical, specially designed for low-voltage distribution lines. As a professional Mccb Breaker, it integrates connection, control and protection functions, and can effectively respond to overload, short circuit and other faults in the circuit, ensuring the safe operation of lines and equipment[3].
The CJMM3 series MCCB adopts a scientific structural design, with a frame grade covering 125A, 160A, 250A, 400A and 630A, and a rated current range of 16A~630A, which can be flexibly selected according to the load requirements of different circuits[4]. The product supports 3-pole configuration, with a rated working voltage of 400/415V and 690V, which is suitable for various low-voltage power distribution scenarios. It is equipped with single magnetic type and thermal magnetic type release, which can provide targeted protection according to different fault types, and the breaking capacity covers 20kA, 36kA, 50kA, 70kA and 75kA, which can meet the common breaking requirements in the power distribution field[5].
In terms of installation, the CJMM3 series Mccb Molded Case Circuit Breaker provides three installation methods: fixed, plug-in and drawer, which are suitable for different installation environments and maintenance needs, greatly improving the flexibility and convenience of use. The product is made of high-quality materials, with IP40 protection level (from the front), which can effectively prevent dust and foreign objects from entering, ensuring stable operation in harsh environments[3].
Structural Characteristics & Core Advantages of CJMM3 Mccb Circuit Breaker
The CJMM3 series Mccb Breaker has obvious structural advantages and reliable performance, which can fully meet the protection needs of low-voltage distribution lines. Its detailed structural characteristics and core advantages are as follows:
- Comprehensive Protection & Versatile Functions: CJMM3 series Moulded Case Circuit Breakers, in low-voltage distribution lines, can connect, carry and break current under normal circuit conditions, and can also connect, carry and break current under specified abnormal circuits for a certain period of time. A mechanical switch that protects lines and equipment when overload, short circuit, or undervoltage occur on distribution lines (accessory function). It is widely used in low-voltage power consumption places such as electric power, construction, industry, and OEM. This comprehensive protection function ensures that the circuit and equipment are protected in all aspects, reducing the risk of equipment damage and fire hazards[5].
- Multiple Frame Grades & Flexible Selection: Frame grade covers 125A, 160A, 250A, 400A, 630A, and rated current ranges from 16A to 630A. Different frame grades and rated current specifications can be selected according to the actual load of the circuit, which is highly adaptable and can meet the protection needs of various low-voltage distribution scenarios[4].
- Wide Voltage Adaptability: Rated working voltage Ue is 400/415V and 690V, which is suitable for different low-voltage power supply systems, and can be widely used in domestic and international low-voltage power distribution projects[3].
- Strong Breaking Capacity: Breaking capacity covers commonly used breaks in the power distribution field: 20kA, 36kA, 50kA, 70kA, 75kA (see the parameter table for specific breaking of each frame). The strong breaking capacity can safely cut off the short-circuit current, avoid the damage of the Mccb Molded Case Circuit Breaker and the protected equipment caused by excessive short-circuit current, and ensure the stability of the entire power distribution system[5].
- 3-Pole Configuration & Stable Performance: The 3-pole configuration is adopted, which is suitable for three-phase low-voltage circuits, ensuring balanced current distribution and stable operation of the circuit, and effectively avoiding faults caused by unbalanced three-phase current[4].
- Dual Release Types: Release type includes single magnetic type and thermal magnetic type. The single magnetic type release can quickly trip when a short circuit occurs, while the thermal magnetic type release can slowly trip when an overload occurs, realizing targeted protection for different faults and improving the reliability of protection[3].
- Multiple Installation Methods: Installation method includes fixed, plug-in and drawer types. The fixed type is suitable for fixed installation scenarios, the plug-in type is convenient for disassembly and maintenance, and the drawer type can be pulled out for maintenance without power failure, which greatly improves the maintenance efficiency and reduces the downtime[5].
Working And Installation Conditions of CJMM3 MCCB
To ensure the stable and reliable operation of the CJMM3 series Mccb Circuit Breaker, it is necessary to use and install it in strict accordance with the specified working and installation conditions. The specific requirements are as follows:
- Normal Working Temperature: The normal working temperature range is -5~40°C. For environments with temperatures between -40°C ~-5°C and 40°C ~70°C, special attention should be paid to the operation status of the product to ensure that it can work normally[2].
- Temperature Derating Requirement: If the working environment temperature exceeds 40°C, please refer to the temperature derating coefficient table for use. The temperature derating coefficient is related to the ambient temperature and conductor cross-sectional area, which can ensure that the Mccb Breaker can still maintain stable protection performance under high temperature conditions[2].
- Storage Temperature: The storage temperature range is -40~70°C. If the storage temperature is lower than the normal working conditions, the product should be returned to the normal working conditions and left to stand for at least 24 hours before being put into use, so as to avoid the influence of low temperature on the internal components and ensure the normal operation of the product[3].
- Normal Operating Humidity: When the ambient air humidity is +40°C, the relative humidity of the atmosphere cannot exceed 50%; if the temperature is lower, it can be used under higher relative humidity conditions; for example, at +20°C, the relative humidity can reach 90%. This humidity requirement ensures that the internal components of the Mccb Molded Case Circuit Breaker will not be damp and damaged, and maintains stable electrical performance[5].
Technical Data of CJMM3 Mccb Molded Case Circuit Breaker
|
Technical Parameter
|
Specification Details
|
|---|---|
|
Type
|
CJMM3-125 / CJMM3-160 / CJMM3-250 / CJMM3-400/630
|
|
No. of Poles
|
3P
|
|
Rated Current
|
16A~630A
|
|
Impulse Withstand Voltage Uimp (kV)
|
8kV/10kV
|
|
Operational Frequency (Hz)
|
50/60Hz
|
|
Utilisation Category
|
A
|
|
Reference Temperature
|
-5~+40°C
|
|
Operating Temperature
|
-5~+40°C
|
|
Standard
|
IEC60947-1/IEC60947-2
|
|
Electrical Life
|
5000/3000
|
|
IP Protection (from front side)
|
IP40
|
|
Pollution Degree
|
III
|
|
Type of Release
|
Single magnetic trip/thermal magnetic trip
|
Application Scenarios of CJMM3 Mccb Circuit Breaker
As a high-performance Mccb Molded Case Circuit Breaker, the CJMM3 series has a wide range of applications, relying on its excellent performance and flexible configuration, and is widely used in low-voltage power consumption places such as electric power, construction, industry and OEM. Combined with its product characteristics and technical parameters, its specific application scenarios are as follows:
- Electric Power Field: Applied to low-voltage distribution systems of power plants, substations and power distribution stations, used to protect the main distribution lines and branch lines of the power system. The strong breaking capacity and stable protection performance can effectively respond to overload and short-circuit faults in the power distribution system, ensuring the safe and stable operation of the power grid[5].
- Construction Field: Suitable for low-voltage distribution systems of residential buildings, commercial buildings, office buildings and other construction projects, used to protect the lines and electrical equipment of the building. The 3-pole configuration and multiple installation methods are suitable for the complex power distribution environment of buildings, and the wide range of frame grades can meet the protection needs of different floors and different load circuits[4].
- Industrial Field: Applied to low-voltage distribution systems of small and medium-sized industrial workshops, factories and production lines, used to protect industrial equipment (such as motors, pumps, control equipment) and distribution lines. The thermal magnetic type and single magnetic type release can provide targeted protection for industrial equipment with large load changes, avoiding equipment damage caused by overload and short circuit[3].
- OEM Field: Suitable for OEM supporting, can be integrated into various electrical equipment and power distribution cabinets, providing reliable protection for the equipment. The multiple specifications and flexible installation methods make it easy to match with different OEM products, improving the safety and reliability of the whole equipment[5].
- Other Scenarios: Also applicable to low-voltage power distribution systems of public facilities, such as community power distribution rooms, shopping malls, hospitals, etc. The IP40 protection level and strong environmental adaptability can ensure stable operation in various complex environments, protecting public electrical safety[3].
Why Choose C&J Electrical CJMM3 Mccb Molded Case Circuit Breaker?
In the competitive MCCB market, the CJMM3 series Mccb Circuit Breaker from C&J Electrical has won the trust of users with its reliable performance, complete functions and high safety. As a professional manufacturer of low-voltage electrical protection devices, C&J Electrical has rich experience in R&D and production. The CJMM3 series Mccb Breaker is produced through strict quality control and testing procedures, ensuring that each product meets IEC60947-1/IEC60947-2 international standards[1][6], and has stable and reliable performance.
Compared with ordinary Mccb Molded Case Circuit Breaker products on the market, the CJMM3 series has obvious advantages: it has comprehensive protection functions, which can effectively respond to overload, short circuit and other faults; multiple frame grades and specifications can be flexibly selected according to actual needs; multiple installation methods improve the convenience of use and maintenance; strong breaking capacity and stable performance ensure long-term safe operation; IP40 protection level and excellent environmental adaptability can adapt to various harsh working environments[3][5].
In addition, we support OEM brand customization services, with a variety of specifications available, wide application scenarios and high safety performance. Whether it is electric power, construction, industry or OEM field, the CJMM3 series Mccb Molded Case Circuit Breaker can provide reliable protection for low-voltage distribution systems, safeguard the safety of lines and equipment, and reduce economic losses caused by electrical faults.
If you have any questions about the selection, installation, use or customization of the CJMM3 series MCCB, please feel free to contact C&J Electrical. Our professional technical team will provide you with tailored solutions and reliable technical support to ensure the safe and stable operation of your low-voltage distribution system.
