When designing low-voltage power distribution systems, many buyers and electrical engineers struggle with a common selection question: Is MCCB better than MCB? Both types of low-voltage circuit breakers provide overload and short-circuit protection, yet they differ greatly in current capacity, breaking performance, adjustability and application boundaries. Choosing the right device based on actual load demands is the core of safe and economical power distribution design.
In short, MCBs feature fixed trip parameters, small current ratings and compact size, which are optimized for residential, commercial light-load terminal circuits. In comparison, Mccb Circuit Breakers support adjustable protection parameters, wide current coverage and high short-circuit breaking capacity, making them the preferred solution for industrial main distribution, high-power equipment and complex low-voltage systems. As a core category of Mccb Electrical equipment, Ac Mccb is widely used in global AC low-voltage distribution scenarios.
Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches the CJMM3 series dual-adjustable Mccb, which features multi-frame specifications, diverse breaking levels and flexible installation methods. Designed for medium and high-current AC power distribution systems, this series of breakers fills the performance gap of ordinary MCBs in industrial high-load scenarios and supports customized configuration for various engineering projects.
Core Differences Between MCCB and MCB
To clarify whether Mccb is superior to MCB, it is necessary to compare their functional positioning and performance boundaries. The two devices are not substitutable but complementary in power distribution systems:
- Current Range: MCBs are limited to small current loads below 63A, suitable for household and office terminal circuits. CJMM3 Mccb Circuit Breakers cover 16A to 630A, adapting to medium and large-capacity power distribution and high-power equipment protection.
- Protection Adjustability: MCBs adopt fixed trip settings without adjustable parameters. As dual-adjustable Mccb Electrical devices, CJMM3 series supports single magnetic and thermal magnetic release types, allowing flexible adjustment of overload and short-circuit protection values to match different load characteristics.
- Breaking Capacity: MCBs have low short-circuit breaking capacity and cannot withstand high fault current impact. Ac Mccb of CJMM3 series covers multiple breaking levels from 20kA to 75kA, effectively coping with severe short-circuit faults in industrial systems.
- Scenario Adaptability: MCBs are only applicable to conventional light-load environments. CJMM3 Mccb adapts to industrial, construction, power and OEM heavy-load scenarios, with wider temperature and humidity tolerance and stronger environmental adaptability.

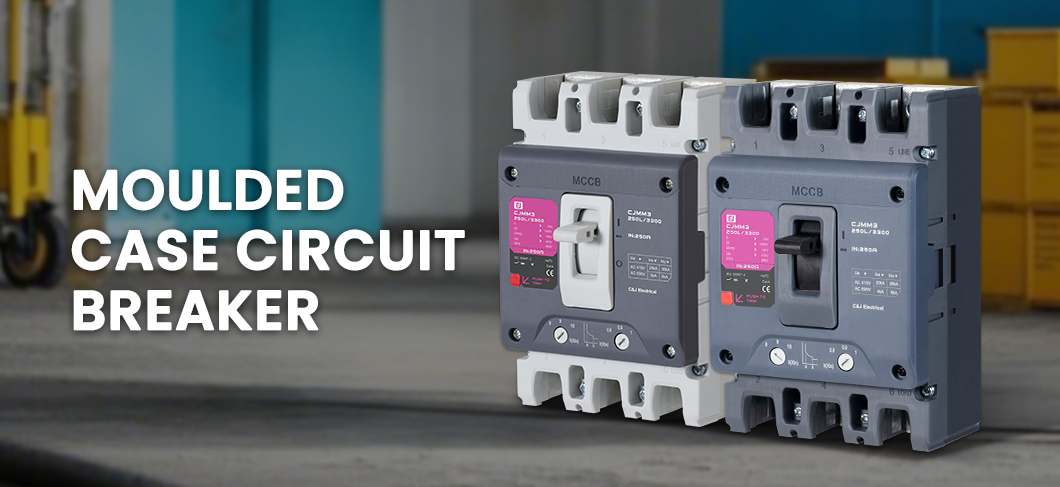

C&J Electrical CJMM3 Series Dual-Adjustable Mccb Circuit Breakers Overview
CJMM3 series molded case circuit breakers are high-performance dual-adjustable Mccb Electrical equipment developed for low-voltage AC distribution lines. This product can reliably connect, carry and break current under normal circuit conditions, and withstand and cut off abnormal current within a specified time when overload, short circuit and undervoltage faults occur.
Different from ordinary fixed-parameter breakers, CJMM3 Ac Mccb supports dual protection adjustment of thermal and magnetic trips. It adopts a multi-frame graded design, covering 125A, 160A, 250A, 400A and 630A frame levels. It is compatible with 400V, 415V and 690V mainstream AC power supply voltages, and is widely applicable to low-voltage power consumption scenarios such as electric power engineering, industrial manufacturing, building distribution and OEM complete equipment.
Structural Characteristics & Core Functions
- Multi-Grade Frame Design: Equipped with five frame current specifications, covering small, medium and large current load ranges, realizing precise matching of different power distribution levels.
- Rich Breaking Capacity Specifications: Covering 20kA, 36kA, 50kA, 70kA, 75kA multi-level short-circuit breaking capacity, meeting the fault protection requirements of conventional and high-impact industrial distribution systems.
- Dual Protection Modes: Optional single magnetic trip and thermal magnetic trip release types, realizing independent adjustment of overload delay and short-circuit instantaneous protection, with flexible protection logic.
- Diversified Installation Methods: Supporting fixed, plug-in and drawer-type installation, adapting to different cabinet structures, on-site construction conditions and later maintenance needs.
- High Environmental Adaptability: With wide temperature and humidity tolerance, it can operate stably in conventional and slightly harsh industrial environments, ensuring long-term reliable operation of power distribution systems.
Working & Installation Environmental Conditions
CJMM3 series Mccb has standardized and wide-range environmental adaptation conditions, suitable for diverse industrial and civil power distribution scenarios:
- Operating Temperature: The normal working temperature range is -5°C to +40°C. For special working environments of -40°C to -5°C and 40°C to 70°C, it can be used by referring to the temperature derating coefficient table to ensure stable protection performance.
- Storage Temperature: The allowable storage temperature is -40°C to 70°C. If stored beyond the normal working temperature range, the product needs to be placed in the working environment for more than 24 hours before formal use to avoid performance impact.
- Humidity Adaptability: The relative humidity shall not exceed 50% at +40°C ambient temperature; it can withstand higher relative humidity at lower temperatures, up to 90% at +20°C, adapting to conventional indoor humidity environments and allowable slight condensation conditions.
Detailed Technical Parameters
CJMM3 series dual-adjustable Ac Mccb has complete and standardized technical indicators, with wide specification coverage and strong engineering adaptability:
|
Technical Items
|
Specifications
|
|---|---|
|
Product Model
|
CJMM3-125~630A
|
|
Number of Poles
|
3P
|
|
Rated Current Range
|
16A~630A
|
|
Impulse Withstand Voltage
|
8kV/10kV
|
|
Rated Operational Voltage
|
400V/415V/690V
|
|
Rated Insulation Voltage
|
800V/1000V
|
|
Operational Frequency
|
50/60Hz
|
|
Utilisation Category
|
A
|
|
Reference Operating Temperature
|
-5°C~+40°C
|
|
Executive Standard
|
IEC60947-1 / IEC60947-2
|
|
Electrical Life
|
5000/3000 Times
|
|
Front IP Protection Level
|
IP40
|
|
Pollution Degree
|
III
|
|
Release Type
|
Single magnetic trip / thermal magnetic trip
|
Application Scenarios
Relying on adjustable protection parameters, high breaking capacity and wide environmental adaptability, CJMM3 series Mccb Circuit Breakers make up for the functional defects of MCB in high-load industrial scenarios, covering multiple core fields:
- Industrial Power Distribution: Suitable for factory main distribution cabinets, workshop power distribution systems and high-power motor equipment protection, coping with frequent load changes and industrial complex fault conditions.
- Power & Construction Engineering: Applied to power distribution stations, building low-voltage main circuits and commercial large-scale power supply systems, ensuring stable power distribution and safe fault isolation.
- OEM Complete Equipment: Matching industrial control equipment, power supply complete sets and mechanical and electrical equipment, providing customized adjustable protection solutions for complete electrical equipment.
- Medium & High-Capacity Distribution Scenarios: Covering all AC power distribution links that require adjustable overload and short-circuit protection, realizing precise hierarchical power distribution protection.
Product Advantages & Custom Service
Compared with conventional fixed-parameter breakers, C&J Electrical CJMM3 dual-adjustable Mccb Electrical products have prominent practical advantages: dual adjustable protection modes realize flexible parameter matching, multi-level breaking capacity adapts to different fault intensity environments, diversified installation methods reduce engineering construction and maintenance costs, and high IP protection and pollution resistance ensure stable operation in complex industrial environments.
This series of Ac Mccb supports OEM/ODM brand customization services with diverse optional specifications, wide application scenarios and high overall safety performance. If you have any questions about product selection, parameter adjustment, scenario matching and customized cooperation, please feel free to contact us for professional technical support.
Contact Us
In conclusion, MCCB is not absolutely better than MCB, but it is irreplaceable in industrial high-current and adjustable protection scenarios. C&J Electrical CJMM3 series dual-adjustable Mccb Circuit Breakers comply with international standards, with flexible performance configuration and complete specifications, providing reliable low-voltage protection solutions for global industrial and construction power distribution projects.
Welcome customers to consult, purchase and customize. We will provide full-cycle professional after-sales service and technical support.
