In low-voltage power distribution system design, MCB (Miniature Circuit Breaker) and MCCB (Moulded Case Circuit Breaker) are the two most widely used terminal protection devices. Many electrical engineers and project buyers often compare their cost performance, installation space and functional applicability to select the most suitable breaker for different power load scenarios. Understanding the price gap and scenario differences between MCB and MCCB is the key to optimizing distribution cabinet layout and controlling engineering costs.
From the basic market positioning, MCB features low unit price, compact size and simple structure, which Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches CJMM3 series high-performance Moulded Case Circuit Breaker (MCCB). Covering multiple frame current grades and breaking capacity specifications, this product perfectly meets the protection needs of industrial, construction, power and commercial high-power distribution systems. It provides stable and cost-effective high-load circuit protection solutions for scenarios where MCBs are insufficiently applicable.
MCB vs MCCB: Core Differences in Cost, Space and Performance
To help users accurately select circuit breakers for different engineering scenarios, we sort out the key differences between MCB and MCCB from cost, space, current range and protection performance:
- Cost Difference: MCB has a simpler internal structure and lower manufacturing cost, so the unit price is much cheaper, suitable for large-scale low-current terminal configuration. MCCB adopts molded case insulation structure and high-strength arc extinguishing system, with higher production process standards, resulting in a higher single-device cost. For high-power industrial and main circuit protection, MCCB has better long-term comprehensive cost performance.
- Space Occupation: MCB is ultra-compact and occupies less control panel space, which is friendly for small household distribution boxes. MCCB has a relatively larger volume due to its high-load protection structure, but it can replace multiple MCB combined configuration schemes in high-current circuits, effectively saving the overall layout space of high-power distribution cabinets.
- Current & Breaking Capacity: MCB is only applicable to small-current circuits below 63A with low short-circuit resistance. CJMM3 series MCCB covers 16A to 630A wide current range, with breaking capacity up to 75kA, which can cope with severe short-circuit faults in high-power distribution systems.
- Scenario Adaptability: MCB is limited to household and commercial small-load terminal circuits. MCCB is oriented to industrial equipment, building main circuits, power distribution stations and other high-load scenarios, with wider temperature adaptation range and stronger environmental resistance.

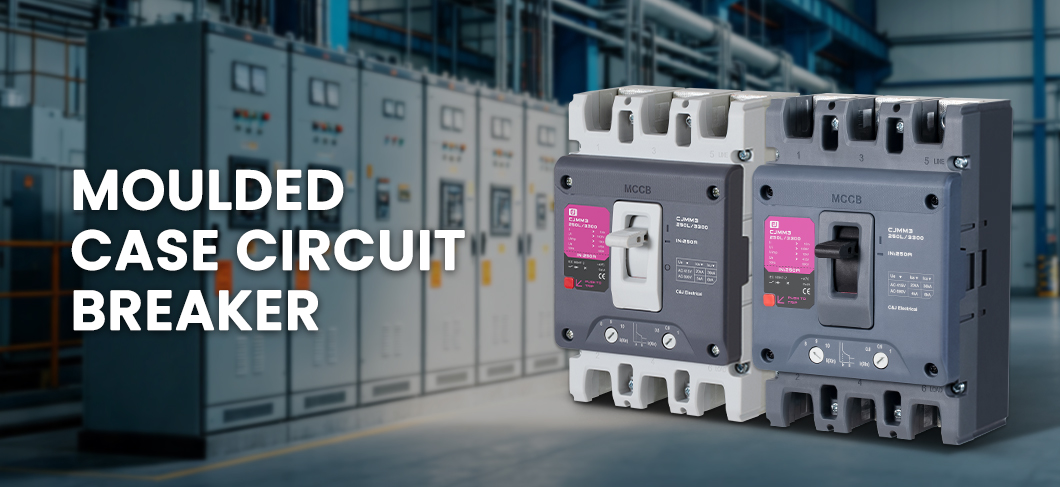

C&J Electrical CJMM3 Series Moulded Case Circuit Breaker Overview
CJMM3 series Moulded Case Circuit Breakers, in low-voltage distribution lines, can connect, carry and break current under normal circuit conditions, and can also connect, carry and break current under specified abnormal circuits for a certain period of time. A mechanical switch that protects lines and equipment when overload, short circuit, or undervoltage occur on distribution lines (accessory function). It is widely used in low-voltage power consumption places such as electric power, construction, industry, and OEM.
This series of MCCB adopts mature molded case insulation design and efficient arc extinguishing structure, supporting multiple frame grades, breaking capacities and installation methods. It integrates overload, short circuit and undervoltage comprehensive protection functions, which can stably monitor the operating state of low-voltage distribution lines for a long time. It can effectively cut off faulty circuits when abnormal current and voltage occur, ensuring the safe and stable operation of power distribution equipment and lines.
Structural Characteristics & Product Advantages
- Complete Frame Current Specifications: Covering 125A, 160A, 250A, 400A, 630A five mainstream frame grades, with rated current ranging from 16A to 630A, fully meeting the current protection needs of low to high power distribution circuits.
- High-Range Breaking Capacity: Equipped with multiple breaking capacity specifications including 20kA, 36kA, 50kA, 70kA, 75kA, covering all conventional breaking requirements in the power distribution field, adapting to different short-circuit fault impact scenarios.
- Diversified Release Types: Supports single magnetic type and thermal magnetic type release modes. The thermal magnetic type provides overload delay + short-circuit instantaneous dual protection, while the single magnetic type is suitable for circuits that only need short-circuit protection.
- Flexible Installation Methods: Compatible with fixed, plug-in and drawer three installation forms, adapting to different distribution cabinet structures and engineering installation requirements, convenient for equipment assembly, maintenance and replacement.
- Wide Voltage Adaptation: Rated working voltage covers 400/415V and 690V, rated insulation voltage up to 800/1000V, suitable for various low-voltage industrial and civil power distribution systems.
- High Environmental Adaptability: Supports wide temperature operation and storage conditions, with strong anti-pollution and anti-interference capabilities, stable operation in complex industrial and building power consumption environments.
Working And Installation Conditions
CJMM3 series MCCB has strict and standardized environmental adaptation parameters to ensure stable performance in different working scenarios:
- Normal Working Temperature: -5℃ ~ +40℃. For special environments of -40℃ ~ -5℃ and 40℃ ~ 70℃, please refer to the temperature derating coefficient table for matched use.
- Storage Temperature: -40℃ ~ +70℃. If stored beyond the normal working temperature range, the product needs to be placed in the working environment for at least 24 hours before official use to ensure stable internal performance.
- Humidity Adaptation: At +40℃ ambient temperature, the relative humidity shall not exceed 50%; at lower temperatures, it can adapt to higher relative humidity (up to 90% at +20℃), avoiding condensation affecting electrical performance.
Complete Technical Parameters
|
Technical Items
|
Specifications
|
|---|---|
|
Product Type
|
CJMM3-125~630A
|
|
Number of Poles
|
3P
|
|
Rated Current
|
16A~630A
|
|
Impulse Withstand Voltage
|
8kV/10kV
|
|
Rated Operational Voltage
|
400V/415V/690V
|
|
Rated Insulation Voltage
|
800/1000V
|
|
Operational Frequency
|
50/60Hz
|
|
Utilisation Category
|
A
|
|
Reference/Operating Temperature
|
-5℃~+40℃
|
|
Executive Standard
|
IEC60947-1/IEC60947-2
|
|
Electrical Life
|
5000/3000 cycles
|
|
Front Protection Level
|
IP40
|
|
Pollution Degree
|
III
|
|
Release Type
|
Single magnetic trip / thermal magnetic trip
|
Application Scenarios
With wide current coverage, high breaking capacity and strong environmental adaptability, CJMM3 series Moulded Case Circuit Breaker is widely used in medium and high-power low-voltage distribution scenarios that MCB cannot adapt to:
- Industrial Power Distribution: Suitable for factory workshop main circuits, mechanical and electrical equipment power circuits, production line power distribution systems, resisting industrial complex current impact and short-circuit faults.
- Construction & Commercial Engineering: Applied for building main power distribution, shopping mall, hotel and office building high-power equipment circuits, ensuring stable power supply for public commercial facilities.
- Power System Facilities: Adaptable to municipal power distribution terminals, power station auxiliary circuits and other scenarios, providing reliable protection for power transmission and distribution systems.
- OEM Complete Equipment: Matched with various industrial complete electrical equipment, supporting customized power protection schemes for automated equipment and mechanical supporting circuits.
Product Services & Supply Advantages
CJMM3 series MCCB has complete specification grades, flexible installation modes and stable safety performance, which can solve the problem of insufficient protection capacity of MCB in high-power circuits. It balances engineering safety and comprehensive cost, and is a high-cost-performance choice for medium and high-load power distribution systems.
C&J Electrical supports OEM/ODM brand customization services to meet personalized product and solution needs of global customers. Our product line is complete, covering MCCB and MCB full series low-voltage circuit breakers with diverse specifications and wide scenario adaptability. Meanwhile, we support SKD loose parts delivery service to adapt to different procurement and assembly cooperation modes. If you have any questions about product selection, parameter matching, scenario adaptation and customized cooperation, please feel free to contact us for professional technical support.
Contact Us
In summary, MCB has obvious advantages in low cost and small space occupation for low-current terminal circuits, while MCCB is irreplaceable in high-load, high-short-circuit impact industrial and main distribution circuits. As a high-performance Moulded Case Circuit Breaker, C&J Electrical CJMM3 series products have standardized parameters and reliable quality, fully meeting the high safety protection requirements of modern industrial and civil low-voltage power distribution systems.
Welcome global customers to consult, purchase and customize products. We will provide full-cycle professional after-sales service and technical support.
