High-Performance 6-63A 6kA 10kA Industrial Air AC Miniature Circuit Breaker (MCB)

Short Description:

CJM13-63 Type Miniature circuit breakers (MCBs) ensure electrical safety in homes and similar situations, such as offices and other buildings as well as for industrial applications by protecting electrical installations against overloads and short circuits. Once a fault is detected, the miniature circuit breaker automatically switches off the electrical circuit to prevent damage to wires and to avoid the risk of fire. Warranting reliability and safety for people and assets, MCBs are equipped with two tripping mechanisms: the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection. normally the rated current is 1,2,3,4,6,10,16,20,25,32,40,50,63A and rated voltage is 230/400VAC. frequency is 50/60Hz. according to IEC60898/EN60898 standards.

Send email to us

Product Detail

Product Tags

Construction and Feature

·High short-short capacity 6KA/10kA.
·Designed to protect circuit carrying big current up to 63A.
·Contact position indication.
·Used as main switch in household and similar installation.

Technical Data

Standard	IEC/EN 60898-1
Pole No	1P,1P+N, 2P, 3P,3P+N,4P
Rated voltage	AC 230V/400V
Rated Current(A)	1A,2A,3A,4A,6A,10A,16A,20A,25A,32A,40A,50A,63A
Tripping curve	B, C, D
Rated short-circuit capacity(lcn)	6000A
Rated frequency	50/60Hz
Rated impulse withstand voltage Uimp	4kV
Connection terminal	Pillar terminal with clamp
Mechanical life	20,000 Cycles
Electrical life	4000 Cycles
Protection degree	IP20
Connection capacity	Flexible conductor 35mm²
Connection capacity	Rigid conductor 50mm²
Installation	On symmetrical DIN rail 35mm
Installation	Panel mounting

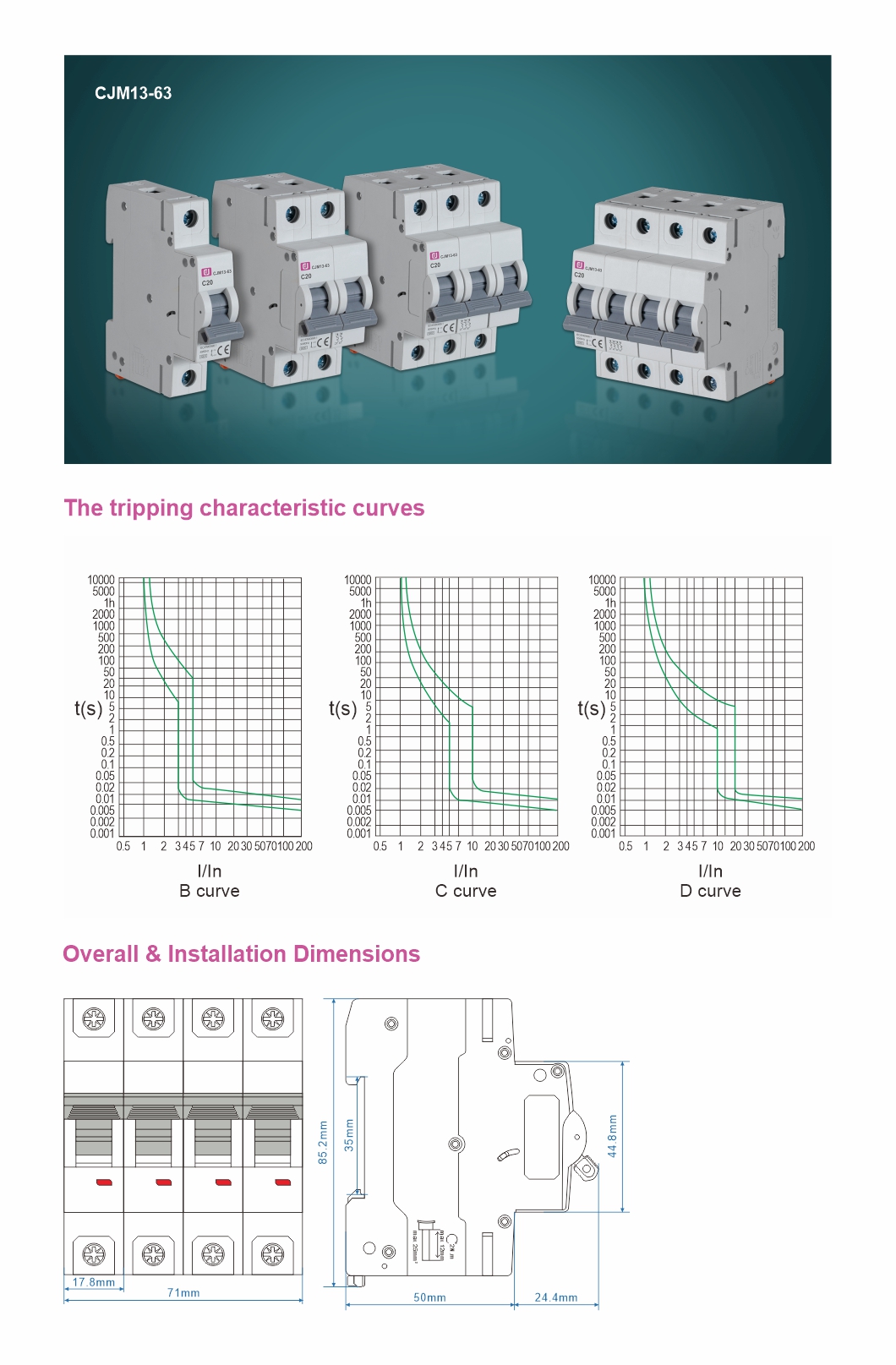

Overload Current Protection Characteristics

Test	Tripping Type	Test Current	Initial State	Tripping timeor Non-tripping Time Provisior
a	Time-delay	1.13In	Cold	t≤1h(In≤63A)	No Tripping
				t≤2h(ln>63A)
b	Time-delay	1.45In	After test a	t<1h(In≤63A)	Tripping
				t<2h(In>63A)
c	Time-delay	2.55In	Cold	1s<t<60s(In≤63A)	Tripping
				1s<t<120s(In>63A)
d	B curve	3In	Cold	t≤0.1s	No Tripping
	C curve	5In	Cold	t≤0.1s	No Tripping
	D curve	10In	Cold	t≤0.1s	No Tripping
e	B curve	5In	Cold	t≤0.1s	Tripping
	C curve	10In	Cold	t≤0.1s	Tripping
	D curve	20In	Cold	t≤0.1s	Tripping
