Wholesale price Electromagnetic RCBO Leakage Protection Circuit Breaker

Short Description:

Send email to us

Product Detail

Product Tags

Technical Data

Standard: lEC61009-1/IEC62423
Mode: Electronic/ Electromagnetic type
Type: A/AC
Tripping curve: B/C/D
Pole No.: 1P+N,2P,3P,3P+N,4P
Rated voltage/Rated frequency: 240V~ 50/60Hz
Rated current: 6-63A
Rated residual operating current(l△n):30/100/300mA
Residual operating current range: 0.5l△n~l△n
Rated breaking capacity (lcn): 6kA/10kA
Rated operating short circuit breaking capacity (Ics): 6kA/7.5kA
Electrical and Mechanical life:10000
Insulation voltage Ui: 500V
Rated residual making and breaking capacity I△m: 3000A
Surge current resistance/at(8/20)μs:3kA
Rated impulse withstand voltage (Uimp): 4KV
Dielectric test voltage at and ind Freg. for 1 min: 2KV

Overload Current Protection Characteristics

Test procedure	Type	Test Current	Initial State	Tripping or Non-tripping Time Limit	Expected Result	Remark
A	B,C,D	1.13In	cold	t≤1h	No Tripping
B	B,C,D	1.45In	After Test A	t＜1h	Tripping	The current steadily rises to the specified value within 5s
C	B,C,D	2.55In	cold	1s＜t＜60s	Tripping
D	B	3In	cold	t≤0.1s	No Tripping	Turn on the auxiliary switch to close the current
	C	5In
	D	10In
E	B	5In	cold	t＜0.1s	Tripping	Turn on the auxiliary switch to close the current
	C	10In
	D	20In

Residual Current Operating Breaking Time

Type	In/A	I△n/A	Residual Current (I△) Is Corresponding To The Following Breaking Time (S)
AC Type	any value	any value	1ln	2In	5In	5A,10A,20A,50A 100A,200A,500A
A Type		＞0.01	1.4In	2.8In	7In
			0.3	0.15	0.04	0.04	Max Break-time
The general type RCBO whose current IΔn is 0.03mA or less can use 0.25A instead of 5IΔn.

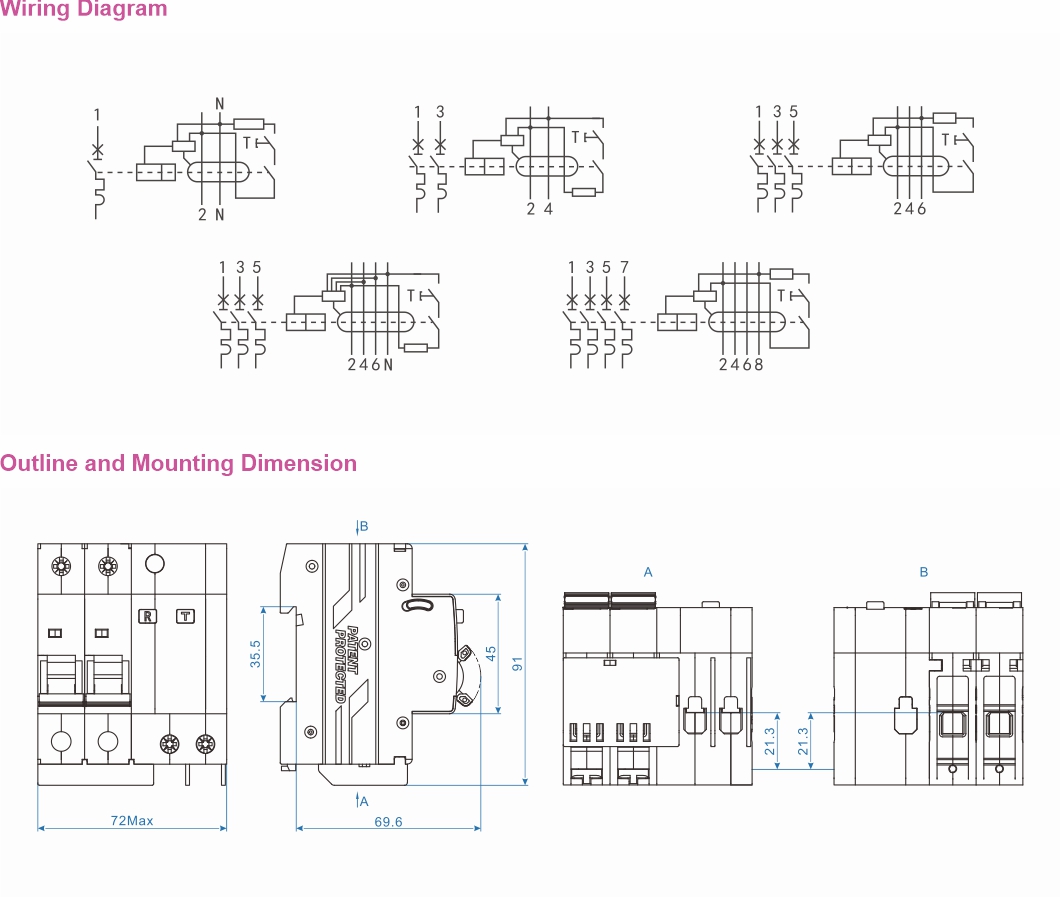

Technical Data

Fault currentin dicator	YES
Protection degree	IP20
Ambient temperature	-25°C~+40°C and its average over a period of 24h does not exceed +35°C
Storage temperature	-25°C~+70°C
Terminal size top/bottom for cable	25mm2
Tightening torque	2.5N.m
Connection	Top and bottom
Terminal connertion type	Cable/U-type busbar/Pin-type busbar
Mounting	On DlN rail 35mm by means of fast clip device
