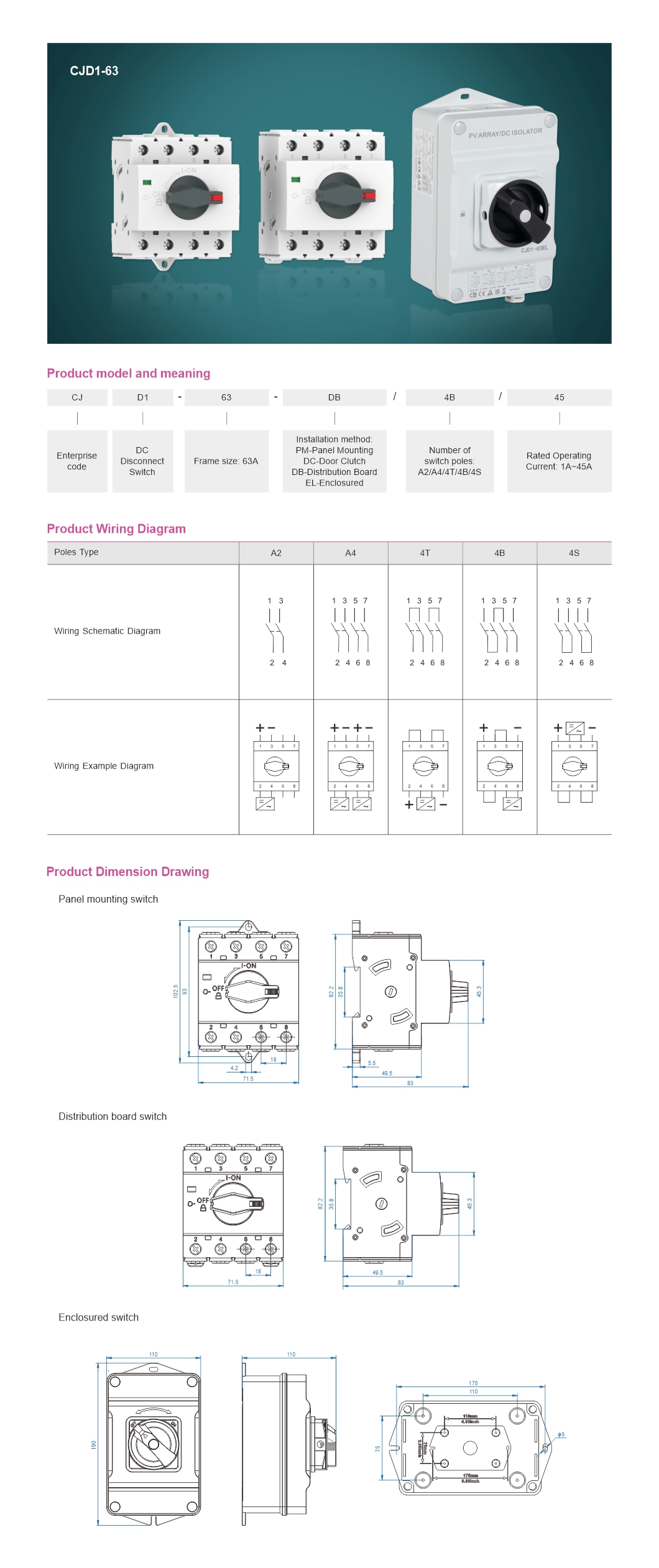

Original Supplier CJD1-63EL 1500V 45A PV Array/DC Isolator Waterproof DC Isolator Switch

Short Description:

CJD1 series of DC disconnect switch is mainly applicable to the photo-voltaic power plant systems, rated voltage of up to DC1500V, and rated current of up to 45A.

Send email to us

Product Detail

Product Tags

Scope of application

DC disconnect switch to cut off the arc generated by DC electricity, avoid dangerous accidents and ensure safe operations.

Module design,DC insulation voltage 1500V,compact structure,multiple pole numbers to choose from contact insertion bridge design,with self-cleaning function,reduces the resistance and energy consumption of DC switches,and extends switch life multiple fixed installation methods to meet different usage scenarios.The “on-off”switching mechanism that is independent of human labor uses energy storage springs to quickly achieve switching,with a maximumarc time of less than 5m²waterproof box type installation has good sealing performance and can achieve IP66 protection for switchgear.

Switch Current Data

Switch Poles	Rated Voltage
Switch Poles	300VDC	600VDC	800VDC	1000VDC	1200VDC	1500VDC
A2	32A	32A	16A	9A	6A	2A
A4	32A	32A	16A	9A	6A	2A
4T	45A	45A	45A	45A	45A	25A
4B	45A	45A	45A	45A	45A	25A
4S	45A	45A	45A	45A	45A	25A

Technical Data

Rated Voltage	DC1500V
Rated Thermal Current	45A
Rated Impulse Withstand Voltage	8kV
Rated Short-Time Withstand Current	1000A/1s
Single wire or Standard wire (mm	4~6
Mechanical Life	10000
Electrical Life	1000
Utilization category	DC21B/PV1/PV2
Number of Switch Poles	A2,A4,4T,4B,4S
Working Temperature	-40°C~+85°C
Storage Temperature	-40°C~+85°C
Pollution Degree	3
Overvoltage Category	II
IP Rating with Enclosure	IP66
