Understanding Mcb Circuit Breakers: A Comprehensive Guide
In the world of electrical engineering and safety, miniature circuit breakers (MCBs) play a key role in protecting electrical circuits from overloads and short circuits. These devices are essential to both residential and commercial electrical systems, protecting appliances and wiring from potential damage caused by overcurrent.
What is Mcb circuit breaker?

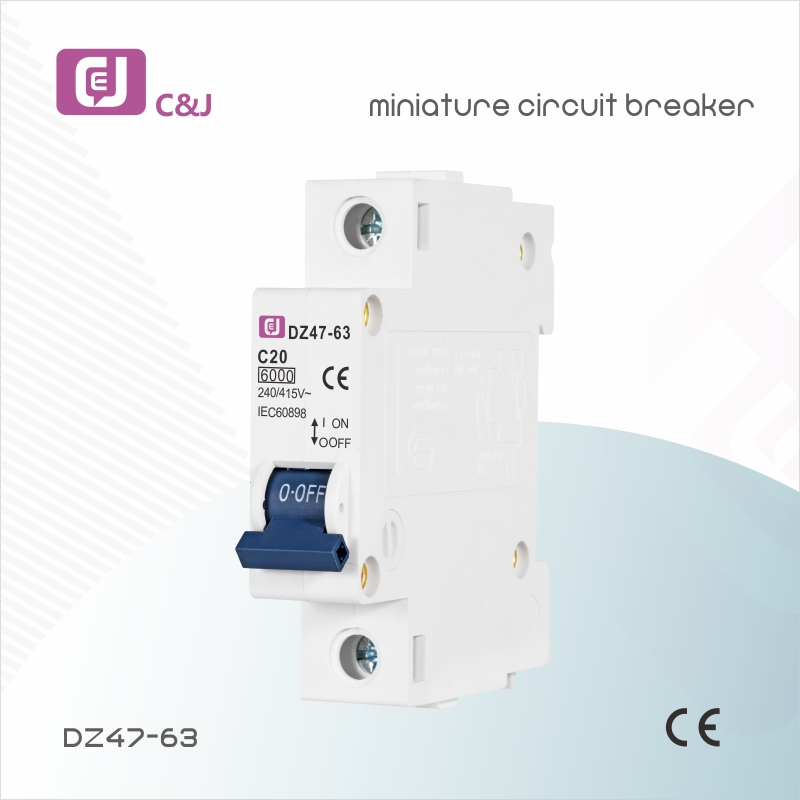

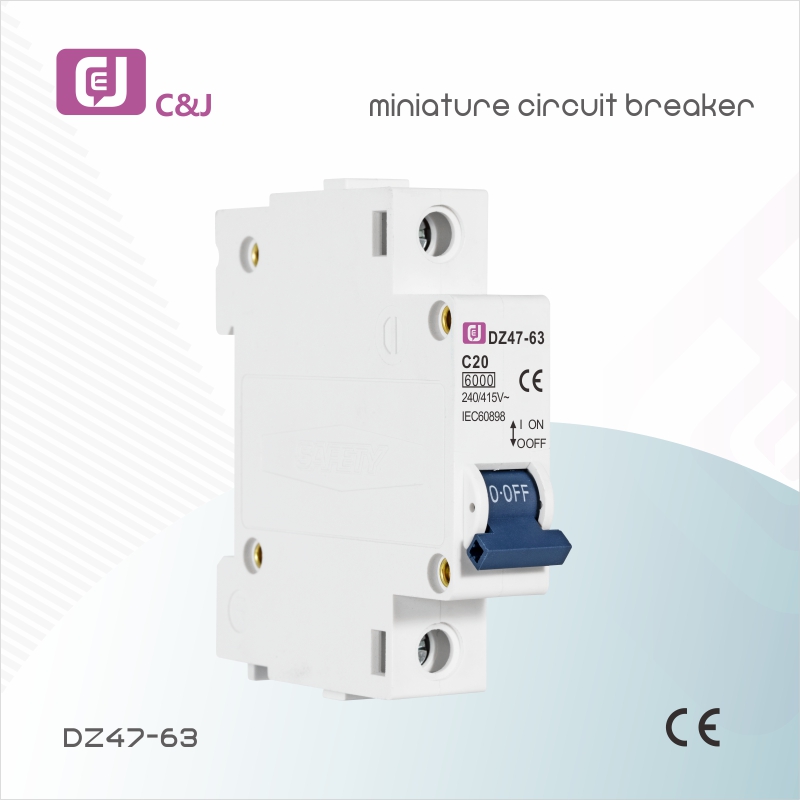

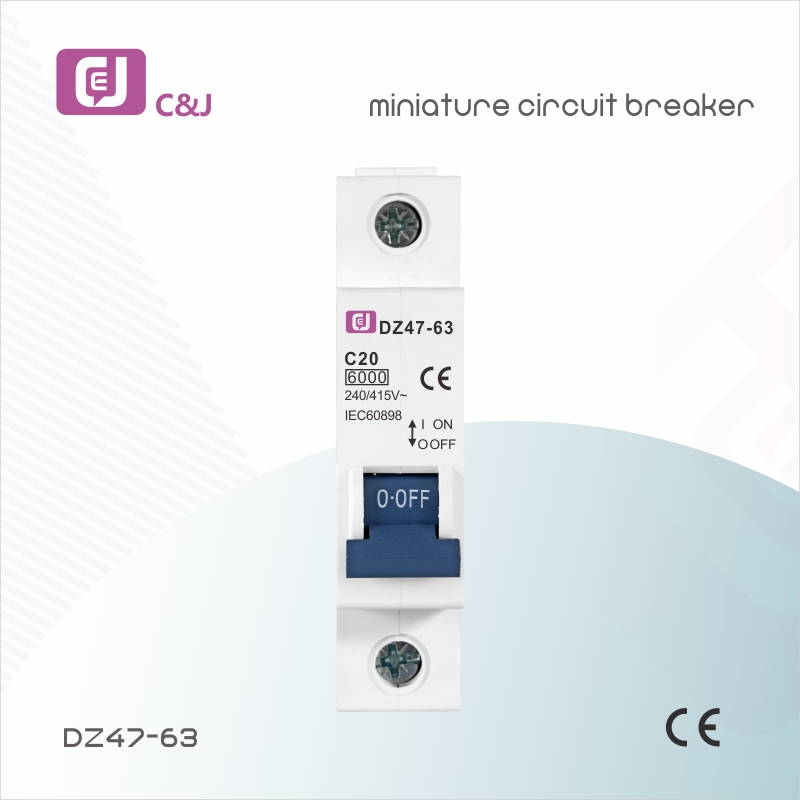

An MCB circuit breaker is an automatic switch that interrupts the flow of current in a circuit when it detects an abnormal condition, such as an overload or short circuit. Unlike traditional fuses, which must be replaced after they blow, MCB circuit breakers can be reset after they trip, making them a more convenient and efficient option for circuit protection.
How does Mcb circuit breaker work?
The operation of Mcb circuit breakers is based on two main mechanisms: thermal and magnetic.
1. Thermal mechanism: This component responds to overload conditions. When the current flowing through the circuit exceeds the circuit breaker’s rated capacity, the heat generated causes the bimetallic strip inside the circuit breaker to bend. Once the bending reaches a certain level, the bimetallic strip triggers the circuit-breaking mechanism, shutting off the current.
2. Magnetic Mechanism: This mechanism is designed to respond to short circuits. When a short circuit occurs, the current surges rapidly, generating a strong magnetic field that pulls on a lever, causing the circuit breaker to trip almost instantly. This quick response is crucial to preventing damage to electrical components and reducing the risk of fire.
Mcb circuit breaker type
Mcb circuit breakers are available in several types, each designed for a specific purpose:
Type B: For residential applications, this type of circuit breaker trips at 3 to 5 times the rated current. It is well suited for circuits with resistive loads, such as lighting and heating.
Type C: This type is designed for commercial and industrial applications, with a trip current of 5 to 10 times the rated current. It is suitable for circuits with inductive loads, such as motors and transformers.
Type D: This type is used in applications with high inrush currents, such as large motors and transformers. It trips at 10 to 20 times the rated current.
Advantages of using Mcb circuit breakers
1. Safety: Mcb circuit breakers provide a reliable way to protect circuits from overloads and short circuits, greatly reducing the risk of electrical fires and equipment damage.
2. Convenience: Unlike fuses that need to be replaced after blowing, Mcb circuit breakers can be easily reset, which is more user-friendly.
3. Compact Design: MCB circuit breakers are smaller and more compact than traditional circuit protection devices, allowing for more efficient use of space in electrical panels.
4. Cost-Effective: While the initial investment may be higher than fuses, the long-term savings from reduced equipment damage and ease of reset make Mcb circuit breakers a cost-effective choice.
Installation and Maintenance
Circuit breaker installation should always be performed by a qualified electrician to ensure compliance with local electrical codes and safety standards. Regular maintenance checks are also recommended to ensure circuit breakers are functioning properly and to identify any potential problems before they become serious.
What is the difference between MCB and MCCB breakers?
MCBs: Generally used in lower-voltage commercial and industrial applications, typically 120V, 240V or 480Y VAC, and up to 1000 VDC. MCCBs: Can be used for both low and high-voltage applications, with ratings typically up to 600V or 690V, and some models rated for higher voltages.
In summary
Simply put, MCB circuit breakers are essential components in modern electrical systems, providing safety, convenience, and efficiency. Understanding their operating principles, types, and benefits can help homeowners and businesses make informed decisions about their electrical protection needs. As technology continues to evolve, MCB circuit breakers will continue to be a cornerstone of electrical safety, ensuring our homes and workplaces are protected from electrical hazards.
