In low-voltage power distribution design, electrical engineers often face a core selection question: why use MCCB instead of MCB. Although both Mcb Mccb circuit breakers provide overload and short-circuit protection, they differ greatly in current tolerance, breaking capacity, working voltage and application positioning. Clarifying their differences is the key to realizing hierarchical and safe power distribution protection.
MCBs: Best for low-capacity applications in standard electrical control applications. MCCBs: More suitable for main power distribution and high-capacity protections.
Simply put, MCBs are designed for low-current terminal branch circuits with fixed protection parameters and limited load capacity, which cannot meet the protection demands of high-current, high-voltage and large-capacity main distribution systems. In contrast, Mccb Molded Case Circuit Breaker features large current coverage, high breaking capacity, wide voltage adaptability and stable high-temperature operation performance. It is the core protection device for industrial main power distribution, new energy DC systems and high-power electrical equipment.
MCCB is divided into Ac Mccb and DC MCCB according to applicable systems. As a professional low-voltage electrical manufacturer, Zhejiang C&J Electrical co., ltd. (C&J Electrical) launches CJMM7 series high-performance DC MCCB, which solves the pain points of ordinary breakers such as polarity limitation, temperature derating and flying arc risks in DC high-voltage systems. It is an ideal protection solution for new energy photovoltaic, energy storage and high-power DC distribution scenarios.
Core Reasons: Why Choose MCCB Over MCB
The essential difference between Mcb Mccb lies in design positioning and performance boundaries, which determines that MCCB is irreplaceable in high-capacity power distribution scenarios:
- Larger Current Coverage: MCBs are usually limited to 63A small current load, suitable for terminal household and light commercial circuits. Mccb Molded Case Circuit Breaker can cover tens to thousands of amperes of load current, fully adapting to high-power main circuit power distribution.
- Higher Breaking Capacity: MCCB has stronger short-circuit resistance and instantaneous fault breaking capability, which can safely cut off large short-circuit current in industrial and new energy systems, avoiding equipment burnout and system breakdown.
- Wide Voltage Adaptability: Ordinary MCB is only applicable to low-voltage AC civil systems, while Ac Mccb and DC MCCB can adapt to high AC and DC voltage working environments, covering industrial and new energy special power supply systems.
- Stronger Environmental Adaptability: MCCB can maintain stable protection performance under high temperature and complex working conditions, without capacity derating or protection failure, which is more reliable for long-term operation of high-load systems.

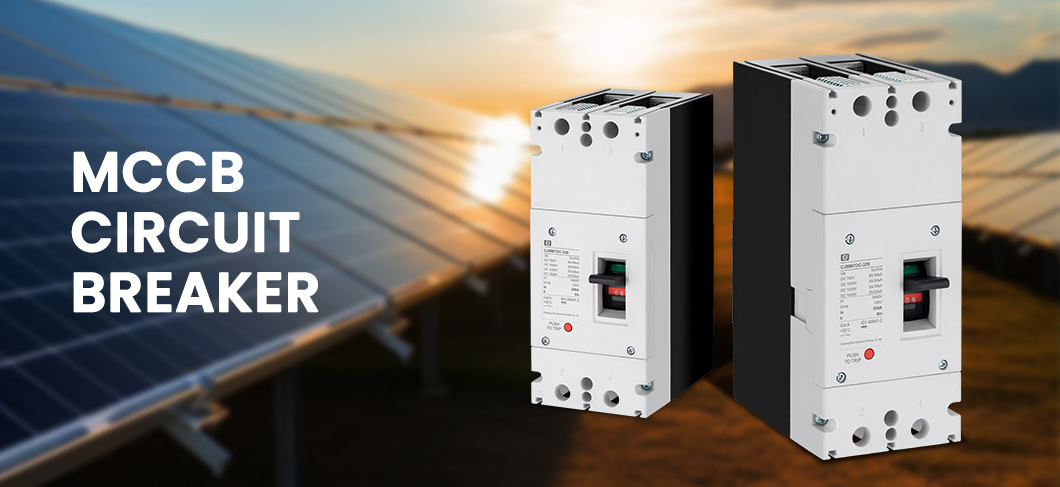

C&J Electrical CJMM7 DC MCCB Product Overview
CJMM7 series DC MCCB is a high-performance Mccb Molded Case Circuit Breaker independently developed by C&J Electrical for high-voltage and large-capacity DC power distribution systems. Aiming at the common pain points of traditional DC breakers such as flying arc, polarity limitation and high-temperature capacity attenuation, this product achieves zero flying arc and no capacity derating design, breaking the performance limitations of ordinary DC breakers.
The product supports DC1500V ultra-high voltage operation, with a rated current range of 63A-1600A, covering medium and large-capacity DC power distribution scenarios. It is widely used in photovoltaic power generation, battery energy storage systems, DC power distribution cabinets and industrial DC main circuits. With stable performance and high safety factor, it is the preferred protection device for high-capacity DC new energy systems.
Core Features & Structural Advantages
- Zero Arc & High Temperature Resistance: Adopts professional arc extinguishing structure to realize zero flying arc breaking, avoiding secondary system failure caused by arc spraying. It can work stably at +50°C ambient temperature without performance attenuation.
- High Standard Single-Pole Performance: Single pole supports DC1500V high voltage operation, with Ics=10kA service short-circuit breaking capacity, ensuring reliable fault breaking under high-voltage DC conditions.
- No Polarity & No Derating: The innovative non-polarity design eliminates the need to distinguish positive and negative wiring during installation. There is no capacity derating for reverse line connection, which greatly reduces installation difficulty and wiring error risks.
- Long Service Life: Excellent mechanical and electrical endurance, adapting to frequent switching and long-term continuous operation of high-power DC systems, reducing equipment replacement and maintenance costs.
Complete Technical Parameters
CJMM7 DC series MCCB has complete and standardized performance indicators, with wide specification coverage and strong scenario adaptability. The detailed parameters are as follows:
|
Technical Items
|
Specifications
|
|---|---|
|
Product Model
|
CJMM7DC-320 / 400 / 630 / 1600
|
|
Rated Current Range
|
63A~1600A
|
|
Number of Poles
|
2P / 3P / 4P
|
|
Rated DC Working Voltage (Ue)
|
DC1500V
|
|
Rated Insulation Voltage (Ui)
|
1800V
|
|
Rated Impulse Withstand Voltage (Uimp)
|
12kV
|
|
Power Frequency Withstand Voltage (1min)
|
3500V
|
|
Ultimate Short-Circuit Breaking Capacity (Icu)
|
DC1200V / DC1500V
|
|
Service Short-Circuit Breaking Capacity (Ics)
|
35kA
|
|
Mechanical Life
|
4000 times
|
|
Electrical Life
|
1000 / 500 times
|
|
Arc Distance
|
50/0 (with arc extinguishing chamber) / 100
|
|
Instantaneous Release Setting
|
5In or 10In
|
|
Reference Ambient Temperature
|
50°C
|
Application Scenarios
Benefiting from high voltage resistance, large capacity, zero arc and no derating performance, CJMM7 DC MCCB is specially designed for high-capacity DC new energy and industrial power distribution systems, making up for the performance defects of MCB in high-power scenarios:
- Photovoltaic Power Generation System: Suitable for PV combiner boxes, centralized inverter DC input and output ends, and large-scale photovoltaic power station main DC circuits, adapting to DC1500V high-voltage photovoltaic systems.
- Energy Storage System: Applied for battery energy storage cabinet main circuit protection, effectively cutting off overload and short-circuit faults of energy storage batteries to ensure safe and stable operation of energy storage systems.
- Industrial DC Distribution: Used for industrial high-power DC power distribution cabinets, DC equipment main switches, and industrial automation DC power supply systems.
- New Energy Supporting Projects: Covering DC power distribution of data centers, charging pile clusters and other high-capacity DC scenarios, providing reliable high-current protection.
Product Overall Advantages & Custom Service
Compared with conventional Mccb Molded Case Circuit Breaker and MCB products, C&J Electrical CJMM7 DC MCCB has obvious scenario advantages and performance characteristics:
The product adopts zero-flying-arc technology, which eliminates arc discharge risks during breaking. The no-polarity and no-derating design greatly simplifies on-site construction and avoids installation errors. It can operate stably in high-temperature environments up to 50°C without capacity attenuation, adapting to harsh working conditions such as outdoor new energy stations and closed distribution cabinets. With wide current and voltage specifications, it can meet the protection needs of different high-capacity DC systems.
This series of MCCB supports OEM/ODM brand customization services with diverse specifications, wide application scenarios and high safety performance. If you have any questions about model selection, parameter matching, engineering adaptation and customized services, please feel free to contact us for professional technical support.
Contact Us
In conclusion, MCCB is far more suitable for high-capacity main power distribution than MCB.Ac Mccb adapts to industrial AC systems, while C&J Electrical CJMM7 DC MCCB provides professional high-voltage and large-capacity protection for new energy DC systems, perfectly solving the protection pain points of high-power DC distribution.
Welcome global customers to consult, purchase and customize. C&J Electrical will provide reliable products and full-cycle after-sales service.
Post time: Jun-17-2026
