In the low-voltage electrical distribution system, Mcb Miniature Circuit Breaker (abbreviated as MCB) is one of the most widely used and essential protective devices. It is closely related to the safety of electrical equipment and personal property, and is widely used in residential, commercial and industrial scenarios. However, many people will have such a question: Why is MCB called a Miniature Breaker? What is the difference between Mcb Rccb? What are the characteristics of C Curve Mcb? This article will systematically answer these questions, integrate the required explanatory paragraphs, focus on interpreting the origin of the name “miniature circuit breaker”, and highlight the CJM2-63 Mcb Miniature Circuit Breaker independently developed and produced by Zhejiang C&J Electrical co., ltd. (C&J Electrical), detailing its overview, core functions, application scenarios, structural characteristics, technical parameters and product advantages, to provide professional reference for users, procurement personnel and practitioners.
First, we clarify the basic definition and core function of Mcb Miniature Circuit Breaker: An MCB is an automatically operated electrical switch. Miniature circuit breakers are intended to prevent damage to an electrical circuit as a result of excess current. They are designed to trip during an overload or short circuit to protect against electrical faults and equipment failure. In short, the Mcb Miniature Circuit Breaker is a small, automatically operated electrical protection device that specializes in protecting circuits and equipment from damage caused by overload and short-circuit faults[1][8]. The reason why it is called a “miniature” circuit breaker is closely related to its size, application scenarios and functional positioning[8].
The core reason why MCB is called a Miniature Breaker lies in three aspects. First, in terms of size, compared with large circuit breakers (such as MCCB, ACB), the Mcb Miniature Circuit Breaker has a compact and small structure, which is usually installed on a 35mm DIN rail and occupies very little space in the distribution box[1][3][8]. This “miniature” design makes it suitable for scenarios with limited installation space, such as residential distribution boxes, office distribution cabinets and small industrial equipment control boxes[1][8]. Second, in terms of application positioning, the Mcb Miniature Circuit Breaker is mainly used for the final protection of low-voltage circuits, such as the branch circuits of households and offices, to protect small and medium-sized electrical equipment and wires[3][6][8]. It is not used for high-current, high-voltage large-scale power distribution scenarios like large circuit breakers, so the “miniature” also reflects its positioning in the power distribution system[3][8]. Third, in terms of rated parameters, the Mcb Miniature Circuit Breaker has a relatively low rated current (usually 1A to 63A) and short-circuit breaking capacity (usually 6kA to 10kA), which is much lower than that of large circuit breakers, and its overall volume and weight are also smaller, which further confirms the rationality of the name “miniature”[1][3][6].
It is necessary to distinguish the difference between Mcb Rccb, which is a common confusion point for many users[1][6]. Mcb Miniature Circuit Breaker focuses on overload and short-circuit protection. It relies on two tripping mechanisms to detect abnormal currents and cut off the circuit in time to prevent wire damage and electrical fires[4][5]. However, it cannot detect leakage current and cannot protect personal safety from electric shock[1][6]. RCCB (Residual Current Circuit Breaker) focuses on leakage protection. It detects residual current (leakage current) in the circuit and trips quickly to prevent electric shock accidents, but it does not have overload and short-circuit protection functions[1][6]. Therefore, in practical applications, Mcb Rccb are often used together to form a comprehensive electrical protection system, which can simultaneously realize overload, short-circuit and leakage protection, ensuring the safety of circuits, equipment and personnel[1][6].
Among the types of Mcb Miniature Circuit Breaker, C Curve Mcb is the most widely used type[2][7]. The tripping curve of C Curve Mcb is characterized by an instantaneous tripping current of 5 to 10 times the rated current[2][3][7]. This characteristic makes it suitable for most general loads, such as household appliances, lighting circuits, office equipment and small inductive loads (such as small motors and fans)[2][7]. It can tolerate the inrush current generated when electrical equipment is started, avoid false tripping, and at the same time quickly trip when a short circuit occurs, providing reliable protection[2][3]. C&J Electrical’s CJM2-63 Mcb Miniature Circuit Breaker includes C Curve Mcb specifications, which can meet the protection needs of most general scenarios[6].
Working Principle of Mcb Miniature Circuit Breaker
The Mcb Miniature Circuit Breaker realizes overload and short-circuit protection through two independent tripping mechanisms: thermal tripping mechanism and magnetic tripping mechanism[4][5]. This is also the core principle for it to effectively protect the circuit[4][5].
The thermal tripping mechanism is mainly used for overload protection[4][5]. It is composed of a bimetallic strip made of two metals with different thermal expansion coefficients[4][5]. Under normal working conditions, the current passing through the bimetallic strip is within the rated range, and the heat generated is not enough to make it bend[4][5]. When an overload occurs in the circuit (the current exceeds the rated value but does not reach the short-circuit current), the heat generated by the bimetallic strip increases, and the two metals expand unevenly, causing the bimetallic strip to bend[4][5]. When the bending degree reaches a certain threshold, it will trigger the tripping mechanism, and the Mcb Miniature Circuit Breaker will trip to cut off the circuit[4][5]. The thermal tripping mechanism has an inverse time characteristic: the greater the overload current, the faster the tripping speed[5].
The magnetic tripping mechanism is mainly used for short-circuit protection[4][5]. It is composed of an electromagnetic coil[4][5]. Under normal conditions, the magnetic field generated by the current passing through the coil is weak and cannot trigger the tripping mechanism[4][5]. When a short circuit occurs in the circuit, the current surges sharply (usually reaching 5 to 10 times the rated current or higher), and the electromagnetic coil generates a strong magnetic field, which instantly attracts the armature and triggers the tripping mechanism[4][5]. The magnetic tripping mechanism acts instantaneously, usually within milliseconds, which can quickly cut off the short-circuit current and avoid serious damage to the circuit and equipment[4][5].
The CJM2-63 Mcb Miniature Circuit Breaker produced by C&J Electrical is equipped with these two tripping mechanisms, which can accurately detect overload and short-circuit faults and provide reliable protection for the circuit[6].
Core Functions of Mcb Miniature Circuit Breaker
As a professional low-voltage electrical protection device, theMcb Miniature Circuit Breaker integrates multiple practical functions, with overload and short-circuit protection as the core, and also has multiple auxiliary functions to meet the needs of different application scenarios. Taking C&J Electrical’s CJM2-63 Mcb Miniature Circuit Breaker as an example, its core functions are as follows:
- Overload Protection Function: Through the thermal tripping mechanism, when the circuit current exceeds the rated value, the bimetallic strip bends and triggers tripping, cutting off the circuit to prevent the wire from overheating and damage, and avoiding the risk of electrical fire[4][5][6].
- Short-Circuit Protection Function: Through the magnetic tripping mechanism, when a short circuit occurs in the circuit and the current surges sharply, the electromagnetic coil generates a strong magnetic field to trigger instant tripping, quickly cutting off the short-circuit current to protect electrical equipment and wires from serious damage[4][5][6].
- Contact Position Indication Function: Equipped with a contact position indicator, users can intuitively observe the on-off state of the Mcb Miniature Circuit Breaker, which is convenient for daily inspection and fault handling[6].
- Manual Reset Function: Unlike traditional fuses that need to be replaced after tripping, the Mcb Miniature Circuit Breaker can be manually reset after troubleshooting, which is convenient to use and saves maintenance costs[8].
- Main Switch Function: It can be used as the main switch in household and similar installations, controlling the on-off of the entire circuit and providing centralized protection[6].
Application Scenarios of Mcb Miniature Circuit Breaker
Due to its compact size, reliable performance and diverse specifications, the Mcb Miniature Circuit Breaker is widely used in various low-voltage electrical scenarios, covering residential, commercial, industrial and other fields[1][3][6]. The CJM2-63 Mcb Miniature Circuit Breaker produced by C&J Electrical, with its multiple specifications (including C Curve Mcb) and high safety performance, is suitable for the following specific scenarios:
- Residential Scenarios: It is the core protective device in household distribution boxes[1][6][8]. It is used for the protection of branch circuits such as household sockets, lighting, air conditioners, and washing machines[1][6]. The Mcb Miniature Circuit Breaker can quickly cut off the circuit when an overload or short circuit occurs, preventing electrical fires and protecting the safety of family members and property[1][5][6]. The CJM2-63 model has a rated current of 1-63A, which can flexibly match different household load requirements[6].
- Commercial Scenarios: Applied to office buildings, shopping malls, supermarkets, hotels and other commercial places[1][3][6]. These places have a large number of electrical equipment and complex circuits. The Mcb Miniature Circuit Breaker can provide overload and short-circuit protection for each branch circuit, ensuring the normal operation of electrical equipment and the safety of personnel[1][3][6]. Among them, C Curve Mcb is widely used in lighting circuits and socket circuits of commercial places, which can adapt to the inrush current generated when equipment is started[2][7].
- Industrial Scenarios: Used in small industrial workshops, factory auxiliary circuits and small equipment control circuits[1][3][6]. It is used to protect motors, sensors, control cabinets and other equipment from overload and short-circuit damage, ensuring the continuity of production[1][3][6]. The CJM2-63 model has a high short-circuit breaking capacity of 6kA/10kA, which can withstand the impact of short-circuit current and adapt to the harsh working environment of industrial sites[6].
- Household and Similar Installations: It can be used as the main switch in household and similar installations, realizing centralized control and protection of the circuit, and is convenient for daily operation and maintenance[6].
- OEM/ODM Supporting Scenarios: Suitable for OEM/ODM supporting, it can be integrated into various low-voltage electrical equipment and distribution systems to provide professional overload and short-circuit protection functions for the equipment[6]. Multiple specifications and tripping curves can be flexibly matched with different OEM/ODM products, improving the added value and competitiveness of the whole equipment[6].

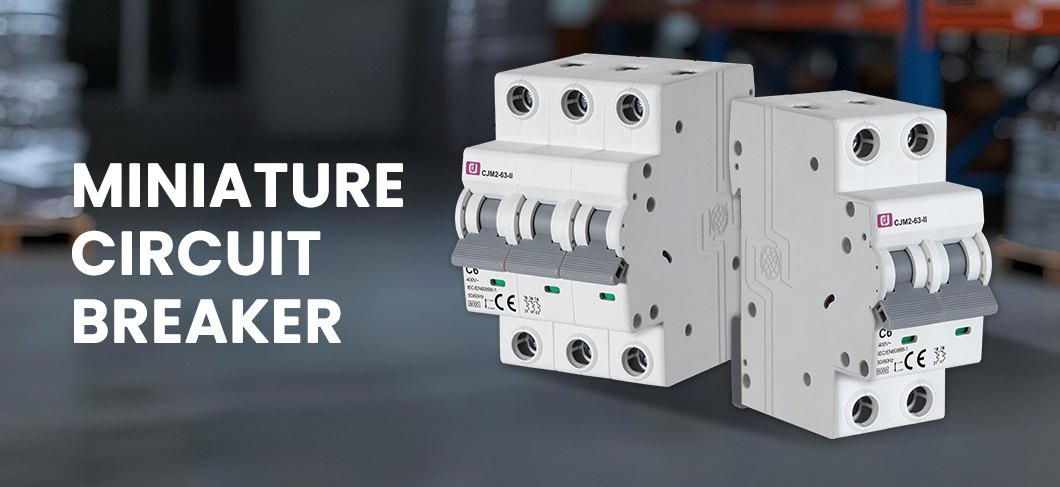

Overview of C&J Electrical CJM2-63 Mcb Miniature Circuit Breaker
To meet the diverse needs of the market for Mcb Miniature Circuit Breaker, C&J Electrical has independently developed and produced the CJM2-63 Mcb Miniature Circuit Breaker. This product is a CJM2-63-II type Miniature Breaker designed in accordance with IEC60898/EN60898 standards[6][9]. It is mainly used to protect electrical installations from overloads and short circuits, ensuring electrical safety in homes, offices, other buildings and industrial applications[6].
The CJM2-63 Mcb Miniature Circuit Breaker is equipped with two tripping mechanisms: a delayed thermal tripping mechanism for overload protection and a magnetic tripping mechanism for short-circuit protection[6]. Once a fault is detected, it can automatically cut off the electrical circuit to prevent wire damage and fire risks, ensuring the safety of people and assets[6]. The product has multiple specifications optional, including 1P, 1P+N, 2P, 3P, 3P+N, 4P pole numbers, B, C, D tripping curves (including C Curve Mcb), and rated current covering 1-63A[6]. It supports OEM/ODM brand customization services and can be customized according to the specific needs of users, including brand LOGO, product specifications and functions, to meet the personalized needs of different users and partners[6].
Structural Characteristics and Technical Data of CJM2-63 Mcb Miniature Circuit Breaker
Structural Characteristics
- High short-short capacity 6KA.
- Designed to protect circuit carrying big current up to 63A.
- Contact position indication.
- Used as main switch in household and similar installation.
Technical Data
|
Technical Parameters
|
Specifications
|
|---|---|
|
Standard
|
IEC/EN 60898-1
|
|
Pole No
|
1P,1P+N, 2P, 3P,3P+N,4P
|
|
Rated voltage
|
AC 230V/400V
|
|
Rated current(A)
|
1-63A
|
|
Tripping curve
|
B, C, D
|
|
Rated short circuit breaking capacity(Icu)
|
6kA,10kA
|
|
Rated service short-circuit breaking capacity(lcs)
|
6kA,7.5kA
|
|
Rated frequency
|
50/60Hz
|
|
Rated impulse withstand voltage(Uimp)
|
4kV
|
|
Connection terminal
|
Pillar terminal with clamp
|
|
Mechanical life
|
20,000 Cycles
|
|
Electrical life
|
4000 Cycles
|
|
Protection degree
|
IP20
|
|
Connection capacity
|
Flexible conductor 35mm²/Rigid conductor 50mm²
|
|
Installation
|
On symmetrical DIN rail 35mm/Panel mounting
|
Product Advantages of CJM2-63 Mcb Miniature Circuit Breaker
In the competitive Mcb Miniature Circuit Breaker market, the CJM2-63 Mcb Miniature Circuit Breaker produced by C&J Electrical has obvious advantages, relying on its stable performance, complete functions and high cost performance, and has won the trust of users. Compared with ordinary Miniature Breaker products on the market, its specific advantages are as follows:
- Compliant with International Standards: The product is designed in accordance with IEC60898/EN60898 standards[6][9], ensuring that its performance and safety meet international requirements, and can be widely used in domestic and foreign markets[6].
- Multiple Specifications Optional: The product has a variety of pole numbers (1P, 1P+N, 2P, 3P, 3P+N, 4P), tripping curves (B, C, D, including C Curve Mcb), and rated current covering 1-63A[6]. It can flexibly meet the protection needs of different circuits and application scenarios, and has strong versatility[6].
- High Safety Performance: Equipped with dual tripping mechanisms (thermal tripping and magnetic tripping), it can accurately detect overload and short-circuit faults and cut off the circuit in time[6][4][5]; the short-circuit breaking capacity is as high as 6kA/10kA, which can withstand the impact of short-circuit current and avoid damage to the device itself[6]; the protection level reaches IP20, which can effectively prevent dust and small foreign objects from entering, protecting internal components[6].
- Stable Operation Performance: The product adopts high-quality components and strict production processes, with a mechanical life of 20,000 cycles and an electrical life of 4,000 cycles[6], which can ensure long-term stable operation and reduce maintenance frequency and costs[6].
- Easy Operation and Maintenance: Equipped with a contact position indicator, users can intuitively observe the working state of the Mcb Miniature Circuit Breaker[6]; the pillar terminal with clamp is adopted, which is convenient for wiring and has strong connection reliability[6]; it can be installed on a 35mm symmetrical DIN rail or panel-mounted, which is quick and convenient to install, saving installation time and labor costs[6].
- Strong Adaptability: The rated voltage is AC 230V/400V, the rated frequency is 50/60Hz, which can adapt to the power grid environment of most countries and regions[6]; the connection capacity is large (flexible conductor 35mm²/rigid conductor 50mm²), which can meet the wiring needs of different specifications[6]; it can be used as the main switch in household and similar installations, with strong adaptability[6].
- Supports OEM/ODM Customization: We support OEM/ODM brand customization services, which can be customized according to the specific needs of users, including brand LOGO, product specifications and functions, to meet the personalized needs of different users and OEM/ODM partners[6].
- Widely Applicable Scenarios: The product is suitable for residential, commercial, industrial and other scenarios[6], and can be used with RCCB to form a comprehensive protection system[1][6], which has strong versatility and can meet the protection needs of different users[6].
Why Choose C&J Electrical CJM2-63 Mcb Miniature Circuit Breaker?
As a professional electrical equipment manufacturer, C&J Electrical has rich experience in R&D and production ofMcb Miniature Circuit Breaker. The CJM2-63 Mcb Miniature Circuit Breaker produced by our company is manufactured through strict quality control and testing procedures, ensuring that each product meets relevant standards and has stable and reliable performance[6]. We always adhere to the user-oriented concept, continuously optimize product performance and improve product quality, to provide users with cost-effective and practical overload and short-circuit protection solutions[6].
Compared with other Mcb Miniature Circuit Breaker products on the market, our CJM2-63 product has obvious advantages in standardization, performance and safety: compliance with international standards ensures wide applicability; multiple specifications and tripping curves (including C Curve Mcb) can meet the needs of different scenarios; dual tripping mechanisms and high short-circuit breaking capacity ensure high safety performance and stable operation[6]. In addition, the product supports OEM/ODM customization and has multiple specifications optional, which can better meet the personalized needs of users and partners[6].
We provide perfect after-sales service and technical support. If you have any questions about the selection, installation, use or customization of our CJM2-63 Mcb Miniature Circuit Breaker, or if you need to know more about Mcb Rccb matching and C Curve Mcb application, please feel free to contact C&J Electrical. Our professional technical team will provide you with tailored solutions and reliable technical support to ensure that the product can play its best performance and meet your electrical safety protection needs.
