When selecting a residual current protection device for residential, commercial, and industrial electrical systems, users often ask: Which RCCB is better, 30mA or 100mA? The question has no universal “one-size-fits-all” answer. The performance and application value of Rccb devices depend entirely on their sensitivity rating and matching application scenarios. Different residual current thresholds correspond to distinct protection purposes, ranging from personal electric shock prevention to system fire protection and circuit stability maintenance.
30mA is the standard for additional protection against electric shock. 100mA and 300mA are mainly used for system stability and fire protection, not direct human safety.
As essential low-voltage protective devices, Residual Current Breaker (RCCB) devices monitor leakage current in AC circuits and automatically trip to cut off power when abnormal current leakage occurs. They effectively prevent electric shock accidents and electrical fire risks. In the Rcd Rcbo Rccb product family, sensitivity classification is the core basis for engineering selection. 30mA high-sensitivity models focus on terminal personal safety protection, while 100mA and 300mA medium-sensitivity models are dedicated to main circuit anti-leakage and fire prevention, avoiding frequent mis-tripping caused by tiny inherent leakage of large systems.
Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches the CJL1-125 series high-performance Rccb Circuit Breaker, supporting multi-level residual current ratings including 10mA, 30mA, 100mA and 300mA. This single product covers all mainstream sensitivity requirements, perfectly adapting to personal anti-shock protection, system stability maintenance and electrical fire prevention scenarios. It is a versatile and cost-effective choice for low-voltage residual current protection systems.
30mA vs 100mA Rccb: Core Application Differences
To clarify the selection logic of different sensitivity Residual Current Breaker devices, it is necessary to distinguish their protection positioning and applicable scenarios, which is the key to standardized electrical engineering design:
- 30mA High-Sensitivity RCCB: As the international standard for human body electric shock protection, it features ultra-sensitive tripping response. It can quickly cut off power when tiny leakage current endangers personal safety, fully suitable for residential sockets, bathroom and kitchen circuits, office terminal circuits, and outdoor temporary power consumption scenarios with frequent human contact. It serves as the core guarantee for personal electrical safety.
- 100mA Medium-Sensitivity RCCB: It abandons extreme high sensitivity to avoid frequent mis-tripping of large-power and long-distance circuits. It is mainly used for main distribution circuits, factory branch lines, and commercial public power distribution systems. Its core functions are suppressing system leakage accumulation, maintaining circuit operational stability, and preventing electrical fire hazards, rather than direct human body protection.
- Scenario Matching Principle: Terminal human contact scenarios prioritize 30mA models; system main circuit and large-load public power supply scenarios prioritize 100mA or 300mA models. The graded matching of multi-sensitivity Rcd Rcbo Rccb can build a layered and comprehensive leakage protection system.
C&J Electrical CJL1-125 Rccb Circuit Breaker Product Overview

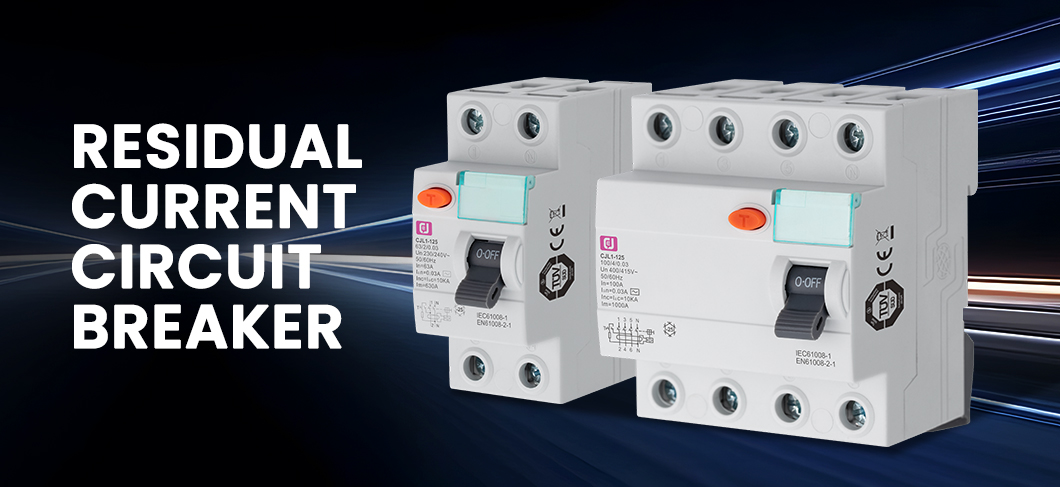

CJL1-125 series residual current circuit breaker is a new-generation high-performance Rccb developed by C&J Electrical for global low-voltage power distribution systems. Adopting an upgraded plastic operating mechanism, it abandons the traditional metal structure, with more stable tripping force and longer mechanical service life, featuring better environmental adaptability and environmental protection performance. It belongs to the updated and optimized residual current protection device in the industry.
This Residual Current Breaker supports multiple circuit types including AC type, A type and B type, covering conventional AC leakage, pulsating DC leakage and complex waveform leakage protection demands. With a complete specification matrix, it covers rated current from 16A to 125A, compatible with 230V single-phase and 400V three-phase power supply systems. It supports 35mm DinRail standard installation and PIN busbar matching, featuring strong universality and convenient on-site construction. It is widely applicable to residential, commercial, industrial and public engineering leakage protection scenarios.
Core Product Advantages
- Upgraded Plastic Operating Mechanism: The overall operating structure adopts high-quality plastic materials. Compared with traditional metal structures, it delivers more stable release force, more reliable cyclic operation performance and longer mechanical life, while achieving better environmental protection effects, representing a new-generation optimized mechanism design.
- Full Copper Current-Carrying Parts: All internal conductive components are made of pure copper materials, ensuring low resistance, stable current conduction, low heat generation during long-term operation, and strong overload resistance, effectively improving the operational safety and durability of the circuit breaker.
- Anti-Tamper Safety Design: All fixing screws are equipped with plastic sealing covers to block the screw holes. The structural design prevents random disassembly without professional tools, effectively avoiding safety hazards caused by private modification and improving overall equipment safety.
- Customizable Transparent Signboard: Equipped with a large-size transparent mark area, which facilitates users to make personalized identification marks according to circuit functions, load types and usage scenarios, realizing convenient circuit management and later maintenance.
- New Optimized Tripping Structure: The upgraded tripping structural design realizes faster and more accurate leakage response, effectively reducing missing trip and delayed trip risks, and further improving the overall safety level of power consumption.
Complete Technical Parameters
CJL1-125 series Rcd Rcbo Rccb has complete and standardized technical indicators, with rich specification gradients to meet differentiated selection needs of various scenarios:
|
Technical Items
|
Specifications
|
|---|---|
|
Rated Current
|
16A/20A/25A/32A/40A/50A/63A/100A/125A
|
|
Rated Voltage
|
230V (1P+N), 400V (3P+N)
|
|
Rated Frequency
|
50/60Hz
|
|
Number of Poles
|
2P/4P
|
|
Module Size
|
36mm
|
|
Circuit Type
|
AC Type / A Type / B Type
|
|
Breaking Capacity
|
6000A
|
|
Rated Residual Operating Current
|
10mA/30mA/100mA/300mA
|
|
Operating Temperature Range
|
-5°C ~ +40°C
|
|
Terminal Tightening Torque
|
2.5~4N/m
|
|
Terminal Capacity (Top/Bottom)
|
25mm²
|
|
Electro-Mechanical Endurance
|
4000 Cycles
|
|
Installation Standard
|
35mm DinRail
|
|
Applicable Busbar
|
PIN Busbar
|
Application Scenarios
With multi-sensitivity matching, multi-type circuit protection and high safety design, CJL1-125 Rccb Circuit Breaker covers all mainstream low-voltage leakage protection scenarios:
- Residential Terminal Protection: Select 30mA high-sensitivity models for household sockets, bathrooms, kitchens and bedroom circuits to provide all-round personal electric shock protection for families.
- Commercial Public Power Distribution: Adopt 100mA medium-sensitivity products for mall office buildings, community public distribution boxes and floor main circuits to maintain system stability and prevent electrical fires.
- Industrial Branch Circuits: Suitable for factory workshop branch power supply, mechanical equipment power distribution and light industrial load circuits, matching different sensitivity specifications according to load characteristics.
- Special Scenario Protection: A-type and B-type models adapt to equipment with DC leakage components such as frequency conversion equipment and new energy auxiliary circuits, meeting the protection demands of complex modern electrical systems.
Product Service & Supply Advantages
CJL1-125 series Residual Current Breaker features diverse optional specifications, wide scenario adaptability and high comprehensive safety performance. It supports OEM/ODM brand customization services, which can meet personalized product parameter adjustment, logo printing and packaging customization needs for different projects and brands.
As a professional low-voltage electrical manufacturer, C&J Electrical has a complete product matrix. In addition to full-series Rcd Rcbo Rccb leakage protection devices, we also supply ACB frame circuit breakers and other low-voltage distribution equipment. Meanwhile, we support SKD loose parts delivery to meet customers’ independent assembly, bulk matching and diversified procurement demands. If you have any questions about product selection, sensitivity matching, engineering adaptation and customized cooperation, please feel free to contact us for professional technical support.
Contact Us
In summary, there is no absolute better choice between 30mA and 100mA Rccb—the best selection depends on actual application scenarios. 30mA focuses on personal anti-shock protection, while 100mA focuses on system stability and fire prevention. C&J Electrical CJL1-125 series Rccb Circuit Breaker integrates multi-sensitivity specifications and multi-type protection modes, providing one-stop leakage protection solutions for global residential, commercial and industrial power distribution projects.
Welcome global customers for consultation, procurement and customized cooperation. We will provide full-cycle professional after-sales service and technical support.
