Electrical engineers, installers and property owners often face a core selection question when designing low-voltage distribution systems: Which one is better, RCCB or RCBO? Both belong to the Rcd Rcbo Rccb residual current protection family, serving to prevent electric shock and electrical fire risks. However, they differ greatly in functional configuration, protection range and application scenarios. Clarifying their differences is the key to standardized and safe electrical installation.
An RCBO is generally considered better and safer than an RCCB because it is an all-in-one device. While an RCCB only protects against electric shocks and earth leakage, an RCBO combines this with overcurrent protection. It protects circuits from both hazardous shocks and damaging short circuits or overloads.
As a professional Residual Current Breaker, RCCB focuses on core leakage and electric shock protection. Although it lacks built-in overcurrent and short-circuit protection compared with integrated RCBO, it features lower cost, stronger stability, anti-interference capability and wide compatibility. It is suitable for matched use with MCB in large-area circuit centralized protection scenarios, and still occupies an irreplaceable position in residential, commercial and industrial power distribution.
Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches the high-performance CJL3-63 series Rccb Circuit Breaker. Adopting electromagnetic and electronic dual modes, compliant with IEC61008 international standards, this product integrates leakage protection, isolation function and high short-circuit resistance. With complete specifications and reliable performance, it is an ideal choice for global low-voltage residual current protection projects.
RCCB vs RCBO: Core Functional & Scenario Differences
To help users accurately select Rccb and RCBO, we sort out their essential differences in protection functions and applicable scenarios:
- Protection Scope: RCBO is an all-in-one protective device with integrated leakage, overload and short-circuit protection. RCCB only provides earth leakage and electric shock protection without overcurrent protection, needing to be used with MCB to form a complete protection system.
- Scenario Adaptation: RCBO is suitable for single-circuit independent high-precision protection; Residual Current Breaker is more suitable for centralized protection of multiple circuits, main circuit leakage protection and cost-effective engineering supporting scenarios.
- Operational Stability: Professional RCCB products represented by CJL3-63 feature independent power supply operation, free from external interference and voltage fluctuation, with lower nuisance tripping rate and more stable long-term operation.
- Cost & Matching: RCCB is cost-effective, flexible to match, and suitable for large-scale engineering layout; RCBO has higher single-unit cost, more suitable for key circuit independent protection.

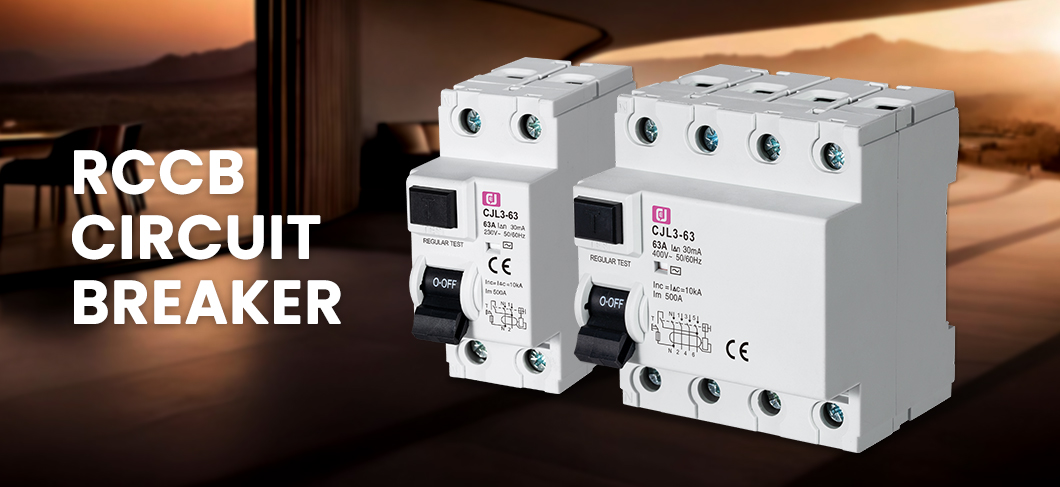

C&J Electrical CJL3-63 Rccb Circuit Breaker Product Overview
CJL3-63 series Rccb is a standardized high-safety residual current protective device developed by C&J Electrical in line with IEC61008 international standards. It supports electromagnetic and electronic working modes, covers A-type and AC-type residual current characteristics, and adapts to 2P/4P pole configurations, fully matching mainstream global single-phase and three-phase low-voltage power distribution systems.
This Residual Current Breaker is mainly used for earth fault and leakage current protection of AC circuits, with reliable circuit isolation function. It can automatically disconnect the circuit in time when leakage current exceeds the rated sensitivity threshold, effectively preventing personal electric shock accidents and electrical fire hazards caused by grounding faults. With strong short-circuit current withstand capability and excellent anti-interference performance, the product is not affected by power supply voltage changes and external environmental interference, ensuring long-term stable and reliable operation of the circuit.
Core Construction & Product Features
- Dual-Core Protection Function: Integrates earth fault/leakage current protection and circuit isolation function, realizing safe cut-off of faulty circuits and reliable isolation of live lines, facilitating later circuit maintenance.
- Strong Short-Circuit Withstand Capacity: It has high short-circuit current withstand performance, with 10kA rated conditional short-circuit current and residual short-circuit current, effectively resisting instantaneous short-circuit impact and avoiding equipment burnout.
- Visual Status Indication: Equipped with clear contact position indication, enabling staff to intuitively judge the on-off state of the circuit, improving operation and maintenance efficiency and safety.
- Finger Protection Design: Adopts finger-protected connection terminals to prevent accidental touch of live parts during installation and maintenance, eliminating manual operation safety hazards.
- High-Strength Fireproof Structure: All plastic parts are made of high-quality fire-resistant materials, which can withstand abnormal heating and strong impact, with excellent flame retardant and anti-damage performance.
- High-Sensitive Instant Tripping: When earth fault or leakage current exceeds the rated value, the device trips instantly within ≤0.3s to quickly cut off the power supply and protect personal and property safety.
- Super Anti-Interference Performance: The operation is independent of power supply and line voltage, free from external interference and voltage fluctuation, with extremely low nuisance tripping rate and strong environmental adaptability.
Complete Technical Data
CJL3-63 series Rcd Rcbo Rccb has complete and standardized technical parameters with rich specification gradients, meeting differentiated selection needs of various power distribution scenarios:
|
Technical Items
|
Specifications
|
|---|---|
|
Executive Standard
|
IEC61008
|
|
Working Mode
|
Electro-magnetic type / Electronic type
|
|
Residual Current Characteristic
|
A type / AC type
|
|
Number of Poles
|
2P / 4P
|
|
Rated Current
|
25A / 40A / 63A
|
|
Rated Voltage
|
AC 230(240)V / 400(415)V
|
|
Rated Frequency
|
50/60Hz
|
|
Rated Residual Operating Current
|
0.03A / 0.1A / 0.3A / 0.5A
|
|
Rated Residual Non-Operating Current
|
0.5I△n
|
|
Conditional Short-Circuit Current
|
10kA
|
|
Conditional Residual Short-Circuit Current
|
10kA
|
|
Tripping Duration
|
Instantaneous tripping ≤0.3s
|
|
Electro-Mechanical Endurance
|
4000 cycles
|
|
Max Connection Capacity
|
25mm² rigid conductor
|
|
Terminal Fastening Torque
|
2.0Nm
|
|
Installation Method
|
35.5mm symmetrical DIN rail / Panel mounting
|
|
Protection Class
|
IP20
|
Application Scenarios
With high safety, strong stability and wide specification coverage, CJL3-63 Rccb Circuit Breaker is widely used in various scenarios requiring professional leakage and electric shock protection:
- Residential Power Distribution: Suitable for household socket circuits, kitchen and bathroom humid environment circuits, and household main gate leakage protection, effectively preventing household electric shock accidents.
- Commercial Building Engineering: Applied to office buildings, shopping malls, hotels and other public building power distribution systems, providing centralized leakage protection for multi-branch circuits.
- Industrial Auxiliary Circuits: Used for factory workshop lighting, auxiliary equipment and small-load circuit protection, adapting to long-term continuous power supply working conditions.
- Public Infrastructure: Suitable for schools, hospitals, municipal engineering and other public power consumption scenarios, ensuring public electricity safety and stable system operation.
- Outdoor Temporary Power Consumption: Adaptable to outdoor engineering temporary power, garden lighting and other easily leaky scenarios, with strong environmental anti-interference ability.
Product Services & Supply Advantages
CJL3-63 series Residual Current Breaker features diverse optional specifications, wide scenario adaptability and high comprehensive safety performance. It supports A-type and AC-type dual leakage characteristic modes, multi-current and multi-voltage specifications, which can meet the differentiated needs of different regional standards and engineering projects.
C&J Electrical provides comprehensive supporting services: this product supports OEM/ODM brand customization services to meet personalized product customization needs of global customers. In addition to full-series Rcd Rcbo Rccb products, our company also supplies ACB frame circuit breakers and other low-voltage electrical equipment, and supports SKD loose parts delivery. If you have any questions about product selection, parameter matching, engineering adaptation and customized cooperation, please feel free to contact us for professional technical support.
Contact Us
In conclusion, RCBO has integrated multi-protection advantages, while professional Rccb represented by CJL3-63 series has outstanding stability and cost performance in centralized leakage protection scenarios. According to actual circuit load and protection needs, selecting RCCB or RCBO in a targeted manner is the key to building a safe and efficient power distribution system.
Welcome global customers to consult, purchase and customize products. C&J Electrical will provide full-cycle professional after-sales service and technical support.
Post time: Jul-13-2026
