Full Comparison & C&J Electrical Product Guide
When designing and optimizing low-voltage power distribution systems, one of the most frequently asked questions by electrical engineers and installers is: which is more sensitive, MCB or MCCB. The sensitivity difference between Mcb and Mccb directly determines fault tripping speed, circuit protection accuracy, and system operational stability. Choosing the wrong device may cause nuisance tripping or unprotected circuit faults. To achieve precise grading protection for residential, commercial and industrial power distribution, it is critical to master the core differences between Mcb And Mccb.
MCB is better for low-current, compact, and cost-sensitive applications (residential branch circuits). MCCB is better for high-current, demanding, and adjustable protection applications (industrial mains).
The definitive answer is clear: MCB is far more sensitive than MCCB. As miniature circuit breakers, Mcb products feature factory-fixed high-precision tripping curves, including professional B Curve Mcb options, delivering ultra-fast responses to minor overloads and slight short-circuit faults in low-current branch circuits. In contrast, Ac Mccb and Mccb Molded Case Circuit Breaker models prioritize high-current tolerance and adjustable protection settings. Designed for industrial main circuits, they sacrifice micro-current sensitivity to avoid false tripping caused by normal high-power load fluctuations, ensuring stable operation of heavy-duty power distribution systems.
Zhejiang C&J Electrical co., ltd. (C&J Electrical) launches two cost-effective and high-reliability core products: CJM1-63 miniature Mcb and CJMM3 series Mccb Circuit Breaker. Covering full-scenario low-current terminal and high-current main circuit protection, these two series perfectly interpret the sensitivity and performance differences between Mcb And Mccb. Matched with Rccb Circuit Breaker for residual current protection, they form a complete low-voltage safety protection solution for global engineering projects.

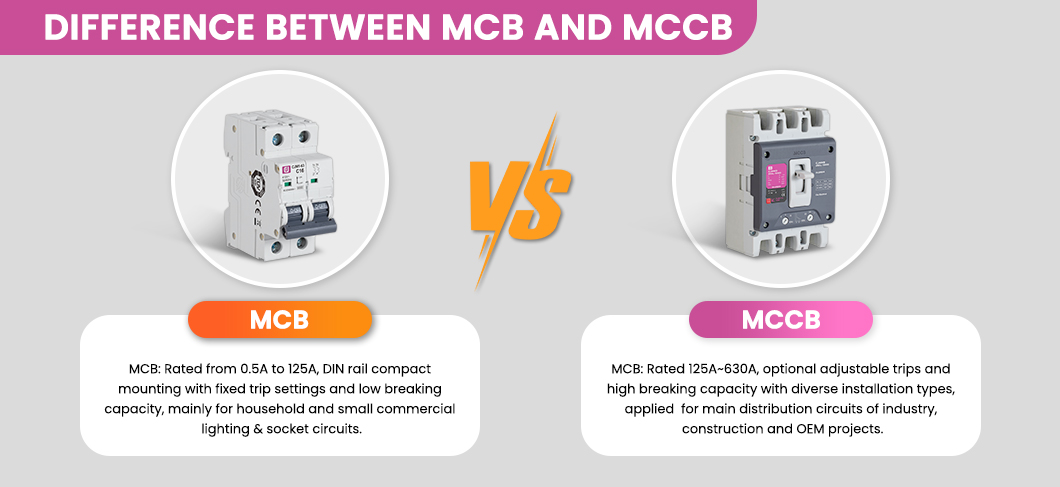

Core Sensitivity & Functional Differences: Mcb And Mccb
The sensitivity gap between Mcb and Mccb stems from their original design positioning and protection logic, forming a clear hierarchical protection matching relationship in power distribution systems:
Mcb (Miniature Circuit Breaker): Positioned for low-current terminal precision protection. It adopts fixed B, C, and D tripping curves, among which the B Curve Mcb is specially designed for high-sensitivity scenarios with low inrush current loads. All tripping parameters are pre-calibrated at the factory without manual adjustment, enabling accurate identification and rapid disconnection of tiny overload and weak short-circuit faults. It effectively protects delicate household and light commercial electrical equipment.
Mccb (Molded Case Circuit Breaker): Represented by CJMM3 seriesAc Mccb and Mccb Circuit Breaker, it is positioned for industrial high-current main circuit protection. It supports adjustable overload and short-circuit protection parameters, with a wider fault trigger threshold. It can withstand large current fluctuations during the start-up and operation of high-power equipment, greatly reducing the risk of nuisance tripping. Although less sensitive to micro faults, it provides stronger short-circuit breaking capacity and operational stability for heavy-load distribution systems.
C&J Electrical CJM1-63 Mcb Overview & Core Features
CJM1-63 series miniature circuit breaker is a high-sensitivity terminal protection device independently developed by C&J Electrical, fully complying with IEC/EN 60898-1 international standards. With compact structure, complete specifications and excellent sensitivity, it covers residential and light commercial low-current power distribution scenarios, being the preferred model for terminal branch circuit protection.
Construction and Core Features
- High Short-Circuit Capacity: Comes with a 6KA high breaking capacity, which can instantly cut off short-circuit faults of terminal circuits and resist instantaneous impact current.
- Max 63A Current Coverage: Designed to safely protect circuits with operating current up to 63A, covering most household appliances and light industrial small-load equipment.
- Visual Contact Position Indication: Equipped with a status display window to clearly show the closing and opening state of the contact, facilitating daily inspection and rapid fault judgment.
- Wide Civil Application: Can be used as the main switch and branch protection switch for households and similar civil electrical installation scenarios.
Detailed Technical Data
|
Technical Items
|
Specifications
|
|
Executive Standard
|
IEC/EN 60898-1
|
|
Rated Current
|
6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
|
|
Rated Voltage
|
230/400VAC (240/415V)
|
|
Rated Frequency
|
50/60Hz
|
|
Number of Poles
|
1P, 2P, 3P, 4P (1P+N, 3P+N)
|
|
Module Size
|
18mm ultra-narrow module
|
|
Curve Type
|
B Curve Mcb, C Curve, D Curve optional
|
|
Breaking Capacity
|
4500A, 6000A
|
|
Optimum Operating Temperature
|
-5℃ to 40℃
|
|
Terminal Tightening Torque
|
5N·m
|
|
Terminal Capacity (Top/Bottom)
|
25mm² / 25mm²
|
|
Electro-mechanical Endurance
|
4000 cycles
|
|
Installation Method
|
35mm Din Rail mounting
|
|
Suitable Busbar
|
PIN Busbar
|
C&J Electrical CJMM3 SeriesMccb Molded Case Circuit Breaker Overview
CJMM3 series Ac Mccb is a high-performance industrial-gradeMccb Circuit Breaker developed by C&J Electrical, designed for medium and high-current low-voltage distribution main circuits. It can stably connect, carry and break current under normal working conditions, and provide reliable protection for lines and electrical equipment within a specified time when overload, short circuit and undervoltage faults occur. It is widely applicable to electric power, construction, industrial production, OEM complete equipment and other low-voltage power consumption scenarios.
Structural Characteristics
- Complete Frame Specifications: Covers 125A, 160A, 250A, 400A, 630A frame grades, fully matching medium and high-current main circuit protection requirements of different industrial levels.
- Wide Voltage Adaptability: Supports 400/415V and 690V rated working voltage, compatible with various industrial AC power grid standards worldwide.
- Multi-Grade Breaking Capacity: Equipped with 20kA, 36kA, 50kA, 70kA, 75kA multi-level short-circuit breaking capacity, meeting diverse short-circuit protection standards in the power distribution field.
- Diversified Protection Types: Optional single magnetic type and thermal magnetic release types, realizing targeted protection for different load characteristics.
- Flexible Installation Methods: Supports fixed, plug-in and drawer-type installation modes, adapting to various cabinet structures and on-site installation environments.
Working And Installation Conditions
CJMM3 Mccb Circuit Breaker has excellent environmental adaptability. The standard working temperature ranges from -5℃ to 40℃, and it can adapt to extreme temperature environments of -40℃~-5℃ and 40℃~70℃ (temperature derating and parameter adjustment are required when the ambient temperature exceeds 40℃). The storage temperature ranges from -40℃ to 70℃. If stored at low temperature below the normal working range, the product needs to be placed under standard working conditions for at least 24 hours before commissioning to ensure stable performance.
In terms of humidity adaptation, the maximum relative humidity is 50% at +40℃. Higher relative humidity is allowed at lower temperatures, reaching up to 90% at +20℃, which can adapt to most complex indoor industrial and commercial power distribution environments.
Core Technical Data
|
Technical Items
|
Specifications
|
|
Model
|
CJMM3-125~630A
|
|
Number of Poles
|
3P
|
|
Rated Current
|
16A~630A
|
|
Impulse Withstand Voltage
|
8kV/10kV
|
|
Rated Operational Voltage
|
400V/415V/690V
|
|
Rated Insulation Voltage
|
800V/1000V
|
|
Operational Frequency
|
50/60Hz
|
|
Utilisation Category
|
Category A
|
|
Reference & Operating Temperature
|
-5℃~+40℃
|
|
Executive Standard
|
IEC60947-1/IEC60947-2
|
|
Electrical Life
|
5000/3000 cycles
|
|
Front Protection Grade
|
IP40
|
|
Pollution Degree
|
III
|
|
Release Type
|
Single magnetic trip / thermal magnetic trip
|
Application Scenarios & Matching Protection Logic
Based on the sensitivity difference of Mcb And Mccb, C&J Electrical’s dual product combination realizes full-scenario hierarchical protection, cooperating with Rccb Circuit Breaker to form a complete low-voltage safety system:
McbCJM1-63 (High Sensitivity): Equipped with professional B Curve Mcb, C Curve and D Curve options, it is suitable for residential buildings, office buildings, shopping malls and other civil terminal branch circuits. Its high-sensitivity fault response can accurately capture tiny overload and short-circuit faults of low-power equipment, protecting household electrical appliances and terminal lines.
Ac MccbCJMM3 (High Stability): With large current resistance and adjustable protection parameters, it is dedicated to industrial workshops, power engineering, building main distribution rooms, and OEM complete equipment main circuits. It withstands high current impact and load fluctuation, ensuring long-term stable operation of high-power distribution systems.
Product Overall Advantages
All C&J Electrical circuit breakers support flexible OEM/ODM brand customization services with complete product specifications and ultra-wide application scenarios. The CJM1-63 Mcb features high sensitivity, compact size and cost efficiency, meeting refined protection needs of civil terminal circuits. The CJMM3 Mccb Molded Case Circuit Breaker boasts high breaking capacity, strong environmental adaptability and diverse installation methods, adapting to complex industrial working conditions. Both series comply with international IEC standards with stable quality and high safety performance, fully meeting global engineering and market demands.
Contact Us
In summary, MCB is more sensitive than MCCB. Mcb And Mccb have distinct positioning and complementary functions in power distribution systems. C&J Electrical provides one-stop low-voltage protection solutions including high-sensitivity CJM1-63 Mcb (including B Curve Mcb), high-stability CJMM3 Ac Mccb, and supporting Rccb Circuit Breaker products.
If you have any questions about model selection, sensitivity matching, parameter adaptation and customized services, please feel free to contact us. We provide professional technical support and full-cycle after-sales service for global customers.
