In the field of low-voltage electrical safety, Residual Current Protection Device plays a vital role in protecting personal safety and preventing electrical fires. However, many users, electrical installers and project managers often fall into confusion when choosing protection devices: Which is better, RCCB or RCD? To answer this question scientifically, we first need to clarify the definition, connection and difference between the two, and then select the most suitable device according to the actual application scenario and protection needs. This article will systematically sort out the relationship between RCD and RCCB, integrate the core distinction paragraph, and focus on introducing the CJL3-63 Rccb Residual Current Circuit Breaker launched by Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance Rccb that meets industrial standards, providing reliable earth leakage protection for various electrical systems and solving the selection dilemma of Mcb Rccb matching.
An RCD (Residual Current Device) is the overall category of safety device, while an RCCB (Residual Current Circuit Breaker) is a specific type of RCD that protects only against earth leakage. An RCBO (combined MCB + RCCB) is generally better for full protection, as it covers earth leakage, overload, and short circuits. To put it simply, RCD is a general term for all residual current protection devices, which includes RCCB, RCBO and other specific types[4][5]. RCCB, as a key branch of RCD, focuses on earth leakage protection and can quickly cut off the circuit when leakage occurs, but it does not have overload and short-circuit protection functions. Therefore, when using Rccb Residual Current Circuit Breaker, it is usually necessary to match an MCB (Miniature Circuit Breaker) to form a complete protection system, which is the common Mcb Rccb matching mode in practical applications[4].
The core difference between RCCB and RCD lies in the scope of protection: all RCCBs are RCDs, but not all RCDs are RCCBs[4]. RCD covers a wider range, including any device that detects residual current and cuts off the power supply, while RCCB is a specialized Residual Current Protection Device that only targets earth leakage. In terms of application, if the scene only needs to prevent electric shock caused by leakage (such as some industrial circuits with independent overload and short-circuit protection), RCCB is a cost-effective choice; if full protection is required, RCBO (integrated MCB and RCCB) is more suitable; and RCD, as a general term, is the general concept of all such protection devices[5][6].

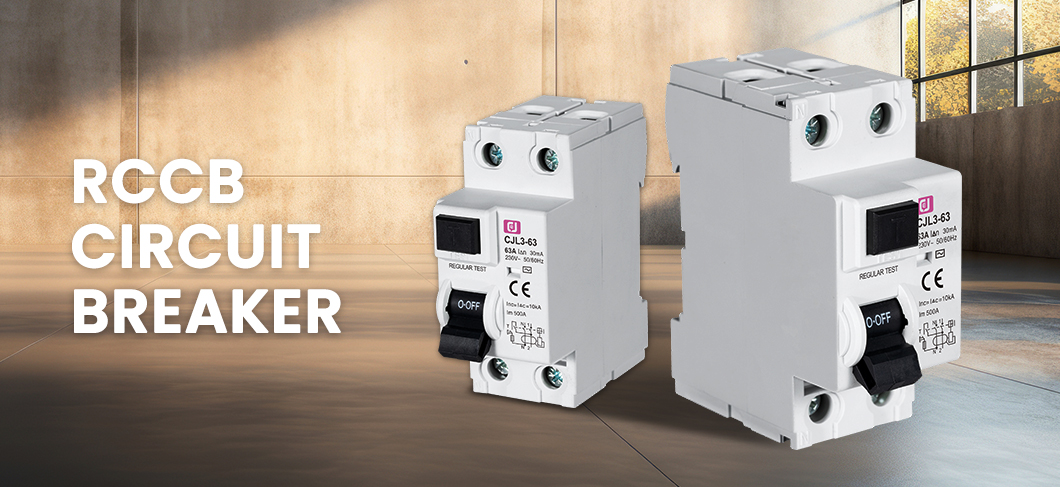

For scenarios that need independent earth leakage protection and flexible matching with MCB, choosing a high-quality Rccb is the key to ensuring protection effectiveness. The CJL3-63 Rccb Residual Current Circuit Breaker developed by C&J Electrical is designed to meet the diverse leakage protection needs of residential, commercial and industrial scenarios. It has excellent performance, complete functions and high safety, and can be perfectly matched with MCB to form a reliable Mcb Rccb protection system. Next, we will detail the product overview, core functions, product advantages, technical parameters and application scenarios of the CJL3-63 Rccb.
Overview of C&J Electrical CJL3-63 Rccb Residual Current Circuit Breaker
The CJL3-63 Rccb Residual Current Circuit Breaker is a professionalResidual Current Protection Device independently developed and produced by C&J Electrical, which is mainly used for earth fault and leakage current protection in low-voltage AC power supply systems. As a high-performance Rccb, it adopts electromagnetic and electronic dual modes, supports A and AC residual current characteristics, and is available in 2P and 4P pole configurations, which can be flexibly selected according to different circuit types (single-phase and three-phase circuits)[2][3].
The CJL3-63 Rccb has a rated current of 25A, 40A and 63A, which is suitable for various low-voltage circuits with different load requirements. It adopts a standardized structural design, supports 35.5mm symmetrical DIN rail installation and panel installation, which is consistent with mainstream electrical installation specifications, making installation and disassembly convenient and efficient, and suitable for on-site construction and later maintenance[3]. The product integrates leakage protection and isolation functions, and can automatically disconnect the circuit when the earth fault or leakage current exceeds the rated sensitivity, effectively preventing electric shock and electrical fire accidents[1][5].
In terms of safety and stability, the CJL3-63 Rccb Residual Current Circuit Breaker adopts high-quality fire-resistant plastic parts, which can withstand abnormal heating and strong impact, and has excellent flame-retardant performance, ensuring stable operation even in harsh environments. At the same time, the device is independent of power supply and line voltage, not affected by external interference and voltage fluctuation, and can maintain stable protection performance in complex power grid environments[1][6].
Core Functions & Product Advantages of CJL3-63 Rccb
As a high-performance Rccb Residual Current Circuit Breaker, the CJL3-63 has obvious advantages in protection performance, safety and applicability, integrating 7 core product advantages, which can fully meet the leakage protection needs of various scenarios and form a reliable Mcb Rccb protection system with MCB. Its specific product advantages are as follows:
- Dual Protection & Isolation Function: Provides protection against earth fault/leakage current and function of isolation. While effectively preventing electric shock caused by leakage, it can also play an isolation role, ensuring the safety of maintenance personnel during circuit maintenance and avoiding electric shock risks.
- High Short-Circuit Current Withstand Capacity: It has high short-circuit current withstand capacity, with a rated conditional short-circuit current of 10kA and a rated conditional residual short-circuit current of 10kA, which can withstand the impact of short-circuit current and avoid device damage, ensuring the stability of the entire circuit system[6].
- Contact Position Indication: Equipped with contact position indication function, which can clearly show the on-off state of the contact, facilitating users and maintenance personnel to quickly judge the working state of the Rccb without professional testing tools, improving maintenance efficiency.
- Finger Protected Connection Terminals: Equipped with finger protected connection terminals, which can effectively prevent accidental contact during installation and wiring, avoiding electric shock accidents caused by improper operation, and further improving the safety of use[3].
- High-Quality Fire-Resistant Plastic Parts: Fire resistant plastic parts endures abnormal heating and strong impact, with excellent flame-retardant, high-temperature resistant and impact-resistant properties, which can adapt to harsh working environments and prevent fire spread caused by abnormal heating[1].
- Automatic Leakage Tripping: Automatically disconnect the circuit when earth fault/ leakage current occurs and exceeds the rated sensitivity. The tripping duration is instantaneous, ≤0.3s (0.1), which can quickly cut off the power supply in milliseconds, minimizing the risk of electric shock and electrical fire[1][5].
- Stable Performance & Anti-Interference: Independent of power supply and line voltage, and free from external interference, voltage fluctuation. It can maintain stable protection performance even when the power grid voltage fluctuates or is interfered by the external environment, ensuring the reliability of leakage protection[6].
In addition, the CJL3-63 Rccb has excellent electromechanical endurance, with 4000 cycles of electromechanical endurance, ensuring long-term stable operation and reducing the frequency of maintenance and replacement. Its residual tripping current range is 0.5I△n~I△n, which can accurately respond to leakage faults and avoid false tripping, ensuring the normal operation of the circuit[3].
Technical Data of CJL3-63 Rccb Residual Current Circuit Breaker
|
Technical Parameter
|
Specification Details
|
|---|---|
|
Mode
|
Electro-magnetic type, electronic type
|
|
Residual current characteristics
|
A, AC
|
|
Pole No
|
2P, 4P
|
|
Rated making and breaking capacity
|
500A(In=25A,40A) or 10InA(In=63A,80A,100A,125A)
|
|
Rated current(A)
|
25, 40, 63
|
|
Rated voltage
|
AC 230(240)/400(415)
|
|
Rated frequency
|
50/60Hz
|
|
Rated residual operating current I△n(A)
|
0.03, 0.1, 0.3, 0.5
|
|
Rated residual non operating current I△no
|
0.5I△n
|
|
Rated conditional short-circuit current Inc
|
10kA
|
|
Rated conditional residual short-circuit Current I△c
|
10kA
|
|
Tripping duration
|
instantaneous tripping ≤0.3s(0.1)
|
|
Residual tripping current range
|
0.5I△n~I△n
|
|
Electro-mechanical endurance
|
4000 cycles
|
|
Connection capacity
|
Rigid conductor 25mm²
|
|
Terminal Connection Height
|
21mm
|
|
Connection terminal
|
Pillar terminal with clamp
|
|
Fastening torque
|
2.0Nm
|
|
Installation
|
On symmetrical DIN rail 35.5mm/Panel mounting
|
|
Protection class
|
IP20
|
Application Scenarios of CJL3-63 Rccb Residual Current Circuit Breaker
As a professionalResidual Current Protection Device, the CJL3-63Rccb Residual Current Circuit Breaker has a wide range of applications, suitable for residential, commercial, industrial and other multiple scenarios. It can be flexibly matched with MCB to form a Mcb Rccb protection system, providing reliable earth leakage protection for various circuits. Combined with its product characteristics and technical parameters, its specific application scenarios are as follows:
- Residential Scenarios: Applied to the main distribution box or branch distribution box of residential buildings, it is used to protect the leakage of household circuits (such as socket circuits, water heater circuits, air conditioning circuits). It can be matched with MCB to form a Mcb Rccb protection system, which not only prevents electric shock caused by leakage but also avoids overload and short-circuit damage to household appliances. The 30mA rated residual operating current is suitable for residential personal protection, and the instantaneous tripping function can quickly cut off the power supply to ensure the safety of residents[2][5].
- Commercial Scenarios: Suitable for commercial places such as offices, shops, hotels, restaurants, etc., used to protect the circuits of office equipment, lighting systems, air conditioning systems and small electrical equipment. The 2P and 4P pole configurations can be selected according to the single-phase and three-phase circuits of commercial places, and the high short-circuit current withstand capacity can adapt to the complex circuit environment of commercial places. The finger-protected connection terminals and contact position indication function facilitate installation and maintenance[3][6].
- Industrial Scenarios: Applied to small and medium-sized industrial workshops, warehouses, and production lines, used to protect the leakage of electrical equipment circuits (such as motors, pumps, control equipment). The electromagnetic and electronic dual modes can adapt to different industrial environments, and the performance of being free from external interference and voltage fluctuation ensures stable operation in the industrial power grid environment. The fire-resistant plastic parts can withstand abnormal heating and strong impact, adapting to the harsh industrial working environment[1][2].
- Public Facilities: Used in the circuits of public facilities such as community public lighting, public toilets, and small outdoor equipment, providing leakage protection for public electrical equipment. The IP20 protection level and fire-resistant plastic parts can adapt to outdoor and semi-outdoor environments, ensuring the stable operation of public facility circuits and protecting public safety[3][6].
- Other Scenarios: Suitable for places with high requirements for leakage protection, such as laboratories, small medical clinics, etc. The adjustable rated residual operating current (0.03A-0.5A) can be selected according to the sensitivity requirements of the equipment, ensuring both protection effect and avoiding false tripping[2][5].
Why Choose C&J Electrical CJL3-63 Rccb Residual Current Circuit Breaker?
In the competitive Residual Current Protection Device market, the CJL3-63 Rccb Residual Current Circuit Breaker from C&J Electrical has won the trust of users with its reliable performance, complete functions and high safety. As a professional manufacturer of electrical protection equipment, C&J Electrical has rich experience in R&D and production. The CJL3-63 Rccb is produced through strict quality control and testing procedures, ensuring that each product meets the relevant industrial standards and has stable and reliable performance[3][6].
Compared with ordinaryRccb products on the market, the CJL3-63 has obvious advantages: it integrates leakage protection and isolation functions, with comprehensive protection; the high short-circuit current withstand capacity and anti-interference performance ensure stable operation in complex environments; the humanized design (contact position indication, finger-protected terminals) improves the convenience and safety of use; the multiple specifications and pole configurations can be flexibly selected according to different scenarios, and can be perfectly matched with MCB to form a Mcb Rccb protection system[4][5].
In addition, we support OEM brand customization services, with a variety of specifications available, wide application scenarios and high safety performance. Whether it is residential, commercial or industrial scenarios, the CJL3-63 Rccb Residual Current Circuit Breaker can provide reliable earth leakage protection, cooperate with MCB to form a complete protection system, safeguard the safety of electrical systems and reduce economic losses caused by leakage faults.
If you have any questions about the selection, installation, use or customization of the CJL3-63 Rccb, or need professional advice on Mcb Rccb matching, please feel free to contact C&J Electrical. Our professional technical team will provide you with tailored solutions and reliable technical support to ensure the safe and stable operation of your electrical system.
Post time: Apr-10-2026
