In low-voltage residential, commercial and industrial power distribution design, users and electricians often face a key selection question: Which is better, an RCCB or an RCBO? Both belong to the Circuit Breaker Rcd family and serve as core residual current protection devices, but they differ greatly in protection functions, application scenarios and cost performance. Understanding their differences is the key to matching the most suitable electrical protection solution for different projects.
RCBO vs RCCB: Key Differences. RCBO protects from earth faults and overcurrent. In contrast, RCCB protects from earth faults only. Furthermore, an RCBO generally has a higher initial cost compared to an RCCB. That’s why many people tend to connect the RCCB to an MCB for the same protection as an RCBO provides.
As a member of Rcd Rcbo Rccb series products, RCCB exclusively focuses on residual current leakage protection, effectively preventing electric shock accidents and leakage-caused electrical fires. Although it needs to be used with Mcb Rccb combination to achieve full overcurrent protection, it has outstanding advantages in cost performance, stable leakage sensitivity and wide scenario adaptability, making it still irreplaceable in medium and low-end power distribution projects, large-area circuit centralized protection and cost-effective engineering solutions.
Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches the upgraded CJL1-125 series Rccb Residual Current Circuit Breaker. Adopting a new-generation plastic mechanical structure and optimized tripping technology, this product features stable performance, high safety and complete specifications. It perfectly matches the combined protection mode of RCCB + MCB, providing reliable earth leakage protection for various low-voltage power distribution systems.
RCCB VS RCBO: Detailed Functional & Scenario Comparison
To clarify the application value of RCCB in modern power distribution systems, we analyze the core differences between the two devices from multiple dimensions:
- Protection Scope: RCBO is an all-in-one device integrating earth fault, overload and short-circuit protection. RCCB, as a professional Circuit Breaker Rcd, only provides accurate residual current leakage protection, requiring cooperation with Mcb Rccb to supplement overcurrent and short-circuit protection functions.
- Cost Performance: The unit price of RCBO is higher, suitable for single-circuit high-precision full protection scenarios. RCCB has lower comprehensive cost, and the combined solution of RCCB + MCB can achieve the same full protection effect with more flexible budget control.
- Scenario Adaptability: RCBO is mostly used for single independent circuit protection. RCCB is more suitable for centralized protection of multiple circuits, widely applied in household main gates, commercial distribution boxes and industrial public circuits, with stronger universal adaptability.
- Maintenance Flexibility: The combined structure of Rcd Rcbo Rccb + MCB separates leakage protection and overcurrent protection, facilitating targeted fault detection and later maintenance, while integrated RCBO requires overall inspection after faults.

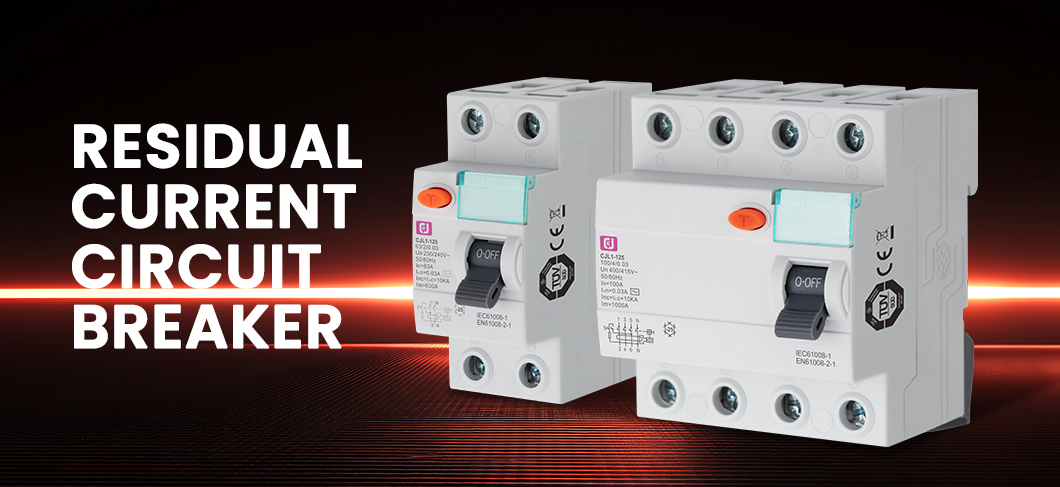

C&J Electrical CJL1-125 Rccb Residual Current Circuit Breaker Product Overview
CJL1-125 series RCCB is a new-generation high-stability residual current protection device developed for global low-voltage power distribution scenarios. Different from traditional metal-structure leakage protectors, this product adopts an innovative plastic operating mechanism, with more stable tripping force and longer mechanical cycle life, featuring environmental protection and durable use characteristics.
All internal current-carrying parts are made of pure copper material, ensuring low resistance, low heat generation and stable current transmission during long-term operation. The whole machine adopts anti-disassembly safety design: all fixing screws are covered with plastic sealing covers to block assembly holes, effectively preventing unauthorized disassembly and improving equipment operation safety. Equipped with a large-size transparent signboard, it supports personalized circuit marking, facilitating on-site installation and later operation and maintenance management.
This Circuit Breaker Rcd supports 2P and 4P pole specifications, covering 230V single-phase and 400V three-phase power supply systems. The current range covers 16A to 125A, with multiple residual current grades of 10mA, 30mA, 100mA and 300mA. It adapts to AC, A and B type circuits, fully meeting the leakage protection needs of conventional circuits and new energy special circuits.
Core Product Advantages
- Upgraded Plastic Operating Mechanism: Adopts a new-generation plastic structure instead of traditional metal structure, with more stable release force and more reliable operating performance. It has longer mechanical life cycle and better environmental protection performance.
- Pure Copper Full Current-Carrying Design: All internal conductive components are made of copper, ensuring stable current transmission, low operating heat generation and strong overload resistance.
- Anti-Disassembly Safety Structure: All matching screws are equipped with plastic sealing covers to block assembly holes, preventing random disassembly by non-professionals and improving overall safety.
- Customizable Transparent Marking Area: Large-size transparent signboard allows users to make special circuit marks, effectively distinguishing different functional loops and improving management efficiency.
- New Optimized Tripping Structure: The upgraded tripping mechanism improves leakage induction sensitivity and tripping accuracy, ensuring rapid and reliable action when leakage faults occur.
Complete Technical Parameters
CJL1-125 series Rccb Residual Current Circuit Breaker has standardized and complete technical indicators, adapting to global low-voltage distribution engineering standards:
|
Technical Items
|
Specifications
|
|---|---|
|
Rated Current
|
16A,20A,25A,32A,40A,50A,63A,100A,125A
|
|
Rated Voltage
|
230V (1P+N), 400V (3P+N)
|
|
Rated Frequency
|
50/60Hz
|
|
Number of Poles
|
2P, 4P
|
|
Module Size
|
36mm
|
|
Circuit Type
|
AC type, A type, B type
|
|
Breaking Capacity
|
6000A
|
|
Rated Residual Operating Current
|
10mA, 30mA, 100mA, 300mA
|
|
Operating Temperature Range
|
-5°C ~ 40°C
|
|
Terminal Tightening Torque
|
2.5~4N/m
|
|
Top/Bottom Terminal Capacity
|
25mm²
|
|
Electro-mechanical Endurance
|
4000 cycles
|
|
Installation Method
|
35mm DinRail Mounting
|
|
Applicable Busbar
|
PIN Busbar
|
Core Functions & Application Scenarios
Cooperating with Mcb Rccb to form a complete protection system, CJL1-125 Rcd Rcbo Rccb provides professional and accurate residual current protection, widely used in multiple scenarios:
- Household Power Distribution: Used for household main circuit leakage protection, matched with MCB for overload and short-circuit protection, effectively preventing household electric shock and leakage fire hazards.
- Commercial Buildings: Suitable for office buildings, shopping malls, hotels and other public building centralized power distribution systems, protecting multi-branch circuit safety.
- Industrial Auxiliary Circuits: Applied to factory workshop public circuits and auxiliary equipment, adapting to long-term stable power consumption scenarios.
- New Energy & Special Scenarios: Supports AC, A and B type circuit protection, adapting to photovoltaic, energy storage and other new energy circuit leakage protection needs.
Product Services & Supply Advantages
CJL1-125 series Rccb Residual Current Circuit Breaker has rich specifications, stable performance and high safety. The cooperative protection mode with MCB is flexible and cost-effective, which is an economical and reliable choice for most low-voltage power distribution projects.
C&J Electrical supports OEM/ODM brand customization services to meet personalized product needs of global customers. With multiple specification options and wide scenario adaptability, the product covers most conventional and special low-voltage leakage protection scenarios. We also support SKD loose parts delivery. If you have any questions about product selection, parameter matching and customized cooperation, please feel free to contact us for professional technical support.
Contact Us
In conclusion, there is no absolute good or bad between RCCB and RCBO, only scenario matching differences. RCBO is suitable for single-circuit full protection with high budget, while RCCB matched with Mcb Rccb has higher cost performance and wider adaptability. C&J Electrical CJL1-125 high-quality Circuit Breaker Rcd provides stable and accurate leakage protection for global low-voltage power distribution systems.
Welcome global customers to consult, purchase and customize products. We will provide full-cycle professional after-sales service and technical support.
Post time: Aug-03-2026
