In low-voltage power distribution system design, electrical engineers often face a critical selection question: Which is better, ACB or MCCB? Air Circuit Breakers (ACB) and Molded Case Circuit Breakers (Mccb) are both core low-voltage protection devices, yet they differ greatly in structural design, current range, breaking capacity, maintenance characteristics and application positioning. There is no absolute “better” option—only more suitable choices for specific circuit locations and load demands.
MCCB is best for branch and feeder protection where compact size, flexibility, and cost efficiency are important. ACB is best for main distribution where high current, high breaking capacity, and advanced selective protection are required.
To put it simply, ACBs feature large size, high current tolerance, ultra-high breaking capacity and complete selective protection functions, which are mainly used for incoming main switches of low-voltage distribution rooms and total power distribution protection of large industrial systems. In contrast, Mccb Circuit Breakers represented by the CJMM9 series are compact, flexible and cost-effective Mccb Electrical devices. As mainstream Ac Mccb products for AC power distribution systems, they are widely applied in branch circuits, feeder loops and medium and small-capacity equipment protection, becoming the preferred device for hierarchical distribution protection systems.
Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) provides a complete low-voltage circuit breaker product matrix, including both ACB and high-performance CJMM9 series Mccb. The CJMM9 series is developed to meet global market demands, with standardized specifications, flexible installation, stable fault protection performance and wide scenario adaptability, fully covering medium and large-current branch distribution protection needs in industrial, commercial and civil fields.
Core Differences Between ACB and Mccb Circuit Breakers
The essential difference in selection between ACB and Mccb Electrical lies in circuit positioning and performance matching, which determines their respective application boundaries in power distribution systems:
- Application Positioning: ACB is dedicated to main incoming line and total distribution protection of high-capacity power distribution systems, undertaking overall system fault protection. Ac Mccb is mainly used for branch circuits, feeder loops and terminal large-load equipment protection, cooperating with ACB to form graded power distribution protection.
- Structural & Maintenance Features: ACB adopts open removable structure with maintainable internal components and long service life. CJMM9 Mccb adopts compact molded sealed structure, free of daily maintenance, with small footprint and convenient on-site installation and replacement.
- Performance & Cost Balance: ACB has ultra-high breaking capacity and advanced selective protection, but with high overall cost and large installation space occupation. CJMM9 series balances performance and cost, with sufficient breaking capacity for branch circuit protection, flexible specification selection and higher cost performance.
- Current Adaptation Range: ACB is oriented to super-large current scenarios above 1600A. CJMM9 Mccb Circuit Breakers cover 32A-1600A, perfectly filling the medium and large-current protection gap of branch distribution systems.
C&J Electrical CJMM9 Series Mccb Electrical Product Overview

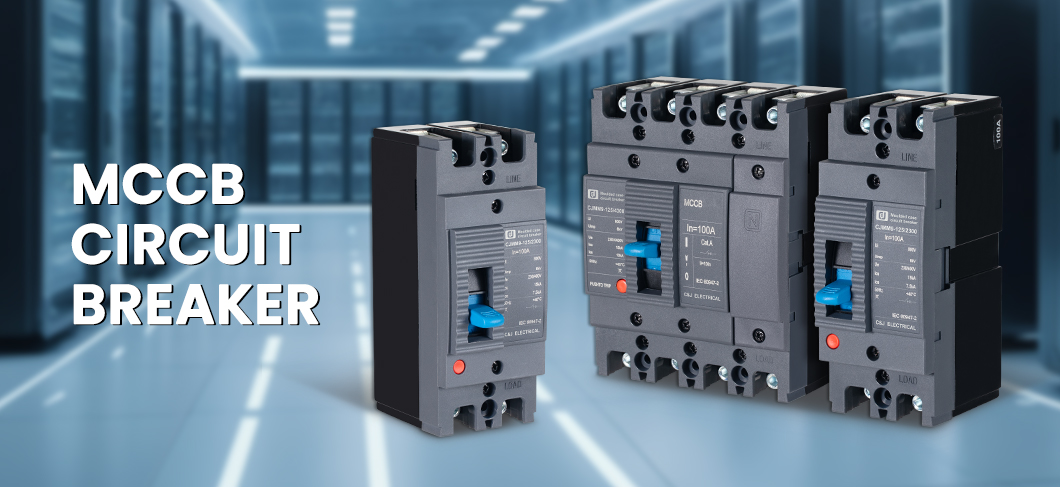

CJMM9 series molded case circuit breakers are high-performance Ac Mccb independently launched by C&J Electrical, designed in line with domestic and international market application standards. The series features a maximum rated insulation voltage of 1000V (690V for 125A frame size), adapting to AC 50Hz power distribution systems, with rated operating voltages covering 230V and 400V, and rated current ranging from 32A to 1600A.
This series of Mccb is mainly used for electric energy distribution in low-voltage systems, providing reliable protection for lines and power equipment against overload, short circuit, undervoltage and other faults. It can also be used for infrequent starting of motors and corresponding fault protection of motor equipment. According to the ultimate short-circuit breaking capacity, the products are divided into M-type and H-type to meet the differentiated short-circuit protection demands of different branch circuits. Supporting vertical and horizontal dual installation methods, the product adapts to various cabinet layout requirements, and strictly complies with IEC 60947-2 and GB/T 14048.2 dual standards, with stable and compliant quality.
Core Functional Advantages
- Diversified Performance Grades: Divided into M-type and H-type based on short-circuit breaking capacity (15-66kA), covering conventional and high-impact branch circuit fault protection scenarios.
- Full Poles & Wide Current Coverage: Equipped with 1P/2P/3P/4P complete pole specifications, current range covers 32A-1600A, adapting to single-phase and three-phase AC distribution systems of different capacities.
- Flexible Installation Adaptability: Supports upright vertical installation and sideways horizontal installation, freely matching different cabinet structures and on-site space constraints.
- Multi-Grade Withstand Voltage: Supports 6kV, 8kV, 12kV multiple impulse withstand voltage specifications, with strong system anti-interference ability and high operational stability.
- Standardized Safety Design: Complies with international and national dual industry standards, with Category A usage category, meeting the basic protection requirements of most low-voltage branch distribution systems.
Key Technical Parameters
CJMM9 series Mccb Circuit Breakers have complete and standardized technical indicators, with rich specification gradients and strong engineering matching ability:
|
Technical Items
|
Specifications
|
|---|---|
|
Product Model
|
CJMM9 Series
|
|
Frame Current Range
|
125A~1600A
|
|
Number of Poles
|
1P/2P/3P/4P
|
|
Rated Working Current
|
32A~1600A
|
|
Rated Working Voltage
|
230VAC (1P/2P), 400VAC (3P/4P)
|
|
Rated Insulation Voltage
|
690V/1000VAC
|
|
Impulse Withstand Voltage
|
6kV/8kV/12kV
|
|
Short-Circuit Breaking Capacity Ics
|
15kA~66kA
|
|
Usage Category
|
Category A
|
|
Executive Standards
|
IEC 60947-2, GB/T 14048.2
|
Working & Installation Environmental Conditions
CJMM9 series Ac Mccb has standardized environmental adaptation parameters, ensuring stable operation in most conventional industrial and civil power distribution scenarios:
- Altitude Adaptation: Suitable for working environments with altitude below 2000m; parameter derating and adjustment are required for environments above 2000m to ensure protective performance.
- Temperature Range: Normal ambient temperature ranges from -5°C to +40°C; derating adjustment is required for operating environments exceeding this range.
- Humidity Requirements: The relative humidity shall not exceed 50% at +40°C; higher humidity is allowed at lower temperatures. Anti-condensation measures are required for temperature fluctuation scenarios.
- Installation & Protection Grade: Main circuit installation category III, auxiliary and control circuits category II; pollution degree 3, front protection rating IP30.
- Environmental Requirements: Installed in rain and snow sheltered non-explosive environments, free of corrosive gases and conductive dust that damage metal and insulation materials.
Application Scenarios
Combining compact structure, flexible installation and stable protection performance, CJMM9 series Mccb Electrical products are widely used in branch and feeder protection scenarios matched with ACB main distribution systems:
- Industrial Branch Distribution: Used for workshop branch power distribution cabinets, production line equipment power supply protection, and medium and large-power motor equipment overload and short-circuit protection, cooperating with ACB main switches to form graded protection.
- Commercial Building Distribution: Applied to shopping malls, office buildings, residential communities and other building low-voltage distribution systems, responsible for floor and branch circuit power protection.
- Public Infrastructure: Suitable for schools, hospitals, municipal engineering and other public power distribution systems, ensuring safe and stable operation of public power supply equipment.
- Mechanical & Electrical Complete Equipment: Matched with various low-voltage complete switchgear, automation equipment and mechanical power distribution systems, providing reliable feeder loop protection.
Product Advantages & Custom Service
C&J Electrical provides a complete low-voltage breaker solution with both ACB and CJMM9 series Mccb Circuit Breakers. The CJMM9 series stands out in branch distribution protection with diversified specifications, flexible installation, stable safety performance and high cost performance. With M/H dual breaking capacity grades, full pole specifications and wide current coverage, it can meet the differentiated selection needs of various branch circuits.
This series of Ac Mccb supports OEM/ODM brand customization services with diverse optional specifications and wide application scenarios. Our company not only supplies complete ACB and MCCB finished products, but also supports SKD loose parts delivery to meet different customer procurement and production demands. If you have any questions about product selection, parameter matching, customized cooperation and parts procurement, please feel free to contact us for professional technical support.
Contact Us
In conclusion, ACB and Mccb have their own superior application scenarios. ACB is the core device for high-current main distribution protection, while CJMM9 series Mccb Electrical devices are the optimal choice for compact, cost-effective branch and feeder protection. C&J Electrical provides one-stop low-voltage breaker matching services from main distribution ACB to branch distribution MCCB, with reliable product quality and diverse supply methods.
Welcome global customers for consultation, procurement and customized cooperation. We will provide full-cycle professional after-sales service and technical support.
