As the global demand for solar energy systems continues to surge, ensuring the safety, reliability, and efficiency of these systems has become a top priority for installers, engineers, and system owners. A critical component of solar system protection is the proper placement of fuses, which safeguard valuable equipment from short circuits, overcurrents, and electrical faults. A common question in the industry is: Where to put fuses in a solar system? This article will answer this question in detail, explain the key principles of fuse placement in solar systems, and focus on introducing the CJPV-32X PV Fuse Holder from Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance protection solution designed for photovoltaic system applications.
There are three different locations where the fuse can be installed in the solar panels. The first is between the battery bank and the charge controller. Secondly, it can be placed between the charge controller and the solar panels. Lastly, the fuse can also be present between the inverter and the battery bank.
In a solar photovoltaic (PV) system, fuses act as the first line of defense against electrical hazards, and their placement directly impacts system safety and performance. Beyond the three core locations mentioned above, fuses are also commonly installed in PV string combiner boxes and between parallel PV arrays to isolate faults and prevent cascading damage. Unlike fuses used in traditional AC systems, PV Fuse Holder and their matching fuses must be designed to withstand the unique challenges of DC circuits—including high open-circuit voltages, low fault currents, and prolonged exposure to harsh environmental conditions. Compliance with industry standards such as IEC 60269-6 is essential to ensure compatibility and reliable protection for solar-specific applications .
Overview of C&J Electrical CJPV-32X PV Fuse Holder

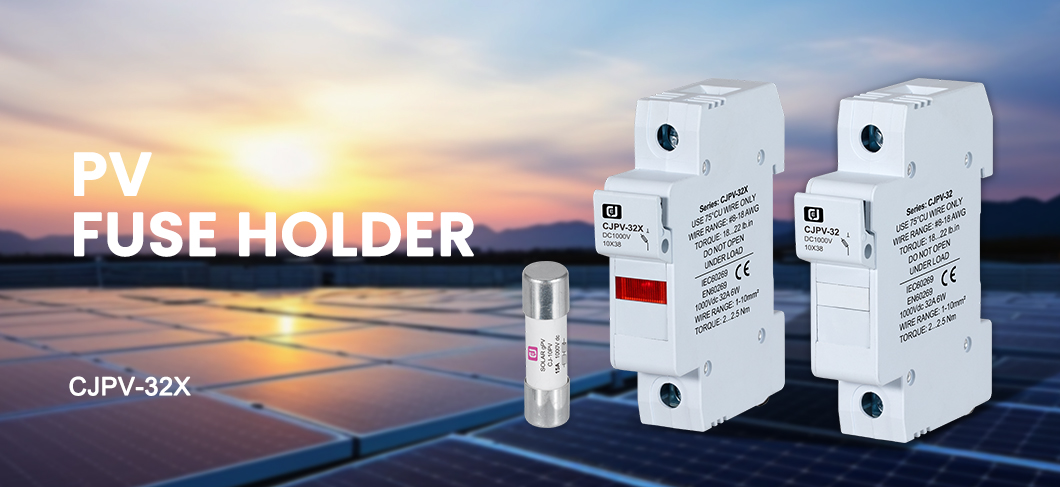

The CJPV-32X PV Fuse Holder is a professional-grade circuit protection component developed by C&J Electrical specifically for solar energy systems. Compliant with the IEC 60269-6 standard— the global benchmark for PV system fuses —this PV Fuse Holder is engineered to provide robust short-circuit and overcurrent protection for high-voltage DC circuits. With a maximum rated voltage of 1000VDC and a rated current of up to 32A (accommodating 1A-32A fuse links), it is perfectly suited for the key protection points in solar systems, including PV strings, combiner boxes, inverters, and battery charge controller circuits.
Constructed from high-quality refractory materials, the CJPV-32X PV Fuse Holder features a fire-retardant shell that offers excellent high-temperature resistance, ensuring stable performance even in extreme operating conditions. Its compact design optimizes space utilization in electrical enclosures, while supporting 1P, 2P, and 3P pole configurations to meet diverse system wiring requirements. As a critical component in solar system protection, this PV Fuse Holder is widely used in high and low-voltage distribution systems, control systems, and electrical equipment such as distribution boxes and inverters.
Core Features & Advantages of CJPV-32X PV Fuse Holder
The CJPV-32X PV Fuse Holder stands out in the market with its tailored design for solar applications, delivering exceptional performance and user-friendly features:
- Standard Compliance & Reliable Protection: Meets IEC 60269-6 standards , with a breaking capacity of 20kA, ensuring rapid and safe interruption of fault currents to protect PV modules, inverters, and batteries from damage.
- Easy Installation & Flexible Mounting: Adopts DIN35 rail installation for quick and convenient integration into standard electrical panels, reducing on-site construction time and labor costs.
- Secure Wiring & Stable Connections: Equipped with adjustable terminal blocks that ensure firm wire connections, minimizing contact resistance and preventing loose connections caused by vibration or thermal expansion.
- Fire-Retardant & High-Temperature Resistant: Fire-retardant shell material enhances safety by preventing flame spread in case of electrical faults, while the holder’s design tolerates extreme temperatures.
- Excellent DC Performance: Low power loss and low arc voltage characteristics optimize energy efficiency, while low energy let-through (I²t) minimizes thermal stress on system components during fault conditions.
- Strong Environmental Adaptability: Operates reliably in a wide storage temperature range of -40°C~120°C and humidity conditions (up to 90% RH at 20°C), withstanding harsh outdoor environments common in solar installations.
- Vibration & Shock Resistance: Capable of withstanding more than 20g of vibration and impact, complying with the requirements of rail transit and general motor vehicle applications, ensuring stability in mobile or high-vibration solar setups (e.g., rooftop systems exposed to wind).
Technical Parameters of CJPV-32X PV Fuse Holder
|
Parameter
|
Details
|
|---|---|
|
Product Model
|
CJPV-32X PV Fuse Holder
|
|
Compliant Standard
|
IEC 60269-6
|
|
Pole Configurations
|
1P, 2P, 3P
|
|
Rated Working Voltage
|
1000VDC
|
|
Rated Current Range
|
1A-32A (supports 32A max fuse link)
|
|
Breaking Capacity
|
20kA
|
|
Shell Material
|
Fire-retardant thermoplastic (refractory material)
|
|
Installation Method
|
DIN35 rail mounting
|
|
Storage Temperature
|
-40°C~120°C
|
|
Operating Humidity
|
≤70% RH at 40°C; ≤80% RH at 30°C; ≤90% RH at 20°C
|
|
Vibration & Shock Resistance
|
≥20g
|
|
Altitude Adaptability
|
2000-4500m (with derating as needed for closed environments)
|
Application Scenarios of CJPV-32X PV Fuse Holder
The CJPV-32X PV Fuse Holder is a versatile protection solution designed for the key fuse locations in solar systems and other DC power applications:
- PV String & Combiner Boxes: Installed between solar panels and combiner boxes to protect individual PV strings from short circuits, preventing fault propagation across the array .
- Charge Controller Circuits: Placed between the PV array and charge controller, as well as between the charge controller and battery bank, safeguarding the controller and batteries from overcurrent and reverse current.
- Inverter Protection: Used between the battery bank and inverter to protect the inverter’s input circuit from short circuits and overcurrents, ensuring stable power conversion .
- Industrial & Commercial Solar Systems: Ideal for rooftop solar installations, ground-mounted solar farms, and off-grid solar systems (e.g., remote cabins, telecommunications towers).
- High-Altitude Applications: Adaptable to altitudes between 2000-4500m, with considerations for insulation and current derating in closed environments, making it suitable for mountainous solar projects.
Why Choose C&J Electrical CJPV-32X PV Fuse Holder?
In the competitive solar protection market, the CJPV-32X PV Fuse Holder from C&J Electrical offers compelling advantages for system integrators and owners:
- Solar-Specific Design: Engineered to address the unique challenges of DC circuits in solar systems, ensuring reliable protection where standard fuses may fall short.
- Proven Durability: Fire-retardant construction, wide temperature tolerance, and vibration resistance make it suitable for the harsh operating conditions of outdoor solar installations.
- Easy Integration & Maintenance: DIN rail mounting and tool-free fuse replacement simplify installation and maintenance, reducing system downtime.
- Flexible Configuration: Multiple pole options (1P/2P/3P) and current ratings (1A-32A) provide versatility to match diverse system designs.
- OEM Customization Support: Offers OEM brand customization services with a range of specifications, enabling partners to deliver tailored solutions for their specific market needs.
- Compliance & Safety: Adheres to international standards, ensuring regulatory compliance and peace of mind for system owners and installers .
Get in Touch
If you are unsure about “Where to put fuses in a solar system” or need a reliable PV Fuse Holder for your solar project, the CJPV-32X from C&J Electrical is the ideal choice. It delivers the performance, durability, and compliance required to protect your solar investment.
For questions about product specifications, model selection, customization options, or bulk orders, please feel free to contact C&J Electrical. Our professional team will provide you with tailored protection solutions and technical support to ensure the safe and efficient operation of your solar system.
