A Complete Guide with C&J Electrical CJMM9 Series MCCB
In low-voltage power distribution systems, various circuit protection devices including Mccb Molded Case Circuit Breaker, RCCB, MCB and ELCB undertake different safety tasks. Many users often confuse their functions and application scenarios, resulting in incorrect type selection and hidden electrical safety risks. To build a safe and compliant power distribution system, it is essential to clearly distinguish the functional differences between Mccb Circuit Breaker and RCCB, and match the right protective device according to actual load demands.
MCBs are used to break an electrical circuit if there’s a current overload. MCCBs are used to break electrical circuits if there’s current overload and temperature overload. ELCBs are used to identify earth faults and break them from the electrical circuit. RCCB protects electrical circuits from earth faults.
Simply put, Mccb Electrical products represented by Ac Mccb focus on overcurrent, over-temperature and short-circuit protection for circuits and equipment, protecting power distribution infrastructure from damage. In contrast, RCCB specializes in residual current and earth fault protection, mainly preventing personal electric shock and leakage fire accidents. As a core industrial-grade protection device in the Mccb Circuit Breakers product line, the CJMM9 series launched by Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) provides reliable overload, short-circuit and undervoltage protection for medium and high-current power distribution scenarios, perfectly making up for the protection limitations of small breakers and single-function leakage protectors.
Core Differences Between MCCB and RCCB
Although both MCCB and RCCB belong to low-voltage circuit protection devices, their protection principles, functional positioning and application scenarios are completely different:
- Protection Function: Mccb Molded Case Circuit Breaker integrates overload over-temperature protection, short-circuit instantaneous protection and undervoltage protection, focusing on protecting lines, transformers and electrical equipment from overcurrent damage. RCCB only targets earth faults and residual current leakage, with no overload or short-circuit protection capability.
- Protection Object: Mccb Circuit Breaker protects electrical equipment and power distribution circuits; RCCB protects personal safety and prevents leakage-induced fires.
- Current Range: Ac Mccb adapts to medium and high-current scenarios up to 1600A, suitable for main circuit protection; RCCB is mostly used for low-current terminal circuits.
- Working Principle: Mccb Electrical relies on thermal and magnetic tripping mechanisms to respond to over-temperature and over-current faults; RCCB judges current imbalance to detect leakage faults.
In actual engineering applications, MCCB and RCCB are often used in combination: MCCB acts as the main circuit overcurrent protection, and RCCB serves as terminal leakage protection, forming a comprehensive electrical safety protection system.

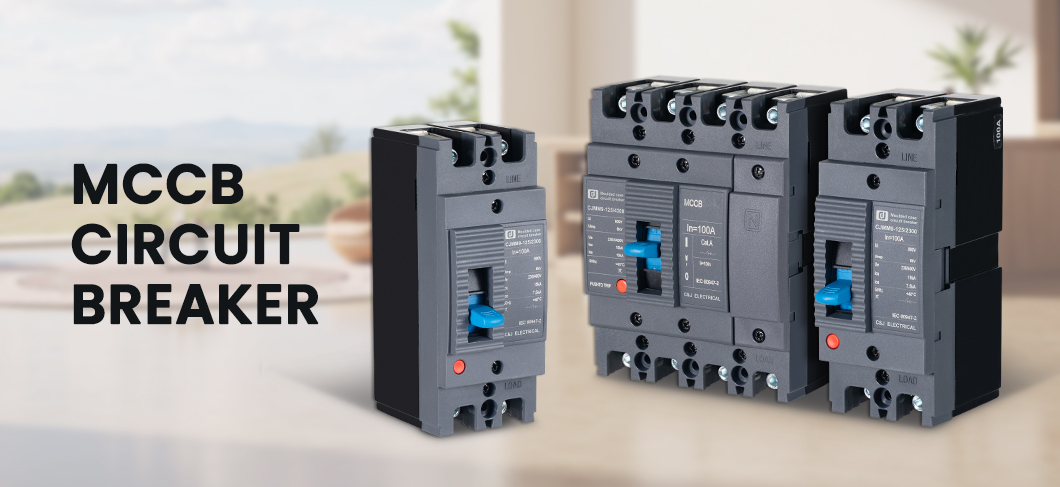

C&J Electrical CJMM9 Series MCCB Product Overview
The CJMM9 series high-performance Mccb Molded Case Circuit Breaker is independently developed by C&J Electrical to meet the dual demands of domestic and international low-voltage power distribution markets. This series strictly complies with IEC 60947-2 and GB/T 14048.2 international and national standards, with stable performance and wide adaptability, belonging to Category A utilization equipment.
Different from small MCBs with fixed parameters and low current resistance, CJMM9 Mccb Circuit Breakers have a maximum rated insulation voltage of 1000V (690V for 125A frame size). It is applicable to AC 50Hz power systems, with a rated operating voltage up to 400V and a maximum rated operating current of 1600A. The product is mainly used for power distribution in industrial, commercial and civil low-voltage systems, and can effectively protect circuits and power equipment from overload, short circuit, undervoltage and other faults.
In addition to conventional circuit protection functions, this Ac Mccb can also be used for infrequent motor starting and matching protection of motor equipment. According to the ultimate short-circuit breaking capacity, the series is divided into M-type and H-type to meet the graded short-circuit protection demands of different power distribution levels. It supports vertical upright installation and horizontal sideways installation, with flexible and diverse installation methods to adapt to various cabinet layouts.
Key Technical Performance Indicators
CJMM9 series Mccb Electrical products have complete and standardized technical parameters, covering multi-frame and multi-specification models to realize full-scenario coverage of medium and high-current power distribution:
|
Technical Items
|
Specifications
|
|---|---|
|
Product Model
|
CJMM9 Series
|
|
Frame Current Range
|
125A~1600A
|
|
Pole Number
|
1P/2P/3P/4P
|
|
Rated Current
|
32A~1600A
|
|
Rated Operating Voltage
|
230VAC (1P/2P), 400VAC (3P/4P)
|
|
Rated Insulation Voltage
|
690V, 1000VAC
|
|
Impulse Withstand Voltage
|
6kV, 8kV, 12kV
|
|
Short-Circuit Breaking Capacity
|
15kA~66kA
|
|
Utilization Category
|
Category A
|
|
Performance Grade
|
M-type, H-type
|
|
Executive Standards
|
IEC 60947-2, GB/T 14048.2
|
Working and Installation Conditions
CJMM9 series Mccb Circuit Breaker has strict environmental adaptation standards, ensuring stable and reliable operation in standardized industrial and commercial power distribution environments:
- Altitude Adaptation: Normal operating altitude is below 2000m; equipment derating and parameter adjustment are required for environments above 2000m to ensure protective accuracy.
- Temperature Range: The standard ambient temperature ranges from -5°C to +40°C; derating use is required for environments exceeding this range to avoid performance deviation.
- Installation Category: Main circuit adopts Installation Category III; auxiliary and control circuits adopt Installation Category II, matching industrial power distribution safety specifications.
- Humidity Environment: The maximum relative humidity is 50% at +40°C; higher humidity is allowed at lower temperatures. Anti-condensation measures are required for temperature fluctuation scenarios.
- Environmental Grade: Pollution Degree 3, front protection rating IP30, adapting to conventional indoor industrial and commercial environments.
- Installation Environment: It must be installed in non-explosive environments without corrosive gas and conductive dust, and protected from rain and snow erosion.
Core Functions and Application Scenarios
Relying on high current resistance, high breaking capacity and multi-functional protection, CJMM9 series Ac Mccb is widely used in medium and high-current main circuit power distribution scenarios that RCCB and MCB cannot cover:
- Industrial Power Distribution: Used as main circuit protection for factory workshops, production lines, large mechanical equipment and transformer terminals, providing overload, short-circuit and undervoltage protection for high-power industrial loads.
- Commercial Building Engineering: Applied to main distribution cabinets of shopping malls, hotels, office buildings and comprehensive buildings to undertake overall power distribution safety protection of building electrical systems.
- Motor Equipment Protection: Suitable for infrequent starting and operational protection of large motors, effectively avoiding motor burnout caused by overcurrent and voltage abnormalities.
- Power Supporting Projects: Used for terminal power distribution protection of low-voltage power grids, ensuring stable power transmission and distribution and improving the safety of power supply systems.
Product Advantages
Compared with ordinary conventional Mccb Electrical products, C&J Electrical CJMM9 series Mccb Molded Case Circuit Breaker has comprehensive practical advantages in engineering applications:
- Wide Specification Coverage: Frame current covers 125A-1600A, with 1P/2P/3P/4P complete pole specifications, fully meeting the matching demands of different current and voltage levels.
- Graded Protection Performance: Dual M-type and H-type breaking capacity grades are optional, with a maximum breaking capacity of 66kA, adapting to different short-circuit current impact environments.
- Flexible Installation Methods: Support vertical upright and horizontal sideways dual installation modes, freely adapting to different cabinet structures and on-site installation spaces.
- High Environmental Adaptability: Strict industrial-grade environmental resistance design, adapting to altitude, temperature and humidity changes in most conventional engineering scenarios.
- Standardized Compliance: Dual compliance with international IEC and national GB standards, supporting global project delivery and engineering acceptance.
- Customization Service Supported: Provide professional OEM/ODM brand customization services with diverse product specifications, wide application scenarios and high comprehensive safety performance.
Contact Us
After clarifying the difference between MCCB and RCCB, it is easy to find that Mccb Circuit Breakers represented by CJMM9 series are indispensable core equipment for medium and high-current power distribution system protection. C&J Electrical CJMM9 series Ac Mccb integrates power distribution, equipment protection and motor control functions, with stable performance and wide adaptability.
If you have any questions about product selection, parameter matching, installation and use, or need to know more about OEM/ODM customization services, please feel free to contact us. C&J Electrical will provide you with professional technical support and full-cycle after-sales service.
