In modern electrical safety systems, the demand for comprehensive circuit protection is increasing day by day. Whether in residential, commercial or industrial scenarios, protecting human life and electrical equipment from electrical hazards such as electric shocks, overloads and short circuits has become a top priority. Among various electrical protection devices, the RCBO breaker (Residual Current Circuit Breaker with Overcurrent Protection) has become an indispensable core component due to its integrated protection functions. Many users and electrical installers often ask: What is the RCBO breaker? To answer this question clearly, we need to understand its definition, working principle, application scenarios and core advantages. This article will comprehensively interpret the RCBO, integrate the key application description, and focus on introducing the CJRO5-80 RCBO Circuit Breaker launched by Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance, multi-scenario applicableRCBO breaker that meets international standards and provides reliable protection for various electrical systems.
RCBOs are used to interrupt power and protect against electric shocks. They are commonly applied to individual circuits for power sockets, water heaters and other domestic applications with low power requirements. Essentially, an RCBO breaker is an integrated electrical protection device that combines the functions of an RCD (Residual Current Device) and an MCB (Miniature Circuit Breaker) into a single unit[1][2]. Unlike RCCBs (Residual Current Circuit Breakers) that only provide residual current protection, or MCBs that only offer overload and short-circuit protection, the RCBO integrates three core protection functions: residual current protection (leakage protection), overload protection and short-circuit protection[3][4]. This integration not only saves installation space but also ensures that the circuit can be quickly cut off when any electrical hazard occurs, maximizing the protection of personal safety and equipment integrity.
The working principle of the RCBO Circuit Breaker is based on dual detection and response mechanisms. On the one hand, it uses a current transformer to monitor the current balance between the live wire (L) and neutral wire (N) in real time[3]. When a leakage occurs (such as human electric shock or equipment insulation damage), the current in the live wire and neutral wire will be unbalanced, and the RCBO will detect this residual current and trip quickly to cut off the power supply, preventing electric shock accidents. On the other hand, it is equipped with a thermomagnetic release mechanism: the thermal component responds to long-term overload currents, tripping slowly to avoid equipment damage caused by overheating; the magnetic component responds to instantaneous short-circuit currents, tripping quickly to prevent fire hazards caused by short circuits[1][4]. This dual protection mechanism makes the RCBO breaker suitable for various complex electrical environments and becomes a reliable guarantee for electrical safety.
Choosing a high-quality RCBO is crucial to ensuring the effectiveness of circuit protection. The CJRO5-80 RCBO Circuit Breaker developed by C&J Electrical is designed to meet the diverse protection needs of different scenarios. It not only complies with international standards but also integrates multiple humanized designs and excellent performance advantages, making it stand out in the market. Next, we will detail the product overview, core functions, technical parameters, application scenarios and product advantages of the CJRO5-80 RCBO breaker.

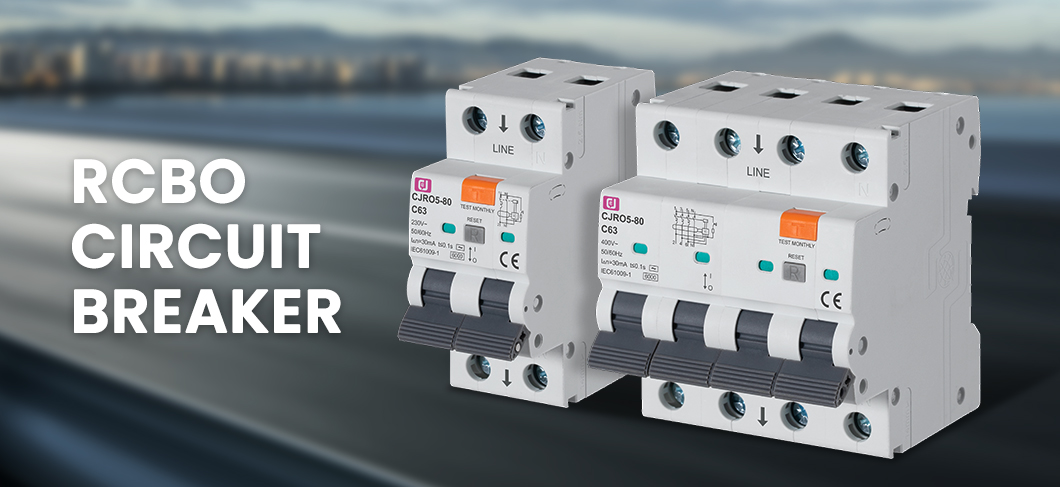

Overview of C&J Electrical CJRO5-80 RCBO Circuit Breaker
The CJRO5-80 RCBO Circuit Breaker is a high-performance integrated protection device independently developed and produced by C&J Electrical, which strictly complies with the IEC61009-1 international standard[5]. As a professional RCBO breaker, it integrates residual current protection, short-circuit protection and overload protection into one, and can be widely used in low-voltage AC power supply systems with various specifications, providing all-round protection for personal safety and electrical equipment.
The CJRO5-80 RCBO adopts a compact structural design, with a width of only 36mm, which is small in size and beautiful in appearance, effectively saving the installation space of the distribution box[5]. It supports 2P and 4P pole configurations, with a shelf rating current of 80A and a rated current range of 6-80A, which can be flexibly selected according to different circuit load requirements. The device adopts a DIN standard guide rail installation method, which is consistent with mainstream electrical installation specifications, making installation and disassembly convenient and efficient, and suitable for on-site construction and later maintenance.
A notable feature of the CJRO5-80 RCBO Circuit Breaker is its flexible and reliable protection performance. It supports the withdrawal of the leakage function, which can be adjusted according to the actual protection needs of different places, making it applicable to more scenarios. At the same time, the rated leakage action current can be adjusted (10mA, 15mA, 30mA, 50mA, 100mA, 200mA), which can be customized according to the sensitivity requirements of the protected equipment, ensuring both protection effectiveness and avoiding unnecessary tripping[3]. In addition, the device is equipped with a complete fault indication and locking function, which can clearly prompt the working status and fault information, facilitating maintenance personnel to quickly locate and handle problems.
Core Functions & Product Advantages of CJRO5-80 RCBO Breaker
The CJRO5-80 RCBO Circuit Breaker has obvious advantages in performance, design and safety, integrating 8 core product advantages, which can fully meet the protection needs of various scenarios and provide reliable guarantee for electrical systems. Its specific product advantages are as follows:
- Withdrawable Leakage Function: The leakage function can be withdrawn, which is suitable for various places. It can be flexibly adjusted according to the actual protection requirements of different scenarios (such as some industrial scenes that do not need leakage protection temporarily), improving the applicability of the product.
- Adjustable Rated Leakage Action Current: The rated leakage action current can be adjusted, with optional specifications of 10mA, 15mA, 30mA, 50mA, 100mA and 200mA. It can be customized according to the sensitivity requirements of the protected equipment, ensuring that the RCBO can respond accurately to leakage faults and avoid false tripping.
- Overload Protection for L and N Poles: Both L pole (live wire) and N pole (neutral wire) have overload protection function, which can comprehensively monitor the current of the circuit, avoid equipment damage and fire hazards caused by overload of the neutral wire, and improve the overall safety of the circuit.
- Compact and Beautiful Design: The appearance is beautiful, the volume is small, and the width is only 36mm. It effectively saves the installation space of the distribution box, and is especially suitable for distribution boxes with limited space, such as residential distribution boxes and small commercial distribution cabinets[5].
- High Breaking Capacity & Practical Accessories: It has a high breaking capacity of 10kA, which can safely cut off the short-circuit current and avoid the damage of the RCBO breaker and the protected equipment caused by excessive short-circuit current. At the same time, the accessories have strong practicability, which is convenient for later maintenance and replacement.
- Safe Combined Terminal: Equipped with a combined terminal with touch protection and red-green safety indication, it can effectively prevent accidental contact during installation and use, and the red-green indication can clearly show the working status of the terminal, further improving the safety of use.
- Current Limiting Contact System: The current limiting contact system can avoid the short-circuit current of products and equipment, reduce the impact of short-circuit current on the circuit and equipment, and effectively extend the service life of the RCBO and the connected electrical equipment.
- High-Quality Flame-Retardant Material: The shell and some functional parts are made of imported and exported high flame-retardant, high-temperature resistant and impact-resistant plastics, which have V-0 grade flame-retardant performance, can effectively prevent fire spread, and adapt to harsh working environments such as high temperature and impact.
In addition to the above core advantages, the CJRO5-80 RCBO also has excellent mechanical and electrical life: the mechanical life reaches 20,000 times, and the electrical life reaches 10,000 times, ensuring long-term stable operation. It is equipped with an overload protection tripping window indication function, and the leakage protection can enter the locking state when the power is not allowed to be cut off or the fault is serious, ensuring the safety of the circuit in special cases[5].
Technical Data of CJRO5-80 RCBO Circuit Breaker
|
Technical Parameter
|
Specification Details
|
|---|---|
|
In Accordance with Standard
|
IEC61009-1
|
|
Pole Number
|
2P, 4P
|
|
Shelf Rating Current
|
80A
|
|
Rated Working Voltage
|
230V/400V
|
|
Rated Current
|
6-80A
|
|
Rated Residual Action Current
|
10mA、15mA、30mA、50mA、100mA、200mA
|
|
Leakage Tripping Type
|
A / AC
|
|
Rated Insulation Voltage
|
500V
|
|
Rated Impulse Voltage/Breakdown Type Limit
|
4kV
|
|
Split Type
|
M/H
|
|
Breaking Capacity Operating
|
6000/1000
|
|
Curve Type
|
B,C,D
|
|
Release Type
|
Thermomagnetic
|
|
Handle Lock
|
ON/OFF Position
|
|
Connection Ability
|
1~35mm²
|
|
Use Ambient Temperature
|
-30~+70℃
|
|
Humidity and Heat Resistance
|
2
|
|
Altitude
|
≤2000m
|
|
Relative Humidity of Air
|
+20°C≤95% ，+40°C≤50%
|
|
Pollution Grade
|
3
|
|
Installation Environment
|
Without significant vibration and impact
|
|
Installation Category
|
III
|
|
Installation Mode
|
DIN Standard Guide Rail
|
Application Scenarios of CJRO5-80 RCBO Circuit Breaker
As a versatile RCBO breaker, the CJRO5-80 integrates multiple protection functions and has a wide range of applications. It is not only suitable for domestic low-power applications but also can meet the protection needs of commercial and industrial scenarios. Combined with its product characteristics and technical parameters, its specific application scenarios are as follows:
- Residential Scenarios: It is widely used in individual circuits of residential buildings, such as power socket circuits, water heater circuits, air conditioner circuits, lighting circuits, etc.[3] It can effectively protect residents from electric shocks caused by leakage, and prevent household appliances from being damaged by overload or short circuit. For example, when the water heater has insulation damage and leakage, the CJRO5-80 RCBO will trip quickly to cut off the power supply, avoiding electric shock accidents; when the socket is overloaded due to connecting too many electrical appliances, it will trip to prevent fire hazards.
- Commercial Scenarios: Applicable to small and medium-sized commercial places such as offices, shops, hotels, restaurants, etc. It can be used to protect the circuits of office equipment (computers, printers), lighting systems, air conditioning systems, and small electrical equipment. The compact design of the product saves the space of the distribution box, which is suitable for commercial places with limited installation space. At the same time, the adjustable leakage action current can be flexibly adjusted according to the sensitivity requirements of different equipment.
- Industrial Scenarios: Suitable for small and medium-sized industrial workshops, warehouses, and production lines, especially for circuits with low to medium power equipment. The high breaking capacity (10kA) and current limiting contact system can effectively withstand short-circuit current and protect industrial equipment from damage. The withdrawable leakage function allows it to be used in industrial scenes that do not need leakage protection temporarily, improving the applicability of the product.
- Public Facilities: Applied to the circuits of public facilities such as community public lighting, public toilets, and small outdoor equipment. The high-temperature resistant, impact-resistant and flame-retardant shell allows it to adapt to outdoor and harsh environments, ensuring the stable operation of public facility circuits. The V-0 grade flame-retardant material can effectively prevent fire spread and ensure public safety.
- Other Scenarios: Suitable for places with special protection requirements, such as laboratories, small medical clinics, etc. The adjustable rated leakage action current and multiple protection functions can meet the high safety requirements of these places, protecting precision equipment and personnel safety.
Why Choose C&J Electrical CJRO5-80 RCBO Circuit Breaker?
In the competitiveRCBO breaker market, the CJRO5-80 from C&J Electrical has won the trust of users with its reliable performance, humanized design and wide applicability. As a professional manufacturer of electrical protection equipment, C&J Electrical has rich experience in R&D and production. The CJRO5-80 RCBO is produced through strict quality control and testing procedures, ensuring that each product meets the IEC61009-1 international standard and has stable and reliable performance[5].
Compared with ordinary RCBO products on the market, the CJRO5-80 has obvious advantages: it integrates multiple protection functions, with flexible and adjustable performance, which can meet the protection needs of different scenarios; the compact design saves installation space and is convenient for installation and maintenance; the high-quality materials and excellent structural design ensure long service life and high safety performance; the complete technical parameters and multiple specifications can be flexibly selected according to user needs.
In addition, we support OEM brand customization services, with a variety of specifications available, wide application scenarios and high safety performance. Whether it is residential, commercial or industrial scenarios, the CJRO5-80 RCBO Circuit Breaker can provide all-round and reliable protection, safeguarding the safety of electrical systems and reducing economic losses caused by electrical faults.
If you have any questions about the selection, installation, use or customization of the CJRO5-80 RCBO breaker, please feel free to contact C&J Electrical. Our professional technical team will provide you with tailored solutions and reliable technical support to ensure the safe and stable operation of your electrical system.
