In daily residential, commercial and industrial power use, circuit breaker tripping is a common event that directly affects the stability and safety of electricity consumption. Many users want to know: What is the most common cause of a tripped breaker? Understanding this can help avoid frequent power outages and improve the safety of electrical systems. This article explains the main causes of tripping and introduces the CJM16-32 Series Circuit Breaker from Zhejiang C&J Electrical co., ltd. (C&J Electrical).
An overloaded circuit is the most common cause of a tripped breaker, occurring when too many appliances (e.g., microwaves, heaters, hair dryers) draw more power than a circuit can handle, exceeding its 15–20 amp capacity. Other, less common causes include short circuits and ground faults.
A Circuit Breaker is an important electrical protection component used to automatically cut off the circuit when overload, short circuit or overvoltage occurs, so as to protect lines, equipment and personal safety. When the power load exceeds the rated value, the circuit breaker will quickly trip to avoid fire, equipment burnout and other risks. Therefore, choosing a reliable circuit breaker is crucial to preventing tripping and ensuring safe power consumption.

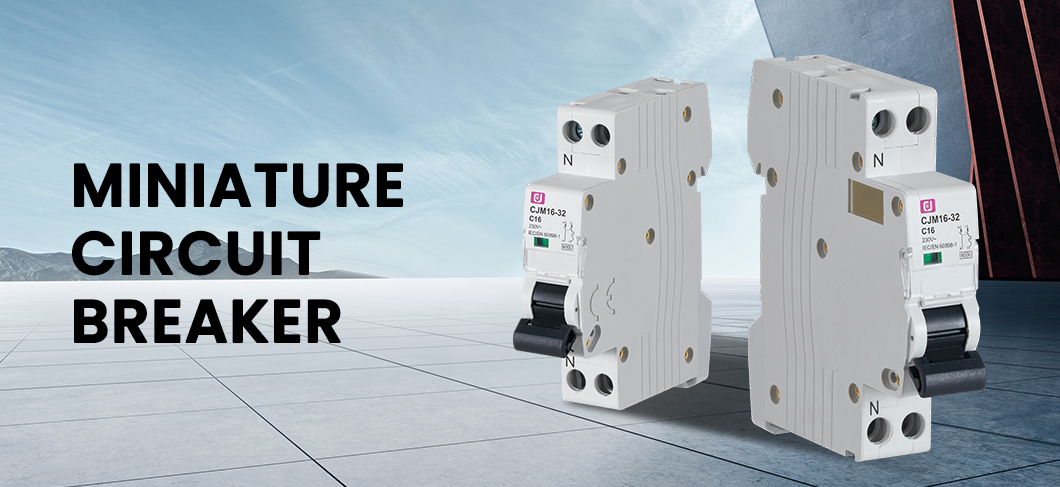

Overview of C&J Electrical CJM16-32 Series Circuit Breaker
The CJM16-32 Series Circuit Breaker is a miniature circuit breaker (MCB) designed for residential, commercial and light industrial power distribution and protection. It conforms to the IEC/EN 60898-1 standard and provides safe and stable overload and short-circuit protection for 230V AC systems. The product adopts 1P+N structure, with a rated current range from 1A to 32A, and supports B and C tripping curves to meet the protection needs of different loads.
This series of Circuit Breaker features a modern appearance, arc-shaped cover and handle for comfortable operation. It is equipped with a contact status window and a transparent cover for labeling, making daily use and maintenance more convenient. It can be installed on 35.5mm standard DIN rail or panel mounting, with strong versatility.
Core Features & Advantages of CJM16-32 Series Circuit Breaker
The CJM16-32 Series Circuit Breaker has multiple practical structural and functional advantages:
• Modern and elegant appearance; arc-shaped cover and handle ensure comfortable operation
• Equipped with contact position indicating window for clear status display
• Transparent cover can carry labels for easy circuit identification
• Handle central-staying function: automatically stays in the middle position when tripping due to overload, which is convenient for quickly finding faulty lines; it does not stay in the middle when manual operation
• Handle padlock device: can be locked at ON or OFF position to prevent misoperation
• Stable electrical performance, low power consumption, long mechanical life up to 10,000 times
• Wide current range: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A
• Rated short-circuit breaking capacity up to 6kA, with reliable protection performance
Application Range of CJM16-32 Series Circuit Breaker
The CJM16-32 Series Circuit Breaker is widely used in many fields due to its compact structure, easy installation and high safety:
• Residential buildings: household lighting, sockets, kitchen appliances, air conditioners and other circuit protection
• Commercial places: offices, shops, hotels, restaurants, lighting and power circuits
• Industrial electrical: small equipment, control panels, distribution boxes, light industrial lines
• Public facilities: schools, hospitals, supermarkets, property distribution systems
• Renovation and old buildings: upgrade and replace traditional fuses to improve safety
Technical Parameters of CJM16-32 Series Circuit Breaker
|
Parameter
|
Details
|
|---|---|
|
Standard
|
IEC/EN 60898-1
|
|
Pole Number
|
1P+N
|
|
Rated Voltage
|
AC 230V
|
|
Rated Current
|
1A,2A,3A,4A,6A,10A,16A,20A,25A,32A
|
|
Tripping Curve
|
B, C
|
|
Rated Service Short-Circuit Capacity
|
6kA
|
|
Rated Frequency
|
50/60Hz
|
|
Electro-mechanical Endurance
|
10000
|
|
Connection Type
|
Pillar terminal with clamp
|
|
Conductor Capacity
|
Rigid conductor up to 10mm²
|
|
Fastening Torque
|
1.2Nm
|
|
Installation
|
35.5mm DIN rail / Panel mounting
|
Why Choose C&J Electrical CJM16-32 Series Circuit Breaker?
C&J Electrical focuses on the research and development of low-voltage electrical components. The CJM16-32 Series Circuit Breaker provides safe, stable and reliable circuit protection with strict standards, durable structure and user-friendly design.
The product has a central-staying handle, padlock function, visual status window and compact structure, which can effectively reduce the occurrence of tripping faults and improve the safety of electricity consumption. It supports a variety of current specifications and tripping curves, with strong applicability and long service life. We provide OEM brand customization services to meet the needs of different projects and customers.
Get in Touch
If you have any questions about the CJM16-32 Series Circuit Breaker, such as model selection, technical parameters, customization or bulk orders, please contact C&J Electrical. We will provide you with safe and reliable circuit protection solutions.
Post time: Mar-20-2026
