In high-voltage power distribution systems, especially overhead power lines and transformer protection scenarios, drop out fuses play an irreplaceable role as cost-effective and reliable protection devices. Many power engineers and system operators often ask: What is the function of a drop out fuse? Understanding its core value is crucial for ensuring the stability, safety, and fault isolation capability of power grids. This article will thoroughly explain the functions and working principles of drop out fuses, and focus on introducing the RW12-11(F) Drop Out Fuse 11kv from Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance protection solution tailored for 11kV outdoor power distribution systems.
Drop-out fuses are used for terminal faults and assist cable transformers on overhead lines. They automatically disconnect power to prevent damage due to overvoltage. This maintains the current flow to other areas. Okay, these fuses are ideal for long-distance power lines in rough weather.
A Drop Out Fuse 11kv is a specialized outdoor high-voltage protection device designed for medium-voltage power systems (typically 10-12kV, labeled as 11kV for industry application). Its core functions integrate overcurrent protection, short-circuit protection, and visible isolation. Unlike traditional circuit breakers, it operates based on the thermal effect of the fuse link: during normal operation, the fuse wire is tensioned to keep the movable switch locked; when overload or short-circuit occurs, the fault current melts the fuse wire, triggering the switch to drop rapidly under gravity, thus cutting off the circuit. This unique “drop-out” design not only isolates the fault area to protect transformers and lines but also provides a clear visual indication for maintenance personnel, significantly reducing fault location time. Additionally, it maintains power supply to non-faulty sections, minimizing the scope of power outages and improving overall grid reliability.

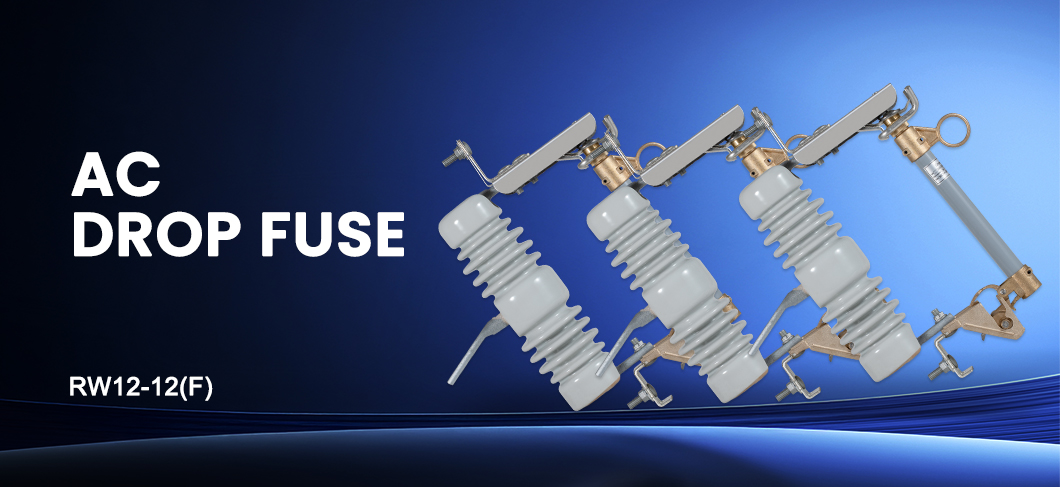

Overview of C&J Electrical RW12-11(F) Drop Out Fuse 11kv
The RW12-11(F) Drop Out Fuse 11kv (also labeled as (H)RW12-12(F) for standard compliance) is a professional outdoor high-voltage AC drop-out fuse developed by C&J Electrical. It is specifically designed for 50Hz outdoor overhead power distribution systems with a rated voltage of 11kV (compatible with 10-12kV systems), serving as a critical protective component for electrical equipment against overload and short-circuit faults.
This Drop Out Fuse 11kv is designed and manufactured in strict accordance with GB “Alternating Current High Voltage Fuses” and DL/T “Technical Conditions for Ordering Alternating Current High Voltage Fuses and Their Accessories” standards, ensuring consistent performance and safety compliance. The load-type variant (marked with “F”) is enhanced with elastic contacts and an arc-extinguishing cover, enabling it to make and break load currents in the power system—expanding its functionality beyond basic protection to include limited switching capabilities. With robust structural design and excellent environmental adaptability, it is engineered to withstand harsh outdoor conditions such as strong winds, heavy humidity, and high pollution, making it a reliable choice for long-distance power lines and transformer protection.
Core Features & Advantages of RW12-11(F) Drop Out Fuse 11kv
The C&J Electrical RW12-11(F) Drop Out Fuse 11kv stands out with its comprehensive protection capabilities, durable design, and user-friendly features:
- Dual Protection & Isolation Function: Integrates overload and short-circuit protection; the drop-out mechanism forms a visible断开点 (disconnection point) after tripping, acting as an isolator to ensure maintenance safety .
- High Breaking Capacity: Rated breaking current of 12.5kA, capable of quickly extinguishing arcs and cutting off fault currents to protect transformers and power lines from damage.
- Strong Environmental Adaptability: Operates reliably in ambient temperatures ranging from -25°C to +40°C, withstands wind speeds up to 35m/s (700Pa), and supports Class IV pollution resistance—ideal for rough weather and harsh outdoor environments .
- Load Switch Capability: The “F” variant features elastic contacts and an arc-extinguishing cover, allowing it to safely make and break load currents, enhancing operational flexibility .
- Long Service Life: Mechanical life of 500 operations and overall service life of ≥20 years; the fuse tube is made of high-quality materials that resist moisture, deformation, and UV radiation .
- Excellent Insulation Performance: Lightning impulse withstand voltage up to 75kV (to ground) and 85kV (fracture); creepage distance ≥372mm, ensuring reliable insulation even in high-pollution areas .
- Earthquake & Ice Resistance: Withstands horizontal acceleration of 0.3g (earthquake resistance) and ice thickness up to 10mm, adapting to diverse geographical and climatic conditions.
Technical Parameters of RW12-11(F) Drop Out Fuse 11kv
|
Parameter
|
Details
|
|---|---|
|
Product Model
|
RW12-11(F) Drop Out Fuse 11kv
|
|
Rated Frequency
|
50Hz
|
|
Rated Voltage
|
11kV/12kV
|
|
Rated Current of Fuse Link
|
≤100A
|
|
Rated Breaking Current
|
12.5kA
|
|
Rated Short-Time Power Frequency Withstand Voltage (To Ground)
|
42kV (dry test) / 1kV (wet test)
|
|
Rated Short-Time Power Frequency Withstand Voltage (Fracture)
|
48kV (dry test) / 1kV (wet test)
|
|
Lightning Impulse Withstand Voltage (To Ground)
|
75kV
|
|
Lightning Impulse Withstand Voltage (Fracture)
|
85kV
|
|
Creepage Distance
|
≥372mm (Class IV Pollution Protection)
|
|
Mechanical Life
|
500 operations
|
|
Service Life
|
≥20 years
|
|
Operating Temperature
|
-25°C ~ +40°C
|
|
Maximum Altitude
|
≤1000m (insulation correction required above 1000m)
|
|
Wind Speed Resistance
|
35m/s (700Pa)
|
|
Earthquake Resistance
|
Horizontal acceleration 0.3g
|
Application Scenarios of RW12-11(F) Drop Out Fuse 11kv
The RW12-11(F) Drop Out Fuse 11kv is widely used in 11kV outdoor power distribution systems due to its reliable performance and versatile functionality:
- Distribution Transformer Protection: Installed on the high-voltage side of pole-mounted transformers and box-type transformers to protect against short-circuits, overloads, and internal faults .
- Overhead Power Line Protection: Used on long-distance overhead lines, branch lines, and user access points to isolate terminal faults and prevent fault propagation to the main line .
- Capacitor Bank Protection: Safeguards parallel capacitor banks (reactive power compensation devices) from overcurrent damage caused by harmonic amplification or switching overvoltage .
- Rural & Industrial Power Grids: Ideal for rural power distribution networks, industrial park power systems, and remote area power supply lines—where cost-effectiveness and low maintenance are critical.
- Harsh Environment Applications: Suitable for coastal areas (high humidity/salt mist), mountainous regions (strong winds/ice), and industrial zones (high pollution)—thanks to its Class IV pollution resistance and robust environmental adaptability .
Why Choose C&J Electrical RW12-11(F) Drop Out Fuse 11kv?
In the competitive medium-voltage protection market, the RW12-11(F) Drop Out Fuse 11kv from C&J Electrical offers compelling advantages for power system operators and integrators:
- Standard Compliance & Reliability: Manufactured in accordance with national and industry standards, ensuring consistent performance and regulatory compliance.
- Dual-Function Design: Combines basic protection with load-switching capabilities (for “F” variant), reducing the need for additional switching devices.
- Durable & Low Maintenance: Long service life, robust structure, and easy fuse link replacement minimize operational and maintenance costs .
- Strong Environmental Adaptability: Withstands extreme temperatures, high winds, ice, and pollution—suitable for global outdoor power distribution scenarios.
- Clear Fault Indication: The drop-out mechanism provides a visible disconnection point, enabling quick fault location and reducing downtime .
- OEM Customization Support: Offers OEM brand customization services with multiple specifications available, meeting the personalized needs of different projects and markets.
Get in Touch
If you are seeking a reliable Drop Out Fuse 11kv for your 11kV power distribution system, the RW12-11(F) from C&J Electrical delivers the protection, durability, and versatility required to ensure grid safety and stability.
For questions about product specifications, model selection, installation guidance, customization options, or bulk orders, please feel free to contact C&J Electrical. Our professional technical team will provide you with tailored medium-voltage protection solutions and reliable after-sales service to support the efficient operation of your power system.
