In low-voltage electrical distribution and protection systems, MCB (Miniature Circuit Breaker) and MCCB (Moulded Case Circuit Breaker) are two core protection devices, but their application scenarios and performance characteristics vary significantly. For electrical designers, installers and industrial users, understanding the key differences between MCB and MCCB is crucial for selecting the right protection device to match circuit loads and ensure system safety. This article will detail the core distinctions between the two and focus on introducing the CJM6Z DC Moulded Case Circuit Breaker from Zhejiang C&J Electrical co., ltd. (C&J Electrical), a high-performance Mccb Molded Case Circuit Breaker tailored for the new energy industry’s DC power system protection needs.
An MCCB comes with an interrupt rating between 10k to 80k amperes, whereas the interrupt rating of an MCB is up to 125 amperes. Therefore, the MCCB is commonly used for industrial purposes like heavy-duty appliances and machinery, while the MCB is best for lower electrical loads and smaller appliances.
Fundamentally, MCBs are compact, low-current protection devices designed for residential, commercial and light-duty circuit protection, with small interrupt ratings and limited current capacity, ideal for lighting, socket and small household appliance circuits. Mccb Molded Case Circuit Breaker, by contrast, is a heavy-duty electrical protection device with a moulded plastic enclosure, featuring high interrupt ratings, adjustable protection parameters and large current carrying capacity. It is engineered to handle high-power, high-current circuits, providing reliable short-circuit, overload and other protection for industrial equipment, new energy systems and heavy-duty electrical loads. Unlike MCBs, MCCBs are adaptable to harsh industrial environments and high-voltage DC/AC systems, making them the core protection component for medium and high-power electrical systems.

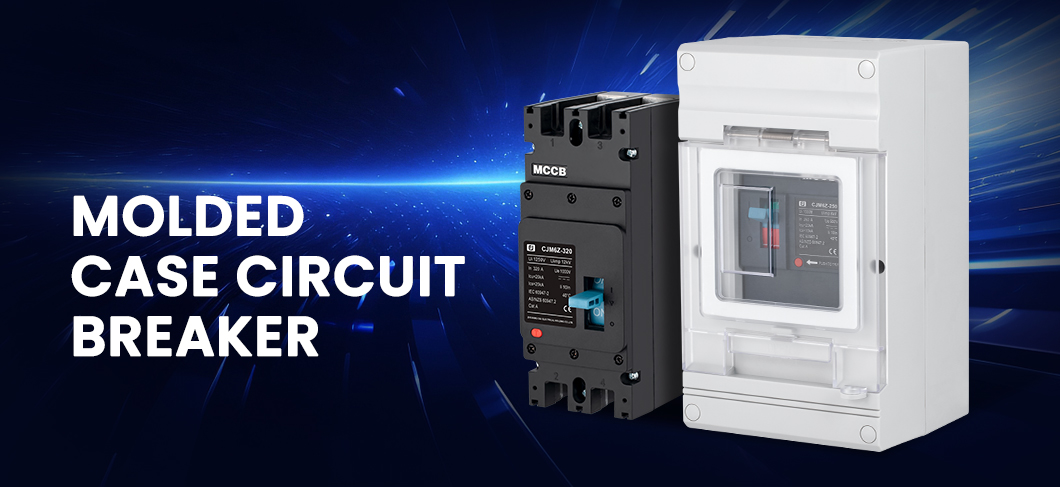

Overview of C&J Electrical CJM6Z DC Moulded Case Circuit Breaker
Against the backdrop of the rapid development of the global new energy industry, covering photovoltaic, wind power, charging piles and energy storage systems, C&J Electrical has developed the CJM6Z DC Moulded Case Circuit Breaker to meet the high-demand protection needs of DC power systems. As a professional Mccb Molded Case Circuit Breaker, it is specially designed for DC high-voltage power distribution scenarios, with a rated working voltage up to DC1500V and current specifications covering 63A to 800A (320A, 400A, 630A, 800A four main models).
This series of DC moulded case circuit breakers can achieve a breaking capacity of up to 20kA under DC1500V voltage, which can reliably cut off short-circuit current and provide effective short-circuit protection for DC power systems. The product fully complies with international and national standards including IEC60947-1, GB/T14048.1, IEC60947-2 and GB/T14048.2, with stable performance, high safety and strong environmental adaptability. It is the ideal protection device for new energy DC power systems, effectively solving the pain points of high-voltage, high-current DC circuit protection and ensuring the stable and safe operation of new energy equipment.
Core Features & Advantages of C&J Electrical CJM6Z DC Mccb Molded Case Circuit Breaker
The CJM6Z DC Moulded Case Circuit Breaker stands out in the new energy protection market with its professional DC design, excellent performance and robust structural characteristics, with core advantages as follows:
- High DC voltage and current adaptation: Rated working voltage up to DC1500V, current range 63A-800A with multiple specifications, fully matching the power requirements of photovoltaic, energy storage, charging pile and other new energy DC systems.
- Super high breaking capacity: Up to 20kA breaking capacity under DC1500V, can quickly and reliably cut off short-circuit current, avoiding damage to equipment caused by large current impact.
- Compliant with international standards: Manufactured in accordance with IEC60947-1/2 and GB/T14048.1/2 standards, ensuring product performance and safety meet global industry requirements.
- Flexible installation methods: Support both horizontal and vertical installation, adaptable to different electrical cabinet layout and installation space requirements, improving the convenience of on-site construction.
- Strong environmental adaptability: Wide ambient temperature range of -35℃~70℃, applicable to high altitude environments up to 2500m, and resistant to grade 3 pollution, adapting to various harsh working conditions of new energy projects (outdoor, industrial workshops, etc.).
- Reliable structural design: Integrated moulded case structure with excellent insulation and arc-extinguishing performance, effectively preventing arc leakage and ensuring the safety of circuit and equipment operation.
- Complete protection accessories: Support matching with undervoltage release, auxiliary contacts, alarm contacts and electric/manual operating mechanisms, realizing diversified protection and control functions to meet personalized system needs.
Technical & Application Characteristics of C&J Electrical CJM6Z DC Moulded Case Circuit Breaker
Key Performance & Installation Requirements
- Rated Voltage: DC1500V
- Rated Current: 63A, 320A, 400A, 630A, 800A
- Breaking Capacity: 20kA (DC1500V)
- Compliant Standards: IEC60947-1, GB/T14048.1, IEC60947-2, GB/T14048.2
- Ambient Temperature: -35℃ ~ 70℃
- Installation Altitude: ≤2500m
- Pollution Grade: 3
- Installation Category: Class III (main circuit)
- Installation Method: Horizontal/vertical installation
- Humidity Adaptability: ≤50% RH at +40℃; higher humidity allowed at low temperatures (anti-condensation measures required)
Professional Use & Maintenance Norms
The CJM6Z DC Moulded Case Circuit Breaker has standardized use and maintenance requirements to ensure long-term reliable operation:
- No operation with wet hands to prevent electric shock; avoid frequent switching to extend service life.
- Ensure terminal connections and fixing screws are fastened without looseness, and check correct wiring before use.
- Regularly measure the insulation resistance between phases and between phases and ground with a megohmmeter.
- The undervoltage release (if equipped) must be connected to the rated voltage before closing the breaker.
- Auxiliary/alarm contacts (if equipped) need to be verified for normal signal conversion; the operating mechanism should be test-run 3-5 times for reliability.
- Factory-set characteristics and accessories cannot be adjusted arbitrarily; the product has a 24-month quality warranty under compliance with storage and use conditions.
Application Scenarios of C&J Electrical CJM6Z DC Mccb Molded Case Circuit Breaker
As a professional DC Mccb Molded Case Circuit Breaker for the new energy industry, the CJM6Z series is widely used in various high-voltage DC power system protection scenarios, mainly including:
- Photovoltaic Power Generation Systems: DC side protection of photovoltaic combiner boxes, inverters and DC distribution cabinets, adapting to the high-voltage DC characteristics of photovoltaic power generation.
- Energy Storage Systems: Protection of energy storage battery packs, energy storage converters (PCS) and DC distribution circuits, ensuring the safety of energy storage system charging and discharging.
- Electric Vehicle Charging Piles: DC high-voltage circuit protection of DC fast charging piles and charging stations, matching the high-power charging load demand.
- Wind Power Generation Systems: DC side protection of wind turbine energy storage and power conversion equipment, adapting to the harsh outdoor environment of wind power projects.
- Industrial DC Power Systems: Protection of high-voltage DC power supplies, DC motor drive circuits and heavy-duty DC electrical equipment in industrial workshops.
- New Energy Engineering Projects: DC power distribution and protection of large-scale photovoltaic power stations, energy storage power stations and integrated new energy projects.
Why Choose C&J Electrical CJM6Z DC Moulded Case Circuit Breaker?
In the competitive Mccb Molded Case Circuit Breaker market, the CJM6Z DC series from C&J Electrical has become the preferred choice for new energy industry users with its professional design and reliable performance, with core reasons as follows:
- Professional New Energy Customization: Developed for the DC power system characteristics of photovoltaic, energy storage and charging piles, perfectly matching the protection needs of the new energy industry.
- Excellent DC Breaking Performance: 20kA high breaking capacity at DC1500V, solving the problem of high-voltage DC short-circuit protection and ensuring system safety.
- Strong Environmental Adaptability: Wide temperature range, high altitude resistance and grade 3 pollution resistance, applicable to various complex working conditions of new energy projects.
- Flexible Configuration & Installation: Multiple current specifications, support for various accessories and dual installation methods, adapting to different system design and construction needs.
- Reliable Quality & Warranty: Compliant with international and national standards, strict quality control, and 24-month factory quality warranty, reducing after-sales risks for users.
- OEM Customization Support: Provide OEM brand customization services with multiple specifications available, meeting the personalized brand and product needs of different customers and projects.
Get in Touch
If you have any questions about the C&J Electrical CJM6Z DC Mccb Molded Case Circuit Breaker, such as model selection, technical parameters, accessory matching, installation guidance or bulk orders, please feel free to contact C&J Electrical. Our professional technical team will provide you with targeted DC power system protection solutions and reliable after-sales service, helping your new energy projects achieve safe, stable and efficient operation.
Post time: Mar-26-2026
