When designing and maintaining power distribution systems, many users often confuse Ac Mccb and Dc Mccb. Although both belong to Mccb Breaker series and serve as core overcurrent and short-circuit protection devices, their internal structures, arc-extinguishing mechanisms, and applicable working environments are completely different. Choosing the wrong Mcb Mccb model will lead to poor protection performance, arc burnout, and even equipment fire accidents.
To help users accurately select circuit breakers for different power systems, we first clarify the core application differences between AC MCCB and DC MCCB: AC MCCB: Used in environments powered by AC, such as homes, offices, factories, and the standard electrical grid. DC MCCB: Ideal for DC-based systems, including solar panels, battery storage, electric vehicles, and telecommunications infrastructure.
The essential difference between AC MCCB and DC MCCB lies in current characteristics and arc extinction principles. AC current has periodic zero-crossing points, which can naturally extinguish electric arcs during breaking. In contrast, DC current is a stable unidirectional current without natural zero-crossing points, making arc extinction far more difficult and requiring specialized structural optimization for DC MCCBs[3][9]. This also explains why new energy DC systems cannot directly use ordinary Ac Mccb, and must adopt professional Dc Mccb to ensure system safety.
Core Differences Between AC MCCB and DC MCCB
To help users fully distinguish Ac Mccb and Dc Mccb, we summarize the key differences in working principle, structural design and application scenarios as follows, which is the core basis for selecting a suitable Mccb Breaker:
- Arc Extinguishing Mechanism: AC MCCB relies on the natural zero-crossing characteristic of alternating current to extinguish the arc, with a simple internal structure and no special arc-extinguishing accessories. DC MCCB has no current zero-crossing point, so it adopts professional magnetic blowout coils and multi-stage arc extinguishing chamber structures to forcibly cool and cut off the DC arc, avoiding arc lingering and re-ignition[6][9].
- Polarity Sensitivity: Ac Mccb has no polarity requirements and can be installed freely regardless of current direction. Dc Mccb is strictly polarity-sensitive, and the positive and negative terminals must be installed correctly according to the marks to ensure the normal operation of the internal arc-extinguishing system[1][8].
- Withstand Voltage and Breaking Capacity: Ordinary AC MCCB cannot adapt to high-voltage DC environments. Professional DC MCCB is specially optimized for high DC voltage and large short-circuit current, with higher withstand voltage strength and reliable short-circuit breaking capacity[4][8].
- Applicable Scenarios: Ac Mccb is mainly used for conventional AC grid power distribution in residential, commercial and industrial fields. Dc Mccb is exclusively used for new energy DC systems such as photovoltaic power generation, energy storage batteries, and DC charging piles[4][10].

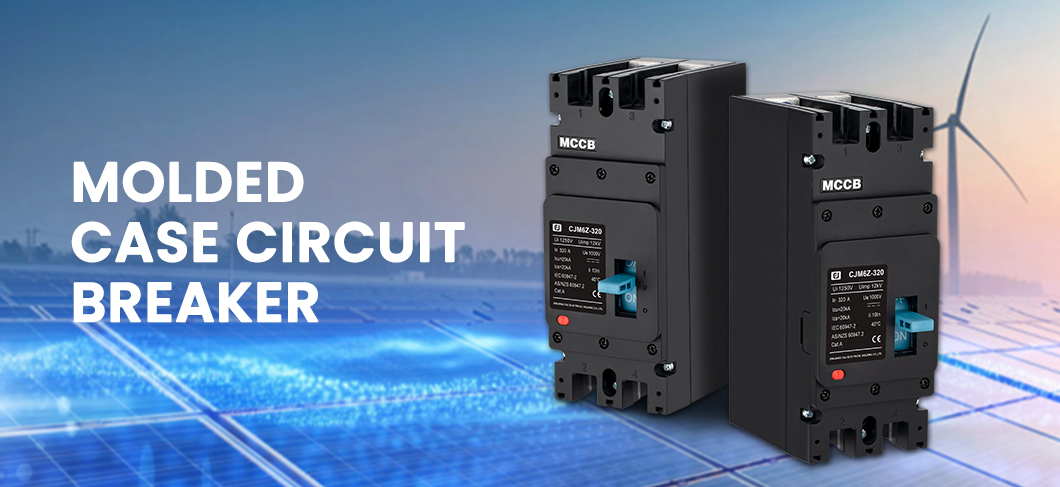

Introducing C&J Electrical CJM6Z DC MCCB
With the rapid development of the global new energy industry, photovoltaic power generation, wind power energy storage, DC charging piles and other DC systems have higher requirements for DC circuit protection equipment. Zhejiang C&J Electrical co., ltd. (hereinafter referred to as C&J Electrical) has launched the CJM6Z series DC molded case circuit breaker to solve the pain points of difficult arc extinction and insufficient breaking capacity of traditional DC Mccb Breaker in high-voltage DC new energy systems.
As a high-performance professional Dc Mccb, the CJM6Z series makes up for the performance defects of ordinary Mcb Mccb in DC high-voltage scenarios. It is specially developed for new energy DC systems, with complete specifications, strong environmental adaptability and reliable protection performance, and is widely used in various high-voltage DC power distribution and energy storage systems.
1. Product Overview & Structural Characteristics
In recent years, the new energy industry has gradually become an important engine of global economic development. The new energy industry involves photovoltaic wind power, charging piles, energy storage etc. Therefore, CJM6Z series high voltage AC/DC moulded case circuit breaker is developed by our company.
The CJM6Z series DC molded case circuit breaker covers four frame current specifications from 63A to 800A, including 320A, 400A, 630A and 800A models. The rated working voltage reaches DC1500V, and it can achieve a maximum breaking capacity of 20kA under DC1500V voltage, realizing stable and reliable short-circuit protection for high-voltage DC systems. The product complies with international and national standards including IEC60947-1, GB/T14048.1, IEC60947-2 and GB/T14048.2, with standardized design and stable quality.
The whole series of CJM6Z DC MCCB supports horizontal and vertical installation, with flexible installation methods, which can adapt to different cabinet layout requirements of new energy equipment. The internal optimized arc-extinguishing structure effectively solves the problem of difficult DC arc extinction, ensuring safe breaking under high voltage and large current conditions.
2. Core Technical Data
The CJM6Z DC MCCB has complete technical specifications and wide coverage, meeting the protection needs of various high-voltage DC new energy systems. The core technical parameters are as follows:
|
Technical Items
|
Specifications
|
|---|---|
|
Frame Current Range
|
250-800A (63A-800A full coverage)
|
|
Pole Number
|
2P
|
|
Rated Working Voltage (Ue)
|
DC500V / DC1000V / DC1500V
|
|
Maximum Breaking Capacity
|
20kA @ DC1500V
|
|
Executive Standards
|
IEC60947-1, GB/T14048.1, IEC60947-2, GB/T14048.2
|
3. Application Environment Requirements
CJM6Z DC MCCB has excellent environmental adaptability and can operate stably in complex new energy working environments. The applicable environmental standards are as follows:
- Ambient Temperature: -35°C ~ +70°C, adapting to extreme high and low temperature outdoor new energy scenarios.
- Installation Altitude: ≤2500m, suitable for plateau photovoltaic and wind power projects.
- Humidity Adaptability: The relative humidity shall not exceed 50% at +40°C; higher humidity is allowed at lower temperatures (90% at 20°C). Users need to take anti-condensation measures to avoid surface dew corrosion.
- Pollution Grade: Grade 3, suitable for outdoor, factory and other slightly polluted working environments.
- Installation Category: Main circuit installation category III, meeting industrial high-standard power distribution requirements.
- Magnetic Field Adaptability: The external magnetic field at the installation site shall not exceed 5 times the geomagnetic field, avoiding magnetic interference affecting tripping accuracy.
- Site Requirements: It shall be installed in an environment without explosive media, conductive dust, metal corrosion and insulation damage.
4. Standard Use and Maintenance Specifications
To ensure the long-term stable operation of CJM6Z DC MCCB and extend its service life, please strictly follow the use and maintenance specifications:
- Do not operate the circuit breaker with wet hands to prevent electric shock accidents.
- Avoid frequent switching operation to prevent mechanical wear and shortened service life.
- Check and confirm that terminal connections and fixing screws are firmly fastened without looseness.
- Verify correct wiring and use a megohmmeter to measure the insulation resistance between phases and phase-to-ground.
- Confirm the correct installation of circuit breaker phase partitions.
- For models with undervoltage release, connect the rated voltage to the undervoltage release before closing the breaker.
- For breakers with auxiliary and alarm contacts, test the normal signal conversion of auxiliary contacts and alarm contacts during opening and closing, and verify the emergency trip function.
- For products with electric or manual operating mechanisms, perform 3-5 opening and closing tests to ensure flexible and reliable operation.
- The internal characteristics and accessory parameters of the circuit breaker are factory-set and cannot be adjusted arbitrarily.
- Under compliant storage and use conditions, the product seal remains intact within 24 months of factory shipment. Free replacement and repair services are provided for quality-related damage and malfunctions.
5. Product Advantages
Compared with ordinary Mcb Mccb and traditional DC circuit breakers, CJM6Z DC MCCB has comprehensive performance advantages in new energy DC protection scenarios:
- High Voltage Resistance & Strong Breaking Capacity: Supports up to DC1500V high voltage operation, with 20kA super strong short-circuit breaking capacity, effectively coping with instantaneous short-circuit faults of new energy DC systems.
- Wide Specification Coverage: Complete frame current specifications from 63A to 800A, multiple voltage grades optional, meeting the matching needs of different power DC equipment.
- Strong Environmental Adaptability: Adapt to wide temperature range, high altitude and humid environments, suitable for outdoor photovoltaic, energy storage and other harsh scenarios.
- Flexible Installation: Supports horizontal and vertical dual installation methods, adapting to various cabinet installation layouts.
- High Safety Performance: Optimized DC professional arc-extinguishing structure, stable insulation performance, effectively preventing arc re-ignition and equipment burnout.
- Customization Service Support: C&J Electrical provides OEM/ODM brand customization services, supporting personalized customization of product specifications, logos and accessories to meet diverse customer needs.
6. Wide Application Scenarios
As a high-performance professional Dc Mccb, CJM6Z series is widely applicable to all kinds of new energy DC systems that require high-voltage DC protection:
- Photovoltaic Power Generation System: Used for DC combiner boxes and power distribution links of solar power stations to protect photovoltaic module strings and DC distribution lines.
- Energy Storage System: Applied to battery energy storage cabinets and energy storage power stations to provide overload and short-circuit protection for battery packs.
- DC Charging Pile: Used for DC high-voltage distribution and circuit protection of new energy vehicle charging equipment.
- Telecommunication & Industrial DC System: Suitable for DC power supply systems of communication base stations, industrial DC power distribution and other equipment.
Contact Us
CJM6Z series DC MCCB launched by C&J Electrical is a professional high-voltage DC molded case circuit breaker tailored for the new energy industry. It perfectly solves the safety protection problems of high-voltage and large-current DC systems, making up for the insufficient performance of ordinary Ac Mccb in DC scenarios. With complete specifications, strong environmental adaptability and high safety factor, it has become a reliable protective device for new energy power distribution systems.
If you have any questions about product selection, parameter matching, installation and maintenance of CJM6Z DC MCCB, or need OEM/ODM customization services, please feel free to contact us. C&J Electrical will provide you with professional technical support and thoughtful after-sales service.
