In the field of electrical power supply, Switch Power Supply and normal power supply (mainly linear power supply) are two core power supply devices, which play a vital role in ensuring the stable operation of electrical equipment. However, many users, electrical practitioners and procurement personnel often confuse these two types of power supplies, and it is difficult to choose the appropriate power supply according to actual needs. What is the difference between a Switching Power Supply and a normal power supply? What are their respective characteristics, working principles and application scenarios? This article will systematically interpret the core differences between the two, integrate the required explanatory paragraphs, and focus on introducing the NDR-240 series Switch Power Supply launched by Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance, high-safety Switching Power Supply with stable performance, complete functions and wide applicability, which provides reliable power support for various industrial and commercial scenarios.
First of all, we need to clarify the basic definition of the two power supplies. A normal power supply, usually referred to as a linear power supply, is a traditional power supply device that works by adjusting the voltage through a linear regulator tube working in the linear region[2][4]. It first steps down the AC voltage through a transformer, then rectifies and filters it to obtain unstable DC voltage, and finally stabilizes the output through voltage feedback adjustment[4]. A Switching Power Supply (also known as SMPS) is a new type of power supply device that converts electrical energy by controlling the on-off state of the switching tube[1]. It uses high-frequency switching technology to convert AC input into stable DC output, which has the characteristics of high efficiency and small size[3].
The core differences betweenSwitching Power Supply and normal power supply (linear power supply) are reflected in many aspects such as working principle, performance characteristics, volume weight and application scenarios. Switch Mode Power Supplies (SMPS) offer higher efficiency, smaller size, and less heat generation. Linear Power Supplies are favored in applications requiring minimal noise and are simpler in design and more cost-effective despite their lower efficiency and larger size. To help everyone better understand the differences between the two, we will compare them in detail from the following key aspects:
Key Differences Between Switching Power Supply and Normal Power Supply (Linear Power Supply)
1. Working Principle Difference
The normal power supply (linear power supply) works on the principle that the regulating tube works in the linear region, and the output voltage is stabilized by continuously adjusting the voltage drop of the regulating tube[2][4]. Its working process is relatively simple: it first steps down the AC power through a power frequency transformer, then converts it into DC power through rectification and filtering, and finally adjusts the output voltage through the feedback circuit to ensure stability[4]. However, this working mode will cause a large amount of energy loss on the regulating tube, resulting in low efficiency[2].
The Switching Power Supply adopts high-frequency switching technology, and the switching tube works in the on-off state (saturation region and cut-off region)[1][4]. It first rectifies and filters the AC input into DC power, then converts the DC power into high-frequency AC power through the switching tube, steps down the voltage through a high-frequency transformer, and finally rectifies and filters it again to obtain stable DC output[1]. By adjusting the on-off time (duty cycle) of the switching tube, the output voltage can be accurately controlled, and the energy loss is small, so the efficiency is higher[1][4].
2. Performance Characteristic Difference
In terms of efficiency: The efficiency of normal power supply (linear power supply) is generally 50%-70%, and a large amount of energy is lost in the form of heat[2][4]. The efficiency of Switching Power Supply is usually above 80%, and the high-efficiency models can even reach more than 90%, which is more energy-saving and environmentally friendly[3].
In terms of volume and weight: The normal power supply (linear power supply) needs a large power frequency transformer, which leads to large volume and heavy weight, and is not convenient for installation and transportation[2][4]. The Switching Power Supply uses a small high-frequency transformer, and the overall structure is compact, with small volume and light weight, which can save installation space[1][3].
In terms of heat generation and noise: The normal power supply (linear power supply) has large heat generation due to low efficiency, and usually needs a fan for heat dissipation; but its working noise is small, and the output ripple is low, which is suitable for scenarios requiring high power supply stability[2][4]. The Switching Power Supply has less heat generation due to high efficiency, and some models can realize fanless heat dissipation; but due to the high-frequency switching of the switching tube, it will generate a certain amount of electromagnetic interference and noise[1][3].
In terms of voltage adaptation: The normal power supply (linear power supply) has a narrow input voltage range and can only adapt to a specific AC input voltage[2]. The Switching Power Supply usually has a wide input voltage range, which can adapt to the AC input of 85-264VAC, and is suitable for different power supply environments at home and abroad[3].
3. Application Scenario Difference
The normal power supply (linear power supply) is mainly used in scenarios with low power, low noise requirements and simple use, such as small electronic equipment, laboratory instruments, audio equipment, etc., relying on its advantages of low noise and simple design[2][4].
The Switching Power Supply is widely used in industrial production, commercial equipment, electronic communication, automation control and other scenarios due to its high efficiency, small size and wide voltage adaptation range[3]. Especially in high-power, compact installation space and complex power supply environment scenarios, the Switching Power Supply has obvious advantages and has become the mainstream power supply choice in the current market[3].
With the continuous development of industrial automation and electronic technology, the demand for Switching Power Supply is increasing, and higher requirements are put forward for its performance, safety and applicability[3]. C&J Electrical, focusing on the R&D and production of power supply equipment, has launched the NDR-240 series Switch Power Supply to meet the diverse needs of the market. Next, we will introduce the product overview, technical parameters, functions and features, application scenarios and product advantages of the NDR-240 Switching Power Supply in detail.

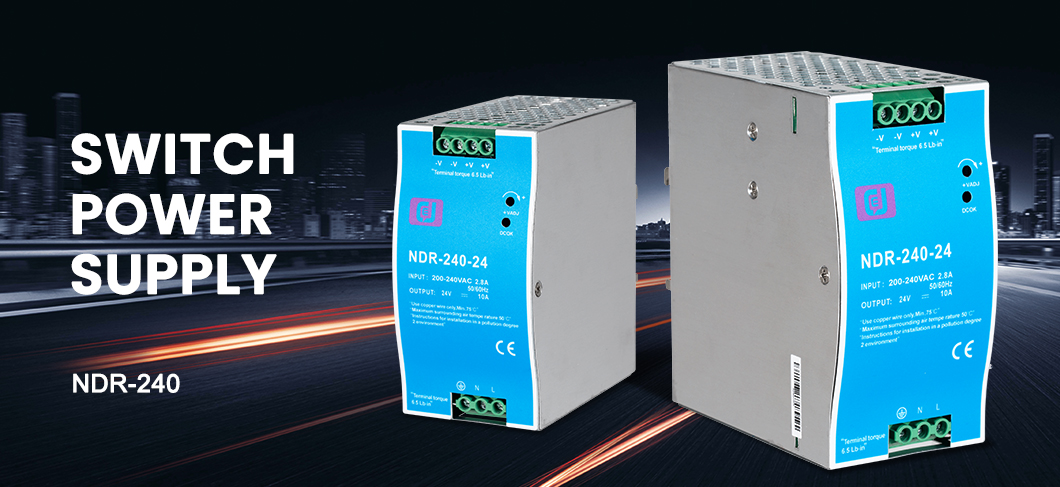

Overview of C&J Electrical NDR-240 Switch Power Supply (Switching Power Supply)
The NDR-240 series is a high-performance closed-type Switch Power Supply independently developed and produced by C&J Electrical, with a single-group output and a rated power of 240W. It adopts advanced switching power supply technology and high-quality components, and its performance is stable and reliable, fully complying with international safety standards. This Switching Power Supply is designed to meet the power supply needs of industrial and commercial scenarios, with a full-range AC input of 85-264VAC, which can adapt to different power supply environments at home and abroad, and is not affected by voltage fluctuations[3].
The NDR-240 Switch Power Supply has a variety of output voltage options, and the whole series provides 5V, 12V, 15V, 24V, 36V and 48V outputs, which can flexibly match the power supply needs of different electrical equipment. In addition to an efficiency of up to 91.5%, the metal mesh housing is designed to enhance heat dissipation, allowing the NDR-240 to operate from -30°C to +70°C without a fan. It makes it easy for terminal systems to meet international energy requirements[3].
The NDR-240 Switching Power Supply has complete protection functions and complies with EN60950-1, EN60335-1, EN61558-1/-2-16 and GB4943 international safety regulations. It can effectively avoid equipment damage caused by various faults and ensure the safe and stable operation of the power supply and the connected electrical equipment. As a cost-effective Switch Power Supply, it provides a reliable power solution for a single industrial application[3].
Technical Data of NDR-240 Switch Power Supply
|
Technical Parameter
|
Specification Details
|
|---|---|
|
Type
|
NDR-240
|
|
DC voltage
|
24V
|
|
Rated current
|
10A
|
|
Rated power
|
240W
|
|
Ripple noise
|
＜150m
|
|
Voltage accuracy
|
±1%
|
|
Output voltage adjustment range
|
±1%
|
|
Load regulation
|
±1%
|
|
Linear regulation
|
±0.5%
|
|
Voltage range
|
85-264VAC 47Hz-63Hz (120VDC-370VDC: DC input can be realized by connecting AC/L(+), AC/N(-))
|
|
Efficiency (typical)
|
＞84%
|
|
Power factor
|
PF＞0.98/115VAC; PF＞0.95/230VAC (full load)
|
|
Working current
|
＜2.25A 110VAC; ＜1.3A 220VAC
|
|
Electric shock
|
110VAC 20A, 220VAC 35A
|
|
Start, rise, hold time
|
3000ms, 100ms, 22ms: 110VAC; 1500ms, 100ms, 28ms: 220VAC
|
|
Overload protection
|
105%-150% type: Protection mode: Constant current mode, automatic recovery after abnormal conditions are removed
|
|
Overvoltage protection
|
When the output voltage is ＞135%, the output turned off. Automatic recovery after the abnormal condition is released
|
|
Short circuit protection
|
+VO falls to undervoltage point. Close output. Automatic recovery after abnormal condition is removed
|
|
Over temperature protection
|
＞85°C when close the output, power supply recovery after temperature drop and restart
|
|
Working temperature and humidity
|
-10°C~+60°C; 20%~90RH
|
|
Storage temperature and humidity
|
-20°C~+85°C; 10%~95RH
|
|
Withstand voltage
|
Input-output: 3kvac; input-ground: 1.5kvac; output-case: 0.5kvac; duration: 1 minute
|
|
Leakage current
|
＜1.5mA/240VAC
|
|
Isolation resistance
|
Input-output and input-shell, output-shell: 500VDC/100mΩ
|
|
Size (LxWxH)
|
55x90x100mm
|
|
Net weight / gross weight
|
420g/450g
|
Functions and Features of NDR-240 Switching Power Supply
The NDR-240 series Switch Power Supply integrates advanced technology and practical functions, with excellent performance and high safety, which can fully meet the power supply needs of various industrial and commercial scenarios. Its specific functions and features are as follows:
- Wide Voltage Input Range: It supports 85-264VAC full-range AC input, and can also realize DC input of 120VDC-370VDC by connecting AC/L(+) and AC/N(-), which is suitable for different power supply environments at home and abroad, and can stably work under voltage fluctuation conditions[3].
- Multiple Output Voltage Options: The whole series provides 5V, 12V, 15V, 24V, 36V and 48V output voltages, which can flexibly match the power supply requirements of different electrical equipment, with strong versatility[3].
- High Efficiency and Energy Saving: The efficiency is as high as 91.5%, and the typical efficiency is more than 84%, which is much higher than that of ordinary linear power supplies. It can effectively reduce energy loss and meet international energy-saving requirements[3].
- Efficient Heat Dissipation: The metal mesh housing is adopted to enhance heat dissipation performance, and it can work stably in the environment of -30°C to +70°C without a fan, which reduces the failure rate caused by heat accumulation and extends the service life of the product[3].
- High Power Factor: The power factor is more than 0.98 under 115VAC full load and more than 0.95 under 230VAC full load, which can effectively reduce the impact on the power grid and improve the utilization rate of electrical energy[3].
- High Voltage Accuracy: The voltage accuracy is ±1%, the output voltage adjustment range is ±1%, the load regulation is ±1%, and the linear regulation is ±0.5%, which can provide stable and accurate DC output and ensure the normal operation of electrical equipment[3].
- Complete Protection Functions: It is equipped with overload, overvoltage, short circuit and over-temperature protection functions. All protection modes support automatic recovery after the abnormal condition is removed, which can effectively protect the power supply itself and the connected electrical equipment from damage[3].
- Low Ripple Noise: The ripple noise is less than 150m, which can reduce the interference to the electrical equipment and ensure the stable operation of the equipment with high precision requirements[3].
- Compact and Lightweight: The size is only 55x90x100mm (LxWxH), and the net weight is 420g, which is compact in structure and light in weight, saving installation space and facilitating installation and transportation[3].
- High Safety Performance: It complies with EN60950-1, EN60335-1, EN61558-1/-2-16 and GB4943 international safety regulations, with withstand voltage up to 3kvac (input-output), leakage current less than 1.5mA/240VAC, and high isolation resistance, ensuring safe use[3].
Application Scenarios of NDR-240 Switch Power Supply
With the advantages of stable performance, complete functions, high efficiency, wide voltage adaptation and high safety, the NDR-240 series Switching Power Supply has a wide range of application scenarios, covering industrial production, commercial equipment, electronic communication, automation control and other fields, providing reliable power support for various electrical equipment[3]. The specific application scenarios are as follows:
- Industrial Automation Scenarios: Applied to industrial automation production lines, used to provide stable power supply for PLC, frequency converter, sensor, encoder and other automation equipment. The high voltage accuracy and stable output can ensure the normal operation of the automation system, and the complete protection functions can avoid equipment damage caused by faults[3].
- Electronic Equipment Scenarios: Suitable for various electronic equipment, such as industrial control computers, monitors, printers, routers, etc. The low ripple noise and stable output can ensure the stable operation of electronic equipment and extend the service life of the equipment[3].
- Commercial Equipment Scenarios: Used in commercial equipment such as POS machines, vending machines, advertising screens, and security monitoring equipment. The wide voltage input range can adapt to the unstable power supply environment in commercial places, and the compact size is convenient for installation in the equipment[3].
- Power Distribution Scenarios: Applied to terminal power distribution of small and medium-sized power distribution systems, used to provide stable DC power for various terminal electrical equipment. The high efficiency and energy saving can reduce the operation cost of the power distribution system[3].
- Environmental Monitoring Scenarios: Suitable for environmental monitoring equipment, such as temperature and humidity sensors, gas detectors, etc. It can work stably in harsh environments (-30°C to +70°C), ensuring the normal collection and transmission of monitoring data[3].
- OEM Supporting Scenarios: Suitable for OEM supporting, can be integrated into various electrical equipment and control cabinets, providing professional power supply functions for the equipment. Multiple output voltage options can be flexibly matched with different OEM products, improving the added value and competitiveness of the whole equipment[3].
Product Advantages of NDR-240 Switch Power Supply
In the competitive Switch Power Supply market, the NDR-240 series Switching Power Supply from C&J Electrical has obvious advantages, relying on its excellent performance, complete functions and high cost performance, and has won the trust of users. Compared with ordinary Switch Power Supply products on the market, its specific advantages are as follows:
- High Efficiency and Energy Saving: The efficiency is as high as 91.5%, which is higher than that of ordinary Switching Power Supply (usually 80%-85%), effectively reducing energy loss and operating costs, and meeting international energy-saving requirements[3].
- Wide Adaptability: It supports full-range AC input of 85-264VAC and DC input of 120VDC-370VDC, which can adapt to different power supply environments at home and abroad, and is not affected by voltage fluctuations, with strong environmental adaptability[3].
- Complete Protection and High Safety: It is equipped with four protection functions: overload, overvoltage, short circuit and over-temperature, and complies with international safety regulations. The high withstand voltage and low leakage current ensure the safe operation of the power supply and the connected equipment[3].
- Stable and Reliable Performance: The voltage accuracy is high, the ripple noise is low, and the load regulation and linear regulation are excellent. It can provide stable and accurate DC output, ensuring the normal operation of electrical equipment, and the failure rate is low[3].
- Fanless Heat Dissipation: The metal mesh housing enhances heat dissipation, and it can work stably without a fan, reducing the noise caused by the fan and the failure rate of the fan, and extending the service life of the product[3].
- Compact and Easy to Install: The size is small and the weight is light, which saves installation space and is convenient for installation and transportation. It is suitable for installation in narrow spaces such as equipment cabinets[3].
- Multiple Specifications Optional: There are multiple output voltage options (5V, 12V, 15V, 24V, 36V, 48V) available, which can flexibly meet the power supply needs of different equipment and scenarios[3].
- OEM Customization Support: We support OEM brand customization services, which can be customized according to the specific needs of users, including brand LOGO, product specifications and functions, to meet the personalized needs of different users and OEM partners[3].
Why Choose C&J Electrical NDR-240 Switch Power Supply?
As a professional manufacturer of power supply equipment, C&J Electrical has rich experience in R&D and production of Switch Power Supply. The NDR-240 series Switching Power Supply is produced through strict quality control and testing procedures, ensuring that each product meets relevant standards and has stable and reliable performance[3]. With the continuous development of the Switching Power Supply market, C&J Electrical has been committed to optimizing product performance and improving product quality to meet the diverse needs of users[3].
Compared with other Switch Power Supply products on the market, the NDR-240 series has obvious advantages in efficiency, safety and adaptability: the high efficiency of 91.5% is more energy-saving; the complete protection functions and international safety certification ensure high safety; the wide voltage input range and fanless heat dissipation make it suitable for various complex scenarios[3]. In addition, the product has a wide range of application scenarios, high cost performance, and supports OEM customization, which can better meet the personalized needs of users and partners[3].
We provide perfect after-sales service and technical support. If you have any questions about the selection, installation, use or customization of the NDR-240 series Switch Power Supply and Switching Power Supply, please feel free to contact C&J Electrical. Our professional technical team will provide you with tailored solutions and reliable technical support to ensure that the product can play its best performance and meet your power supply needs.
