In the field of motor control, the Soft Starter and normal starter (mainly direct-on-line starter, DOL) are two core devices used to control the start-up of AC motors. They play a crucial role in ensuring the stable operation of motors and extending the service life of equipment. However, many users, electrical practitioners and purchasers often confuse these two types of starters, and it is difficult to choose a suitable starting device according to actual needs. What is the difference between a soft starter and a normal starter? What are their respective characteristics, working principles and application scenarios? This article will systematically interpret the core differences between the two, integrate the required explanatory paragraphs, focus on introducing the Soft Starter, and highlight the CJR1 series Soft Starter launched by Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance, safe and reliable Soft Starter with complete functions and wide applicability, which provides professional motor start-up and protection solutions for various industrial and commercial scenarios.

First, we need to clarify the basic definitions of the two types of starters. A normal starter (DOL) is a traditional motor starting device with a simple structure. It directly connects the motor terminals to the rated power supply voltage through contactors or circuit breakers, allowing the motor to start instantaneously under full voltage and full current conditions[1]. It is like pushing a heavy millstone with all your strength to make it rotate instantly, with simple control and only two states of “on” and “off”[1]. A Soft Starter is an advanced motor control device based on power electronics technology, microprocessor technology and modern control theory[5]. It uses power electronic components (such as thyristors) to control the voltage applied to the motor, making the voltage rise smoothly and steplessly from zero (or an initial value) to the rated voltage, thereby limiting the starting current and controlling the starting torque[1][7]. It is like pushing the millstone with a small force first, then gradually increasing the force until the millstone reaches the predetermined speed stably[1].

The core differences between a Soft Starter and a normal starter are reflected in many aspects such as working principle, starting performance, protection function, application scenario and cost. How is a soft starter different from a normal starter? Ans: Normal starters allow maximum voltage to inrush into the equipment during its starting. However, a soft starter prevents the motor against mishaps by preventing excessive voltage inrush. To help you better understand the characteristics of the two and make a reasonable choice, we will conduct a detailed comparison and focus on interpreting the Soft Starter and CJR1 series products.

Core Differences Between Soft Starter and Normal Starter

1. Working Principle Difference

The working principle of a normal starter is simple and direct: when starting, it directly connects the motor to the full-voltage power supply through a contactor, and the motor starts at full voltage and full current[1][6]. This starting method has no voltage regulation link, and the control logic is simple, but it will cause a huge inrush current and mechanical impact[7].

The Soft Starter adopts thyristor voltage regulation technology. Its main circuit is composed of three pairs of anti-parallel thyristors, which are respectively connected in series with the three-phase power supply of the motor[7]. The controller controls the output voltage by changing the conduction angle of the thyristor. During the start-up process, the conduction angle is gradually reduced, so that the output voltage rises smoothly and linearly to the rated voltage, and the motor accelerates stably to the rated speed[7]. After the start-up is completed, the Soft Starter usually controls the bypass contactor to pull in, short-circuit the thyristor, and let the current pass directly through the contactor to avoid heat loss caused by long-term operation of the thyristor[7].

2. Starting Performance Difference

Starting current: The normal starter will generate a very large inrush current during start-up, which is usually 5-8 times the rated current, and even 10-15 times the rated current for high-efficiency motors[2][7]. This huge inrush current will cause obvious voltage drop in the power grid, affect the normal operation of other equipment connected to the same power grid, and even trigger the protection device to trip[1][2].

The Soft Starter can effectively limit the starting current, usually adjustable to 2-4 times the rated current[1][7]. By controlling the voltage rise rate, it avoids the impact of inrush current on the power grid and the motor, and ensures the stable operation of the power grid and the motor[2][7].

Starting torque: The starting torque of the normal starter is very large, usually 1.5-2.5 times the rated torque, which will cause sudden mechanical stress on the transmission equipment (such as belts, gears, couplings), resulting in “impact” and reducing the service life of the equipment[1][6].

The starting torque of the Soft Starter is small initially and then increases smoothly[1]. Since the torque is proportional to the square of the voltage, the slight reduction of the voltage will lead to a significant reduction of the torque, which effectively relieves the mechanical impact of the transmission system and prolongs the service life of the equipment[7].

3. Protection Function Difference

The normal starter has simple functions, only providing basic start-stop control, and its protection function is relatively single, usually only equipped with overload protection, which cannot effectively protect the motor from faults such as phase loss, overcurrent and undervoltage[6]. Once the motor fails during operation, it is easy to cause motor damage[6].

The Soft Starter is equipped with a complete set of motor protection functions, which can comprehensively protect the motor and the system[4][5]. It can realize protection functions such as phase loss, overload, overcurrent, undervoltage and over-temperature, and can quickly respond to various abnormal conditions, cut off the power supply in time to avoid motor damage, and ensure the safe and stable operation of the motor[5][7].

4. Application Scenario Difference

The normal starter is suitable for small-power motors (usually less than 15kW) or occasions with no requirements on starting impact[1]. It is widely used in small water pumps, fans, air compressors and other equipment with small starting inertia, which has the advantages of simple structure, small volume and low cost[1][6].

The Soft Starter is mainly suitable for occasions with high requirements on start-up performance, such as high-power motors, equipment requiring no mechanical impact during start-up, and equipment requiring stable start-up in the process[1][3]. It is widely used in industrial automation, construction, mining, petroleum, chemical industry and other fields, such as water pumps, fans, conveyors, compressors and other equipment, which can avoid water hammer effect, material flying and other problems[4][5].

With the continuous development of industrial automation technology, the market demand for Soft Starter is increasing, and higher requirements are put forward for its performance, safety and applicability[4]. C&J Electrical, focusing on the R&D and production of motor control equipment, has launched the CJR1 series Soft Starter to meet the diverse needs of the market. Next, we will introduce the product overview, technical parameters, functions and features, application scenarios and product advantages of the CJR1 Soft Starter in detail.

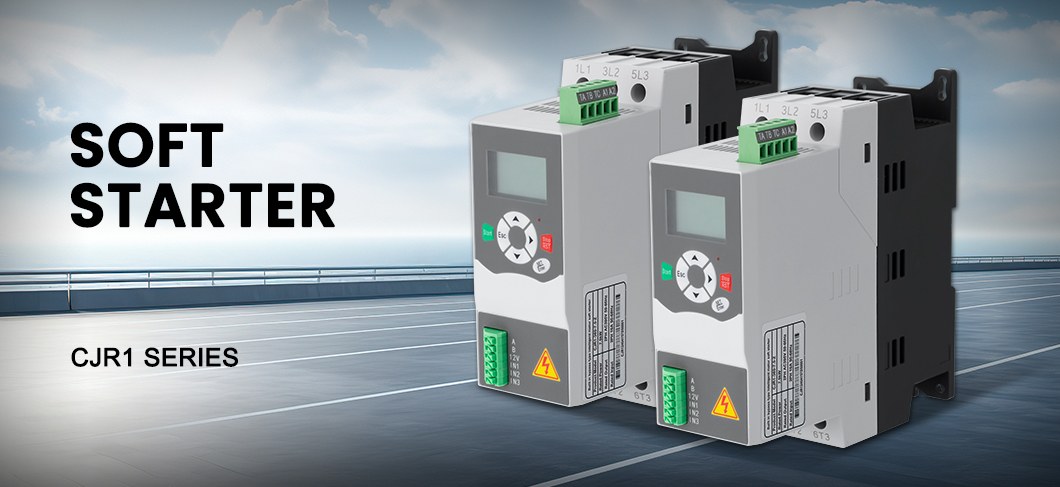

Overview of C&J Electrical CJR1 Soft Starter

The CJR1 series Soft Starter is an advanced digital Soft Starter independently developed and produced by C&J Electrical, which is suitable for motor switch power ranging from 0.37kW to 115kW[5]. The product adopts advanced digital control technology and high-quality components, with stable performance and complete functions. It provides a complete set of comprehensive motor and system protection functions, which can ensure reliable operation even in the harshest installation environments[5].

The CJR1 Soft Starter supports multiple optional start-stop curves and expanded input and output options, which can be flexibly adjusted according to actual application needs. It is equipped with an easy-to-read display with comprehensive feedback, which is convenient for users to operate and monitor. The product has multiple specifications optional, supports OEM brand customization services, and has high safety performance, which can flexibly meet the personalized needs of different users and partners[5].

Technical Parameters and Function List of CJR1 Soft Starter

Scope of Application

This Soft Starter is an advanced digital soft start solution suitable for motor switch power ranging from 0.37kW to 115kW. Provides a complete set of comprehensive motor and system protection functions, ensuring reliable performance even in the harshest installation environments.

Function List

Optional soft start curve
1. Voltage ramp start
2. Torque start
Optional soft stop curve
1. Free parking
2. Timed soft parking
Expanded input and output options
1. Remote control input
2. Relay output
3. RS485 communication output
Easy to read display with comprehensive feedback
1. Removable operation panel
2. Built-in Chinese + English display
Customizable protection
1. Input phase loss
2. Output phase loss
3. Running overload
4. Starting overcurrent
5. Running overcurrent
6. Underload
Models that meet all connectivity requirements
1. 0.37-115KW (rated)
2. 220VAC-380VAC
3. Star shaped connection or inner triangle connection

Functions and Features of CJR1 Soft Starter

The CJR1 series Soft Starter integrates advanced technology and practical functions, with obvious advantages in performance, operability and safety. As a high-quality Soft Starter, it can meet the motor start-up and protection needs of various scenarios, and its specific functions and features are as follows:

Flexible Start and Stop Modes: It supports two optional soft start curves (voltage ramp start and torque start) and two optional soft stop curves (free parking and timed soft parking)[5]. Users can choose the appropriate start-stop mode according to the load characteristics of the motor, so that the motor can achieve the best start-stop effect and avoid mechanical impact[7].
Expanded Input and Output Options: Equipped with remote control input, relay output and RS485 communication output functions[5]. It supports remote control of the Soft Starter, realizes signal transmission and data interaction with other equipment, and is convenient for integrated control of the system[3].
Easy Operation and Monitoring: It is equipped with an easy-to-read display with comprehensive feedback, a removable operation panel and a built-in Chinese + English display[5]. The operation panel is easy to disassemble and assemble, which is convenient for users to operate and maintain; the bilingual display can meet the use needs of users at home and abroad, and the comprehensive feedback function allows users to grasp the working status of the Soft Starter and the motor in real time[5].
Customizable Protection Functions: It is equipped with six customizable protection functions, including input phase loss, output phase loss, running overload, starting overcurrent, running overcurrent and underload[5]. It can comprehensively protect the motor and the system, quickly respond to various abnormal conditions, avoid motor damage caused by faults, and ensure the safe and stable operation of the equipment[5][7].
Multiple Specifications and Connection Modes: The rated power covers 0.37-115KW, and the input voltage supports 220VAC-380VAC[5]. It supports star connection or inner triangle connection, which can flexibly adapt to different motor types and power supply environments, with strong versatility[5].
Strong Environmental Adaptability: The product is designed with high-quality components and strict production processes, which can ensure reliable performance even in harsh installation environments, and is suitable for use in various complex industrial scenarios[5].
High Safety Performance: The complete protection functions and high-quality components ensure the high safety of the product, which can effectively avoid various safety hazards caused by motor faults and ensure the safety of personnel and equipment[5].

Application Scenarios of CJR1 Soft Starter

With the advantages of stable performance, complete functions, wide adaptability and high safety, the CJR1 series Soft Starter has a wide range of application scenarios, covering industrial automation, construction, mining, petroleum, chemical industry, municipal engineering and other fields, providing professional motor start-up and protection solutions for various equipment[4][5]. The specific application scenarios are as follows:

Industrial Automation Scenarios: Applied to industrial automation production lines, it provides soft start and protection for motors of water pumps, fans, compressors, crushers and other equipment[4][5]. It can avoid mechanical impact and water hammer effect during start-up, ensure the stable operation of the production line, and reduce equipment maintenance costs[1][7].
Construction and Municipal Scenarios: Used in construction sites and municipal engineering, it provides soft start for motors of elevators, air conditioning systems, water supply pumping stations and other equipment[4]. It realizes soft start and soft stop, avoids mechanical impact on the equipment, and ensures the safe and stable operation of the equipment[5].
Mining and Petroleum Scenarios: Applied to mining and petroleum fields, it provides soft start and protection for motors of conveyors, drilling rigs and other equipment[4]. It can adapt to harsh working environments, ensure the reliable operation of the motor in complex environments, and avoid motor damage caused by faults[5].
Chemical and Textile Scenarios: Used in chemical and textile production lines, it provides soft start for motors of various production equipment[4]. It ensures the stable start-up of the equipment, improves the stability of the production process, and reduces the impact of motor start-up on the production process[5].
Water Treatment Scenarios: Applied to water treatment plants, it provides soft start for water pump motors[4]. It can avoid water hammer effect on the pipeline, save energy, and ensure the stable operation of the water treatment system[7].
OEM Supporting Scenarios: Suitable for OEM supporting, it can be integrated into various motor control equipment and systems, providing professional soft start and protection functions for the equipment[5]. Multiple specifications can be flexibly matched with different OEM products, improving the added value and competitiveness of the whole equipment[5].

Product Advantages of CJR1 Soft Starter

In the competitive Soft Starter market, the CJR1 series Soft Starter from C&J Electrical has obvious advantages, relying on its stable performance, complete functions and high cost performance, and has won the trust of users. Compared with ordinary Soft Starter products on the market, its specific advantages are as follows:

Wide Applicability: The rated power covers 0.37-115KW, the input voltage supports 220VAC-380VAC, and it supports star connection or inner triangle connection[5]. It can flexibly adapt to different motor types and power supply environments, and is suitable for various industrial and commercial scenarios[4][5].
Flexible and Practical Functions: It supports multiple optional start-stop curves and expanded input and output options, and has customizable protection functions[5]. It can be flexibly adjusted according to actual application needs, meeting the personalized needs of different users[5].
Easy Operation and Maintenance: The removable operation panel and built-in Chinese + English display make the operation and maintenance more convenient[5]. The comprehensive feedback function allows users to grasp the working status of the equipment in real time, which is conducive to timely troubleshooting[5].
High Safety Performance: Equipped with a complete set of protection functions, it can comprehensively protect the motor and the system, avoid motor damage caused by various faults, and ensure the safe and stable operation of the equipment[5][7].
Strong Environmental Adaptability: It can ensure reliable performance even in harsh installation environments, with strong anti-interference ability and stable operation[5].
Multiple Specifications Optional: A variety of specifications are available to choose from, which can flexibly meet the motor start-up needs of different powers and scenarios[5].
OEM Customization Support: We support OEM brand customization services, which can be customized according to the specific needs of users, including brand LOGO, product specifications and functions, to meet the personalized needs of different users and OEM partners[5].

Why Choose C&J Electrical CJR1 Soft Starter?

As a professional manufacturer of motor control equipment, C&J Electrical has rich experience in R&D and production of Soft Starter. The CJR1 series Soft Starter is produced through strict quality control and testing procedures, ensuring that each product meets relevant standards and has stable and reliable performance[5]. We always adhere to the concept of user-oriented, continuously optimize product performance and improve product quality, to provide users with cost-effective and practical motor start-up and protection solutions[4].

Compared with other Soft Starter products on the market, the CJR1 series has obvious advantages in adaptability, functionality and safety: the wide power range and multiple connection modes make it suitable for various scenarios; the flexible start-stop modes and customizable protection functions can meet diverse needs; the high-quality components and strict production processes ensure stable performance and high safety[5]. In addition, the product supports OEM customization and has multiple specifications optional, which can better meet the personalized needs of users and partners[5].

We provide perfect after-sales service and technical support. If you have any questions about the selection, installation, use or customization of the CJR1 series Soft Starter, please feel free to contact C&J Electrical. Our professional technical team will provide you with tailored solutions and reliable technical support to ensure that the product can play its best performance and meet your motor start-up and protection needs.
