What is an MCCB Circuit Breaker and How Does it Work?

Introduction: The Unsung Hero of Electrical Safety

In the intricate web of modern electrical systems, safety and reliability are paramount. At the heart of countless industrial and commercial power distribution networks lies a critical device: the Moulded Case Circuit Breaker (MCCB). While many are familiar with the standard circuit breakers in their homes, the MCCB is a more robust, versatile, and sophisticated guardian of electrical circuits. This article will demystify the MCCB, exploring its function, applications, and the exceptional solutions offered by Zhejiang C&J Electrical co., ltd (C&J Electrical).

What Exactly is an MCCB?

An MCCB, or Moulded Case Circuit Breaker, is a type of low-voltage circuit breaker designed to protect electrical circuits from damage caused by overloads and short circuits. Its defining feature is its construction: all the vital components – including the contacts, arc extinguishing chamber, and tripping mechanisms – are enclosed within a robust, compact housing made of high-strength insulating plastic. This “moulded case” provides excellent insulation, mechanical strength, and protection from environmental factors, making it suitable for demanding industrial settings.

Unlike smaller miniature circuit breakers (MCBs) found in homes, MCCBs are built for much higher current ratings and fault currents. They are a cornerstone of industrial and commercial electrical safety, offering a combination of durability, high breaking capacity, and reliable performance.

How Does an MCCB Work?

The magic of an MCCB lies in its dual-action tripping mechanism, typically a thermal-magnetic system. This system responds to two distinct types of electrical faults: long-term, low-level overloads, and sudden, high-intensity short circuits.

1. Thermal Protection (For Overloads)

The thermal protection is designed to guard against sustained overcurrent conditions, like a motor drawing too much current for an extended period. This system consists of a bimetallic strip and a heating element.

• When an overload occurs, the increased current flows through the heating element, causing the bimetallic strip to heat up.
• A bimetallic strip is made of two different metals with different thermal expansion rates. As it heats, one metal expands more than the other, causing the strip to bend.
• If the overload persists, the bending strip will eventually trip a mechanical latch, causing the contacts to open and interrupt the circuit. The higher the current, the faster this process happens.

2. Magnetic Protection (For Short Circuits)

This system reacts instantaneously to massive current spikes, such as those caused by a direct short circuit.

• This protection uses a solenoid (an electromagnetic coil) that is in series with the circuit.
• When a short circuit occurs, the sudden, enormous surge of current generates a powerful magnetic field in the coil.
• This magnetic force instantly pulls an iron armature, which in turn strikes the trip mechanism. This happens almost immediately (within milliseconds), forcing the contacts open and safely clearing the fault.

This combination of thermal and magnetic protection ensures comprehensive safety, responding to both gradual overheating and sudden catastrophic failures. Some advanced MCCBs may also use electronic trip units for more precise and adjustable protection.

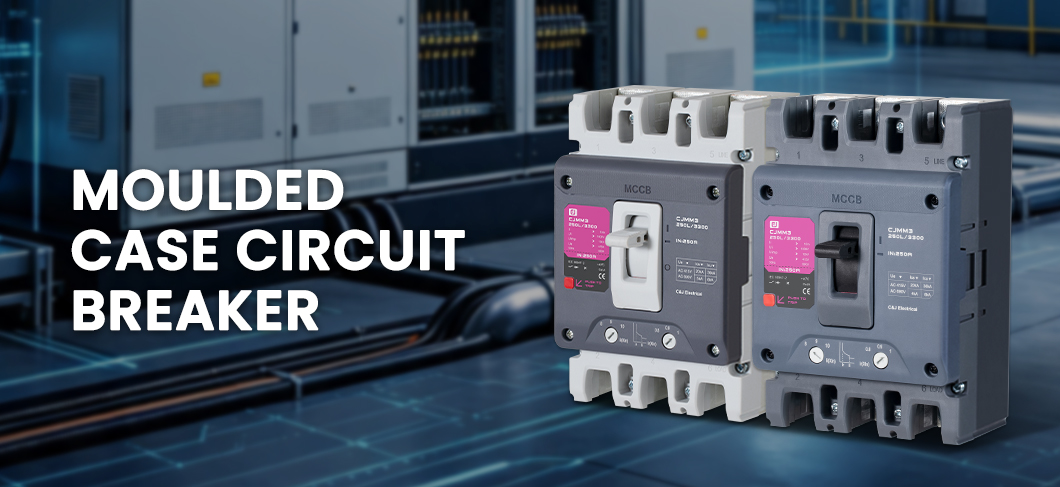

Product Focus: The C&J Electrical CJMM3 MCCB Series

Zhejiang C&J Electrical co., ltd offers the CJMM3 series, a premier range of MCCBs that perfectly embodies the reliability, performance, and innovation required in modern industry. This series is a testament to C&J Electrical’s commitment to quality and safety.

Key Features and Technical Parameters

The CJMM3 is a high-performance thermal-magnetic MCCB suitable for a wide array of applications. Its robust design and flexible configuration make it a standout choice. Below are the key technical specifications for the CJMM3 series.

Optional Breaking Capacity Levels

The CJMM3 series offers two breaking capacity levels (L and H) to suit different system requirements. Here is a detailed breakdown:

Other Important Parameters:

• Electrical Life: Up to 5000 operations (CJMM3-125/160/250) and 3000 operations (CJMM3-400/630).
• IP Protection (from front side): IP40.
• Pollution Degree: III.
• Type of Release: Single magnetic trip / thermal magnetic trip.
• Dimensions (Width x Height x Depth):
  • CJMM3-125: 75 x 130 x 66 mm
  • CJMM3-160: 90 x 155 x 73 mm
  • CJMM3-250: 107 x 165 x 67.5 mm
  • CJMM3-400/630: 150 x 257 x 114 mm

Application Scenarios: Where is the MCCB Used?

The robustness and high performance of MCCBs, especially the CJMM3 series, make them indispensable in a wide range of critical applications.

• Industrial Power Distribution: The primary use of MCCBs is in main and sub-distribution boards within factories and large facilities. They protect the vital feeders and sub-mains, ensuring that a fault in one part of the plant does not shut down the entire operation.
• Motor Protection: Large motors, compressors, pumps, and HVAC systems have high inrush currents when starting. MCCBs are perfectly suited to handle this while providing reliable protection against overloads and short circuits during operation.
• Manufacturing and Process Lines: In industries like automotive, food processing, and pharmaceuticals, MCCBs protect the panels feeding conveyors, robotic arms, and other critical automated equipment. Their reliability is key to preventing costly downtime.
• Renewable Energy and Backup Systems: MCCBs are used in generator outputs, UPS (Uninterruptible Power Supply) systems, and solar power distribution boards to provide safe and reliable isolation and protection.
• Infrastructure and Utilities: From water treatment plants to mining operations and oil & gas facilities, MCCBs are chosen for their ruggedness and ability to perform in heavy-duty, demanding environments.

Why Choose C&J Electrical’s CJMM3 MCCB?

Zhejiang C&J Electrical co., ltd stands out as a trusted manufacturer in the electrical industry. Our CJMM3 series MCCB is engineered to provide superior protection and performance. We understand the diverse needs of our global clientele and offer unmatched flexibility and service.

Exceptional Features of our CJMM3:

• Comprehensive Protection: Provides reliable thermal-magnetic protection against both overloads and short circuits.
• High Breaking Capacity: With options up to 70kA at 400/415V, it can handle severe fault currents, ensuring system safety.
• Versatile Application: A wide range of current ratings (from 16A to 630A) and pole configurations (2P, 3P, 4P) makes it suitable for various systems.
• Built to Last: Constructed with robust materials, adhering to IEC60947 standards, ensuring long service life and reliability.
• Flexible Installation: Supports fixed, plug-in, and draw-out installation methods to meet diverse panel requirements.

Our Commitment to You:

At Zhejiang C&J Electrical co., ltd, we are dedicated to providing more than just a product; we offer a comprehensive solution tailored to your needs.

• OEM Brand Customization: We understand that brand identity matters. We are proud to support OEM brand customization services, allowing you to market our high-quality breakers under your own brand.
• Bulk Options and Flexibility: We offer a wide selection of products and specifications. We also support SKD (Semi-Knocked Down) parts delivery for your assembly needs, offering greater supply chain flexibility.
• Expert Support: Our team is ready to assist with technical questions, installation advice, and tailored solutions. If you have any questions or need any assistance, please do not hesitate to contact us.

Conclusion

The MCCB, particularly the CJMM3 series from Zhejiang C&J Electrical co., ltd, is far more than a simple switch; it is a sophisticated and vital component ensuring the safety, reliability, and efficiency of electrical systems across the globe. From protecting expensive industrial machinery to safeguarding power distribution networks, its role is indispensable. By combining advanced thermal-magnetic technology with a robust, compact design, the MCCB provides the silent, steadfast protection that modern infrastructure depends on.
