In modern electrical control and building power distribution systems, the demand for compact, space-efficient, and easy-to-integrate electrical components is constantly rising. Modular contactors have become a core choice for electrical designers and installers due to their unique structural advantages. A common question in the industry is: What is a modular contactor? This article will give a detailed explanation of the definition and value of modular contactors, and focus on introducing the BCH8 Series Modular Contactor launched by Zhejiang C&J Electrical co., ltd. (C&J Electrical)—a high-performance modular switching solution for building electrical and low-voltage control scenarios.
Modular contactors are electromagnetic switches that safely control high-power circuits by using a low-voltage signal to activate or deactivate main contacts. Unlike traditional contactors, modular designs fit standardized DIN rails (17.5mm width), enabling space-efficient integration into modern electrical panels.
A Modular Contactor is a miniaturized, standardized electromagnetic switching device designed for modular electrical systems. Based on the core function of traditional contactors, it adopts a compact modular structure that perfectly adapts to standard DIN rail installation, realizing efficient space utilization in electrical panels. It uses low-voltage control signals to drive the on-off of high-power main circuit contacts, which can safely control lighting, heating, ventilation, and small motor loads. It is the key component to realize the modularization, integration and intelligentization of low-voltage electrical systems, and is widely used in building electrical, household electrical control and light industrial equipment fields.

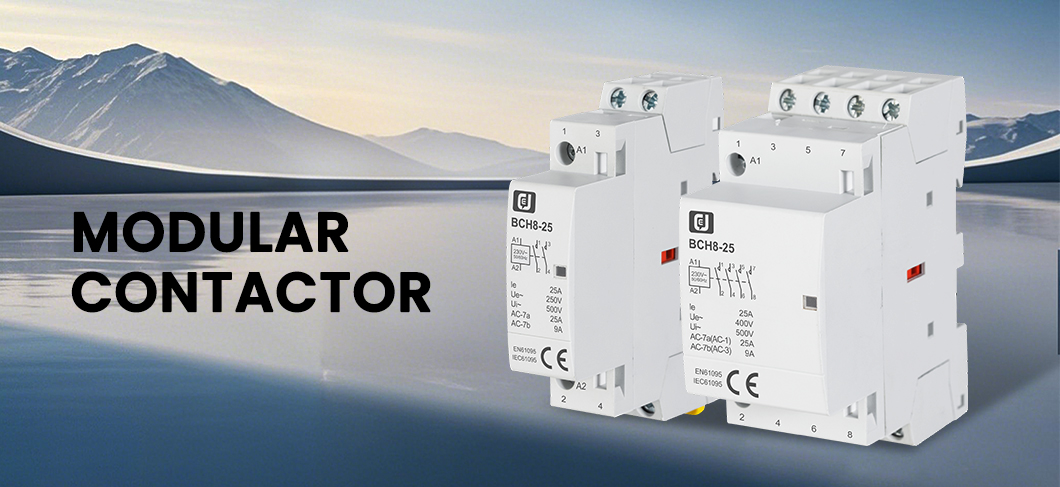

Overview of C&J Electrical BCH8 Series Modular Contactor
The BCH8 Series Modular Contactor independently developed and produced by C&J Electrical is a professional modular switching device compliant with IEC/EN61095 international standards, specially designed for AC 50Hz/60Hz low-voltage power distribution and control circuits. The product is suitable for circuits with a rated working voltage of up to 400V AC and a rated current of up to 100A, and can reliably control low-inductance loads for household appliances and similar applications, as well as household motor loads (with corresponding power reduction).
As an important part of the DIN rail product system, the BCH8 Series Modular Contactor features a compact and standardized structural design, which can be easily integrated into various dedicated electrical panels and distribution boxes. It has excellent electrical and mechanical performance, stable switching operation, and strong environmental adaptability, and is mainly used in building electrical systems for switching and control of lighting, heating, ventilation and water pump equipment, providing a reliable and space-saving switching solution for modern building power distribution.
Core Features & Advantages of BCH8 Series Modular Contactor
The C&J Electrical BCH8 Series Modular Contactor stands out in the market with its standardized modular design, complete performance and reliable quality, and its core advantages are as follows:
- Standard modular design: Adapts to standardized DIN rail installation, compact structure, 17.5mm standard width, realizing efficient utilization of electrical panel space and easy integration with other modular electrical components.
- Wide voltage and current adaptation: 1P/2P models support 250V AC, 3P/4P models up to 400V AC, rated current up to 100A, which can meet the switching control needs of most building electrical and household low-power loads.
- Super long service life: Mechanical endurance up to 2,000,000 cycles and electrical endurance 100,000 cycles, with stable performance and long service life, adapting to frequent switching working conditions (maximum 100 switching operations per day).
- High safety performance: Insulation voltage up to 500V AC, rated impulse withstand voltage 2.5kV (4kV for 12/24/48VAC versions); complies with SELV (Safety Extra Low Voltage) requirements for low-voltage control versions, with high use safety.
- Strong environmental adaptability: Working temperature range of -5℃+60℃, storage temperature of -40℃+70℃; passes tropicalization treatment (95% relative humidity at 55℃), applicable to various harsh environmental conditions.
- Multiple protection levels: The device itself has IP20 protection level, and IP40 protection can be achieved when installed in a modular enclosure, effectively preventing accidental contact and dust intrusion.
- Complete specifications: Provides 1P, 2P, 3P, 4P multiple pole number specifications, matching different circuit control needs, with strong versatility.
Technical Parameters of BCH8 Series Modular Contactor
|
Parameter
|
Details
|
|---|---|
|
Product Model
|
BCH8 Series Modular Contactor
|
|
Applicable Frequency
|
50Hz/60Hz AC
|
|
Rated Voltage (Ue)
|
1P/2P: 250V AC; 3P/4P: 400V AC
|
|
Rated Current
|
Up to 100A AC
|
|
Insulation Voltage (Ui)
|
500V AC
|
|
Rated Impulse Withstand Voltage (Uimp)
|
2.5kV (4kV for 12/24/48VAC versions)
|
|
Mechanical Endurance
|
2,000,000 cycles
|
|
Electrical Endurance
|
100,000 cycles
|
|
Max Daily Switching Operations
|
100 times
|
|
Pollution Degree
|
2
|
|
Protection Degree
|
IP20 (device only); IP40 (in modular enclosure)
|
|
Operating Temperature
|
-5℃ ~ +60℃
|
|
Storage Temperature
|
-40℃ ~ +70℃
|
|
Tropicalization Treatment
|
IEC 60068.1 Treatment 2 (95% RH at 55℃)
|
|
Compliance Standard
|
IEC/EN61095, SELV (for 12/24/48VAC)
|
|
Mounting Method
|
Standard DIN rail mounting
|
|
Pole Number Options
|
1P, 2P, 3P, 4P
|
Application Range of BCH8 Series Modular Contactor
Thanks to its compact modular design, reliable performance and complete specifications, the BCH8 Series Modular Contactor is widely used in building electrical and low-voltage control scenarios, mainly including:
- Building lighting systems: On-off control of indoor and outdoor lighting in residential quarters, office buildings, shopping malls, hotels and other buildings, realizing centralized and modular control of lighting circuits.
- HVAC systems: Control of heating equipment, ventilation fans, air conditioning fans and water pumps in buildings, matching the modular design of building electrical control panels.
- Household electrical control: Switching control of household large appliances, low-power motors, water pumps and other equipment, suitable for household distribution boxes and intelligent home control systems.
- Commercial and public facilities: Power control of small electrical equipment in schools, hospitals, supermarkets, parking lots and other public places, with easy installation and maintenance.
- Light industrial equipment: Control of low-power motors and electrical loads in small production equipment, assembly lines and light industrial machinery, adapting to the modular electrical design of equipment.
- Modular distribution boxes: As a core switching component of customized modular distribution boxes, it is used for circuit division and control in various scenarios.
Why Choose C&J Electrical BCH8 Series Modular Contactor?
C&J Electrical has been focusing on the R&D and production of low-voltage electrical components, and the BCH8 Series Modular Contactor is a high-quality product tailored for modern modular electrical systems. Choosing this product has the following core reasons:
- Standard compliance and reliable quality: Strictly manufactured in accordance with IEC/EN61095 international standards, with strict quality control, stable switching performance and high product reliability.
- Space-saving design: Standard modular DIN rail installation, compact structure, effectively saving the installation space of electrical panels and distribution boxes, and reducing the overall design cost of electrical systems.
- Strong adaptability: Wide working temperature range, tropicalization treatment, multiple protection levels, applicable to various environmental conditions and application scenarios.
- Complete specifications and flexible matching: 1P/2P/3P/4P multiple pole number options, matching different circuit voltage and current requirements, with strong versatility.
- Easy installation and maintenance: Standardized modular structure, simple wiring and installation, easy disassembly and replacement, reducing the difficulty of on-site construction and later maintenance.
- OEM customization support: Provide professional OEM brand customization services, with multiple specifications available, to meet the personalized customization needs of different customers and projects.
Get in Touch
If you have any questions about the BCH8 Series Modular Contactor, such as product model selection, technical parameters, installation guidance, customization needs or bulk orders, please feel free to contact C&J Electrical. Our professional technical team will provide you with targeted modular switching solutions and reliable after-sales service, helping you build a compact, efficient and stable low-voltage electrical control system.
