In photovoltaic power generation, energy storage and DC power distribution systems, overcurrent and short-circuit faults are the main causes of equipment burnout and system downtime. As a key matching component of circuit protection devices, Fuse Holder plays an irreplaceable role in stabilizing circuit operation. Many system installers and purchasers often ask: What is a fuse holder and why is it essential for solar DC systems?
A fuse holder is a safety accessory that mounts, secures, andconnects an electrical fuse into a circuit. It acts as a bridge, channeling electrical current safely through the fuse while providing physical protection and an easy way to replace the fuse if it blows.
Ordinary low-voltage fuse holders are difficult to adapt to high-voltage DC and harsh outdoor working conditions of photovoltaic power stations. Professional Solar Fuse Holder and PV Fuse Holder are specially optimized for solar DC systems, with high voltage resistance, high temperature resistance and strong environmental adaptability. Cooperating with fuses to form a complete overcurrent and short-circuit protection system, they ensure the safe and stable operation of photovoltaic modules, inverters and distribution boxes.
Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches the CJPV-32 series professional PV Fuse Holder for new energy photovoltaic DC power distribution scenarios. Complying with IEC 60269-6 international standards, this product features high voltage resistance, strong shock resistance, flexible installation and stable performance, and is a high-quality matching device for global photovoltaic power generation and DC energy storage systems.
Fuse Holder Basic Definition & PV Specialization Advantages
A standard Fuse Holder is a carrier for installing and fixing Fuse components, responsible for circuit conduction and fuse protection. In traditional AC low-voltage systems, ordinary fuse holders can meet basic protection needs. However, photovoltaic DC systems have the characteristics of high voltage, long power-on time and complex outdoor environment, which put forward higher requirements for fuse holders.
Professional PV Fuse Holder and Solar Fuse Holder are upgraded and optimized for solar DC scenarios. Compared with ordinary products, they have higher DC voltage resistance, better high-temperature flame retardant performance, stronger vibration resistance and more stable breaking performance. They can adapt to long-term high-load operation of photovoltaic DC circuits and effectively avoid safety hazards such as fuse loosening, shell ablation and insufficient breaking capacity in harsh environments.

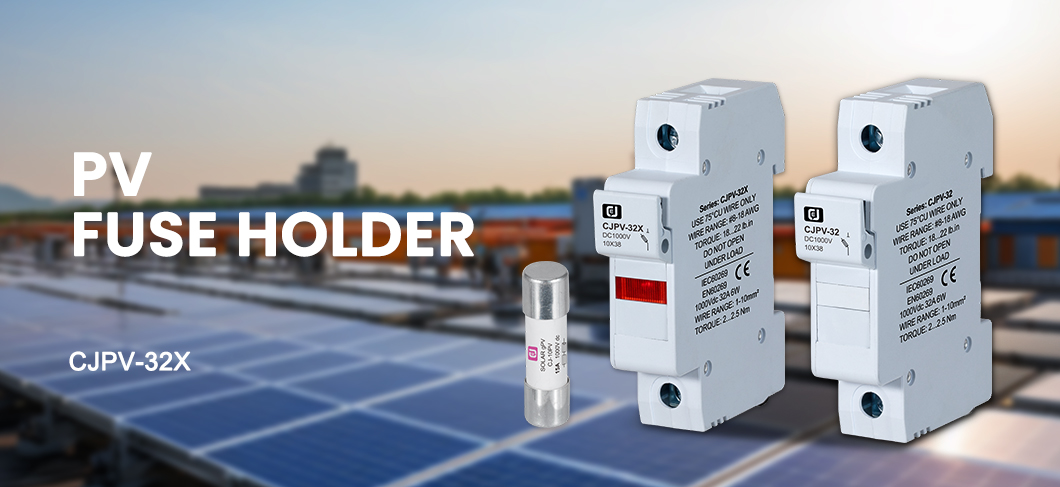

C&J Electrical CJPV-32 PV Fuse Holder Product Overview
CJPV-32 series Solar Fuse Holder is a professional DC special fuse holder developed by C&J Electrical in accordance with IEC 60269-6 standard. The product adopts high-quality refractory and flame-retardant materials, with a maximum rated DC voltage of 1000VDC and a rated current of 32A, covering 1A to 32A current specifications. It is widely used in high and low voltage distribution systems, automatic control systems, distribution boxes, inverters and other electrical equipment, and is dedicated to providing reliable short-circuit and over-current protection support for photovoltaic DC power distribution systems.
ThisFuse Holder has excellent DC operating performance, with a breaking capacity of up to 20kA. It features low arc voltage and low energy let-through (I²t), which can quickly and safely cut off DC fault current and avoid fault expansion and equipment damage. The compact structural design effectively reduces power loss during operation, ensuring long-term stable and efficient operation of photovoltaic circuits.
Core Product Benefits & Structural Features
- Standard DIN Rail Installation: Adopts DIN35 rail installation mode, with simple and fast installation process, no complex wiring and fixing steps, effectively improving on-site construction efficiency.
- Stable Terminal Wiring: Equipped with adjustable terminal blocks, which can firmly clamp wires to avoid poor contact and circuit heating caused by wire loosening during long-term vibration operation.
- High Temperature & Fire Resistance: The whole shell is made of high-quality refractory flame-retardant materials, which can resist abnormal high temperature heating and impact, with excellent flame retardant and anti-aging performance, adapting to outdoor high-temperature working conditions of photovoltaic power stations.
- Flexible & Convenient Maintenance: The structural design is reasonable, allowing quick replacement of the internal Fuse after fuse blowing, with low maintenance cost and high operation flexibility.
- Excellent DC Performance: Low power loss, low arc voltage and low energy let-through effectively reduce DC circuit loss and improve the safety and stability of fault breaking.
- Strong Vibration & Shock Resistance: It can withstand impact vibration above 20g, adapting to rail transit, general vehicle-mounted and strong vibration industrial environments, with strong environmental adaptability.
Complete Technical Data
CJPV-32 series PV Fuse Holder has standardized and complete technical indicators, with rich pole number specifications to meet differentiated engineering selection needs:
|
Technical Items
|
Specifications
|
|---|---|
|
Executive Standard
|
IEC 60269-6
|
|
Pole Specifications
|
1P / 2P / 3P / 4P
|
|
Rated DC Voltage
|
1000VDC
|
|
Rated Current Range
|
1A~32A
|
|
Breaking Capacity
|
20kA
|
|
Core Performance
|
Low arc voltage, low I²t energy let-through, low power loss
|
Environmental Adaptation Conditions
CJPV-32 Solar Fuse Holder is designed for complex outdoor and high-altitude working conditions, with ultra-wide temperature and altitude adaptation capabilities:
Temperature & Humidity Adaptation
The product supports a storage temperature range of -40°C~120°C. The relative humidity is no more than 70% at 40°C, no more than 80% below 30°C, and no more than 90% below 20°C. The packaging and transportation temperature ranges from -40°C to 80°C, with maximum 90% relative humidity and no condensation, adapting to extreme temperature and humidity changes in outdoor photovoltaic scenarios.
Vibration & Shock Resistance
The product has excellent vibration and impact resistance, capable of withstanding impact above 20g, stably adapting to rail transit, vehicle-mounted and general industrial vibration environments. For ultra-strong vibration scenarios, targeted customized testing and adaptation schemes can be negotiated.
High Altitude Adaptation (2000m~4500m)
High altitude environments will affect equipment insulation and heat dissipation. CJPV-32 series products have optimized high-altitude adaptation design: every 100m increase in altitude leads to a 0.1-0.5K rise in fuse temperature rise and a 0.5K drop in average ambient temperature. In open environments, the impact on rated current is negligible; in closed box environments, if the internal temperature remains above 40°C, the rated current needs to be reduced by 2%-5% per 1000m altitude increase. Meanwhile, the insulation strength decreases by 12%-15% per 1000m increase in altitude, and users can reserve insulation gaps according to actual working conditions to ensure safe operation.
Application Scenarios
Relying on 1000VDC high voltage resistance, strong environmental adaptability and stable DC protection performance, CJPV-32 PV Fuse Holder is widely used in new energy DC power distribution and industrial control scenarios:
- Photovoltaic Power Generation System: Used for DC combiner boxes, photovoltaic module string circuits and inverter front-end protection of ground and distributed photovoltaic power stations, adapting to outdoor high-altitude, high-temperature and vibration working conditions.
- Energy Storage DC System: Applied to energy storage cabinet DC distribution circuits, providing reliable short-circuit and over-current protection for energy storage battery clusters and DC power distribution equipment.
- Low-Voltage Distribution Equipment: Matched with various distribution boxes and low-voltage control cabinets to provide stable fuse fixing and circuit protection functions for industrial and commercial DC distribution systems.
- New Energy Supporting Equipment: Suitable for inverter, DC charging equipment and other new energy supporting electrical equipment, ensuring the safety and stability of DC circuits during operation and fault switching.
Product Services & Advantages
CJPV-32 series Fuse Holder has prominent comprehensive advantages, with 1P/2P/3P/4P complete pole specifications, wide current coverage and strong environmental adaptability. It has high safety performance and low operation loss, fully meeting the protection needs of various photovoltaic and DC power distribution projects.
C&J Electrical provides diversified supporting services for this product, supporting OEM/ODM brand customization to meet personalized product needs of global customers. Our company has a complete product line, including ACB frame circuit breakers and other low-voltage electrical products, and supports SKD spare parts delivery. If you have any questions about product selection, high-altitude scheme adaptation, parameter matching and customized cooperation, please feel free to contact us for professional technical support.
Contact Us
In summary, Fuse Holder is an indispensable safety accessory for electrical circuit protection. As a professional customized product for new energy scenarios, PV Fuse Holder and Solar Fuse Holder represented by CJPV-32 series perfectly adapt to high-voltage DC and harsh working conditions of photovoltaic systems, providing reliable overcurrent and short-circuit protection support for global new energy power distribution projects.
Welcome global customers for consultation, procurement and customized cooperation. We will provide full-cycle professional after-sales service and technical support.
