In the field of civil and industrial electrical distribution systems, modular electrical components are the core of realizing efficient wiring, safe operation and convenient maintenance. Among them, the Din Rail Type Socket is a widely used modular connection accessory, and many users are confused about its definition, application value and functional characteristics. Understanding the Din Rail Type Socket is crucial for optimizing the internal wiring of electrical switchboards and improving the power supply efficiency of auxiliary equipment. DIN rail services sockets can be quickly fitted and connected in enclosures. These modular electrical sockets allow the use of auxiliary devices, tools or electrical and electronic non-modular equipment in civil and industrial electrical switchboards. Tested according to EN IEC 60884-1. Rated currents up to 16 A.
A DIN rail socket is a modular power connection socket specially designed for installation on the 35mm standard DIN rail inside electrical enclosures, switchboards and distribution boxes. Different from traditional wall-mounted sockets, it abandons the complex fixed installation mode, adopts the snap-on rail mounting structure, and has the characteristics of small volume, standardized design and fast assembly. As an indispensable power access accessory in modern electrical systems, the Din Rail Type Socket provides a safe and reliable power supply interface for various auxiliary tools, testing equipment and non-modular electrical and electronic devices in the switchboard, and is the key to realizing the modular and integrated design of civil and industrial electrical systems.
As a professional manufacturer of industrial electrical components, Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) has developed the CJ20 series Din Rail Type Socket (CJ20-GGYK Din Rail Modular Socket) for the high-efficiency power demand of civil and industrial scenarios. This product integrates high-quality material selection, excellent safety performance and flexible customization, and has become an ideal choice for customers in various fields to select DIN rail socket accessories.
Overview of C&J Electrical CJ20 Series Din Rail Type Socket
The CJ20-GGYK Din Rail Modular Socket is a high-performance industrial connection accessory independently developed and produced by C&J Electrical, which is specially tailored for the 35mm standard DIN rail mounting scenario. The product adheres to the design concept of safety and durability, the cover is made of high-quality PA material with good insulation and high temperature resistance, and the contact is made of CuZn37 material with excellent electrical conductivity, which ensures the stable power supply of the socket and long service life.
The product has reached IP20 ingress protection grade, which can effectively prevent accidental contact of human fingers and improve the operation safety of the electrical switchboard. It has passed the authoritative CE and VDE certifications, fully complying with the European electrical safety standards, and can be widely used in the European market and international projects that meet the above standards. In addition, the socket is designed with humanized kids protection, further upgrading the safety performance for civil and public electrical scenarios.

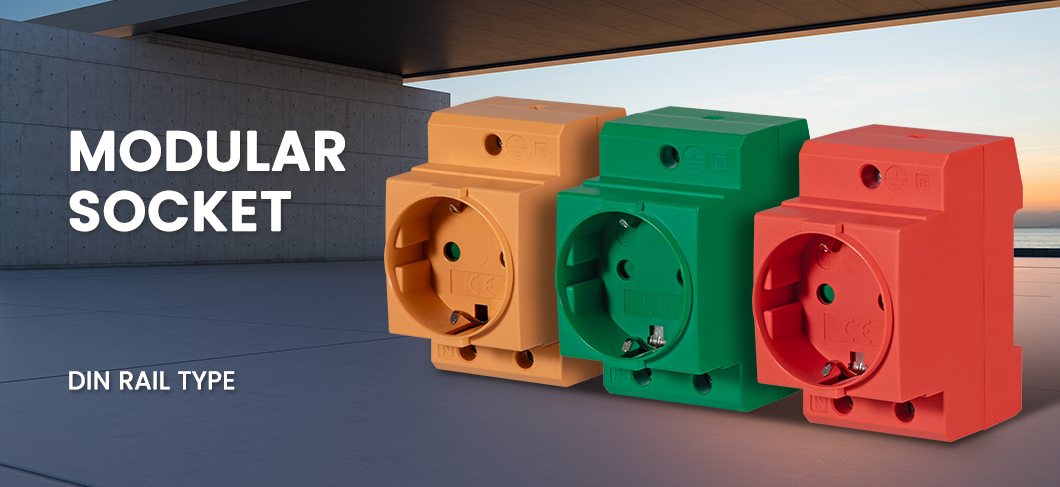

The CJ20 series Din Rail Type Socket is divided into two product series: 20 (without LED) and 21 (with LED), which can adapt to the electrical specifications of Germany, France, Italy and other European regions, and meet the diversified use needs of different countries and regions. It is available in four color options of grey, yellow, red and green, which is convenient for users to distinguish different power supply circuits and realize standardized management of the electrical system. With a rated current of 16A and a rated voltage of 250V, the socket can work stably in the ambient temperature range of -20°C to +60°C, and is packed with 5 PCS per pack for convenient storage and batch installation. The snap-on mounting design makes the product easy to install and access, and can realize quick circuit connection for assembly tools, servicing equipment and various electrical equipment, perfectly meeting the high-efficiency power demand of industrial and civil electrical scenarios.
Core Features & Advantages of CJ20 Series Din Rail Type Socket
The CJ20 series Din Rail Type Socket stands out in the market with its high-quality material selection, excellent structural design and rich functional configuration, and its core advantages are highly matched with the actual needs of civil and industrial users, mainly reflected in the following aspects:
- High-quality material configuration: Cover is made of PA material with good insulation, flame retardancy and aging resistance, and contact is made of CuZn37 material with low contact resistance and excellent conductivity, ensuring stable power transmission and long service life.
- IP20 ingress protection grade: Effectively prevent the intrusion of solid foreign matters and accidental contact of human fingers, and build a safe barrier for the internal power supply of the electrical switchboard.
- Standard 35mm DIN rail mounting: Adopt snap-on installation structure, no need for complex installation tools, quick assembly and disassembly, and greatly improve the wiring efficiency of the electrical system.
- Authoritative certification compliance: Passed CE and VDE double certifications, in line with European electrical safety standards, and has high market recognition and applicability in the international market.
- Humanized kids protection design: Effectively prevent children from accidentally touching the internal circuit of the socket, and is more suitable for civil distribution boxes and public electrical equipment scenarios with high safety requirements.
- Two series optional: 20 series (without LED) and 21 series (with LED) meet the use needs of different scenarios such as dark environment and normal lighting, and the power supply status is clear at a glance.
- Multi-region specification adaptation: Adapt to the electrical specifications of Germany, France, Italy and other regions, with strong international compatibility and wide application scope.
- Multi-color optional: Grey, yellow, red and green color schemes are available for users to mark different power supply circuits, facilitating the maintenance and management of the electrical system.
- Flexible OEM customization: Support the OEM customization of mould brand and type, and can customize the product according to the customer’s brand logo and functional requirements to meet the personalized market demand.
- Wide temperature adaptability: It can work stably in the ambient temperature range of -20°C to +60°C, and is adaptable to various harsh environmental conditions such as low temperature and high temperature.
Technical Parameters of CJ20 Series Din Rail Type Socket
|
Parameter
|
Details
|
|---|---|
|
Rated Current (A)
|
16A
|
|
Rated Voltage (V)
|
250V
|
|
Ambient Operation Temperature
|
-20°C ~ +60°C
|
|
Cover Material
|
PA
|
|
Contact Material
|
CuZn37
|
|
Ingress Protection Grade
|
IP20
|
|
Mounting Mode
|
35mm standard DIN rail
|
|
Certifications
|
CE, VDE
|
|
Product Series
|
20 (without LED), 21 (with LED)
|
|
Color Options
|
Grey, Yellow, Red, Green
|
|
Packing Specification
|
5 PCS per pack
|
|
Customization Service
|
OEM of mould brand and type
|
Application Range of CJ20 Series Din Rail Type Socket
Thanks to its excellent performance, multi-specification configuration and strong compatibility, the CJ20 series Din Rail Type Socket is widely used in various civil and industrial electrical scenarios, covering all fields that need modular power access inside the electrical switchboard and distribution box, and its main application scenarios are as follows:
- Industrial electrical switchboards: Provide quick power access for assembly tools, testing instruments, maintenance equipment and small auxiliary electrical appliances inside the industrial control cabinet, power distribution cabinet and frequency conversion cabinet, improving the maintenance efficiency of industrial equipment.
- Civil distribution boxes: Apply to residential community, villa, commercial housing and other civil distribution boxes with kids protection design and IP20 protection grade, providing safe and convenient power supply for household emergency tools and small electrical equipment.
- Commercial building electrical systems: Used in the distribution boxes and control cabinets of shopping malls, office buildings, hotels and other commercial buildings, for the power supply of internal ventilation fans, lighting equipment and maintenance tools, realizing the standardized management of commercial electrical systems.
- Public facility electrical equipment: Apply to the electrical control boxes of street lamps, public toilets, community public facilities and other scenarios, adapting to the outdoor complex temperature environment and ensuring the stable power supply of public facility auxiliary equipment.
- European market and international projects: Adapt to the electrical specifications of Germany, France, Italy and other European regions, and pass CE and VDE certifications, which is the ideal choice for European market export and international engineering electrical supporting.
- Automation equipment supporting: Used in the internal power distribution of automated production lines, packaging machinery, logistics sorting equipment and other automation equipment, providing modular power access for the auxiliary components of the equipment and improving the integration level of the equipment.
Why Choose C&J Electrical CJ20 Series Din Rail Type Socket?
In the increasingly competitive Din Rail Type Socket market, the CJ20 series products of C&J Electrical have become the preferred choice for a large number of civil and industrial users with their all-round advantages of quality, performance, customization and service, and the core reasons for choosing our products are as follows:
- Professional R&D and production strength: C&J Electrical has rich experience in the R&D and production of industrial electrical components, and the CJ20 series Din Rail Type Socket is independently developed and produced by the company with strict quality control in every production link to ensure the stable and reliable performance of each product.
- High-quality material and reliable performance: The product adopts PA cover and CuZn37 contact, with excellent insulation, conductivity and high temperature resistance, and the IP20 protection grade and kids protection design further upgrade the safety performance, which can meet the long-term use needs of various scenarios.
- Strong compatibility and wide applicability: Adapt to the 35mm standard DIN rail, comply with European CE and VDE certifications, and adapt to the electrical specifications of multiple European regions, with multi-color and two series optional, which can meet the diversified needs of different users and different scenarios.
- Flexible OEM customization service: Support the OEM customization of mould brand and type, and can provide personalized customization solutions according to the customer’s brand needs and market demand, helping customers to build their own brand advantages.
- Efficient installation and easy maintenance: The snap-on DIN rail mounting design realizes quick assembly and disassembly, no need for complex tools, which greatly improves the wiring efficiency of the electrical system, and the multi-color marking is convenient for later maintenance and management.
- Perfect after-sales service guarantee: C&J Electrical has a professional technical and after-sales service team, which can provide users with product selection guidance, technical consultation and after-sales maintenance services, and solve all the worries of users in the process of using the product.
Get in Touch
If you have any questions about the CJ20 series Din Rail Type Socket such as product specifications, customization needs, batch procurement and technical parameters, please feel free to contact C&J Electrical. Our professional team will provide you with high-quality product solutions and intimate one-stop services, and work with you to build a safe, efficient and modular civil and industrial electrical distribution system.
Post time: Mar-05-2026
