In modern electrical systems, voltage fluctuations, surges, and current overloads are common hidden dangers that threaten the safety of electrical equipment. From household appliances to industrial machinery, unstable voltage and current can cause equipment damage, shortened service life, or even fire accidents. This raises a key question for many users: What does a voltage protector do? This article will answer this question in detail and introduce the high-performance Intelligent Voltage Protector from Zhejiang C&J Electrical co., ltd. (C&J Electrical), a comprehensive solution for electrical safety protection.
A Voltage Protector is a device that protects your electrical appliances from damage by regulating and stabilising voltage levels within a safe range for such appliances to keep operating. For added protection, use a surge protector as it was designed to handle power surges and voltage spikes.
A Voltage Protector is an electrical safety device specifically designed to monitor and regulate voltage and current in circuits. Its core function is to continuously detect changes in line voltage and current, and immediately cut off the power supply when abnormal conditions such as overvoltage, undervoltage, or overcurrent occur, thereby preventing electrical equipment from being damaged by unstable electrical parameters. Unlike simple surge protectors that only target transient voltage spikes, a high-quality Voltage Protector provides all-round protection covering multiple electrical faults, making it an essential safety component in various electrical systems.

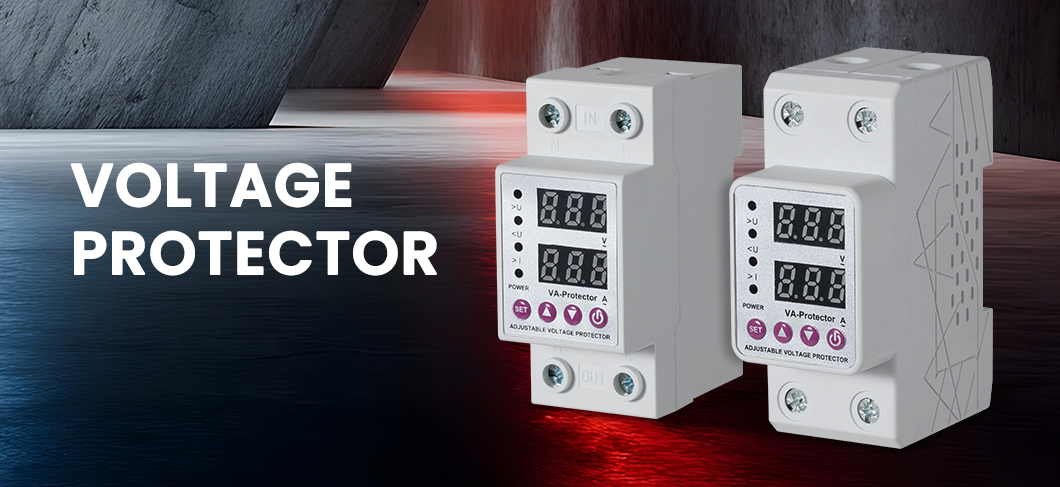

Overview of C&J Electrical Intelligent Voltage Protector
C&J Electrical’s Intelligent Voltage Protector (also known as voltage and current protection meter) is a comprehensive intelligent protection device integrating overvoltage protection, undervoltage protection, and overcurrent protection. It is designed with high precision and reliability to provide all-round safety guarantees for electrical systems in various scenarios.
When the circuit encounters overvoltage, undervoltage, or overcurrent faults, this Voltage Protector can quickly cut off the power supply in an instant, avoiding unnecessary damage to electrical equipment. What makes it stand out is its automatic recovery function—when the circuit voltage and current return to the safe range, the protector will automatically restore power supply after a user-set delay time, eliminating the need for manual operation.
The overvoltage value, undervoltage value, and overcurrent value of this product can be independently set and adjusted according to local power grid conditions and equipment requirements, ensuring flexible adaptation to different application scenarios. With a user-friendly interface and advanced functional design, it has become an ideal choice for electrical protection in homes, shopping malls, schools, factories, and other places.
Core Features & Advantages of C&J Electrical Voltage Protector
The C&J Electrical Voltage Protector stands out in the market with its comprehensive protection capabilities and user-centric design, featuring the following core advantages:
- Three-in-one integrated protection: Combines overvoltage, undervoltage, and overcurrent protection functions to cover common electrical fault types and provide all-round safety protection for equipment.
- Automatic cut-off and recovery: Immediately cuts off power when a fault occurs; automatically resets and connects the circuit after the line returns to normal (with adjustable delay time), no manual intervention required.
- No false operation for transient surges: Effectively identifies transient or momentary overvoltage in the line, avoiding false tripping and ensuring stable operation of electrical equipment.
- Customizable delay settings: The delay time for power-on, reset after overcurrent protection, and overcurrent action can be adjusted (5-300s for power-on delay; 1-300s for reset delay; 30-300s for overcurrent action delay), adapting to different usage needs.
- Wide adjustable parameter range: Undervoltage cut-off value (140V-200V adjustable), overvoltage cut-off value (240V-300V adjustable), and overcurrent cut-off value (1A-63A/10A-80A adjustable) can be flexibly set according to actual conditions.
- Long service life: Electrical and mechanical life exceeds 100,000 times, ensuring stable and reliable operation for a long time.
- Flexible installation methods: Supports standard guide rail installation, and can be installed vertically or horizontally inside the cabinet, adapting to different installation environments.
Technical Parameters of C&J Electrical Voltage Protector
|
Parameter
|
Details
|
|---|---|
|
Product Name
|
Voltage and Current Protection Meter (Voltage Protector)
|
|
Number of Poles
|
1P+N, 3P+N
|
|
Rated Working Voltage
|
AC220V/AC230V
|
|
Rated Working Current
|
1A-63A, 10A-80A adjustable (default 63A or 80A)
|
|
Rated Operating Frequency
|
50Hz/60Hz
|
|
Undervoltage Action Cut-off Value
|
140V-200V adjustable (default 170V)
|
|
Overvoltage Action Cut-off Value
|
240V-300V adjustable (default 270V)
|
|
Overcurrent Action Cut-off Value
|
63A model: 1A~63A adjustable (default 63A); 80A model: 10A~80A adjustable (default 80A)
|
|
Power-on Delay Time
|
5-300s adjustable (default 30s)
|
|
Reset Delay Time After Overcurrent Protection
|
1~300s adjustable (default 5s)
|
|
Product Overcurrent Delay Time
|
30~300s adjustable (default 30s); Protection confirmed if overcurrent exceeds this time
|
|
Electrical and Mechanical Life
|
More than 100,000 times
|
|
Installation Method
|
Standard guide rail installation
|
|
Operating Temperature Range
|
-10°C~+50°C
|
|
Pollution Level
|
Level 3
|
|
Installation Category
|
Class II and III
|
Application Range of C&J Electrical Voltage Protector
Thanks to its comprehensive protection functions, flexible parameter settings, and wide adaptability, the C&J Electrical Voltage Protector is widely used in various scenarios requiring reliable electrical protection:
- Residential buildings: Suitable for protecting household appliances such as air conditioners, refrigerators, washing machines, and televisions, preventing damage caused by voltage fluctuations in the power grid.
- Commercial places: Shopping malls, supermarkets, hotels, and office buildings—protecting lighting systems, air conditioning equipment, elevators, and commercial electrical appliances.
- Educational and medical institutions: Schools, hospitals, and research institutes—protecting teaching equipment, medical devices, and precision instruments from electrical faults.
- Industrial workshops: Light industry and heavy industry factories—protecting production equipment, conveyor belts, electrical control systems, and reducing downtime caused by electrical failures.
- Public facilities: Street lighting, community public equipment, and traffic signal systems—ensuring stable operation of public electrical facilities.
Why Choose C&J Electrical Voltage Protector?
In the competitive electrical protection market, the Voltage Protector from C&J Electrical has become the preferred choice for many users with its outstanding performance and user-friendly design. The key reasons to choose this product are as follows:
- Comprehensive protection capabilities: Integrates overvoltage, undervoltage, and overcurrent protection, solving multiple electrical safety problems at one time.
- Flexible and customizable: Adjustable protection parameters and delay settings adapt to different power grid environments and equipment requirements.
- Reliable and durable: High-precision detection technology and long service life ensure stable operation in harsh conditions.
- Easy to use and maintain: Automatic cut-off and recovery functions reduce manual operation; standard guide rail installation facilitates construction and maintenance.
- Wide applicability: Multiple pole numbers and current specifications meet the protection needs of residential, commercial, and industrial scenarios.
- OEM customization support: Provides OEM brand customization services to meet the personalized needs of different customers and projects.
Get in Touch
If you have any questions about the Voltage Protector, such as product specifications, parameter settings, customization needs, or bulk orders, please feel free to contact C&J Electrical. Our professional team will provide you with high-quality electrical protection solutions and reliable services to safeguard your electrical equipment and system safety.
