In every electrical system—from residential homes and commercial buildings to industrial factories—Circuit Breakers play an irreplaceable role in ensuring safety and stability. Yet many people only know that a Circuit Breaker “trips” when something goes wrong, but few understand its core function and working principle. So, what does a circuit breaker actually do? A circuit breaker is an electrical safety device designed to protect an electrical circuit from damage caused by current in excess of that which the equipment can safely carry (overcurrent). Its basic function is to interrupt current flow to protect equipment and to prevent fire.
Unlike fuses, which are sacrificial components that need to be replaced after tripping, a Circuit Breaker can be reset manually or automatically after clearing the fault, making it a more convenient and cost-effective electrical protection solution[2]. As a type of Circuit Breaker, the Miniature Circuit Breaker (MCB) is widely used in terminal power distribution systems, and the Plug In Mcb (insertable MCB) stands out for its easy installation and maintenance. Among them, the Black Mcb and Black Plug In Mcb have become popular choices in many scenarios due to their durable appearance and stable performance, perfectly combining practicality and aesthetics.
To put it simply, a Circuit Breaker acts as a “safety gate” for electrical circuits. It continuously monitors the current flowing through the circuit; when an overcurrent (caused by overload or short circuit) occurs, it quickly interrupts the current flow, isolating the faulty part to prevent damage to cables, electrical equipment, and even fires[2]. This protection mechanism is crucial for all electrical systems, as overcurrent faults can lead to overheating of wires, melting of insulation, and in severe cases, electrical fires that cause significant property losses and safety hazards[2].
How Does a Circuit Breaker Work? Core Mechanism Explained
The working principle of a Circuit Breaker is based on two core protection mechanisms: thermal protection and magnetic protection, which work together to respond to different types of overcurrent faults[1][2]:
- Thermal Protection (Overload Protection): This mechanism responds to slow, long-term overcurrent (overload). The Circuit Breaker is equipped with a thermal element (usually a bimetallic strip); when the current exceeds the rated value for a long time, the bimetallic strip heats up and bends, triggering the tripping mechanism to cut off the circuit. This protects equipment and cables from damage caused by prolonged overheating[1][2].
- Magnetic Protection (Short Circuit Protection): This mechanism responds to sudden, large short-circuit currents. The Circuit Breaker contains an electromagnetic coil; when a short circuit occurs, the instantaneous large current generates a strong magnetic field, which drives the tripping mechanism to act quickly (usually within milliseconds), cutting off the circuit immediately to prevent the spread of faults[1][2].
For different application scenarios, Circuit Breakers are designed with different tripping curve characteristics. The most common ones are B, C, and D curves, which determine the sensitivity of the Circuit Breaker to overcurrent and are key to selecting the right MCB[1]. This is especially important for Plug In Mcb and Black Plug In Mcb, as their performance directly affects the safety of the entire power distribution system.
Key Types of Circuit Breakers: Focus on Plug In Mcb & Black Mcb
With the continuous development of electrical technology, Circuit Breakers have evolved into various types to adapt to different scenarios. Among them, MCB (Miniature Circuit Breaker) is the most widely used terminal protection device, suitable for circuits with rated current below 125A[1]. According to the installation method, MCB can be divided into fixed type and plug-in type, and the Plug In Mcb has become the preferred choice for many users due to its unique advantages[2]:
The Plug In Mcb adopts an insertable installation design—first install a mounting base on the distribution board, pre-connect the power and load wires to the base, and then insert the MCB into the base[2]. This design allows for quick replacement of the MCB when it fails, without re-wiring, greatly saving maintenance time and labor costs[2]. It is widely used in electrical control cabinets, distribution boxes, and other equipment that require frequent maintenance[1][2].
The Black Mcb, as a common type of MCB, is favored for its black shell made of high-quality fire-retardant materials. It not only has excellent high-temperature resistance and flame-retardant performance but also has a simple and durable appearance, which can adapt to various harsh working environments[1]. The Black Plug In Mcb combines the advantages of both the Black Mcb and the Plug In Mcb—easy installation, convenient maintenance, and high safety, making it widely used in industrial, commercial, and residential power distribution systems.

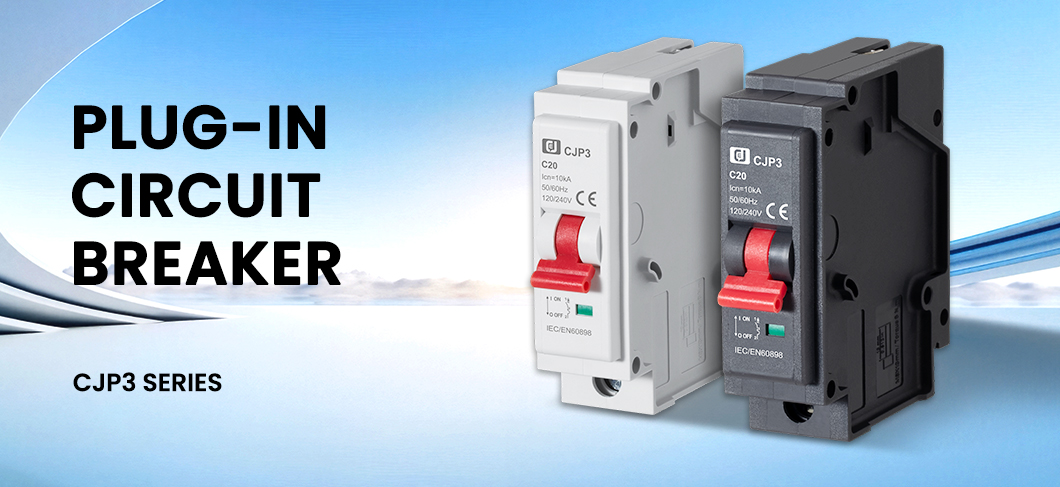

Introducing C&J Electrical CJP3 Black Plug In Mcb
Zhejiang C&J Electrical co., ltd. (hereinafter referred to as C&J Electrical) is a professional manufacturer focusing on electrical protection equipment. To meet the diverse needs of users for high-quality Circuit Breakers, especially Plug In Mcb and Black Plug In Mcb, C&J Electrical has independently developed and launched theCJP3 Series Plug In Mcb—a high-performance Black Plug In Mcb that integrates overload protection, short-circuit protection, easy installation, and stable operation, perfectly adapting to various terminal power distribution scenarios.
1. Overview of CJP3 Black Plug In Mcb
The CJP3 series Plug In Mcb is a high-quality Circuit Breaker designed for terminal power distribution protection. As a professional Black Plug In Mcb, it is mainly used for protecting cables and equipment against overload and short circuit, ensuring the safe and stable operation of electrical circuits[1][2]. The product adopts a black fire-retardant shell, which is not only durable and aesthetically pleasing but also meets the high safety requirements of various electrical systems. It is a cost-effective Black Mcb and Plug In Mcb that balances performance, convenience, and safety.
The CJP3 Black Plug In Mcb is designed in strict accordance with relevant international standards, with complete specifications and strong adaptability. It can be widely used in high and low voltage distribution systems, control systems, and various electrical equipment, providing reliable protection for cables and equipment. Whether it is industrial production, commercial buildings, or residential communities, the CJP3 Plug In Mcb can play an excellent protective role.
2. Core Functions & Tripping Curve Characteristics
The CJP3 Black Plug In Mcb has complete functions and stable performance, focusing on solving overload and short-circuit protection problems in terminal circuits. Its core functions and tripping curve characteristics are as follows:
- Dual Protection (Overload & Short Circuit): Equipped with thermal-magnetic release, it realizes dual protection of overload and short circuit. The thermal element responds to long-term overload, and the magnetic element responds to instantaneous short circuit, ensuring quick and accurate tripping in case of faults, effectively protecting cables and equipment[1][2].
-
Three Tripping Curve Options (B/C/D): The product has three magnetic operation curve characteristics, which can be selected according to different application scenarios[1]:
- B curve (3-5 In): Suitable for protecting and controlling circuits with long cables in TN and IT systems, with high sensitivity to overcurrent[1].
- C curve (5-10 In): Used for protecting and controlling circuits against overloads and short circuits; suitable for resistive and inductive loads with low inrush current, such as lighting, sockets, and small motors[1].
- D curve (10-20 In): Suitable for protecting and controlling circuits against overloads and short circuits; designed for circuits that supply loads with high inrush current at circuit closing, such as LV/LV transformers and breakdown lamps[1].
- Plug-In Installation, Easy Maintenance: As a professional Plug In Mcb, it adopts a standard plug-in design, which can be quickly installed and replaced without re-wiring. This greatly reduces maintenance time and labor costs, making it convenient for users to maintain and update the electrical system[2].
- Black Fire-Retardant Shell: As a Black Mcb, it uses a high-quality black fire-retardant shell, which has excellent high-temperature resistance and flame-retardant performance, preventing fire spread in case of faults and improving the safety of the entire system[1].
- Multiple Terminal Connection Types: Supports Cable, Pin-type busbar, and U type busbar terminal connection methods, which can be flexibly matched according to different wiring requirements, ensuring firm and reliable wiring and reducing contact resistance[2].
3. Detailed Technical Data of CJP3 Black Plug In Mcb
The excellent performance of the CJP3 Black Plug In Mcb is supported by strict technical parameters. The detailed technical indicators are shown in the following table, which can help users better understand the product performance and select the appropriate specifications according to actual needs:
|
Technical Parameters
|
Specifications
|
|---|---|
|
Rated Current (In)
|
1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
|
|
Poles
|
1, 2, 3, 4
|
|
Rated Voltage (Ue)
|
AC 240/415V
|
|
Insulation Voltage (Ui)
|
500V
|
|
Rated Frequency
|
50/60Hz
|
|
Rated Breaking Capacity
|
7500, 10000A
|
|
Rated Impulse Withstand Voltage (1.2/50) Uimp
|
4000V
|
|
Dielectric Test Voltage (1min, Ind. Freq.)
|
2000V
|
|
Pollution Degree
|
2
|
|
Thermo-Magnetic Release Characteristic
|
B, C, D
|
|
Electrical Life
|
4000 times
|
|
Mechanical Life
|
10000 times
|
|
Protection Degree
|
IP20
|
|
Reference Temperature for Thermal Element Setting
|
30℃
|
|
Ambient Temperature (Daily Average ≤35℃)
|
-5~+40℃ (Special application please refer to temperature compensation correction)
|
|
Storage Temperature
|
-25~+70℃
|
|
Terminal Connection Type
|
Cable/Pin-type busbar/U type busbar
|
4. Application Scenarios of CJP3 Black Plug In Mcb
As a high-performance Black Plug In Mcb, the CJP3 series has a wide range of application scenarios, covering industrial, commercial, and residential fields. It is mainly used for terminal power distribution protection, providing reliable overload and short-circuit protection for cables and equipment[1][2]. The specific application scenarios are as follows:
- Industrial Control Systems: Used in industrial control cabinets, frequency converter control systems, and PLC control systems to protect control circuits and components, ensuring the stable operation of industrial production equipment[1][2].
- Commercial Buildings: Applied in shopping malls, office buildings, hotels, and other commercial places, used in distribution boxes on each floor and each area to protect lighting, sockets, air conditioning, and other electrical equipment, ensuring the safety of commercial power use[1].
- Residential Communities: Suitable for residential distribution boxes, protecting household electrical circuits (such as lighting, sockets, kitchen appliances, and air conditioning), preventing overload and short-circuit faults caused by excessive household electricity use[1][2].
- Electrical Equipment Protection: Used in various electrical equipment such as inverters, transformers, and small motors to protect the internal circuits of the equipment, extending the service life of the equipment[1].
- High and Low Voltage Distribution Systems: Used in terminal distribution links of high and low voltage distribution systems to protect distribution cables and terminal equipment, ensuring the safe and stable operation of the entire distribution system[1][2].
5. Product Advantages of CJP3 Black Plug In Mcb
In the competitive market of Circuit Breakers, especially Plug In Mcb and Black Mcb, the CJP3 series launched by C&J Electrical has obvious advantages, making it the preferred choice for users in various fields:
- High Safety Performance: Adopts a black fire-retardant shell with excellent high-temperature resistance and flame-retardant performance; equipped with thermal-magnetic dual protection, which can quickly trip in case of overload and short circuit, effectively protecting cables and equipment and preventing fires[1][2].
- Multiple Specifications Optional: Provides a variety of rated current (1-63A) and pole (1P, 2P, 3P, 4P) options, and three tripping curves (B/C/D) to choose from, which can be flexibly matched according to different application scenarios and load requirements[1].
- Easy Installation and Maintenance: As a Plug In Mcb, it adopts a plug-in installation design, which is quick and convenient to install and replace, without re-wiring, saving maintenance time and labor costs[2].
- Widely Applicable Scenarios: Suitable for industrial, commercial, and residential fields, and can be applied to various electrical systems and equipment, with strong adaptability to different working environments[1][2].
- Stable and Durable Performance: Strictly designed and produced in accordance with technical parameters, with long electrical life (4000 times) and mechanical life (10000 times), stable operation, and low failure rate[1].
- OEM/ODM Customization Support: C&J Electrical provides OEM/ODM brand customization services for the CJP3 Black Plug In Mcb. We can customize the product according to the specific needs of users, including brand LOGO, product specifications, and functional settings, to meet the personalized needs of different users and partners[1].
Contact Us
The CJP3 series Black Plug In Mcb launched by C&J Electrical is a high-quality Circuit Breaker that integrates safety, convenience, and stability. It perfectly solves the overload and short-circuit protection problems of terminal electrical circuits, ensuring the safe and stable operation of electrical systems. As a reliable Plug In Mcb and Black Mcb, it has won the trust of many users with its excellent performance, multiple specifications, and wide application scenarios.
If you have any questions about the CJP3 Black Plug In Mcb, such as product selection, installation, technical parameters, or need to know more about OEM/ODM customization services, please feel free to contact us. C&J Electrical will provide you with professional technical support and thoughtful after-sales service to help you solve various problems encountered in the use process.
Post time: May-20-2026
