What are the advantages of RCCB?

Introduction

Electrical safety is non-negotiable in residential, commercial, and industrial power systems. Among the most critical protective devices, Residual Current Circuit Breakers (RCCB) stand out as the first line of defense against electric shock and electrical fires. This article explains the core advantages of RCCBs, introduces the CJL1-125 Residual Current Circuit Breaker from C&J Electrical, and covers its overview, functions, technical data, product advantages, application scenarios, and customized services to help you select reliable leakage protection solutions.

RCB or Residual Current Breaker are electrical devices that cut the current from the electrical current so as to prevent electrocution. The current leakage that it can detect is from 5 milliamperes to 30 milliamperes. Essentially, RCB is utilized in circuits to secure human life from electric shock or electrocution.

What is RCCB & Core Advantages

RCCB (Residual Current Circuit Breaker) is a protective device that continuously monitors the current balance between live and neutral conductors. When an abnormal leakage (residual current) is detected, it trips rapidly to cut off power, effectively avoiding electric shock, fire hazards caused by insulation deterioration, and equipment damage.

The main advantages of RCCB include:

• Personal Safety Protection: Quickly cuts off power when leakage occurs, preventing fatal electric shock, especially for children, the elderly, and wet environments.
• Leakage & Fire Prevention: Detects micro-leakage caused by aging lines, damaged insulation, or dampness, avoiding electrical fires.
• Equipment Protection: Reduces damage to electrical appliances and circuits from long-term leakage current.
• Fast Tripping & High Sensitivity: Responds within milliseconds, with detection range covering 5mA–30mA for personal protection.
• Wide Compatibility: Suitable for AC, pulsating DC, and complex mixed loads (Type A / Type B).
• Easy Installation & Maintenance: Standard modular design, DIN rail mounting, simple operation and test.

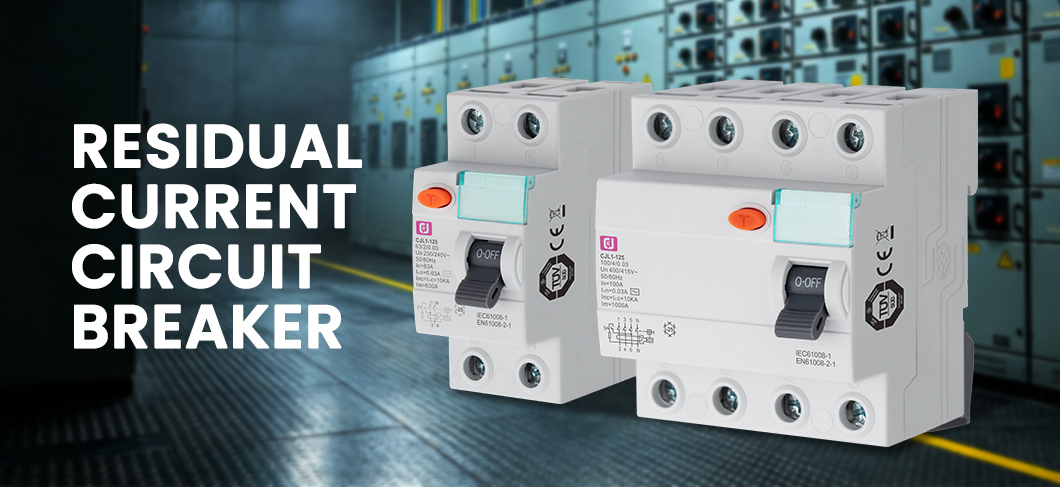

CJL1-125 Residual Current Circuit Breaker Product Overview

C&J Electrical is a professional manufacturer of low-voltage electrical components. The CJL1-125 is our flagship residual current circuit breaker designed for global residential, commercial, and industrial users. It complies with strict international standards and adopts an upgraded structure and materials to deliver stable performance, higher safety, and longer service life.

This product integrates high-sensitivity leakage detection, reliable tripping mechanism, and durable conductive components. It supports multiple specifications, pole combinations, and leakage sensitivities to meet diversified power distribution and safety requirements.

Key Product Advantages of CJL1-125

1．Plastic Operating Mechanism for Stability & Environmental Protection The operating mechanism adopts an allplastic structure, which delivers more stable and reliable performance than traditional metal structures in terms of release force consistency and mechanical lifecycle. It is also more eco-friendly and represents a newgeneration mechanism design.

2．All Current Carrying Parts Made of Pure Copper Internal conductive components use highpurity copper material, ensuring excellent conductivity, low heat generation, high temperature resistance, and long term operational stability.

3．Sealed Screws for Higher Safety All fixing screws are equipped with plastic covers to seal mounting holes, preventing unauthorized disassembly and improving overall safety and protection level.

4．Large Transparent Signboard for Marking A large size transparent signboard is provided for users to mark circuit numbers, load types, usage areas, and maintenance information, making management more convenient.

5．Upgraded Tripping Structure for Enhanced Safety Adopts the latest tripping structure design with higher action accuracy, faster response speed, and more reliable protection performance.

Technical Data of CJL1-125

• Rated current: 16A, 20A, 25A, 32A, 40A, 50A, 63A, 100A, 125A
• Rated voltage: 230V (1P+N), 400V (3P+N)
• Rated frequency: 50/60Hz
• Number of poles: 2P, 4P
• Module size: 36mm
• Circuit type: AC type, A type, B type
• Breaking capacity: 6000A
• Rated residual operating current: 10mA, 30mA, 100mA, 300mA
• Optimum operating temperature: +5°C to +40°C
• Terminal tightening torque: 2.5–4N/m
• Terminal capacity (top): 25mm²
• Terminal capacity (bottom): 25mm²
• Electro mechanical endurance: 4000 cycles
• Mounting: 35mm DIN rail
• Suitable busbar: PIN busbar
• Standard: IEC61008-1 / IEC61008-2-1

Main Functions of CJL1-125 RCCB

• Residual Current Protection: Real time detection and rapid cut off when leakage exceeds rated value.
• Personal Electric Shock Protection: Effectively prevent fatal electric shock in household and public scenarios.
• Electrical Fire Prevention: Cut off power before leakage causes overheating or fire.
• Equipment Insulation Monitoring: Protect motors, power tools, household appliances, and distribution boxes.
• Manual Control & Test Function: With test button to verify normal operation regularly.
• Stable Operation Under Wide Conditions: Adapt to grid fluctuations and environmental changes.

Typical Application Scenarios

CJL1-125 is widely used in many fields due to its high safety, complete specifications, and strong compatibility:

• Residential Buildings: Apartments, villas, home distribution boxes, kitchens, bathrooms, air conditioning, water heaters.
• Commercial Places: Offices, shops, hotels, schools, hospitals, shopping malls, banks.
• Industrial Sites: Factories, workshops, power cabinets, motor circuits, machinery equipment.
• Construction Sites: Temporary power boxes, outdoor construction power, mobile distribution.
• Public Facilities: Parking lots, stadiums, stations, landscape power, outdoor lighting.
• Special Environments: Wet places, humid areas, agricultural facilities, water pump stations.

Customized Services & Supporting Products

C&J Electrical provides flexible supporting services to meet global customer demands:

• OEM/ODM Brand Customization: Support customized logo, packaging, color, and label.
• Multiple Specifications: Full range of current, poles, tripping types, and leakage sensitivity.
• SKD SemiKnock Down Shipping: Provide parts for local assembly, reducing logistics cost.
• Complete Supporting: We also supply MCB miniature circuit breakers for combined protection solutions.

Conclusion

RCCB is an indispensable core device for modern electrical safety systems. The CJL1-125 Residual Current Circuit Breaker from C&J Electrical combines upgraded structure, high quality materials, strict standards, and comprehensive advantages to provide reliable personal and equipment protection.

Whether you need standard products or customized solutions, C&J Electrical is committed to providing safe, stable, and cost effective electrical components. If you have any questions, inquiries, or cooperation requirements, please feel free to contact us at any time.
