Residual Current Circuit Breakers (RCCB) Working Principle
Electrical safety is the core foundation of residential, commercial, and industrial power system operation. As one of the most critical protective electrical devices, Residual Current Circuit Breakers (RCCB) effectively prevent electric shock accidents, electrical fires, and equipment damage caused by leakage current. Understanding the RCCB working principle helps users recognize its value in circuit protection and select reliable protective devices for power distribution systems. This article deeply explains the core operating logic of RCCBs and focuses on introducing our high performance CJL8-63 RCCB with superior safety and stability.

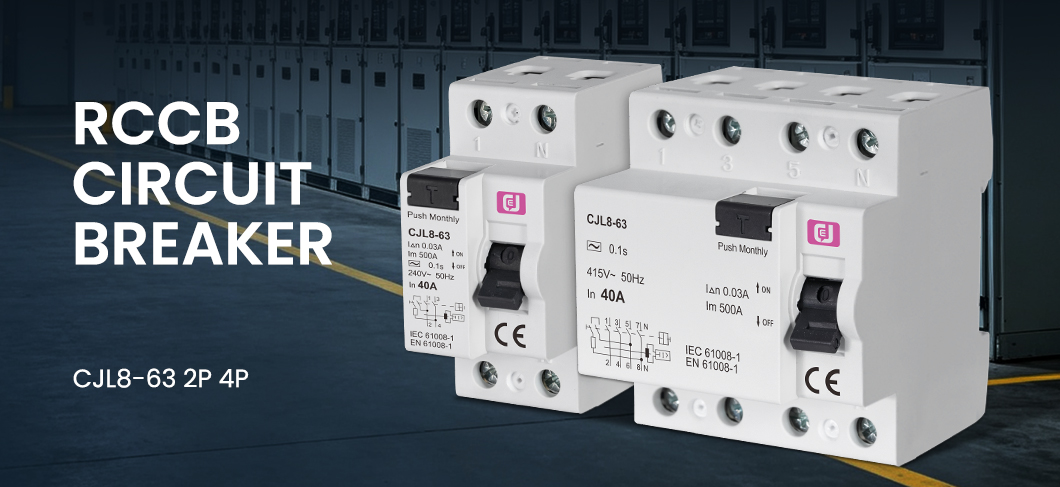

Our High Quality CJL8-63 RCCB: Optimized Based on Mature RCCB Working Principle
Built on the standard RCCB working mechanism, our CJL8-63 Residual Current Circuit Breaker is upgraded and optimized in detection accuracy, response speed, operational stability, and service life, adapting to most mainstream low voltage power distribution scenarios. It inherits the classic magnetic balance detection principle while solving the pain points of traditional RCCBs such as insensitive detection, delayed tripping, and easy misoperation.
Equipped with a high precision zero sequence transformer and high sensitivity induction components, the CJL8-63 model can capture tiny residual current changes in real time. It maintains a zero error monitoring state for normal circuit current balance and achieves instant tripping once abnormal leakage is detected, ensuring the fastest power off protection. Compared with ordinary RCCBs on the market, this product features more stable magnetic flux induction, stronger anti interference ability, and no frequent misoperation or refusal to trip, greatly improving the reliability of electrical system operation.
Main Technical Specifications of CJL8-63 RCCB
- Type: Electro magnetic type & electronic type; residual current characteristic: A / AC type
- Poles: 2P, 4P
- Rated current: 16A, 25A, 40A, 63A
- Rated operational voltage: AC 230 / 400V, 50 / 60Hz
- Rated residual operating current IΔn: 0.03A, 0.1A, 0.3A, 0.5A
- Rated residual non operating current: 0.5 IΔn
- Rated making and breaking capacity: 500A (for 25A/32A/40A); 630A (for 63A)
- Rated conditional short circuit current Inc: 10kA; Rated conditional residual short circuit current Ic: 10kA
- Electro mechanical endurance: 4000 operating cycles
- Terminal: Screw pillar terminal with clamp; tightening torque: 2.0 N·m
- Max connection capacity: 25 mm² rigid conductor
- Installation: Standard 35.5 mm symmetrical DIN rail mounting, also available for panel mounting
- Protection class: IP20
- Compliance standard: IEC 61008-1, EN 61008-1
Key Advantages and Application Scenarios of CJL8-63 RCCB
Thanks to its optimized structural design and strict production standards, the CJL8-63 RCCB delivers outstanding comprehensive performance. It offers reliable earth fault / leakage protection together with circuit isolation function. Free from power supply dependency, it resists voltage fluctuation and external electromagnetic interference. The fire retardant impact resistant plastic housing guarantees high safety under harsh operating conditions. Finger protected terminals support terminal busbar as well as pin / fork type busbar connection.
Two tripping versions are available: general type and S time delay type. For general type units, maximum breaking time reaches only 0.04s at 5×IΔn residual current, delivering rapid cut off to safeguard personnel and assets.
With compact dimension (2P: 36 mm × 82 mm; 4P:72 mm ×82 mm), easy DIN rail installation and IP20 protection grade, CJL8-63 fits perfectly for residential buildings, office blocks, shopping malls and factory workshops within low voltage distribution networks. It provides full range leakage protection for household appliances, commercial equipment and low power industrial installations.
In addition, the CJL8-63 model complies with international electrical safety standards, with standardized production processes and strict quality testing links. Each product has passed repeated performance tests before delivery, making it your trustworthy choice for residual current protection solutions.
Zhejiang C&J Electrical co., ltd. supports OEM brand customization services. A wide range of product specifications are available to meet diverse application scenarios with superior safety performance. We also offer SKD semi knocked down parts shipment. Should you have any inquiries or requirements, please feel free to contact us at any time.
