In the field of industrial automation, Variable Frequency Drive (VFD), also known as Frequency Inverter, is a core electronic device that plays a key role in motor speed control. Many users and practitioners often have a common question: Is VFD used in AC or DC? To answer this question clearly, we first clarify the core definition of VFD: A variable frequency drive (VFD) is an electronic device that controls the speed of AC induction motors. This definition directly gives the answer—VFDs are specifically designed for AC motor applications, not DC motors.
As a professional electronic control device, VFD (Frequency Inverter) converts fixed-frequency AC power into variable-frequency, variable-voltage AC output, thereby accurately adjusting the speed and torque of AC induction motors. It is different from variable speed drives (VSDs), which is a broader term covering both AC and DC motor control. VFDs, as a subset of VSDs, are only used to control AC motors, which is determined by their working principle and structural design[1][3][8].
What Is a VFD (Frequency Inverter)?
A Variable Frequency Drive (VFD), also referred to as a Frequency Inverter, is an electronic controller that adjusts the speed of an AC motor by modulating the frequency and voltage of the power supplied to that motor[3][5]. This ability to vary motor speed and torque on demand makes VFDs invaluable for energy savings and process control in various industrial scenarios[3][6]. Over a third of industrial electrical energy is consumed by motors running at fixed speed, so replacing throttling or on/off control with VFDs can significantly slash energy use[3].
The working principle of a VFD (Frequency Inverter) involves three core stages, which further confirms that it is designed for AC motors[1][3][8]:
- Rectification: The rectifier bridge converts the incoming AC power (either single-phase or three-phase) into pulsating DC power. This stage lays the foundation for subsequent frequency conversion by converting the input power into a form that can be easily adjusted[1][8].
- DC Link: Capacitors are used to stabilize the pulsating DC power, forming a stable DC bus. This ensures a continuous and reliable energy supply for the next stage of inversion, reducing voltage fluctuations and ensuring stable operation[1][8].
- Inversion: Insulated-gate bipolar transistors (IGBTs) convert the stable DC power back into variable-frequency AC power. The frequency and voltage of this output can be precisely adjusted according to the actual needs of the motor, driving the AC motor to operate at the desired speed[1][8].
Compared with traditional mechanical speed regulation methods (such as gears and valves), VFDs (Frequency Inverters) have obvious advantages: higher energy efficiency, more precise speed control, lower mechanical wear, and the ability to realize soft start and stop, which effectively extends the service life of motors and related equipment[2][6][8]. These advantages make VFDs widely used in various industrial fields, becoming an indispensable core component of modern industrial automation[2][6].

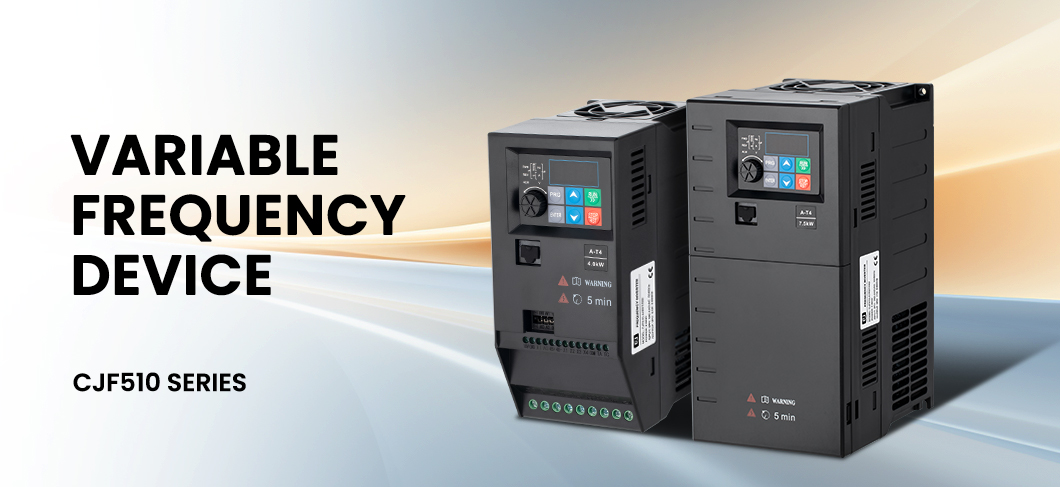

Introducing C&J Electrical CJF510 Series Frequency Inverter
Zhejiang C&J Electrical co., ltd. (hereinafter referred to as C&J Electrical) is a professional manufacturer focusing on industrial electronic control equipment. To meet the diverse needs of users for VFDs (Frequency Inverters) in different industrial scenarios, C&J Electrical has independently developed and launched theCJF510 Series Frequency Inverter—a compact, economical and high-performance Variable Frequency Drive that integrates practicality, reliability and ease of use, perfectly adapting to the speed control needs of AC motors in various small and medium-sized industrial equipment.
1. Overview of CJF510 Series Frequency Inverter
CJF510 series frequency inverter is a new design of compact and economic inverter, with economic, small, easy to use, reliable features, excellent performance, rich features, widely used in logistics equipment, textile equipment, packaging equipment, music fountain and other industries. As a cost-effective VFD (Frequency Inverter), the CJF510 series is designed to balance performance and cost, providing users with stable and efficient motor speed control solutions without excessive investment. Its compact structure and easy-to-operate design also reduce the difficulty of installation and commissioning, making it suitable for both professional technicians and ordinary operators.
2. Main Features of CJF510 Series VFD (Frequency Inverter)
The CJF510 Series Frequency Inverter has rich functional features, which are designed to meet the actual needs of industrial production and improve the efficiency and stability of equipment operation. The specific features are as follows:
- CJF510 Series Frequency inverter are High power density design, Effectively realize small size, full power section book-type structure design, support seamless side-by-side installation in a small space. This compact design greatly saves the installation space in the electrical control cabinet, making it suitable for scenarios with limited installation space, such as small-scale production lines and compact equipment[7].
- Totally enclosed shell + independent air duct design. The fully enclosed shell can effectively prevent dust, moisture and other impurities from entering the internal components of the VFD, while the independent air duct design ensures good heat dissipation performance, avoiding overheating caused by long-term operation and extending the service life of the product[7].
- Large margin design, higher overload current, shorter acceleration time. The large margin design enables the CJF510 series VFD to adapt to complex working conditions, withstand higher overload current, and complete the acceleration process in a shorter time, improving the response speed and work efficiency of the equipment[6][8].
- Built-in industry professional macro application, support one key to set industry parameters. For different industries such as logistics, textile and packaging, the CJF510 series is pre-installed with professional macro programs. Users only need one key to set the corresponding industry parameters, which greatly shortens the commissioning time and reduces the technical threshold[7].
- Standard Modbus communication, easy to realize industrial automation network. The standard Modbus communication interface allows the CJF510 series VFD to be easily connected with PLCs, touch screens and other automation equipment, realizing centralized control and remote monitoring of the industrial automation network, improving the intelligence level of the production line[7].
3. Technical Indications of CJF510 Series VFD (Frequency Inverter)
The excellent performance of the CJF510 series VFD (Frequency Inverter) is supported by strict technical parameters. The specific technical indicators are shown in the following table, which can help users better understand the product performance and select the appropriate specifications according to actual needs:
|
Technical Parameters
|
Specifications
|
|---|---|
|
Rated Voltage & Frequency(Input)
|
Single-phase/3 Phase 200-240VAC, 3 Phase 360-440VAC; 50/60Hz
|
|
Allowable Voltage working range(Input)
|
Voltage fluctuation range: ±10%; Voltage unbalance rate: <3%; Frequency fluctuation: ±5%
|
|
Rated Voltage(Output)
|
3 Phase 0 ~ Input voltage VAC
|
|
Frequency(Output)
|
0.0 ~ 600Hz
|
|
Overload Capacity(Output)
|
110% long-term, 150% for 1 minute, 180% for 5 seconds
|
|
Control Mode
|
V/F control, Simple vector control, Advanced vector control, Torque control
|
|
Frequency Resolution
|
Digital setting 0.1Hz, Analog setting: Maximum frequency×0.1%
|
4. Application Scenarios of CJF510 Series VFD (Frequency Inverter)
With its rich features and stable performance, the CJF510 series VFD (Frequency Inverter) has a wide range of application scenarios, covering multiple industries such as logistics, textile, packaging and music fountain. It can provide reliable speed control for various AC motor-driven equipment, optimizing production efficiency and product quality[2][6]:
- Logistics Equipment: It is widely used in conveyor belts, elevators, sorting machines and other logistics equipment. The precise speed control of the CJF510 series VFD ensures the smooth transportation of materials, reduces the wear of equipment, and improves the efficiency of logistics transportation[2][6].
- Textile Equipment: Suitable for spinning machines, weaving machines, dyeing machines and other textile equipment. Stable speed regulation can ensure the consistency of textile products, reduce product defects, and improve production efficiency and product quality[2][6].
- Packaging Equipment: Applied to filling machines, sealing machines, labeling machines and other packaging equipment. Flexible speed adjustment can adapt to different packaging specifications and production rhythms, improving the flexibility and efficiency of the packaging production line[2][6].
- Music Fountain: Used for the speed control of water pumps and motors in music fountains. The precise frequency adjustment of the CJF510 series VFD can make the water flow change synchronously with the music, creating a beautiful and dynamic fountain effect[6].
- Other Industries: In addition to the above industries, the CJF510 series VFD can also be used in fans, pumps, small processing machines and other equipment, providing energy-saving and stable speed control solutions for various small and medium-sized industrial enterprises[2][6][8].
5. Product Advantages of CJF510 Series VFD (Frequency Inverter)
In the competitive market of Variable Frequency Drives (VFDs), the CJF510 series Frequency Inverter launched by C&J Electrical has obvious advantages, which are mainly reflected in the following aspects, making it the preferred choice for users in various industries:
- Cost-Effective: As a compact and economic VFD, the CJF510 series balances performance and cost, providing users with high-quality speed control solutions at a reasonable price, which is especially suitable for small and medium-sized enterprises with limited budget[7].
- Multiple Specifications Optional: The CJF510 series has a variety of specifications to choose from, which can be flexibly matched according to the power of the AC motor and the actual working conditions, meeting the diverse needs of different users[7].
- Widely Applicable Scenarios: The product is widely used in logistics, textile, packaging, music fountain and other industries, with strong adaptability, and can be applied to various AC motor speed control scenarios[6][7].
- High Safety Performance: The fully enclosed shell and large margin design ensure the safe and stable operation of the product. It has multiple protection functions such as overload, overvoltage, undervoltage and overheating, which can effectively protect the VFD itself and the connected AC motor, avoiding equipment damage caused by faults[7][8].
- OEM/ODM Customization Support: C&J Electrical provides OEM/ODM brand customization services for the CJF510 series VFD. It can customize the product according to the specific needs of users, including brand LOGO, product specifications and functional settings, to meet the personalized needs of different users and partners[7].
Contact Us
The CJF510 series VFD (Frequency Inverter) launched by C&J Electrical is a high-performance, cost-effective Variable Frequency Drive, which is dedicated to providing stable and efficient speed control solutions for AC motors in various industries. With its compact design, rich features, wide application scenarios and high safety performance, it has won the trust of many users.
If you have any questions about the CJF510 series VFD (Frequency Inverter), such as product selection, installation, commissioning, or need to know more about OEM/ODM customization services, please feel free to contact us. C&J Electrical will provide you with professional technical support and thoughtful after-sales service to help you solve various problems encountered in the use process.
Post time: May-14-2026
