In DC power systems such as solar PV, energy storage, and EV charging, choosing the right Circuit Breaker is critical to safety and reliability. Many users ask: Is there a difference between AC and DC circuit breakers? The answer is yes—and the difference directly affects arc extinction, breaking performance, and safe use. This article explains the key differences and introduces the CJM2-125 DC MCB from Zhejiang C&J Electrical co., ltd. (C&J Electrical), a professional Dc Circuit Breaker designed for solar and DC applications.
A very important difference when interrupting alternating current and direct current is that the arc extinguishing point is higher for a DC circuit breaker. In direct current where voltage is continuous, the electric arc is constant and more resistant to interruption.
AC circuit breakers use the natural current zero-crossing to extinguish arcs easily. But Dc Circuit Breaker has no zero-crossing; arcs are steady and harder to put out. That is why DC breakers need stronger arc-extinguishing structures, higher insulation, and special magnetic blow-out designs. Using an AC breaker in a DC system risks failed interruption, fire, or equipment damage. For solar systems, only dedicated Dc Circuit Breakers For Solar Panels meet the 1000V DC and high-breaking requirements.
Overview of C&J Electrical CJM2-125 DC MCB

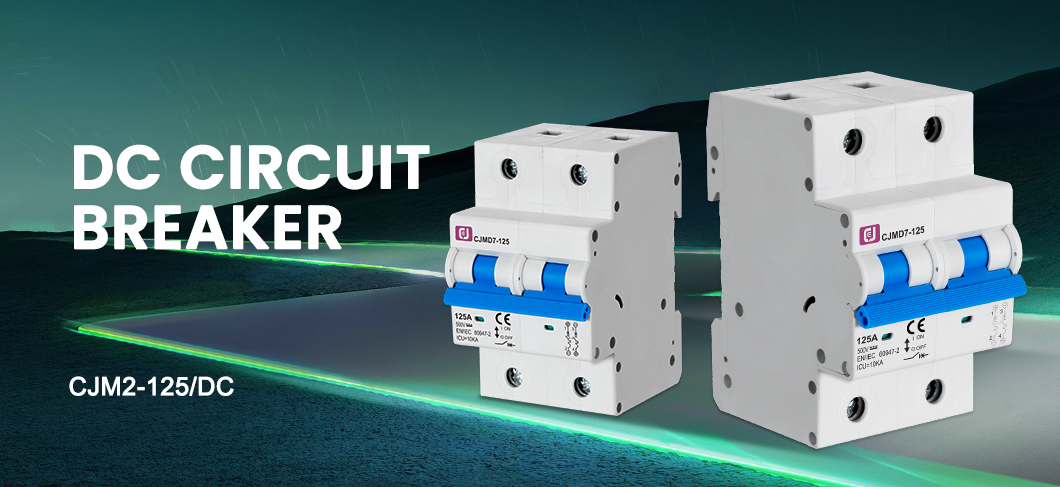

The CJM2-125 DC MCB (also labeled CJMD7-125 series) is a high-performance Dc Circuit Breaker for DC distribution systems up to 1000V DC. It provides overload and short-circuit protection for currents up to 125A, and is suitable for rare on-off switching. The product complies with IEC/EN 60947-2 and is widely used in solar, energy storage, industrial, and transportation DC systems. Its frame current and short-circuit breaking capacity rank high in its class in China.
This Circuit Breaker has a slim 27mm per-pole width, supports 1P–4P configurations, and features enhanced arc extinguishing for stable DC breaking. It is a reliable choice for Dc Circuit Breakers For Solar Panels, combiner boxes, inverters, and battery systems.
Core Features & Technical Data
- Standard: IEC/EN 60947-2
- Frame current: 125A
- Rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: 6kV
- Rated current: 32A, 40A, 50A, 63A, 80A, 100A, 125A
- Rated voltage: DC 250V(1P), 500V(2P), 800V(3P), 1000V(4P)
- Poles: 1P, 2P, 3P, 4P
- Width: 27mm per pole
- Ultimate breaking capacity Icu: 10kA (In≤100A); 15kA (In=125A)
- Service breaking capacity Ics: 7.5kA; 10kA
- Trip: Electromagnetic 10In±20%
- Mechanical life: 20,000 cycles
- Electrical life: 2,000 cycles
- Protection: IP20
- Reference temp: 30°C
- Utilization category: A
Why Choose CJM2-125 DC MCB?
- True DC design: Optimized arc extinguishing for stable, safe breaking in DC systems
- High voltage 1000V DC: Ideal for solar strings, combiner boxes, and inverters
- High breaking up to 15kA: Reliably cuts short-circuit currents
- Compact 27mm module: Saves space in panels and cabinets
- Wide current 32–125A: Covers most residential and commercial solar and DC loads
- Strong structure: Silver alloy contacts, flame-retardant shell, long life
- Standard compliant: IEC 60947-2 certified for global projects
- OEM customization: Supports branding and packaging for partners
Application Scenarios
The CJM2-125 is a versatile Dc Circuit Breaker and Circuit Breaker for many DC applications:
- Solar PV systems: Main protection in string boxes, inverter DC input, and solar arrays
- Energy storage: Battery packs, PCS, and DC distribution
- EV charging: DC fast charging stations and power distribution
- Industrial DC: Power supplies, drives, and control circuits
- Telecom & marine: Base stations, UPS, and ship DC systems
- Rail & mining: Vehicles and underground DC distribution
Why C&J Electrical CJM2-125 DC MCB?
C&J Electrical specializes in DC protection components. The CJM2-125 Dc Circuit Breaker delivers stable performance, high breaking capacity, and true DC arc control. It is widely used in Dc Circuit Breakers For Solar Panels and industrial DC systems. Multiple specifications, OEM support, and reliable quality make it suitable for global solar and new energy projects.
We support OEM brand customization with a full range of specifications, wide application, and high safety. If you have questions or need support, please contact C&J Electrical.
