Many users often ask: Is surge protection device AC or DC? The accurate answer is that Surge Protection Device (SPD) includes two mainstream categories: AC and DC models. They are designed for alternating current and direct current power systems respectively, with different internal structures, electrical parameters and application scenarios. It is not universal, and mismatched installation will lead to failure of surge protection and even equipment safety risks.
These solutions can be used in both residential and industrial settings, offering peace of mind for users across a wide range of applications. While AC surge protection is crucial for everyday devices, DC surge protection is critical in protecting specialized equipment that operates on direct current.
In short, Ac Surge Protection Device is dedicated to conventional AC power grids for residential, commercial and industrial low-voltage distribution systems. In contrast, Dc Surge Protection Device and Dc Surge Protector are mainly used for DC systems such as photovoltaic power generation, energy storage equipment and communication power supplies. As a professional low-voltage electrical manufacturer, Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches the high-performance CJ-T2-AC Surge Protector, which is a Class II pluggable Spd optimized for AC power distribution systems, providing stable and reliable transient surge protection for global low-voltage power distribution projects.
AC SPD vs DC SPD: Core Differences
Although both belong to Surge Protection Device products, AC and DC surge protectors have essential differences in design logic and application adaptation:
- System Adaptation: Ac Surge Protection Device adapts to 50/60Hz AC alternating power systems, featuring voltage zero-crossing characteristics, focusing on suppressing grid transient surges and lightning induction surges. Dc Surge Protection Device is designed for non-zero-crossing DC systems, requiring stronger continuous voltage resistance and arc extinction performance.
- Internal Structure: AC SPD adopts professional varistor matching thermal disconnection structure to adapt to AC periodic voltage changes. DC SPD needs special anti-aging components to avoid continuous breakdown under long-term DC voltage impact.
- Application Scenarios: AC SPD is widely used in power distribution rooms, distribution cabinets and building power supply systems; DC SPD is mainly applied to photovoltaic modules, battery energy storage, DC communication power supply and other special equipment.
- Protection Focus: Ac Surge Protection Device prevents surge damage to conventional power distribution equipment and daily electrical appliances; Dc Surge Protector protects precision DC equipment from transient overvoltage breakdown.

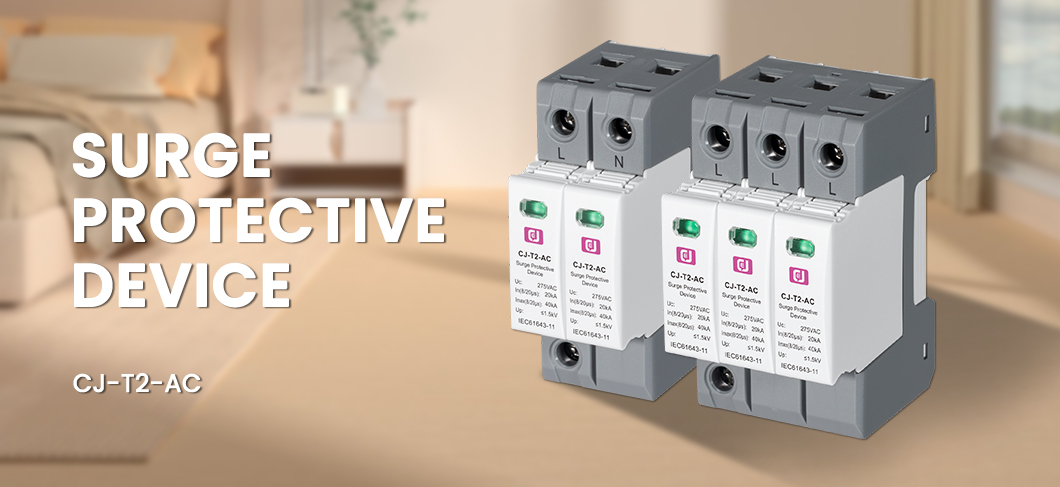

C&J Electrical CJ-T2-AC Ac Surge Protection Device Overview
CJ-T2-AC series Spd is a Class II (Class C) pluggable Surge Protector developed by C&J Electrical for low-voltage AC power distribution systems. Designed and manufactured in strict accordance with IEC 61643-1 and GB 18802.1 international and national standards, this product is suitable for installation in LPZ0B-1 and above protection zones. It is specially used to protect low-voltage electrical equipment from lightning surges and operating transient surge damage, and is widely deployed in key power supply scenarios such as power distribution rooms, industrial distribution cabinets, and building centralized power distribution systems.
The product adopts a standardized single-chip pluggable design with compact structure and convenient installation and replacement. It integrates varistor and dual thermal disconnection protection devices, with excellent surge discharge capacity and ultra-fast response speed. It is equipped with visual fault indication and remote alarm functions, realizing intelligent and safe surge protection for AC power systems.
Structural Characteristics & Core Functions
Unique Structural Design
- Standard Pluggable Structure: Adopts modular single-chip design, supporting plug-and-play installation and quick replacement, effectively reducing later maintenance costs.
- Dual Safety Protection Structure: Composed of high-quality varistor and dual thermal disconnection devices. The dual thermal design provides more reliable over-temperature and over-current protection, avoiding equipment burnout and fire risks caused by component aging.
- Multi-functional Terminal Design: Equipped with universal terminals, which can adapt to wire and busbar connection methods, meeting different on-site wiring construction requirements.
- Intelligent Fault Prompting: Built-in green status window, which will change color in case of product failure or aging to remind users of replacement in time; meanwhile, it is equipped with a remote alarm terminal to realize remote monitoring of equipment status.
Core Protection Functions
As a high-performance Ac Surge Protection Device, CJ-T2-AC Surge Protector can effectively absorb and release instantaneous surge current generated by lightning induction, grid switching and load fluctuation. It stably clamp the system transient overvoltage within a safe range, protect low-voltage distribution equipment, lines and terminal electrical appliances from surge impact damage, and ensure the continuous and stable operation of AC power supply systems.
Detailed Technical Parameters
CJ-T2-AC series Spd has complete and standardized technical indicators, with stable performance and wide adaptability, fully meeting the surge protection requirements of various low-voltage AC power distribution systems:
|
Technical Items
|
Specifications
|
|---|---|
|
Product Type
|
CJ-T2-AC
|
|
Rated Continuous AC Voltage (Uc)
|
275V / 385V optional
|
|
Nominal Discharge Current (8/20μs In)
|
20kA
|
|
Maximum Discharge Current (Imax)
|
40kA
|
|
Voltage Protection Level (Up)
|
≤1.5kV
|
|
Response Time (tA)
|
≤25ns
|
|
Max Backup Fuse
|
125AgL/gG
|
|
Operating Temperature Range
|
-40°C ~ +80°C
|
|
Wire Cross-Section
|
1.5mm²~25mm² solid / 35mm² flexible
|
|
Installation Method
|
35mm DIN rail mounting
|
|
Enclosure Material
|
UL94-V0 flame retardant thermoplastic
|
|
Module Size
|
1 mod
|
|
Executive Standards
|
IEC 61643-1, GB 18802.1, YD/T 1235.1
|
|
Remote Signaling Contact Type
|
Switching contact
|
|
AC Switching Capacity
|
250V/0.1A; 125V/0.2A; 75V/0.5A
|
|
DC Switching Capacity
|
250V/0.5A
|
|
Remote Signal Wire Cross-Section
|
Max 1.5mm²
|
|
Single Product Weight
|
376g
|
Application Scenarios
Relying on ultra-fast response, high discharge capacity and wide temperature adaptability, CJ-T2-AC Ac Surge Protection Device covers residential, commercial and industrial full-scenario AC power distribution protection:
- Industrial Power Distribution: Installed in factory distribution cabinets, workshop power distribution boxes and industrial control equipment to resist surge impact caused by equipment switching and lightning induction.
- Commercial & Civil Buildings: Applied to office buildings, shopping malls, residential communities and other building power distribution rooms and central power distribution systems to protect household and commercial electrical equipment.
- Key Power Supply Projects: Suitable for communication base station AC power supply, intelligent building power distribution, municipal power supply and other key scenarios to ensure safe and stable power operation.
Product Advantages & Custom Service
Compared with ordinary Surge Protection Device products on the market, C&J Electrical CJ-T2-AC Surge Protector has prominent practical advantages:
- High Safety Performance: Dual thermal disconnection protection design effectively avoids equipment failure risks; UL94-V0 flame retardant shell improves overall safety and durability.
- Excellent Protection Performance: Ultra-fast response speed ≤25ns, low voltage protection level ≤1.5kV, which can quickly clamp transient overvoltage and eliminate surge hidden dangers.
- Strong Environmental Adaptability: Supports -40°C to +80°C wide temperature operation, adapting to complex indoor and semi-outdoor power distribution environments.
- Easy Installation & Maintenance: DIN rail pluggable design, convenient for quick installation, inspection and replacement, reducing engineering maintenance costs.
- Complete Specifications: 275V and 385V voltage specifications are optional, matching different AC power system standards.
This series of Spd supports OEM/ODM brand customization services with diverse specifications and wide application scenarios. If you have any questions about product selection, parameter matching, installation and use, please feel free to contact us for professional technical support.
Contact Us
To sum up, Ac Surge Protection Device and Dc Surge Protection Device are targeted at different power systems and cannot be used universally. C&J Electrical CJ-T2-AC high-performance AC surge protector provides reliable Class II surge protection for global low-voltage AC power distribution systems with stable performance and complete specifications.
Whether you need bulk procurement, customized brand services or technical consultation, please contact C&J Electrical at any time. We will provide you with high-quality products and full-cycle after-sales service.
Post time: Jun-15-2026
