In electrical safety protection systems, Circuit Breaker Rcd are two core components that are often confused, but they have essentially different functions and application scenarios. Many users mistakenly believe that a circuit breaker and an RCD (Residual Current Device) are interchangeable, but in fact, they complement each other to form a comprehensive electrical safety protection system. Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) specializes in high-performance electrical protection devices, and its CJL3-63 residual current circuit breaker (a combination of circuit breaker and RCD functions) integrates dual protection advantages, providing reliable safety protection for various electrical systems.
Key Differences Between Circuit Breaker and RCD
An RCD is short for residual current device and protects against electric shock in the event if a fault on either the circuit or applicance. A circuit breaker protects the circuit from current overload and will trip if it’s maximum stated current (e.g. 63 amp) is exceeded. The core difference between the two lies in their protection objects and working principles, which determine their irreplaceable roles in electrical systems.
A circuit breaker focuses on protecting the circuit itself and electrical equipment. It mainly responds to overload (long-term excessive current) and short-circuit (instantaneous large current) faults, cutting off the circuit to prevent wire overheating, insulation aging, and equipment damage. In contrast, an RCD focuses on protecting human life safety. It detects the residual current (current leakage) caused by equipment insulation damage or improper use. When the leakage current exceeds the safe value, it quickly trips to cut off the power supply, preventing electric shock accidents.
Core Overview of RCD (Residual Current Device)
RCD (Residual Current Device), also known as residual current protector, is a special electrical safety device designed to prevent electric shock and electrical fire caused by residual current. It works based on the principle of current balance: under normal conditions, the current flowing into the circuit is equal to the current flowing out. When a leakage fault occurs, part of the current leaks to the ground, forming a residual current. The RCD detects this imbalance and triggers a trip to cut off the power supply in milliseconds.
According to the structure and function, RCD can be divided into residual current circuit breakers (RCBO) and residual current switches (RCCB). Among them, RCBO integrates the functions of RCD and circuit breaker, which can provide both residual current protection (electric shock protection) and overload/short-circuit protection, and is widely used in various electrical scenarios. C&J Electrical’s CJL3-63 series is a high-performance residual current circuit breaker, which perfectly combines the advantages of Circuit Breaker Rcd.
Core Functions of RCD and Residual Current Circuit Breaker
C&J Electrical’s CJL3-63 residual current circuit breaker integrates the dual functions of RCD and circuit breaker, realizing all-round protection for electrical systems, human life and equipment. Its core functions include:
- Residual current (leakage) protection: Automatically disconnects the circuit when the earth fault/leakage current occurs and exceeds the rated sensitivity, effectively preventing electric shock accidents and protecting human life safety.
- Overload protection: When the circuit current exceeds the rated value for a long time, the thermal tripping mechanism acts to cut off the circuit, preventing wire overheating and insulation aging.
- Short-circuit protection: When a short-circuit fault occurs, the magnetic tripping mechanism responds instantly, cutting off the fault circuit in a short time to withstand the impact of short-circuit current and avoid equipment damage.
- Isolation function: Provides reliable isolation function, ensuring safe operation and maintenance of the circuit.
- Contact position indication: Clearly indicates the on/off position of the contact, facilitating daily inspection and fault troubleshooting.
- Anti-interference performance: Independent of power supply and line voltage, free from external interference and voltage fluctuation, ensuring stable operation in complex power supply environments.
Application Scenarios of RCD and Residual Current Circuit Breaker
With the advantages of comprehensive protection, high safety and stable performance, Circuit Breaker Rcd (residual current circuit breaker) is widely used in various civil, commercial and industrial electrical scenarios. The main application fields are as follows:
- Residential buildings: Used in family distribution boxes, protecting sockets, lighting, air conditioners, refrigerators and other household appliances. It can effectively prevent electric shock caused by appliance leakage and electrical fires caused by line aging.
- Commercial buildings: Shopping malls, office buildings, hotels and other places, installed in the main distribution board and branch circuits, protecting the power supply of public facilities, office equipment and electrical appliances, ensuring the safety of employees and customers.
- Industrial plants: Used in the power distribution system of factories, protecting production equipment, motors and operation platforms. It can prevent electric shock accidents of operators and equipment damage caused by leakage, overload and short circuit.
- Public places: Schools, hospitals, stadiums and other public places with dense personnel. The high-sensitivity residual current protection can quickly respond to leakage faults, maximizing the safety of the public.
- Outdoor and temporary power supply: Temporary power distribution systems for construction sites, outdoor activities and other scenarios. It adapts to complex working environments and provides reliable protection for temporary electrical equipment and operators.
- Medical and precision equipment: Power supply systems of medical equipment and precision instruments. The stable protection performance can avoid equipment failure caused by power supply faults and ensure the normal operation of equipment.
C&J Electrical’s CJL3-63 Residual Current Circuit Breaker: Core Advantages & Specifications

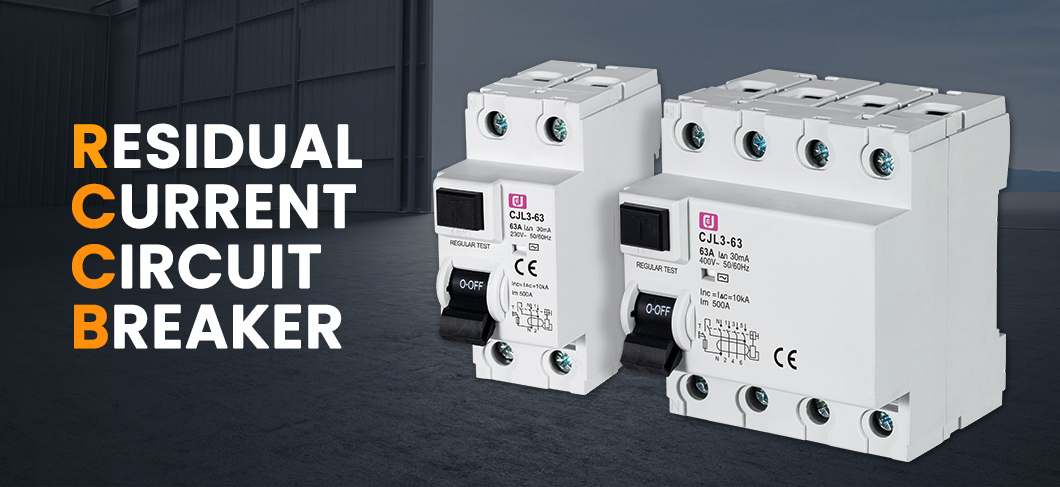

C&J Electrical’s CJL3-63 residual current circuit breaker is a high-performance protection device integrating Circuit Breaker Rcd functions. It is designed for various low-voltage electrical systems, with excellent structural design, reliable performance and flexible customization. Its core advantages, structural features and technical parameters are as follows:
Structural Features & Core Advantages
- Dual protection integration: Integrates residual current (leakage) protection and isolation function, as well as overload and short-circuit protection, realizing all-round protection for electrical systems.
- High safety performance: High short-circuit current withstand capacity, fire-resistant plastic parts that can withstand abnormal heating and strong impact, ensuring safe operation in harsh environments.
- Humanized design: Equipped with finger-protected connection terminals, preventing electric shock during installation and maintenance; contact position indication facilitates daily inspection.
- Stable and reliable: Independent of power supply and line voltage, free from external interference and voltage fluctuation, ensuring stable tripping performance.
- Easy installation and maintenance: Suitable for 35.5mm symmetrical DIN rail installation or panel mounting, with convenient wiring and simple maintenance.
- Customizable services: Supports OEM/ODM brand customization, multiple specifications available, and handle/test button color can be adjusted according to customer needs, meeting personalized customization requirements.
Main Technical Parameters
|
Parameter
|
Details
|
|---|---|
|
Mode
|
Electro-magnetic type, electronic type
|
|
Residual Current Characteristics
|
A, AC
|
|
Pole No
|
2P, 4P
|
|
Rated Making and Breaking Capacity
|
500A(In=25A,40A) or 10InA(In=63A,80A,100A,125A)
|
|
Rated Current (A)
|
25, 40, 63
|
|
Rated Voltage
|
AC 230(240)/400(415)
|
|
Rated Frequency
|
50/60Hz
|
|
Rated Residual Operating Current I△n(A)
|
0.03, 0.1, 0.3, 0.5
|
|
Rated Residual Non Operating Current I△no
|
0.5I△n
|
|
Rated Conditional Short-Circuit Current Inc
|
10kA
|
|
Rated Conditional Residual Short-Circuit Current I△c
|
10kA
|
|
Tripping Duration
|
Instantaneous tripping ≤0.3s(0.1)
|
|
Residual Tripping Current Range
|
0.5I△n~I△n
|
|
Electro-mechanical Endurance
|
4000 cycles
|
|
Connection Capacity
|
Rigid conductor 25mm²
|
|
Terminal Connection Height
|
21mm
|
|
Connection Terminal
|
Pillar terminal with clamp
|
|
Fastening Torque
|
2.0Nm
|
|
Installation
|
On symmetrical DIN rail 35.5mm/Panel mounting
|
|
Protection Class
|
IP20
|
Why Choose C&J Electrical’s CJL3-63 Residual Current Circuit Breaker?
In the field of Circuit Breaker Rcd, the CJL3-63 residual current circuit breaker from C&J Electrical has obvious competitive advantages, becoming the preferred choice for customers pursuing comprehensive protection and high safety:
- Comprehensive dual protection: Integrates the functions of RCD and circuit breaker, providing residual current, overload, short-circuit and isolation protection, avoiding the need to install multiple devices.
- High safety and reliability: High short-circuit withstand capacity, fire-resistant plastic parts and finger-protected terminals, ensuring safe operation and maintenance; stable performance, free from external interference.
- Wide adaptability: Multiple specifications, pole numbers and residual current sensitivity options, adapting to various low-voltage electrical systems and application scenarios.
- Easy to use and maintain: DIN rail/panel mounting, convenient wiring, contact position indication, reducing operation and maintenance costs.
- Flexible customization: Supports OEM/ODM brand customization, handle and test button color adjustment, meeting the personalized needs of different customers and markets.
- Professional support: C&J Electrical has a professional technical team that can provide customers with tailored Circuit Breaker Rcd solutions and comprehensive after-sales services, solving customers’ worries.
