With the rapid expansion of photovoltaic power stations, energy storage systems and new energy charging infrastructure, high-voltage DC power distribution safety has become a key link in project operation. Many engineering installers and purchasers focus on one core question: How does DC MCCB work and why is it irreplaceable for new energy DC systems? Different from ordinary AC circuit breakers, DC MCCB adopts professional DC arc extinguishing and thermomagnetic tripping technology, which can stably cope with the non-zero-crossing characteristics of DC current.
When the contacts open, a persistent electrical arc forms. DC MCCBs are equipped with specialized arc chutes or other arc-extinguishing technology. These components rapidly cool, stretch, and de-ionize the arc, effectively extinguishing it and safely breaking the circuit.
Ordinary AC Mccb Circuit Breaker relies on the natural zero-crossing point of alternating current to extinguish arcs automatically, which cannot adapt to continuous DC arcs. As a dedicated Dc Circuit Breakers For Solar, professional Solar Dc Breaker solves the DC arc extinguishing pain point through structural optimization, realizing accurate overload and short-circuit protection for high-voltage DC circuits. It is the core safety guarantee for photovoltaic power generation, energy storage and other new energy scenarios.
Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches the CJM6Z series high-performance DC MCCB tailored for new energy high-voltage DC scenarios. Complying with IEC60947-1, IEC60947-2 and GB/T14048.1, GB/T14048.2 standards, this Dc Breaker For Solar supports up to 1500VDC ultra-high voltage and 20kA large-current breaking capacity, with complete specifications and strong environmental adaptability, fully meeting the protection needs of global new energy DC power distribution projects.
Working Principle of DC MCCB
The working logic of DC MCCB is based on thermomagnetic dual protection and professional DC arc extinguishing technology, forming a complete fault monitoring and breaking system:
In normal operating conditions, the Mccb Circuit Breaker keeps the internal contacts closed, and the DC current passes through the circuit stably. When the circuit suffers from long-term overload, the internal bimetallic strip will heat up and bend with the increase of current, triggering the delayed tripping mechanism to cut off the circuit and avoid equipment damage caused by long-term overheating. In case of sudden short-circuit fault and instantaneous surge current, the electromagnetic component acts instantly to complete rapid tripping.
The biggest technical difficulty of DC circuit breaking is the persistent arc. Different from AC current with periodic zero crossing, DC current is continuous and stable, and the arc cannot be extinguished automatically after the contacts are separated. When the contacts open, a persistent electrical arc forms. DC MCCBs are equipped with specialized arc chutes or other arc-extinguishing technology. These components rapidly cool, stretch, and de-ionize the arc, effectively extinguishing it and safely breaking the circuit. This core structure enables CJM6Z Solar Dc Breaker to achieve stable breaking under 1500VDC high voltage.

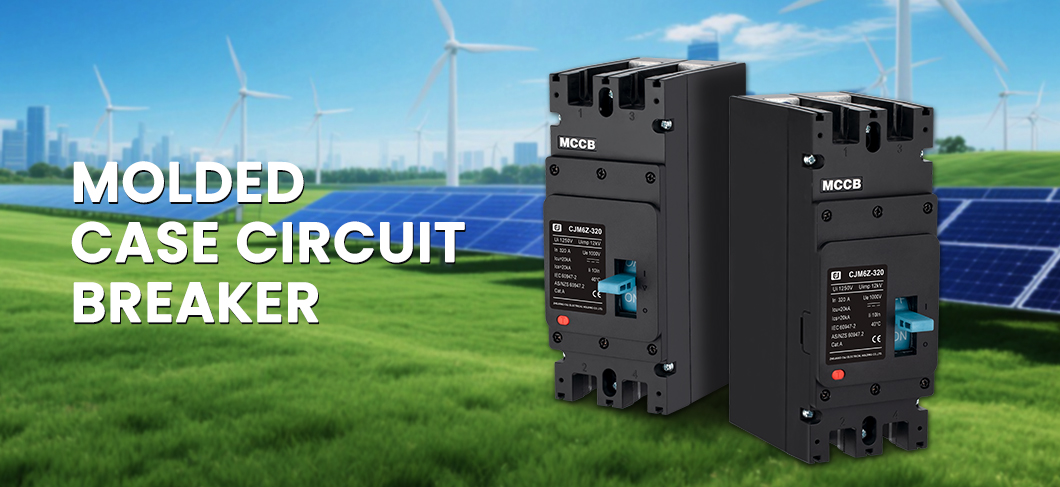

C&J Electrical CJM6Z DC MCCB Product Overview
Against the background of the rapid development of global new energy industries such as photovoltaics, wind power, charging piles and energy storage, C&J Electrical has developed the CJM6Z series high-voltage AC/DC molded case circuit breaker. This professional Dc Circuit Breakers For Solar is specially optimized for high-voltage DC power distribution scenarios of new energy projects.
CJM6Z series DC MCCB has complete current and voltage specifications. The frame current covers 250A to 800A, with four current grades of 320A, 400A, 630A and 800A, and the applicable current range spans 63A to 800A. It supports multiple DC voltage levels including DC500V, DC1000V and DC1500V, and the maximum breaking capacity can reach 20kA under DC1500V high voltage, providing reliable short-circuit and overload protection for high-power DC systems.
The whole series adopts 2P pole design, supports horizontal and vertical flexible installation, and has passed strict industry standard tests. It features stable performance, strong pressure resistance and high breaking efficiency, and is widely applicable to various complex new energy DC power distribution systems.
Core Structural & Performance Advantages
- Ultra-High Voltage Adaptation: Supports up to 1500VDC rated working voltage, covering mainstream high-voltage DC specifications for large-scale photovoltaic power stations and energy storage power plants.
- High Breaking Capacity: It can stably break 20kA short-circuit current under DC1500V high voltage, quickly cut off fault current and prevent fault expansion.
- Complete Specification Gradient: Frame current 250-800A, multiple current and voltage options, adapting to high-power DC circuit protection of different scales.
- Flexible Installation Method: Supports horizontal transverse and vertical upright dual installation modes, adapting to different cabinet layout and on-site construction needs.
- Standard Compliance: Fully complies with IEC60947-1, IEC60947-2 and national GB/T14048.1, GB/T14048.2 standards, with reliable quality and wide global applicability.
- Professional DC Arc Extinguishing: Equipped with customized arc chute structure, efficiently solves DC persistent arc problem, ensuring safe and stable breaking of high-voltage DC circuits.
Detailed Technical Data
CJM6Z series Dc Breaker For Solar has standardized and complete technical parameters to meet differentiated engineering selection needs:
|
Technical Items
|
Specifications
|
|---|---|
|
Executive Standards
|
IEC60947-1, IEC60947-2, GB/T14048.1, GB/T14048.2
|
|
Frame Current Range
|
250A~800A
|
|
Current Specifications
|
320A、400A、630A、800A (63A~800A coverage)
|
|
Pole Number
|
2P
|
|
Rated DC Voltage
|
DC500V / DC1000V / DC1500V
|
|
Max Breaking Capacity
|
20kA (DC1500V)
|
Applicable Working Environment
CJM6Z DC MCCB is designed for complex outdoor and industrial new energy scenarios with strict environmental adaptation standards:
- Temperature Range: Adaptable to ambient temperature from -35°C to 70°C, resisting extreme cold and high temperature working conditions.
- Altitude Limit: Suitable for installation sites with altitude ≤2500m, adapting to plateau photovoltaic and energy storage projects.
- Humidity Adaptation: The maximum relative humidity is 50% at +40°C; higher humidity is allowed at lower temperature (90% RH at 20°C), with anti-condensation measures required for temperature-changing environments.
- Pollution & Magnetic Protection: Pollution grade 3; the external magnetic field shall not exceed 5 times of the geomagnetic field, avoiding magnetic interference affecting protection accuracy.
- Installation Environment Requirements: It shall be installed in an environment without explosive medium, conductive dust, metal corrosion and insulation damage hazards.
Standard Use & Maintenance Guidelines
To ensure the long-term stable operation of the Mccb Circuit Breaker, users need to follow standardized operation and maintenance specifications:
Do not operate the breaker with wet hands to prevent electric shock accidents. Avoid frequent switching operations to prevent shortening the service life of internal components. Before formal use, check and confirm that terminal connections and fixing screws are firmly fastened without looseness, and verify the correctness of wiring schemes. Use a megohmmeter to detect the insulation resistance between phases and between phases and ground to ensure insulation safety.
Confirm the correct installation of the breaker phase partition. For breakers equipped with undervoltage release, connect the rated voltage to the undervoltage device before closing. For products with auxiliary and alarm contacts, test the normal signal conversion during opening and closing, and verify the effective response of alarm signals by pressing the emergency trip button. For breakers with electric or manual operating mechanisms, perform 3-5 opening and closing tests to ensure flexible and reliable operation.
All characteristic parameters and accessory functions of the breaker are preset by the factory and cannot be adjusted arbitrarily during use. Under compliant storage and use conditions, the product seal remains intact within 24 months after delivery. Free replacement and repair services are provided for quality damage and abnormal use caused by manufacturing problems.
Application Scenarios
Relying on 1500VDC high voltage resistance and 20kA high breaking performance, CJM6Z Solar Dc Breaker is widely used in high-power new energy DC power distribution scenarios:
- Photovoltaic Power Station System: Used for DC power distribution cabinets, combiner boxes and main circuit protection of large-scale ground photovoltaic and distributed industrial and commercial photovoltaic power stations.
- Energy Storage Power Plant: Applied to battery energy storage cabinet DC main circuit protection, providing overload and short-circuit safety protection for high-power energy storage systems.
- New Energy Charging Pile: Suitable for DC charging equipment high-voltage circuit protection, adapting to long-term high-load operation of charging facilities.
- Wind Power DC System: Used for wind power generation DC power distribution links, stabilizing high-power DC circuit operation.
- Industrial High-Power DC Distribution: Adaptable to industrial high-voltage DC power supply systems and new energy supporting electrical equipment protection.
Product Services & Supply Advantages
CJM6Z series DC MCCB has complete specifications, wide environmental adaptability and excellent safety performance, covering low to high current and voltage grades of new energy DC systems, meeting the differentiated selection needs of various projects.
C&J Electrical provides comprehensive supporting services for this product, supporting OEM/ODM brand customization to meet personalized product and solution needs of global customers. We support SKD loose parts delivery to adapt to diverse procurement and assembly cooperation modes. If you have any questions about product selection, parameter matching, on-site installation and maintenance standards, please feel free to contact us for professional technical support.
Contact Us
In conclusion, professional DC-specific breaking and arc extinguishing technology is the core of how DC MCCB works. As a high-performanceDc Circuit Breakers For Solar, CJM6Z series breakers effectively solve the safety pain points of high-voltage DC circuit protection, providing stable and reliable safety guarantees for global new energy DC power distribution projects.
Welcome global customers to consult, purchase and customize products. C&J Electrical will provide full-cycle professional after-sales service and technical support.
