In modern electrical systems, whether residential, commercial or industrial, electrical equipment is increasingly sensitive to voltage fluctuations. A voltage surge—also known as a transient voltage—can occur at any time due to lightning strikes, power grid switching, electrical equipment malfunctions or other factors. Even a short-duration surge can damage expensive electronic components, cause equipment failure or even fire hazards. Surge Protection Device (SPD), commonly known as a surge protector, is a key device designed to defend against such voltage surges. Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) specializes in high-performance surge protection solutions, and its CJ-C40M series Surge Protection Device provides reliable voltage surge protection for various low-voltage power supply systems, effectively extending the service life of electrical equipment and ensuring system stability.
What is a Surge Protection Device (SPD)? Core Overview
Surge Protection Device (SPD) is a specialized electrical protective device installed in power supply circuits to limit transient overvoltage caused by lightning strikes, switching operations and other factors, and to conduct and discharge surge currents to the ground. Its core role is to “clamp” the overvoltage in the circuit to a safe level within a very short time, preventing the surge from damaging the connected electrical equipment.
Different from traditional protective devices such as fuses and circuit breakers, Surge Protection Device focuses on responding to transient voltage surges—short-duration, high-amplitude voltage fluctuations that are often ignored by ordinary protective devices. SPDs are widely used in various power supply systems, including TN-S, TN-C-S, TT, IT systems, and can be used as equipotential connections at the interface between LPZ1, LPZ2 and LPZ3 zones, forming an important part of the lightning protection system. C&J Electrical’s CJ-C40M series SPD is a high-performance D-level lightning protection product, designed in accordance with international and national standards, with excellent surge suppression performance and high safety and reliability.
How Does a Surge Protector Work? Core Principle
The working principle of a Surge Protection Device (SPD) is simple yet efficient: it monitors the voltage in the circuit in real time, and when a voltage surge occurs that exceeds the safe threshold, it quickly acts to divert the excess voltage and surge current to the ground, thereby protecting the electrical equipment connected to the circuit. The key details of its working process are as follows:
When the line voltage rises above the accepted level, the surge protector suppresses the excess voltage to prevent it from causing harm. Specifically, internal components called metal oxide varistors (MOVs) absorb the excess voltage and divert it to the ground wire, preventing it from reaching the connected equipment.
Metal Oxide Varistors (MOVs) are the core components of the Surge Protection Device. Under normal working conditions, MOVs have high resistance and are in a high-impedance state, which does not affect the normal operation of the power supply circuit. When the line voltage suddenly rises and exceeds the rated voltage of the MOV, the resistance of the MOV will drop sharply instantaneously, turning into a low-impedance state. At this time, the excess voltage and surge current will be quickly absorbed by the MOV and diverted to the ground through the ground wire, avoiding the surge from flowing into the electrical equipment. When the line voltage returns to normal, the MOV will automatically recover to a high-impedance state, and the SPD will resume normal monitoring work.
In addition to MOVs, high-quality Surge Protection Device (such as C&J Electrical’s CJ-C40M series) is also equipped with a failure disconnection device. When the SPD fails due to overcurrent, overheating or breakdown, the failure disconnection device can automatically disconnect it from the power grid, preventing fault expansion, and at the same time, the visual alarm indicator can clearly show the working state of the SPD, facilitating maintenance personnel to check and replace it in time.
Core Functions of Surge Protection Device (Based on C&J Electrical CJ-C40M Series)
C&J Electrical’s CJ-C40M series Surge Protection Device integrates multiple core functions, providing comprehensive and reliable surge protection for power supply systems and electrical equipment. Its main functions include:
- Transient overvoltage suppression: Quickly clamps the transient overvoltage in the circuit to a safe level (voltage protection level ≤0.7/≤1.0/≤1.2/≤1.5), preventing the overvoltage from damaging electrical equipment.
- Surge current discharge: It can withstand a maximum discharge current of 20kA (8/20μS) and a nominal discharge current of 5/10kA, quickly discharging the surge current generated by lightning strikes and switching operations to the ground.
- Ultra-fast response: The response time is less than 25 nanoseconds, which can quickly respond to transient voltage surges, leaving no time for the surge to damage electrical equipment.
- Automatic failure disconnection: Built-in failure disconnection device. When the SPD fails due to overcurrent, overheating or breakdown, it can automatically disconnect from the power grid to avoid fault expansion.
- Visual status indication: Equipped with a visual alarm window, green indicates normal working status, and red indicates fault status, which is convenient for maintenance personnel to check and maintain.
- Hot-swap replacement: The module can be replaced without power failure, which greatly improves maintenance efficiency and avoids power outages affecting the normal use of equipment.
- Equipotential connection: It can be used as an equipotential connection at the interface between LPZ1, LPZ2 and LPZ3 zones, improving the overall lightning protection level of the power supply system.
Application Scenarios of Surge Protection Device (SPD)
With the advantages of fast response, high surge withstand capacity and easy installation, Surge Protection Device (SPD) is widely used in various scenarios that require transient overvoltage protection, especially in places with high value of electrical equipment or high risk of lightning strikes. The main application fields and installation positions of C&J Electrical’s CJ-C40M series SPD are as follows:
- Residential buildings: Installed in household distribution boxes or socket boxes, protecting household electrical equipment such as air conditioners, refrigerators, televisions and computers from voltage surges caused by lightning strikes or power grid fluctuations.
- Computer centers and data centers: Installed in front of servers, switches, UPS power supplies and other core equipment, protecting precision electronic equipment from transient overvoltage damage and ensuring the stable operation of data and services.
- Information and electronic equipment rooms: Communication base stations, monitoring rooms, control rooms and other places, installed in front of information equipment and electronic control equipment, providing surge protection for signal and power supply circuits.
- Commercial buildings: Shopping malls, office buildings, hotels and other places, installed in distribution boxes of each floor or equipment rooms, protecting central air conditioning, elevators, lighting systems and other electrical equipment.
- Industrial workshops: Light industrial workshops, production lines and other places, installed in front of control equipment and production equipment, preventing voltage surges from affecting production activities and equipment safety.
- Other scenarios: Public facilities such as schools, hospitals, and municipal engineering, installed in the power supply circuit of key equipment, improving the safety and stability of the power supply system.
Installation position: Suitable for D-level lightning protection. It is installed at the junction of LPZ1, LPZ2 and LPZ3 zones, usually in household distribution boxes, computer centers, in front of information equipment, electronic equipment and control equipment, or in the nearest socket box.

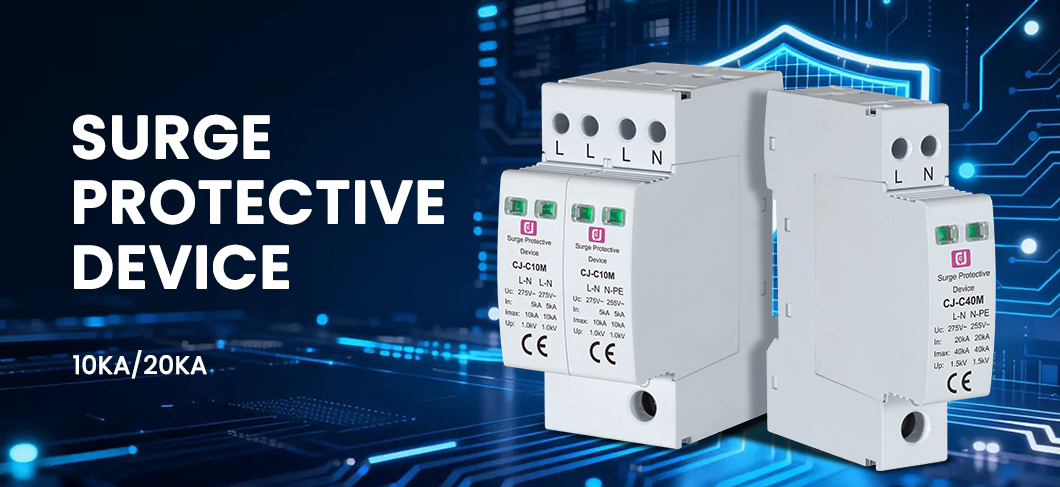

C&J Electrical CJ-C40M Series Surge Protection Device: Core Advantages & Technical Specifications
As a core product of C&J Electrical, the CJ-C40M series Surge Protection Device (SPD) is specially designed for low-voltage power supply systems, complying with international and national standards, with excellent performance and high safety. Its core advantages, product overview and technical parameters are as follows:
Product Overview & Core Advantages
- Wide system compatibility: Suitable for AC 50/60Hz, 380V and below TN-S, TN-C-S, TT, IT and other power supply systems, with strong versatility and wide application range.
- International standard compliance: Designed and manufactured in accordance with IEC61643-1 and GB18802.1 standards, ensuring product quality and safety performance, and compatible with global application scenarios.
- High surge withstand capacity: Maximum discharge current up to 20kA (8/20μS), nominal discharge current 5/10kA, can effectively withstand surge current impact caused by lightning strikes and switching operations.
- Ultra-fast response speed: Response time less than 25 nanoseconds, quickly suppress transient overvoltage, timely protect electrical equipment.
- Safe and reliable failure protection: Built-in failure disconnection device, automatic disconnection from the power grid when failing, avoiding fault expansion; visual status indication, easy to check and maintain.
- Convenient maintenance: The module can be replaced without power failure, which improves maintenance efficiency and reduces maintenance costs; installed on a 35mm electrical guide rail, easy to install and integrate.
- Durable and sturdy: Shell made of glass fiber reinforced plastic, high temperature resistance, corrosion resistance, suitable for harsh working environments; wide working temperature range (-40~85℃), strong environmental adaptability.
- Customizable services: Supports OEM/ODM brand customization, multiple specifications available, wide application scenarios and high safety performance, meeting the personalized needs of different customers and markets.
Main Technical Parameters
|
Parameter
|
Details
|
|---|---|
|
Rated Working Voltage
|
220V/380V/220V
|
|
Maximum Continuous Working Voltage
|
275V/385V/320V
|
|
Voltage Protection Level
|
≤0.7/≤1.0/≤1.2/≤1.5
|
|
Nominal Discharge Current
|
5/10kA
|
|
Maximum Discharge Current
|
10/20kA
|
|
Response Time
|
<25ns
|
|
Test Basis
|
IEC61643-1
|
|
Access Conductor Cross-Sectional Area (L/N)
|
6mm²
|
|
Access Ground Wire Cross-Sectional Area (PE)
|
16mm²
|
|
Fuse or Circuit Breaker Selection
|
10A/16A/25A
|
|
Working Environment
|
-40~85℃; Relative Humidity ≤95%
|
|
Installation
|
Standard Guide Rail
|
|
Shell Material
|
Glass Fiber Reinforced Plastic
|
Why Choose C&J Electrical CJ-C40M Series Surge Protection Device?
In the field of Surge Protection Device (SPD), the CJ-C40M series from C&J Electrical has obvious competitive advantages, becoming the preferred choice for customers pursuing reliability, efficiency and cost-effectiveness:
- Strong surge protection capability: High nominal discharge current and maximum discharge current, ultra-fast response speed, can effectively suppress various transient overvoltage and surge current, protecting electrical equipment comprehensively.
- High safety and reliability: Built-in failure disconnection device and visual status indication, which can timely discover and handle SPD faults, avoid fault expansion, and ensure the safety of the power supply system.
- Convenient installation and maintenance: Standard guide rail installation, easy to integrate into the power distribution system; hot-swap replacement without power failure, reducing maintenance difficulty and cost.
- Wide compatibility and adaptability: Suitable for various power supply systems and working environments, multiple specifications available, strong versatility, can meet the needs of different scenarios.
- Durable and long-lasting: High-quality shell material and internal components, wide working temperature range, corrosion resistance and high temperature resistance, long service life, reducing replacement costs.
- Customizable services: Supports OEM/ODM brand customization, can be adjusted according to customer specifications, brand needs and market demands, meeting personalized needs.
- Professional technical support: C&J Electrical has a professional technical team that can provide customers with tailored Surge Protection Device solutions and comprehensive after-sales services, solving customers’ worries.
Get in Touch
If you have any questions about the CJ-C40M series Surge Protection Device (SPD), such as product specifications, technical details, customization needs, or bulk orders, please feel free to contact C&J Electrical. Our professional team will provide you with high-quality surge protection solutions and reliable services to ensure the safe and stable operation of your power supply system and electrical equipment.
Post time: Feb-09-2026
