Understanding MCBs and RCCBs: Essential Components of Electrical Safety
Safety is of paramount importance in the world of electrical installations. Miniature circuit breakers (MCBs) and residual current circuit breakers (RCCBs) are two key components for ensuring electrical safety. These two devices have different uses but are often used together to provide comprehensive protection against electrical faults. This article takes an in-depth look at the functions, differences, and applications of miniature circuit breakers (MCBs) and residual current circuit breakers (RCCBs), and highlights their importance in modern electrical systems.

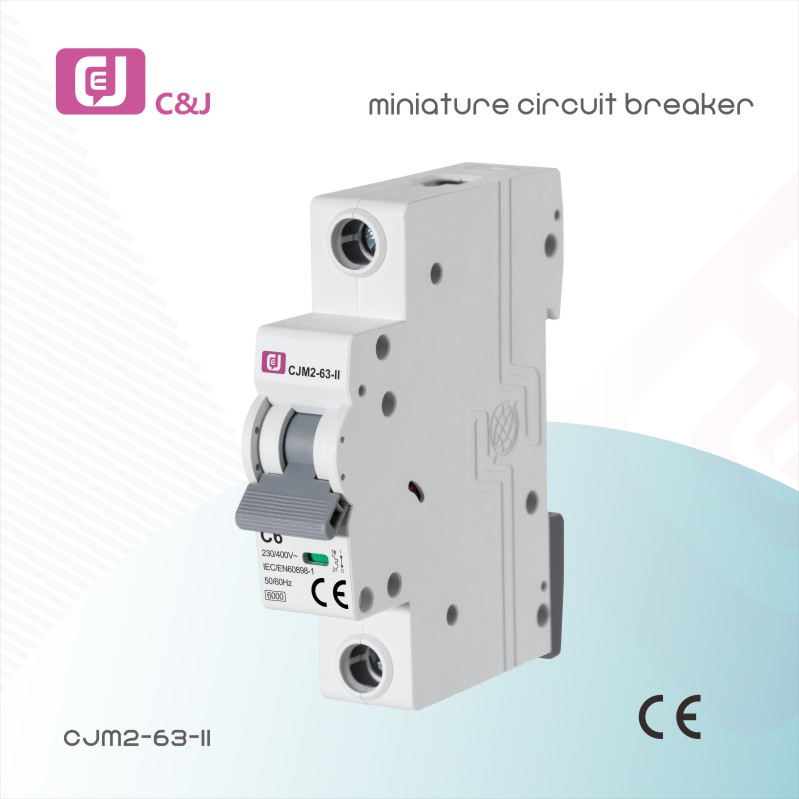

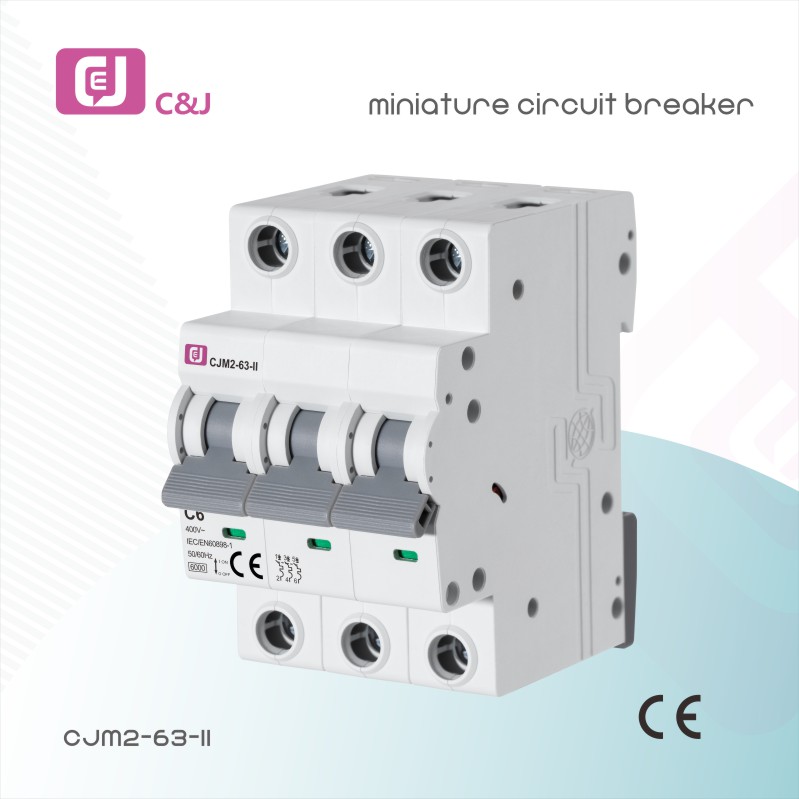

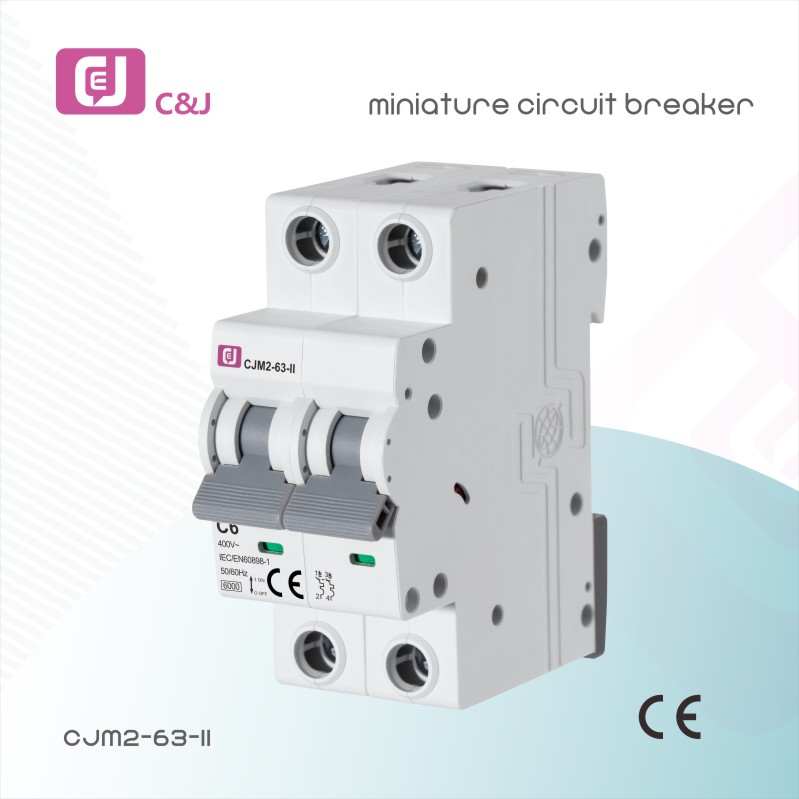

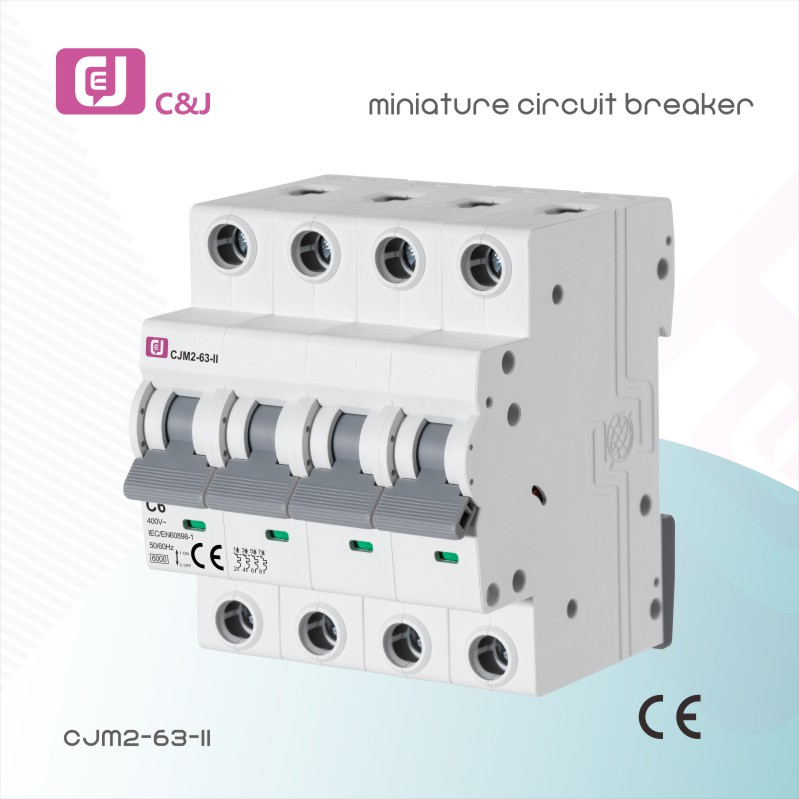

What is MCB?
A miniature circuit breaker (MCB) is an automatic switch used to protect electrical circuits from overloads and short circuits. When the current flowing through the circuit exceeds a predetermined limit, the MCB trips and cuts off the power supply. This prevents overheating and potential fire hazards caused by excessive current. The rated current of an MCB depends on its current carrying capacity, usually between 6A and 63A, and is designed to act quickly to minimize damage to appliances and wiring.
Miniature circuit breakers (MCBs) are essential in residential, commercial, and industrial settings. They are often used in switchboards to protect individual circuits, ensuring that a single circuit failure does not affect the entire electrical system. Miniature circuit breakers are resettable, so power can be easily restored after the fault is repaired, making them a convenient choice for electrical protection.
What is RCCB?
A residual current circuit breaker (RCCB), also known as a residual current device (RCD), is designed to protect against ground faults and electric shock. It detects an imbalance between the live and neutral wires, which can occur when insulation fails or when accidental contact with live parts causes current to leak to ground. When this imbalance is detected, the RCCB trips and disconnects the circuit, significantly reducing the risk of electric shock and fire.
RCCBs are available in a variety of sensitivity levels, typically ranging from 30mA for personal protection to 100mA or 300mA for equipment protection. The choice of sensitivity depends on the application scenario and the required level of protection. For example, in a residential environment, a 30mA RCCB is typically used to protect individuals from electric shock, while in industrial applications, a higher current rated RCCB may be used to protect equipment.
MCB vs RCCB: Main Differences
While both miniature circuit breakers (MCBs) and residual current circuit breakers (RCCBs) are vital to electrical safety, they perform different functions. The main difference lies in their protection mechanisms:
- MCB: Protects against overload and short circuit. It does not provide ground fault or electric shock protection.
- RCCB: Protects against earth fault and electric shock. It does not provide overload or short circuit protection.
Due to these differences, miniature circuit breakers (MCBs) and residual current circuit breakers (RCCBs) are often used together in electrical installations. This combination provides comprehensive protection, ensuring the safety of electrical systems and users.
Application of MCB and RCCB
In residential settings, miniature circuit breakers (MCBs) are often used to protect lighting and power circuits, while residual current circuit breakers (RCCBs) are installed in areas with a higher risk of electric shock for enhanced safety, such as bathrooms and kitchens. In commercial and industrial settings, both devices are critical to protecting machinery and ensuring worker safety.
In summary, miniature circuit breakers (MCBs) and residual current circuit breakers (RCCBs) are an integral part of an electrical safety system. Understanding their functions and applications is essential for anyone involved in electrical installation or maintenance. By combining miniature circuit breakers (MCBs) and residual current circuit breakers (RCCBs), a strong safety net can be built to protect against a variety of electrical hazards, ensuring a safer environment for everyone.
