Understanding Type B Earth Leakage Circuit Breakers: A Comprehensive Guide
In the field of electrical safety, residual current circuit breakers (RCCBs) play a vital role in protecting personnel and equipment from electrical faults. Among the various types of RCCBs available on the market, Type B RCCBs stand out due to their unique features and applications. This article will delve into the characteristics, advantages, and applications of Type B RCCBs, providing a comprehensive understanding of this important electrical component.

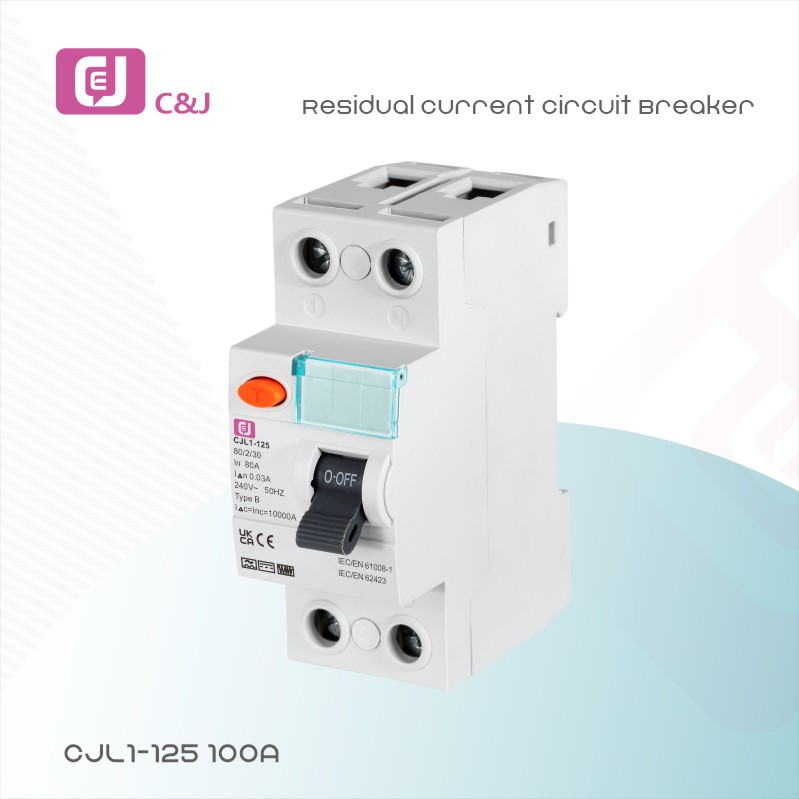

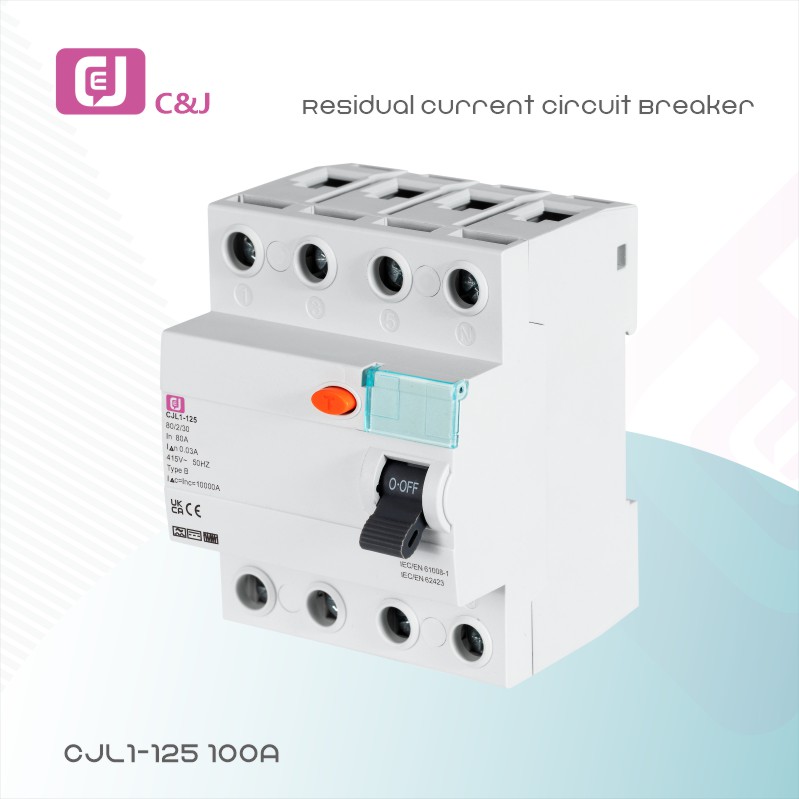

What is a Type B RCCB?
Type AB RCCBs, or Type B residual current circuit breakers, are designed to detect and interrupt faulty circuits. Unlike standard RCCBs, which primarily detect alternating current (AC) leakage, Type B RCCBs can detect both AC and pulsating direct current (DC) leakage. This makes them particularly suitable for applications involving renewable energy, such as solar photovoltaic (PV) systems, where DC leakage may occur.
Main features of Type B RCCB
1. Dual Detection Capability: The most notable feature of Type B RCCBs is their ability to detect both AC and DC residual currents. This dual detection capability ensures that any type of leakage current can be identified and addressed promptly.
2. High Sensitivity: Type B RCCBs are designed with high sensitivity, typically rated at 30 mA for personal protection and 300 mA for equipment protection. This sensitivity is critical to preventing electric shock and minimizing the risk of electrical fires.
3. Wide Application: These RCCBs are not limited to residential use but are also suitable for commercial and industrial applications. Their ability to handle DC current makes them ideal for electric vehicles, battery energy storage systems, and other DC-powered equipment.
4. Standards Complian**: Type B RCCBs comply with international safety standards, ensuring they meet the necessary requirements for electrical installations. This compliance is crucial to ensuring the safety and reliability of electrical systems.
Benefits of using Type B RCCB
1. Enhanced Safety: The primary benefit of using a Type B residual current circuit breaker (RCCB) is the enhanced safety it provides. By detecting AC and DC leakage currents, these devices significantly reduce the risk of electric shock and electrical fires, protecting life and property.
2. Sensitive Equipment Protection: In environments where sensitive electronic equipment is used, such as data centers or laboratories, Type B RCCBs provide additional protection. They help prevent damage to equipment caused by electrical faults, ensuring uninterrupted operation.
3. Integration with Renewable Energy Systems: As the world shifts toward renewable energy, demand for Type B residual current circuit breakers is growing. Capable of handling direct current, Type B residual current circuit breakers are essential for solar photovoltaic systems and other renewable energy applications, helping to safely integrate these technologies into the grid.
4. Cost-effective solution: While the initial cost of a Type B RCCB may be higher than a standard RCCB, its ability to provide comprehensive protection can result in long-term cost savings. By preventing electrical failures and potential damage, a Type B RCCB can reduce maintenance costs and extend the life of your electrical system.
In short
In summary, Type B residual current circuit breakers (RCCBs) are a vital component of modern electrical safety systems. Their unique ability to detect both AC and DC leakage currents makes them invaluable in a variety of applications, particularly in the renewable energy sector. By investing in a Type B residual current circuit breaker (RCCB), individuals and businesses can enhance safety, protect sensitive equipment, and ensure compliance with electrical standards. As technology continues to advance, the importance of Type B residual current circuit breakers (RCCBs) in protecting electrical equipment will continue to grow.
