Understanding AC Molded Case Circuit Breakers: A Comprehensive Guide
AC molded case circuit breakers (AC MCCBs) are crucial in electrical engineering and power distribution. They protect circuits from overloads and short circuits, ensuring the safety and reliability of electrical systems. In this article, we’ll delve into the characteristics, functions, and applications of AC molded case circuit breakers, providing a comprehensive understanding of their importance in modern electrical equipment.
What is an AC MCCB?

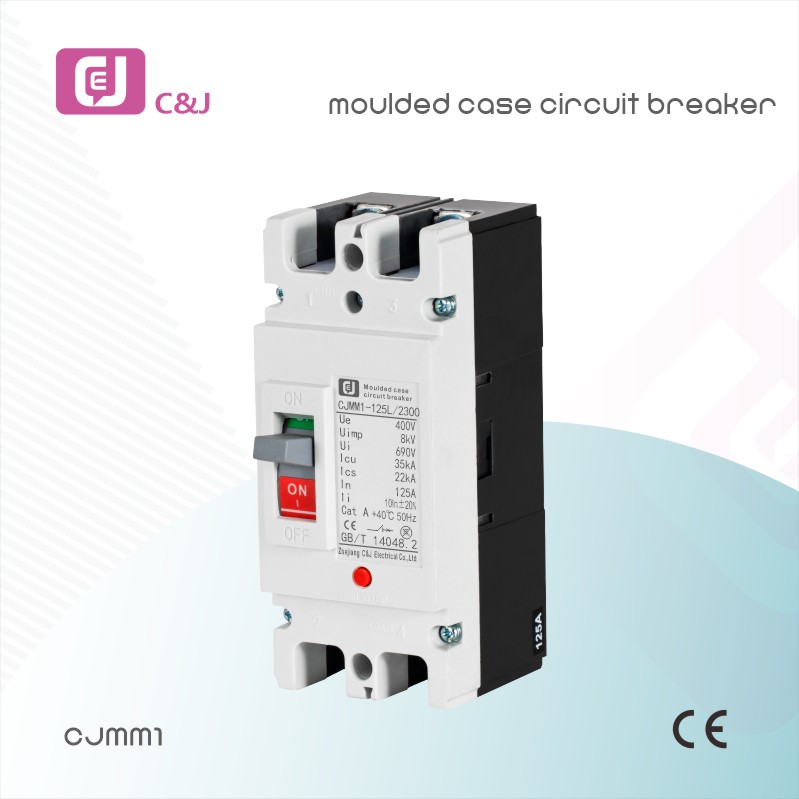

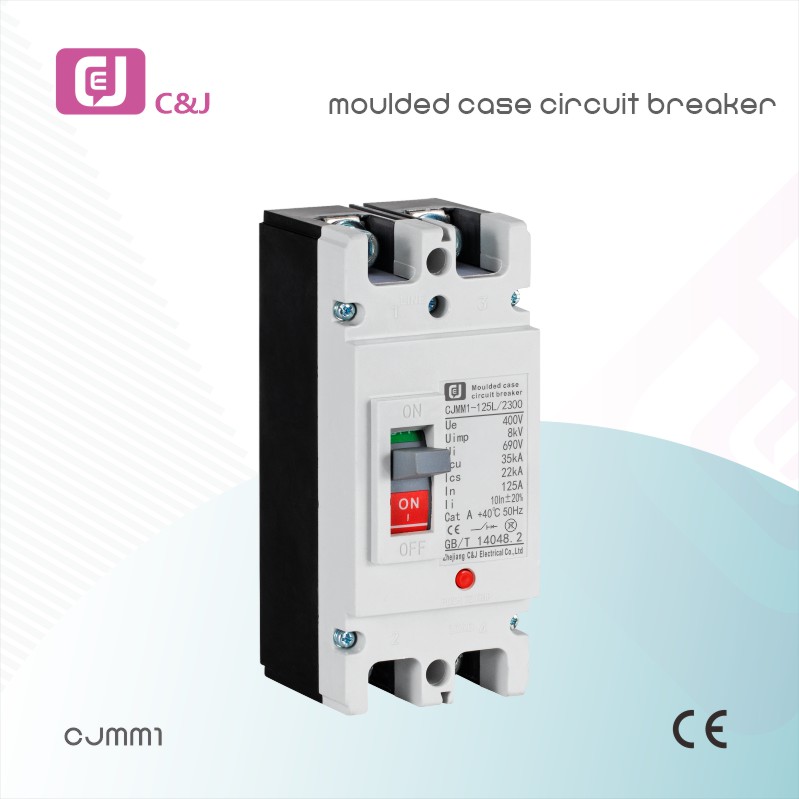

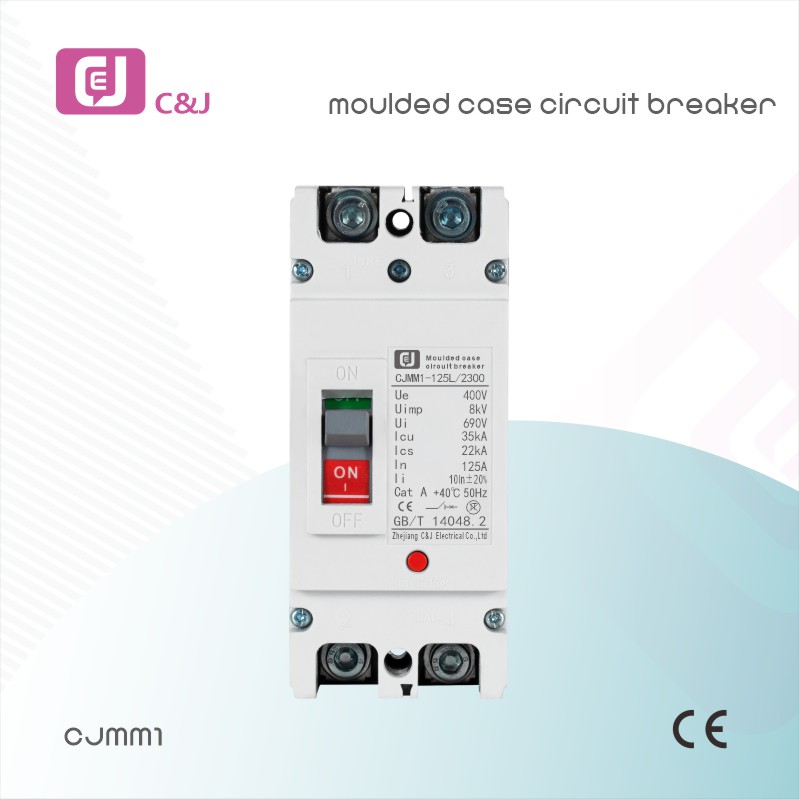

An AC molded case circuit breaker (MCCB) is a circuit breaker used to protect electrical circuits from overcurrent. Unlike traditional fuses, which must be replaced after a fault, an MCCB is resettable after tripping, making it a more convenient and efficient circuit protection solution. “Molded case” refers to the device’s construction, enclosing internal components in a durable plastic casing, providing insulation and protection from environmental factors.
Main features of AC molded case circuit breakers
1. Rated Current: AC molded case circuit breakers (MCCBs) are available in a variety of current ratings, typically ranging from 16 A to 2500 A. This versatility makes them suitable for a wide range of applications, from residential to industrial environments.
2. Adjustable Trip Setting: Many AC molded case circuit breakers feature adjustable trip settings, allowing the user to tailor the level of protection to the specific requirements of the electrical system. This feature is particularly useful in applications where load conditions may vary.
3. Overload and Short-Circuit Protection: AC Molded Case Circuit Breakers (MCCBs) are designed to detect overload and short-circuit conditions. In the event of an overload, the MCCB trips after a predetermined time delay, allowing for a brief inrush current. In the event of a short circuit, the MCCB trips almost instantly to prevent damage.
4. Thermal and Magnetic Mechanisms: AC molded case circuit breakers (MCCBs) operate primarily based on two mechanisms: thermal and magnetic. The thermal mechanism protects against overloads, while the magnetic mechanism protects against short circuits. This dual protection mechanism ensures comprehensive circuit safety.
5. Compact Design: The AC molded case circuit breaker (MCCB) features a molded case design with a small footprint, making it suitable for installation in confined spaces. This is particularly beneficial in modern switchboards where space optimization is a priority.
Application of AC molded case circuit breakers
AC Molded Case Circuit Breakers (MCCBs) are widely used in various fields due to their reliability and effectiveness. Some common applications include:
- Industrial Settings: In factories and manufacturing plants, AC MCCBs protect machines and equipment from electrical faults, ensuring uninterrupted operations.
- Commercial Buildings: In office buildings and shopping malls, these circuit breakers protect lighting, HVAC systems, and other electrical loads.
- Residential Use: Homeowners can use AC MCCBs in their electrical panels to protect home appliances and ensure safety from electrical hazards.
- Renewable Energy Systems: With the rise of solar and wind energy systems, AC MCCBs are increasingly used to protect inverters and other components from electrical faults.
In short
Simply put, AC molded case circuit breakers (MCCBs) are essential components in power distribution systems. Their reliable overload and short-circuit protection makes them indispensable in a wide range of applications, from residential to industrial. Understanding the features and functions of AC MCCBs can help engineers, electricians, and homeowners make informed decisions about their electrical systems, ultimately improving safety and efficiency. As technology continues to advance, AC MCCBs will continue to play a critical role in ensuring the integrity of electrical equipment worldwide.
Post time: Aug-20-2025
