With the rapid growth of photovoltaic power generation, energy storage systems and smart microgrids, DC power distribution safety has become a core focus of electrical installation and engineering design. Many installers often ask a key technical question: Can breakers be used for DC? The answer is highly technical and directly determines the safety of solar power systems and DC equipment.
Using an AC circuit breaker for DC protection would, therefore, make your power system dangerous. It could lead to an electric fire. That’s because the arc would sustain even with the protection device off. We do not recommend using DC overload protection devices in AC power systems either.
The core reason for the incompatibility lies in the arc extinguishing principle. AC current has a natural zero-crossing point in each cycle, which helps the breaker extinguish the arc quickly. In contrast, DC current is a steady continuous current without zero-crossing characteristics. Ordinary AC breakers lack professional DC arc extinguishing structures, resulting in sustained arcs, contact melting, and circuit failure risks. Therefore, professional DC Miniature Circuit Breaker and DC Circuit Breakers For Solar must be adopted for all DC power distribution scenarios.
Zhejiang C&J Electrical co., ltd. (referred to as C&J Electrical) launches the CJM2-63 series professional DC MCB, specially designed for new energy DC power distribution systems. Complying with GB/T 14048.2 and IEC60947-2 international standards, this Solar DC Breaker supports ultra-wide voltage and current specifications, with compact structure, high breaking capacity and strong compatibility, becoming a reliable DC Breaker For Solar and various DC industrial systems.
Why Specialized DC MCB Is Mandatory for DC Systems
It is a common misconception that ordinary AC breakers can be universally used for low-voltage DC circuits. In actual engineering applications, mismatched use will bring serious hidden dangers:
- Sustained DC Arc Risk: DC current has no zero-crossing point. AC breakers cannot extinguish DC arcs effectively. The continuous high-temperature arc will burn internal contacts, cause contact welding, and lead to failure of circuit breaking.
- Electrical Fire Hazard: The persistent high-temperature arc will melt the breaker shell and wire insulation, easily triggering electrical fires and causing irreversible damage to solar panels, energy storage batteries and DC equipment.
- False Protection Failure: AC breakers may display a tripped state while current still flows in the DC circuit, forming false protection and completely losing fault protection functions.
- Unstable Adaptation: Similarly, DC breakers are not recommended for AC systems, as the protection matching and response mechanism cannot adapt to AC cycle characteristics, resulting in insensitive tripping or abnormal protection.
For all solar photovoltaic, energy storage and microgrid DC scenarios, only standardized DC Circuit Breakers For Solar can ensure accurate fault tripping, reliable arc extinguishing and long-term safe operation of the system.

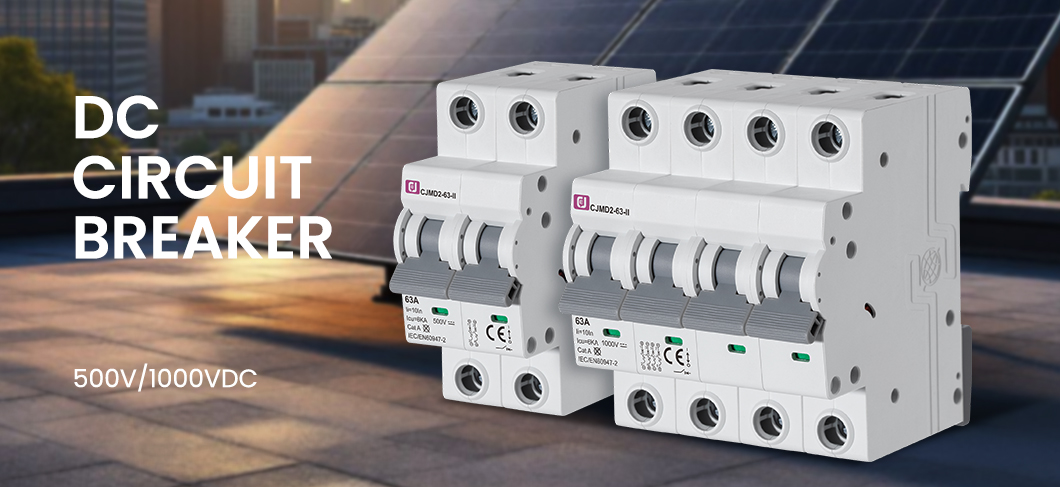

C&J Electrical CJM2-63 DC Miniature Circuit Breaker Product Overview
CJM2-63 series DC MCB is a high-performance dedicated DC protection device developed by C&J Electrical for new energy low-voltage DC distribution systems. The product strictly complies with national and international dual standards of GB/T 14048.2 and IEC60947-2, with a shell frame current of 63A. It covers complete current specifications from 1A to 63A and supports multi-pole and multi-voltage gradient adaptation, with a maximum withstand voltage of DC1000V.
ThisSolar DC Breaker features small size, simple structure and high operational reliability. It can be matched with diversified accessories such as auxiliary contacts, alarm contacts and shunt trips to expand protection functions flexibly. The auxiliary and alarm contact width is 9mm, and the shunt trip width is 18mm, realizing flexible function upgrading and meeting the personalized matching needs of different engineering projects.
Widely applicable to DC new energy scenarios including new energy DC power generation, energy storage power supply systems, data computer centers, communication power supply systems, smart city municipal facilities, smart home systems, transportation supporting power distribution and microgrid low-voltage systems, this DC Breaker For Solar is a universal core protection device for global new energy DC projects.
Core Structural & Performance Advantages
- Ultra-Wide Voltage Adaptation: Supports graded voltage adaptation of DC250V (1P), DC500V (2P), DC800V (3P) and DC1000V (4P), fully covering mainstream low-voltage DC power distribution voltage levels of solar and energy storage systems.
- Complete Current Specifications: Covers 1A to 63A full current gear, adapting to small-current precision protection and large-current main circuit protection of DC systems.
- Compact & Standardized Design: Single pole width is only 18mm, which saves installation space effectively. The top and bottom bidirectional wiring design improves construction flexibility.
- High Breaking Safety: Rated breaking capacity reaches 6kA, which can quickly and safely cut off DC short-circuit fault current and avoid equipment burnout and system failure caused by fault expansion.
- Flexible Accessory Expansion: Supports auxiliary contacts, alarm contacts, shunt trip and other accessories, realizing remote alarm, remote tripping and status monitoring functions.
- Durable Operation Performance: Adopts high-quality conductive and arc extinguishing materials, with 20,000 times mechanical life and 2000 times electrical life, adapting to long-term continuous operation of DC new energy systems.
- High Safety Protection Grade: The whole machine reaches IP20 protection grade, effectively preventing dust and accidental touch, and improving on-site operation and maintenance safety.
Full Technical Data
CJM2-63 series DC Circuit Breakers For Solar has standardized and complete technical parameters with rich specification gradients to meet differentiated engineering selection needs:
|
Technical Items
|
Specifications
|
|---|---|
|
Executive Standard
|
GB/T 14048.2, IEC60947-2
|
|
Shell Frame Current
|
63A
|
|
Rated Insulation Voltage (Ui)
|
500V
|
|
Rated Impulse Withstand Voltage (Uimp)
|
4kV
|
|
Rated Current Range
|
1A~63A
|
|
Rated DC Voltage
|
DC250V(1P)/DC500V(2P)/DC800V(3P)/DC1000V(4P)
|
|
Thermo-magnetic Release Characteristic
|
10In±20%
|
|
Pole Number
|
1P/2P/3P/4P
|
|
Single Pole Width
|
18mm
|
|
Rated Breaking Capacity
|
6kA
|
|
Reference Ambient Temperature
|
30°C
|
|
Utilization Category
|
A
|
|
Mechanical/Electrical Life
|
20000 / 2000 Cycles
|
|
Protection Degree
|
IP20
|
|
Max Wiring Capacity
|
25mm²
|
|
Wiring Mode
|
Top & Bottom Bidirectional Connection
|
Application Scenarios
Relying on high voltage resistance, stable DC breaking performance and flexible accessory expansion, CJM2-63 DC Miniature Circuit Breaker covers all mainstream low-voltage DC power distribution scenarios:
- Solar Photovoltaic Power System: As a professional DC Breaker For Solar, it is used for DC combiner boxes, photovoltaic string circuits and inverter front-end protection of distributed and centralized photovoltaic power stations, adapting to outdoor DC power generation working conditions.
- Energy Storage Power System: Applied for battery energy storage cabinet DC circuit protection, providing overload and short-circuit safety protection for energy storage battery clusters and DC power distribution equipment.
- Data & Communication Center: Suitable for computer room DC power supply systems and communication base station DC distribution circuits, ensuring stable and uninterrupted operation of precision equipment.
- Smart City & Public Facilities: Used for municipal engineering, public facility DC power distribution and smart home low-voltage DC systems, with high safety and strong stability.
- Transportation & Microgrid System: Adaptable to transportation supporting power distribution and independent microgrid DC power supply systems, meeting the safety protection needs of off-grid and distributed power supply scenarios.
Product Services & Supply Advantages
CJM2-63 series DC MCB has complete specifications, wide scenario adaptability and high safety performance. The multi-voltage and multi-current gradient design can meet the customized selection needs of different new energy projects. The expandable accessory structure makes the product more adaptable to intelligent and remote monitoring engineering needs.
C&J Electrical provides comprehensive supporting services for this product, supporting OEM/ODM brand customization to meet personalized product and solution needs of global customers. We support SKD loose parts delivery to meet diverse procurement and assembly cooperation needs. If you have any questions about product selection, parameter matching, scenario adaptation and customized cooperation, please feel free to contact us for professional technical support.
Contact Us
In summary, AC breakers cannot replace professional DC Circuit Breakers For Solar in DC power distribution systems. Professional Solar DC Breaker represented by CJM2-63 series effectively solves the safety pain points of DC arc extinguishing and fault breaking, providing reliable safety guarantees for global new energy DC power distribution projects.
Welcome global customers to consult, purchase and customize products. C&J Electrical will provide full-cycle professional after-sales service and technical support.
