Understanding Type B Earth Leakage Circuit Breakers: A Comprehensive Guide
In the field of electrical safety, residual current circuit breakers (RCCBs) play a vital role in protecting personnel and equipment from electrical faults. Among the various types of RCCBs available on the market, Type B RCCBs stand out due to their unique features and applications. This article will delve into the characteristics, advantages, and applications of Type B RCCBs, providing a comprehensive understanding of this important electrical component.

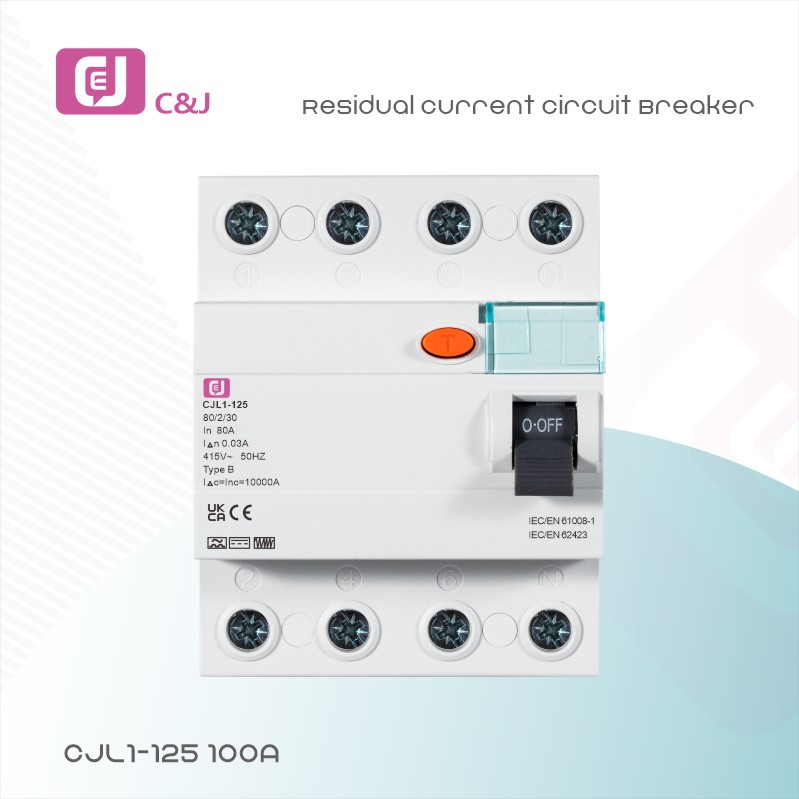

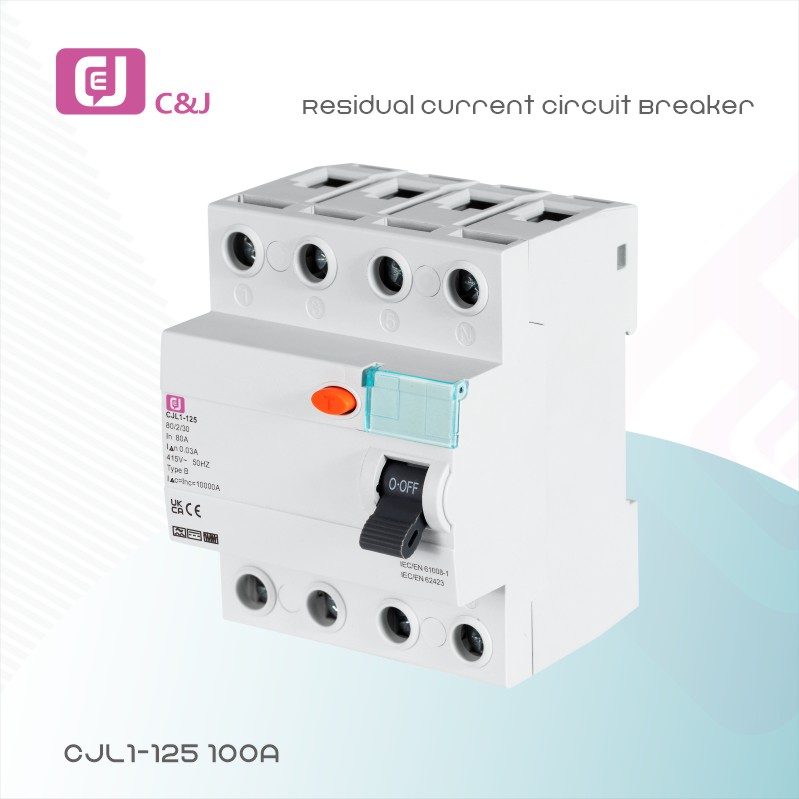

What is a Type B RCCB?
Type AB RCCBs, or Type B residual current circuit breakers, are used to detect and interrupt residual currents in circuits. Unlike standard RCCBs, which are primarily suitable for alternating current (AC) applications, Type B RCCBs can handle both AC and pulsating direct current (DC) residual currents. This makes them particularly useful in modern electrical installations, especially with the growing adoption of renewable energy sources such as solar panels and electric vehicle charging stations.
Main features of Type B RCCB
1. Dual Current Detection: One of the notable features of Type B RCCBs is their ability to detect both AC and DC residual currents. This dual functionality enables them to provide protection in a wider range of applications, achieving versatility and reliability.
2. High Sensitivity: Type B RCCBs are designed to trip at low residual currents (typically 30mA or 300mA). This high sensitivity is essential to prevent electric shock and reduce the risk of electrical fires.
3. Compact Design: Many Type B RCCBs are compact in design and can be easily installed in various switchboards without taking up too much space.
4. Compliant with standards: Type B RCCBs are manufactured in accordance with international safety standards, ensuring they meet the necessary requirements for electrical safety and performance.
Benefits of using Type B RCCB
1. Enhanced safety: The main advantage of using a Type B RCCB is the enhanced safety it provides. By detecting and interrupting residual current, these devices significantly reduce the risk of electric shock and electrical fires, thereby protecting people and property.
2. Versatility: Type B RCCBs are suitable for a wide range of applications, including residential, commercial, and industrial settings. Their ability to handle both AC and DC currents makes them ideal for renewable energy systems and electric vehicle installations.
3. Regulatory Compliance: Many regions have regulations requiring the use of Type B residual current circuit breakers in specific applications, especially those involving solar energy systems. Using these devices ensures compliance with local electrical codes and standards.
4. Long-Term Cost Savings: While the initial cost of a Type B RCCB may be higher than a standard RCCB, its ability to prevent electrical faults can result in significant long-term cost savings. By reducing the risk of equipment damage and costly repairs, a Type B RCCB is a worthwhile investment in any electrical installation.
Application of Type B RCCB
Type B RCCBs are commonly used in a variety of applications, including:
- Solar Power Generation Systems: With the increasing popularity of solar energy, Type B RCCBs are essential to protect solar inverters and ensure the safety of solar installations.
- Electric Vehicle Charging Stations: As electric vehicles grow in popularity, Type B RCCBs are essential to protect charging stations from potential electrical faults.
- Industrial Equipment: Many industrial machines and equipment generate direct current, so Type B RCCBs are important components for ensuring safety in manufacturing and processing environments.
In short
In summary, Type B residual current circuit breakers (RCCBs) are an indispensable component of modern electrical safety systems. Their ability to detect both AC and DC residual currents, high sensitivity, and compliance with safety standards make them a reliable choice for a wide range of applications. With the continued growth in demand for renewable energy solutions and electric vehicles, the importance of Type B residual current circuit breakers (RCCBs) in ensuring electrical safety cannot be underestimated. Investing in these devices not only improves safety but also enhances the overall efficiency and reliability of electrical equipment.
