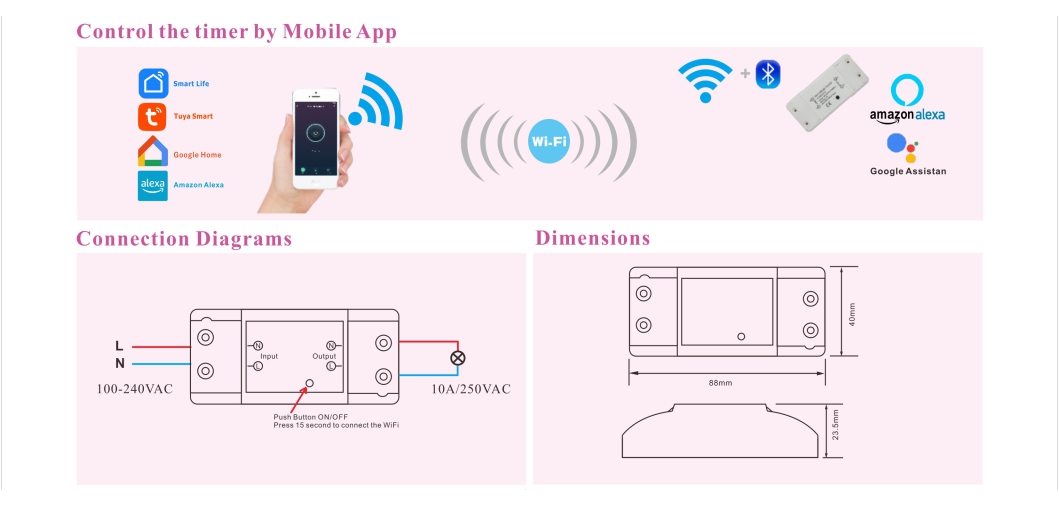

Hot sale ATMS1301 Tuya Light on/off Remote Control WiFi Smart Energy Meter Timer

Short Description:

Product Detail

Product Tags

Function

1.Program timer, can set 30 On/Off programs one day or per week.
2.Astronomical timer, Circulate timer, Random timer function
3.Count down time, from 1 Min to 23 hours 59 Mins.
4.If the product is disconnected from the network, the timer retains all programs set up by Mobile App and works according to the set programs.
5.The power-on state can be selected by yourself, there are 3 states:
1) Remember last status.
2) On.
3) Off
6.The factory default state is remember last status.
7.Also can controlled by buttons from terminal Al and A2.
8.Can be share with 20 users by Mobile App.
9.The products can be worked with Amazon Alexa and Google Assistan.
10.With Bluetooth function, when the WIFI signal is disconnected for 5 minutes, you can use the mobile APP to control the on and off of the product through Bluetooth.

Technical Data

Contact specification	ATMS1301
Contact configuration	1NO(SPST-NO)
Rated current/Maximum peak current	10A/250VAC(COSφ=1)
Rated voltage/Maximum switching voltage	230V AC
Rated load AC1	2200VA
Rated load AC15 (230 VAC)	450VA
Nominal lamp rating: 230V incandescent/halogen	1800W
Fluorescent tubes with electronic ballast	900W
Fluorescent tubes with electromechanical ballast	1200W
CFL	360W
230V LED	360W
LV halogen or LED with electronic ballast	360W
LV halogen or LED with electromechanical ballast	900W
Minimum switching load mW(V/mA)	1000(10/10)
Supply specification
Nominal voltage (UN)	100-240V AC(50/60Hz)
Rated power	3VA/1.2W
Operating range AC(50 Hz)	(0.8…1.1)UN
Technical data
Electrical life at rated load in AC1 cycles	1×10^5
WiFi Frequency	2.4GHz
Ambient temperature range	-20°C~+60°C
