Hot sale 1WAY Waterproof Push Button Switch Electrical Plastic Control Station IP65 Switch Box

Short Description:

This 1Way waterproof box, paired with a 1NO+1NC flat push button, is a premium product designed for circuit control in harsh environments. Its excellent waterproof performance and professional sealing design effectively withstand harsh conditions like humidity and water, ensuring reliable operation even in wet, outdoor rain or humid industrial workshops.

The flat pushbutton is extremely easy to operate, with clear feedback and a comfortable feel. The 1NO (normally open) and 1NC (normally closed) contact configuration provides tremendous flexibility for circuit control.

It can be flexibly applied to various circuit logics, such as equipment start/stop control and signal switching, according to actual needs. It is suitable for diverse scenarios in a wide range of fields, including industrial automation and electrical control. Whether controlling production line equipment or transmitting signals across various electrical devices, it delivers precise responses, providing reliable control for efficient and stable operation,making it an ideal choice for enhancing equipment control convenience and stability.


Product Detail

Product Tags

Product Features

  1. Excellent Waterproof Performance: Utilizing a professional sealing process, it effectively blocks water intrusion and operates reliably in harsh, humid, and wet environments, making it suitable for outdoor use and wet industrial workshops.
  2. Flexible Contact Configuration: Equipped with one NO (normally open) and one NC (normally closed) contact, it can flexibly implement functions such as device start/stop, signal switching, and other functions to meet diverse circuit control requirements, adapting to various control logics.
  3. Convenient Operation: The flat button design provides clear feedback and a comfortable feel, making operation easy and responsive, ensuring quick response to control commands and enhancing the convenience of device control.



Technical Data

Push Button Mode SAY7-C

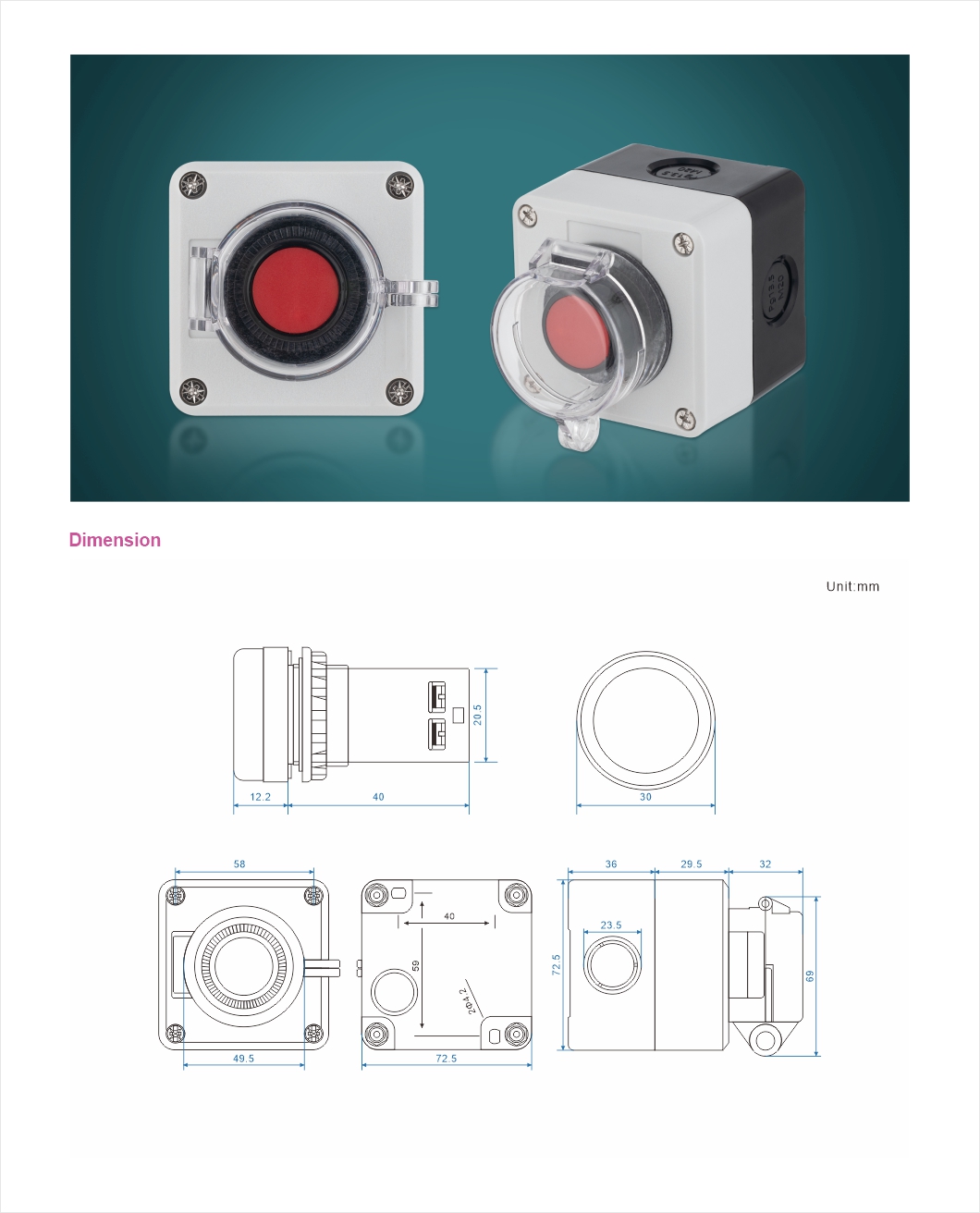

Installation dimensions Φ22mm
Rated voltage and current Ui: 440V, lth:5A.
Mechanical life ≥ 1,000,000 times.
Electrical life ≥ 100,000 times.
Operation Normal button
Contact 11(1NO+1NC)

1Way Push Button Box (7)
