    High quality IP67 Waterproof Control Box Switch Plastic Switch Emergency Stop Push Button box

    Short Description:

    The HOW-1 series emergency stop button box, which integrates the LA39 – 11ZS emergency stop switch, is meticulously engineered specifically for emergency working conditions within industrial control systems.

    It features a prominent mushroom – head self – locking button. This button design, complete with a rotation – based reset function, ensures that once activated in an emergency to halt operations, it stays in the triggered state until intentionally reset by authorized personnel through the rotation action. This helps prevent accidental or premature restoration of equipment operation before the situation is properly assessed.

    Regarding installation, multiple installation methods are adaptable. Whether it’s the space – saving direct screw – in installation, the more secure angled screw installation to prevent loosening, or the simple nut – based installation, it can be flexibly deployed to suit different panel and site layout requirements.


    Product Detail

    Product Tags

    Emergency stop button box (6)

    Product Features

    1.Safe and Reliable Design: Equipped with the LA39-11ZS emergency stop switch, it features a mushroom-head self-locking button with a rotation reset mechanism. In case of emergencies, it can quickly trigger shutdown to effectively avoid hazards and ensure the safety of equipment and personnel.
    2.Excellent Protection Performance: The basic protection grade reaches IP54, with IP65 available as an option. When fitted with the F1 protective cover, it can achieve IP67, enabling it to resist dust, splashing water, etc., adapt to various industrial environments, and extend service life.
    3.Stable Electrical Performance: It covers a wide range of voltage and current, adopts a spring-type action mechanism with contact self-cleaning function, and supports up to six sets of optional contacts. With reliable contact performance, it meets the needs of different control circuits and boasts a long electrical service life.



    Technical Data

    Mode HOW-1

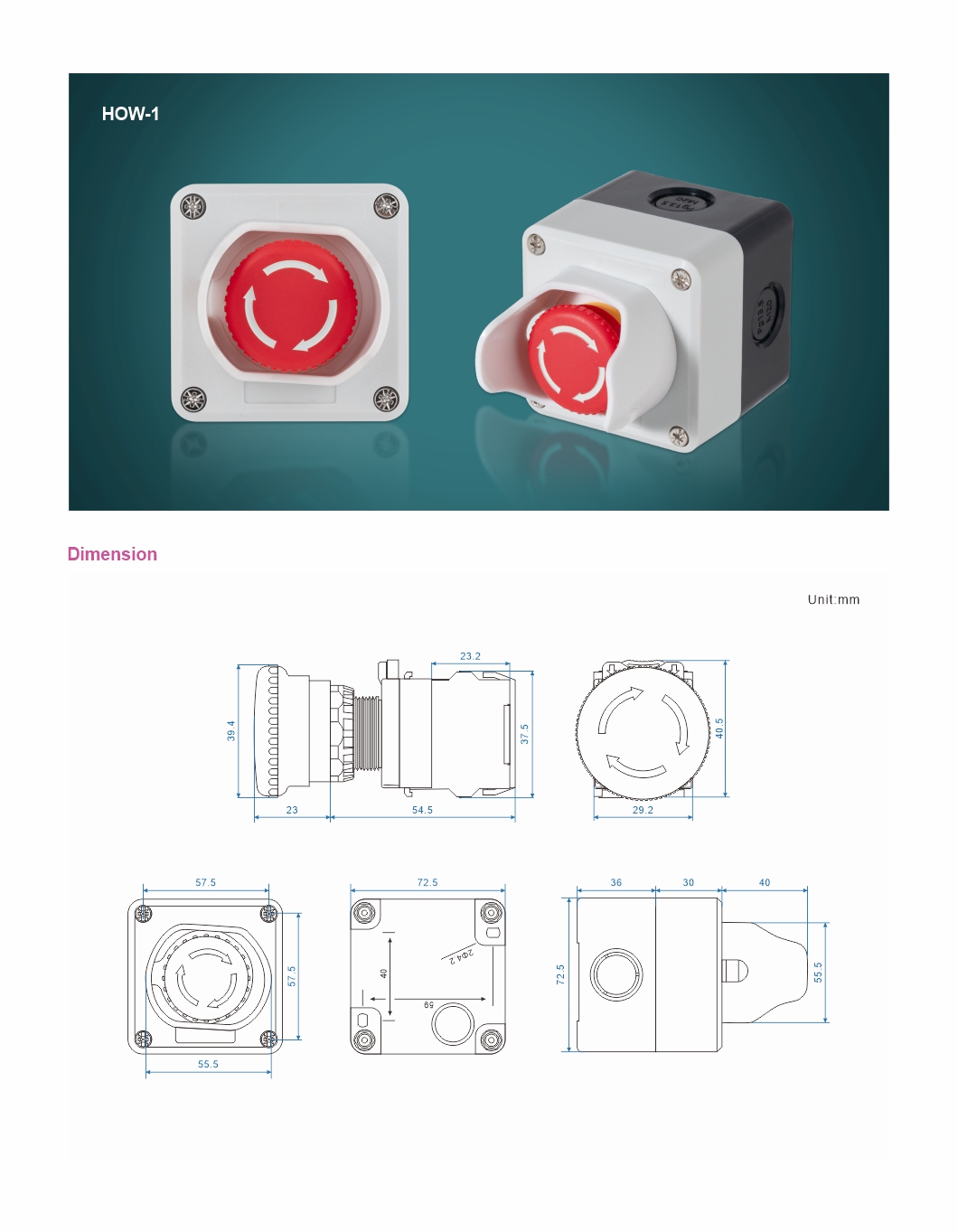

    Installation dimensions Φ22mm
    Rated voltage and current Ui: 440V, lth:10A.
    Mechanical life ≥ 1,000,000 times.
    Electrical life ≥ 100,000 times.
    Operation ZS: maintained
    Contact 11/22
