High quality DIN Rail Single Phase Weekly 7 Days Programmable Relay Timer Digital Time Switch

Short Description:

A time switch is a timing device that switches an electrical circuit on or off after a set period. Conserve energy by turning off lights and heating or cooling devices when not needed or regulating the process in machinery. It does not operate in parts of its cycle where the components may be causing problems. A timer is an electronic device that controls the ‘on’ and ‘off’ time of electrical equipment such as light fixtures, ovens, stoves, clothes washers, dryers, air conditioners, and sprays for insect control – basically any appliance that uses electricity. Digital timers are available in different ranges and types depending on your requirements – they are ideal for regulating processes where accuracy is essential.


Product Detail

Product Tags

Function

  • DIN RAIL installation,1 channel
  • LCD display, Day/week program
  • 90 memory locations(45 ON/OFF programs)
  • Pulse Program: 44 memory locations(22 times pulse programs)
  • Lithium battery power reserve 3 year,when electric supply cut off
  • Auto time erro correction ±30 sec, weekly
  • Six languages: English,Portuguese,Italian,Spanish,German, French
  • Random switching,PIN coding, holiday program and pulse program,Automatic summer/winter time changeover

Technical Data

ltems Program Operating Voltage Rated Current Number of channels Number of Memory Power reserve Power Consumption
AHC15A Daily/Weekly/Pulse/Auto DST 230VAC 16 1 20 3 years 3 VA/5VA
AHC15D Daily/Weekly/Pulse/Auto DST 110V-230VAC 16 1 20 3 years 3 VA
AHC15A(20A) Daily/Weekly/Pulse/Auto DST 230VAC 20 1 20 3 years 5 VA
AHC17A Daily/Weekly/Pulse/Auto DST 230VAC 30 1 20 3 years 5 VA
AHD16T Astro/Daily/Weekly/Pulse/Auto DST 230VAC 16 1 8 3 years 3 VA/5VA
AHC15T Latitude Time Switch 230VAC 16 1 8 3 years 3 VA

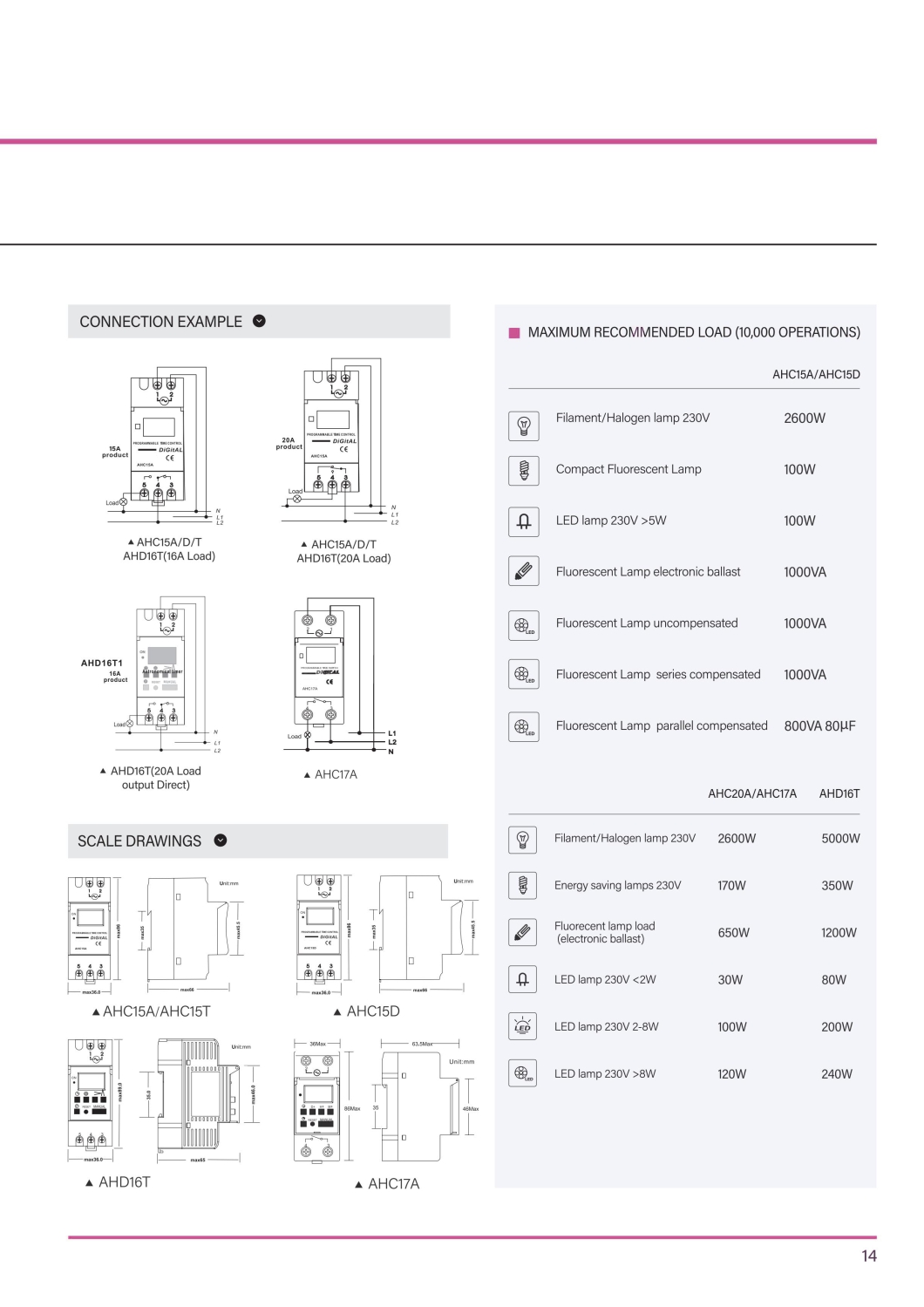

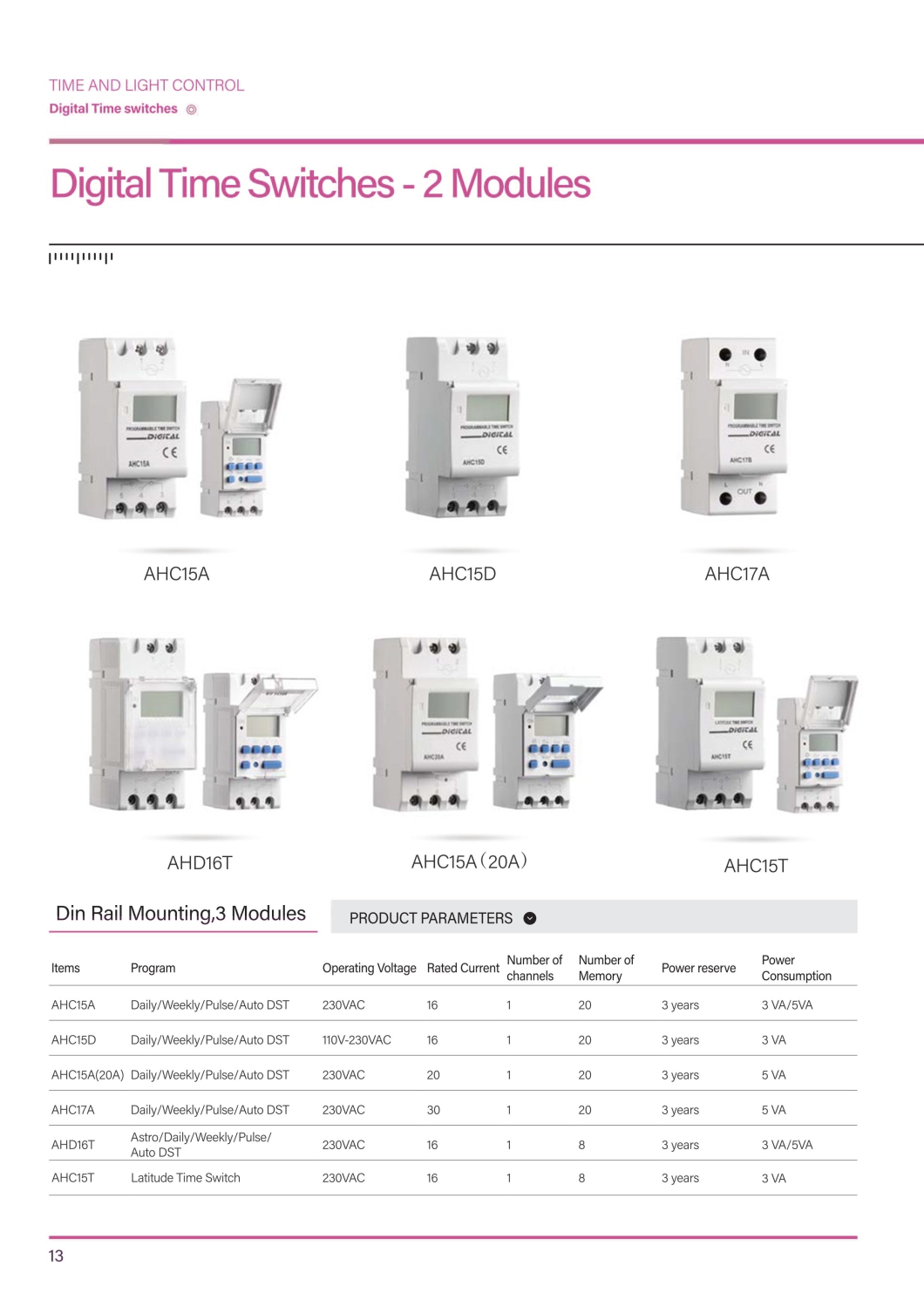

AHC15A Digital Time Switch_7【宽7.62cm×高7.62cm】 AHC15A Digital Time Switch_8【宽7.62cm×高7.62cm】
