High quality 400A 3P Disconnector switch Fuse Metal Electrical Distribution Box Enclosure

Product characteristics

1. CGLR(HGLR)  I type is of modular design structure.
2. Ensure making and break under load, reliable over-current and short-circuit off-protection.
3. Apparent visible off state.
4. possesses two poles,  three poles, and four poles (3 poles+on and off neutra pole).
5. Total 10 sizes from 63A~400A.

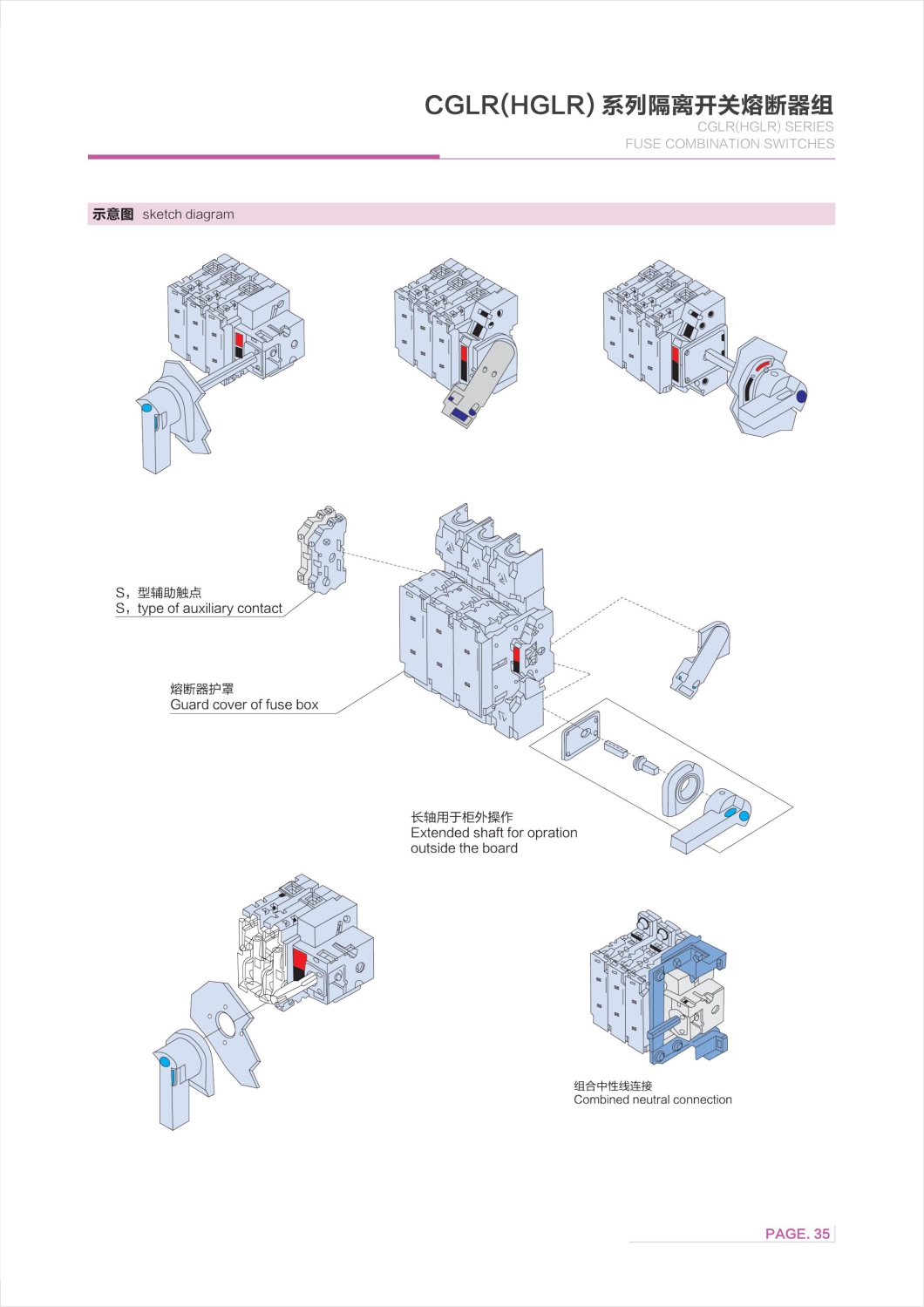

Structures and operation forms

1. Direct front operation: The handle is installed in front of the switch.
2. Direct side operation: The handle is installed at the right side of the switch. (users who want the handle assembled at the left of the switch should make a clarification).
3. Front operation outside the board: the handle is assembled at the front of the distributing board.
4. Side operation outside the board: The handle is assembled at the right side of the board(users who want the handle assembled at the left should make a clarification)
5. S type of auxiliary contact can be provided.

Product Parameters
