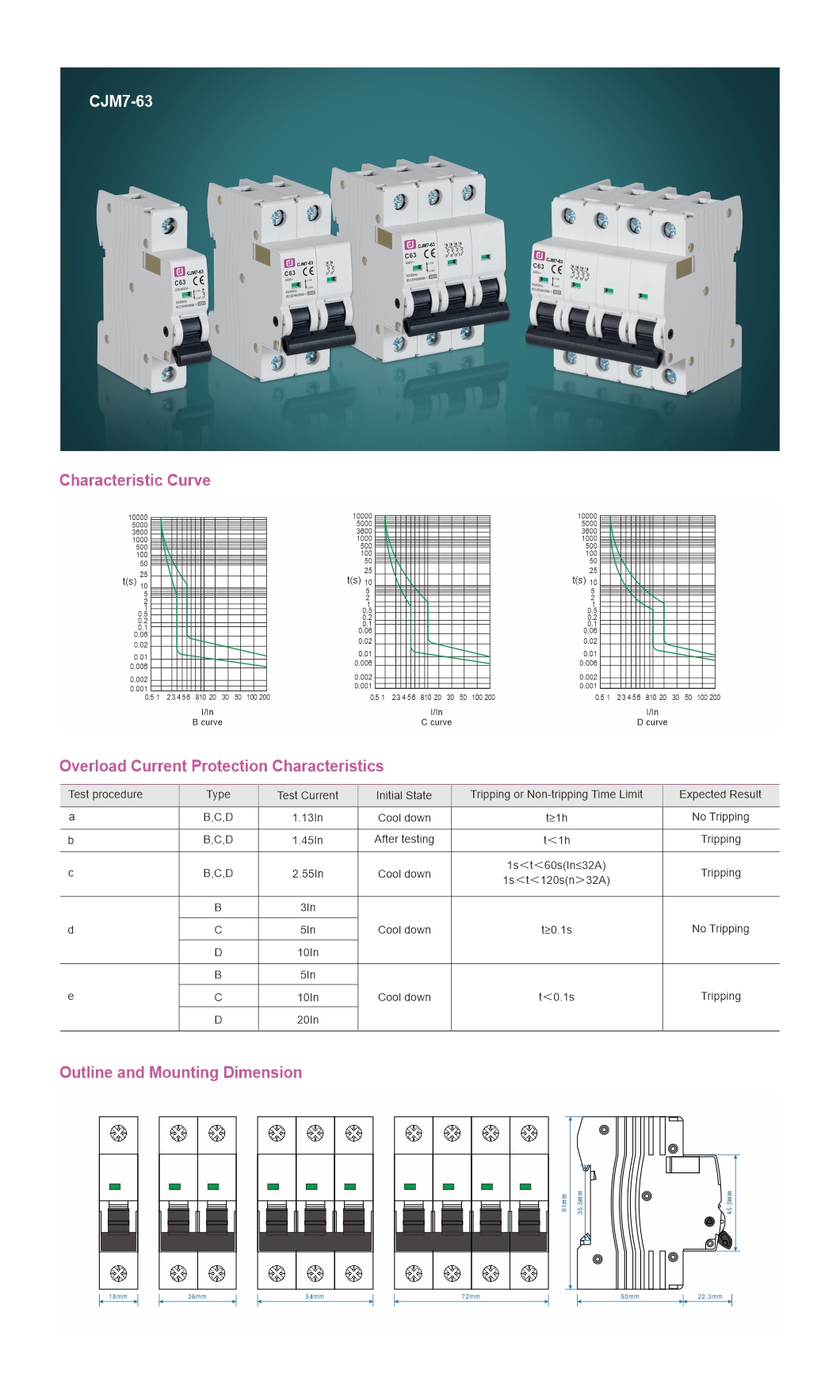

High-Performance 6-63A Overload Protection Electrical MCB Miniature Circuit Breaker

Overload short circuit protection and Contact position indicator window;
The curved cover and handle make operation more comfortable and appearance more beautiful;
Easily mounted on 35mm DIN rail;
Assemblable accessories: shunt release, over-voltage and under-voltage release, auxiliary contact, alarm contact.

Product Detail

Standard	IEC/EN 60898-1
Pole	1P, 1P+N (2 modules), 2P, 3P, 3P+N, 4P
Rated voltage	AC 230/400V
Rated current(A)	1,2,3,4,6,10,16,20,25,32,40,50,63
Trip curve	B, C, D
High short-circuit breaking capacity (lcn)	6KA
Rated frequency	50/60Hz
Mechanical life	4000 times
Sectional area of terminal connection	25mm2 and below conductors
Terminal blocks	Screw Terminal
Terminal blocks	Column Wiring Method
Tightening torque	2N.m
Installation	Installation of 35.5mm guide rail
Installation	Vertical installation
